Magneto Stator for KTM 250 EXC-F, 300 XC-W, 400 XC-W, 250 XC | 59039104000
Magneto Stator for KTM 250 EXC-F, 300 XC-W, 400 XC-W, 250 XC | 59039104000
Couldn't load pickup availability
Product Overview

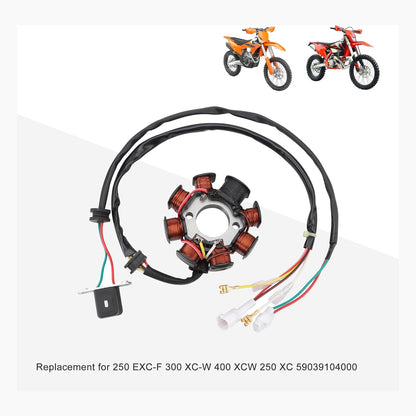

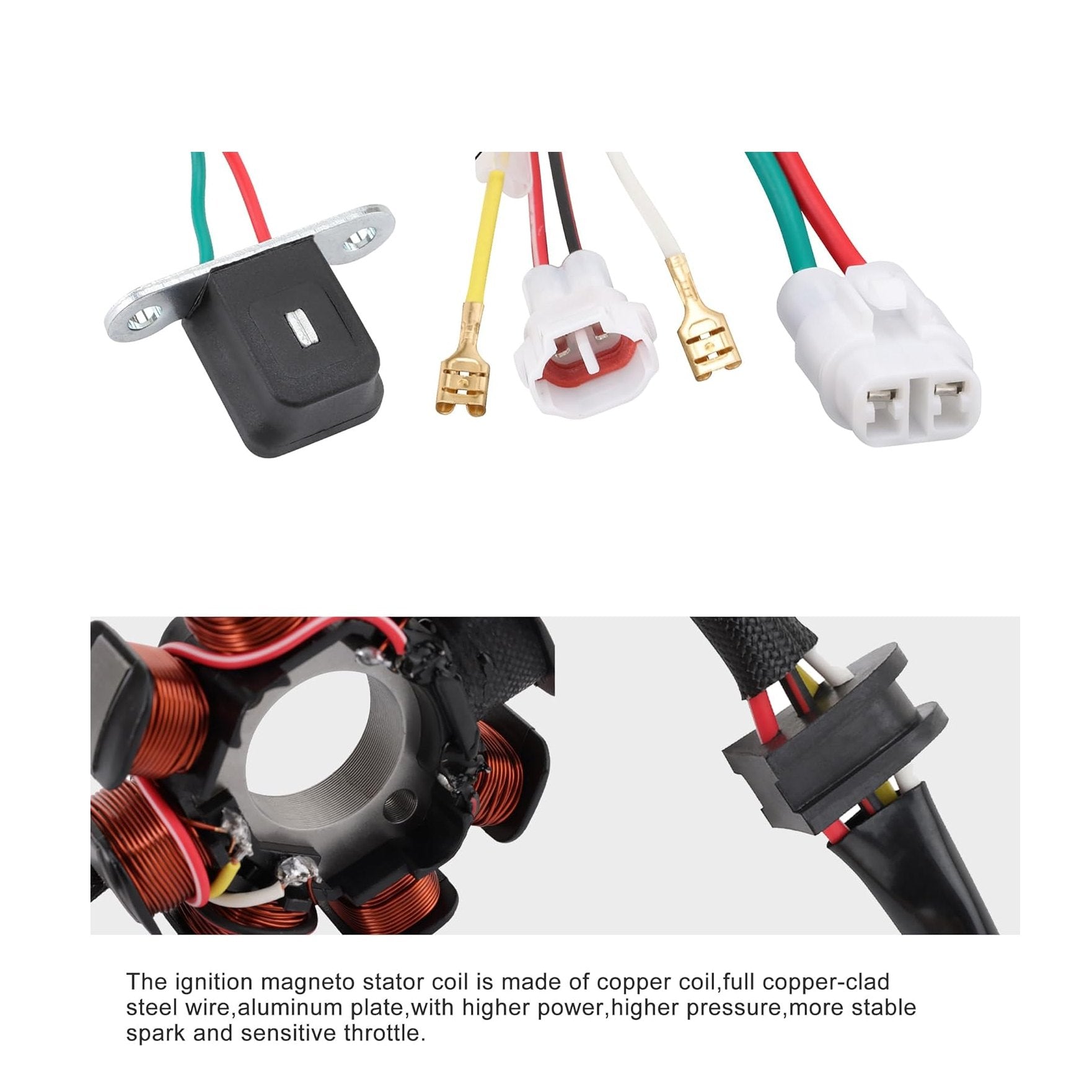

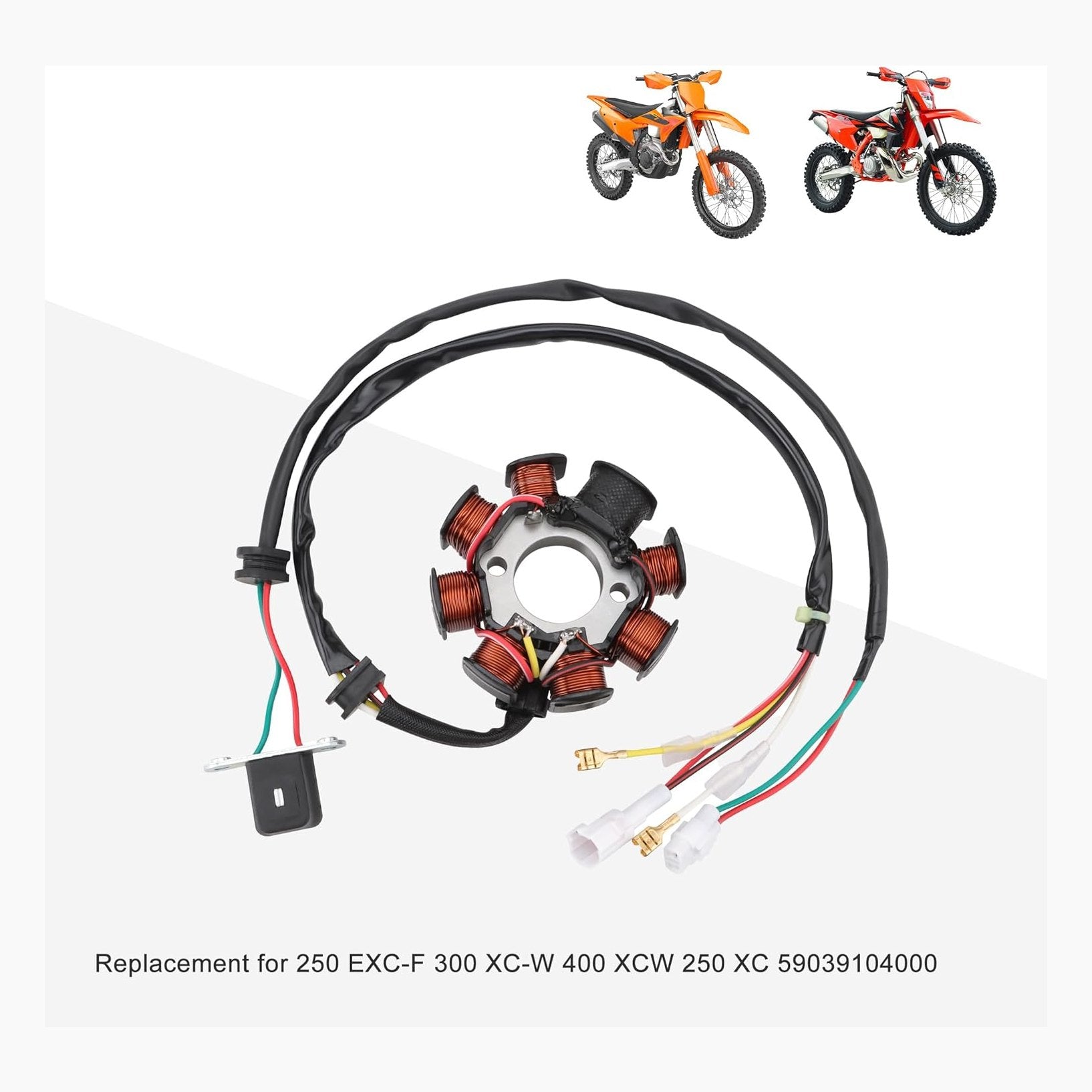

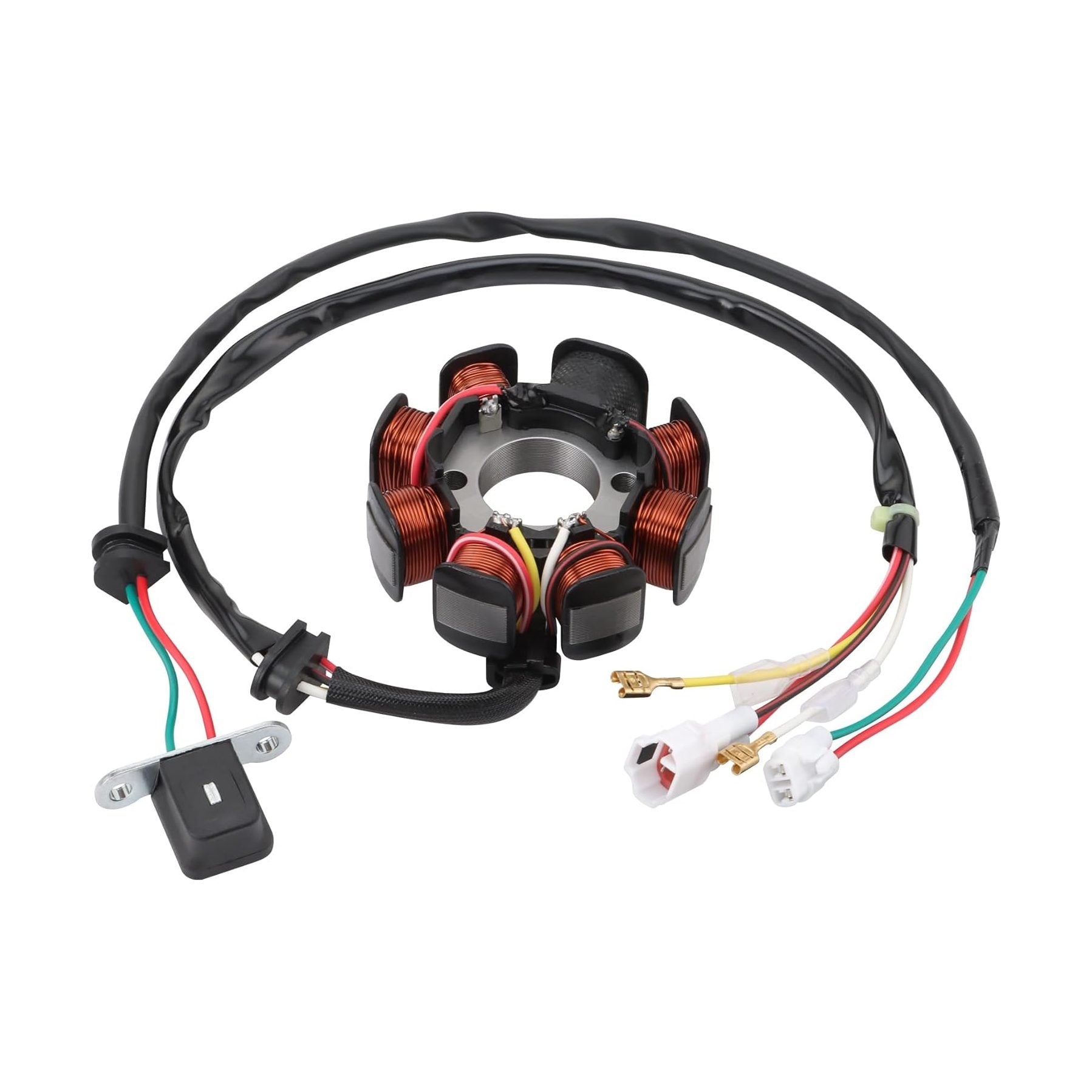

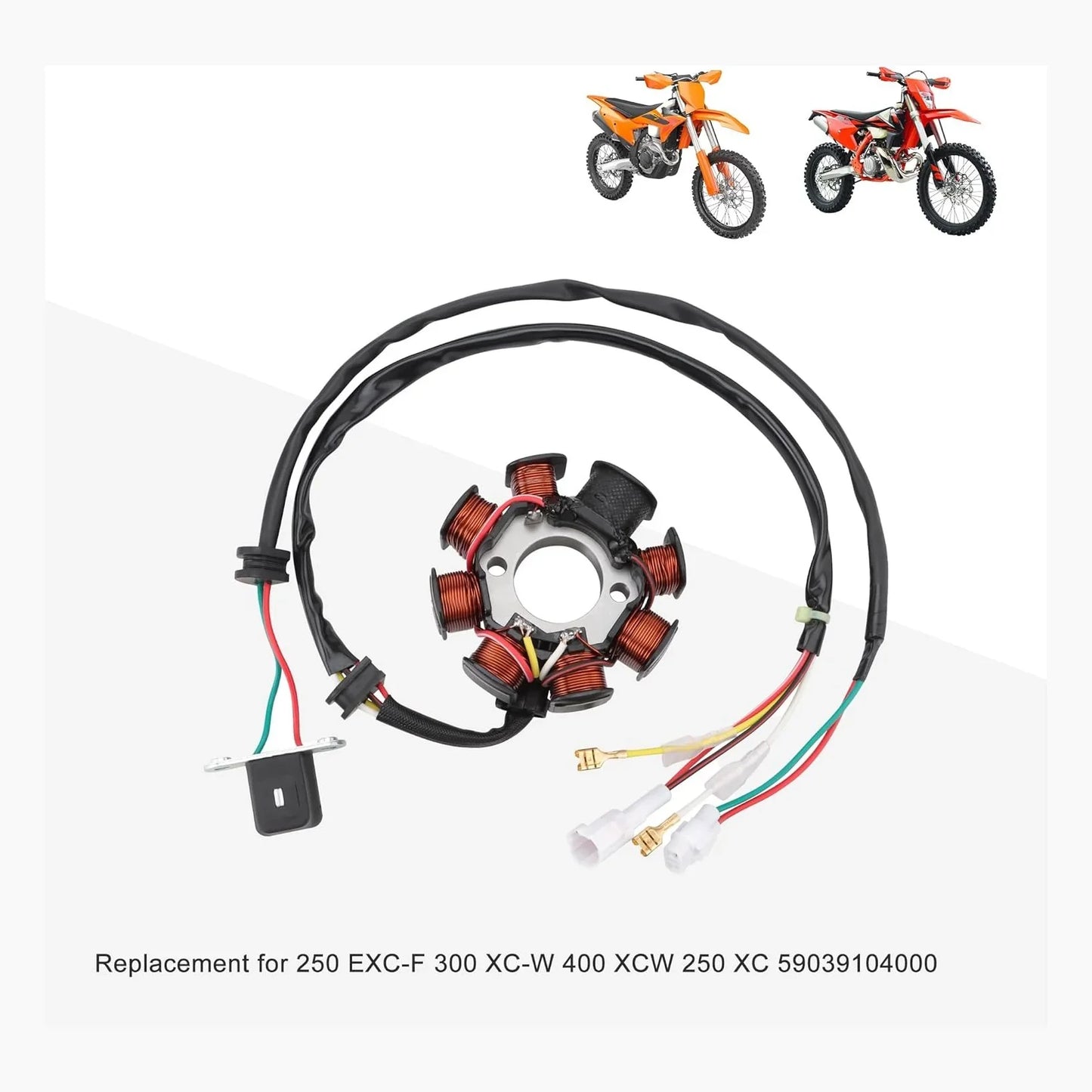

Restore reliable ignition and stable power to your KTM with this high-performance magneto stator. Designed for EXC-F, XC-W, SX, and XC models, it delivers strong spark output and consistent voltage for off-road riding. Built with high-purity copper windings and a heat-dissipating aluminum base for durability in extreme racing conditions.
Product Compatibility
| Brand | Model Series | Engine | Model Type | Year Range |
|---|---|---|---|---|
| KTM | 250 | 250cc | EXC-F / XC / XC-W | 2002–2011 |
| KTM | 300 | 300cc | XC-W / EXC | 2000–2012* |
| KTM | 400 | 400cc | XC-W / EXC | 2007–2010 |
| KTM | 450 | 450cc | SX / EXC / MXC | 2003–2012* |
| KTM | 525 | 525cc | SX / EXC / MXC | 2003–2012* |
OEM Cross Reference:
- 59039104000
- 59039104200
Specifications

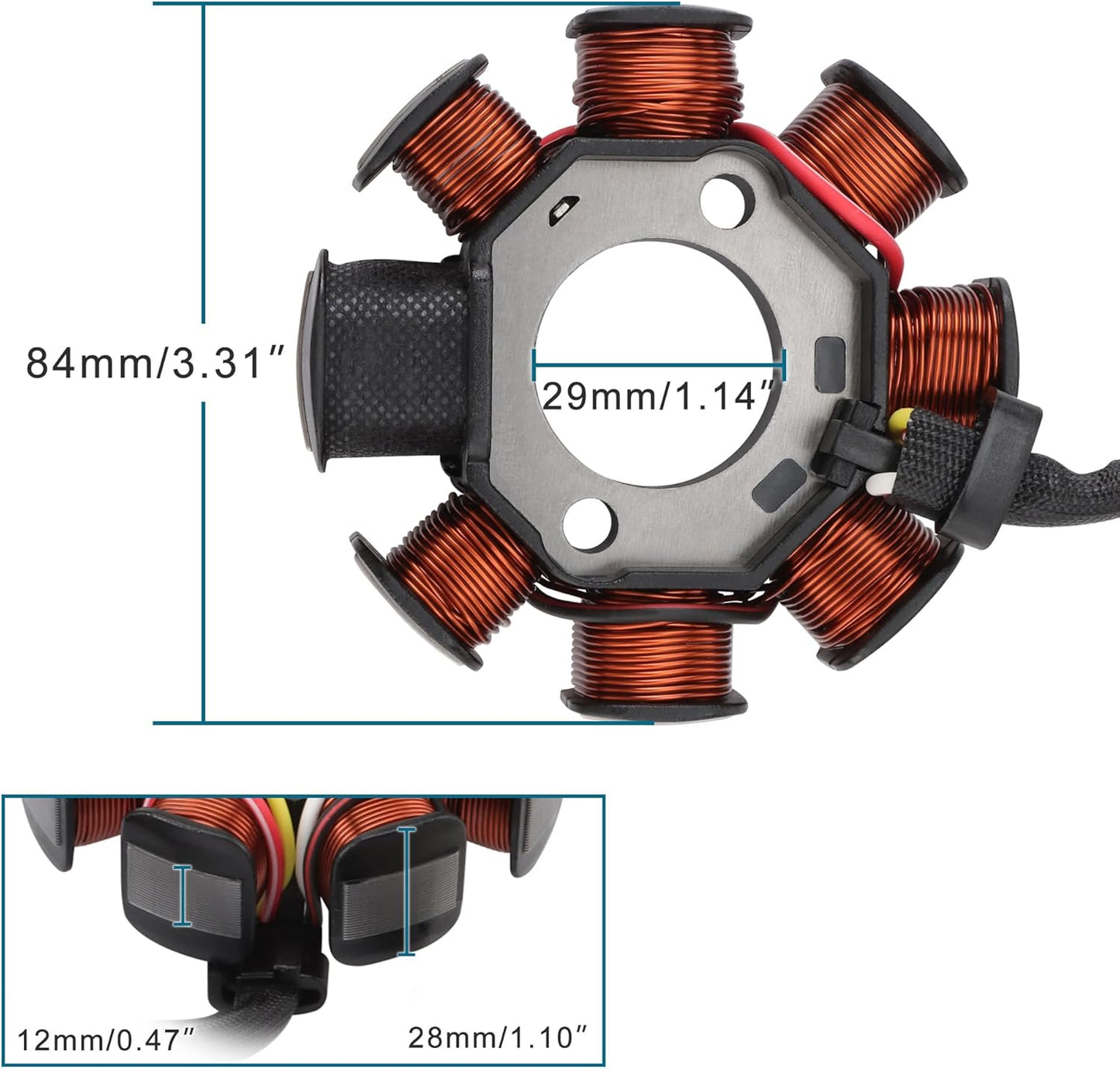

| Specification | Details |
|---|---|
| Outer Diameter | 84 mm (3.31") |
| Inner Diameter | 29 mm (1.14") |
| Core Thickness | 12 mm (0.47") |
| Material | High-purity copper windings |
| Base Plate | Aluminum (heat dissipation) |
| Condition | 100% New Aftermarket |
Key Features
- High Output Ignition Power – Stronger spark for easier starting and smoother throttle
- Stable Voltage Supply – Protects CDI and electrical components
- Heat-Resistant Design – Aluminum base improves cooling under high load
- OEM Direct Replacement – Plug-and-play fit for KTM models
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for the listed KTM off-road models that use OEM 59039104000 or 59039104200, including select KTM 250 EXC-F / XC / XC-W models from 2002–2011, 300 XC-W / EXC models from 2000–2012, 400 XC-W / EXC models from 2007–2010, and select 450 / 525 SX, EXC, and MXC models within the listed year ranges. Because KTM model names overlap across engine platforms and markets, please confirm your exact model, year, engine series, original OEM number, connector style, and stator dimensions before ordering.
Do I need to match the OEM part number?
Yes. For this KTM stator, the most important references are OEM 59039104000 and 59039104200. If your original stator, parts diagram, or service manual lists one of these numbers, this product is more likely to be the correct replacement. If your OEM number is different, do not rely only on the model name; compare the mounting plate, wiring, plug style, and stator measurements first.
What models or situations does this part not fit?
This stator may not fit KTM models outside the listed year ranges, models using a different ignition system, or bikes with a different stator plate, connector, wire routing, flywheel clearance, or pickup layout. It should not be ordered only because the bike is a KTM 250, 300, 400, 450, or 525; many KTM off-road models changed electrical parts by year and submodel.
What should I check before ordering?
Before ordering, compare your original stator with the product photos and confirm OEM 59039104000 / 59039104200, outer diameter 84 mm, inner diameter 29 mm, core thickness 12 mm, base plate shape, mounting hole position, connector style, pickup wire routing, and clearance inside the ignition cover.
