Magneto Stator for KTM 250 XC-F (2011-2015) | OEM 77239004000
Magneto Stator for KTM 250 XC-F (2011-2015) | OEM 77239004000
Couldn't load pickup availability
Product Overview

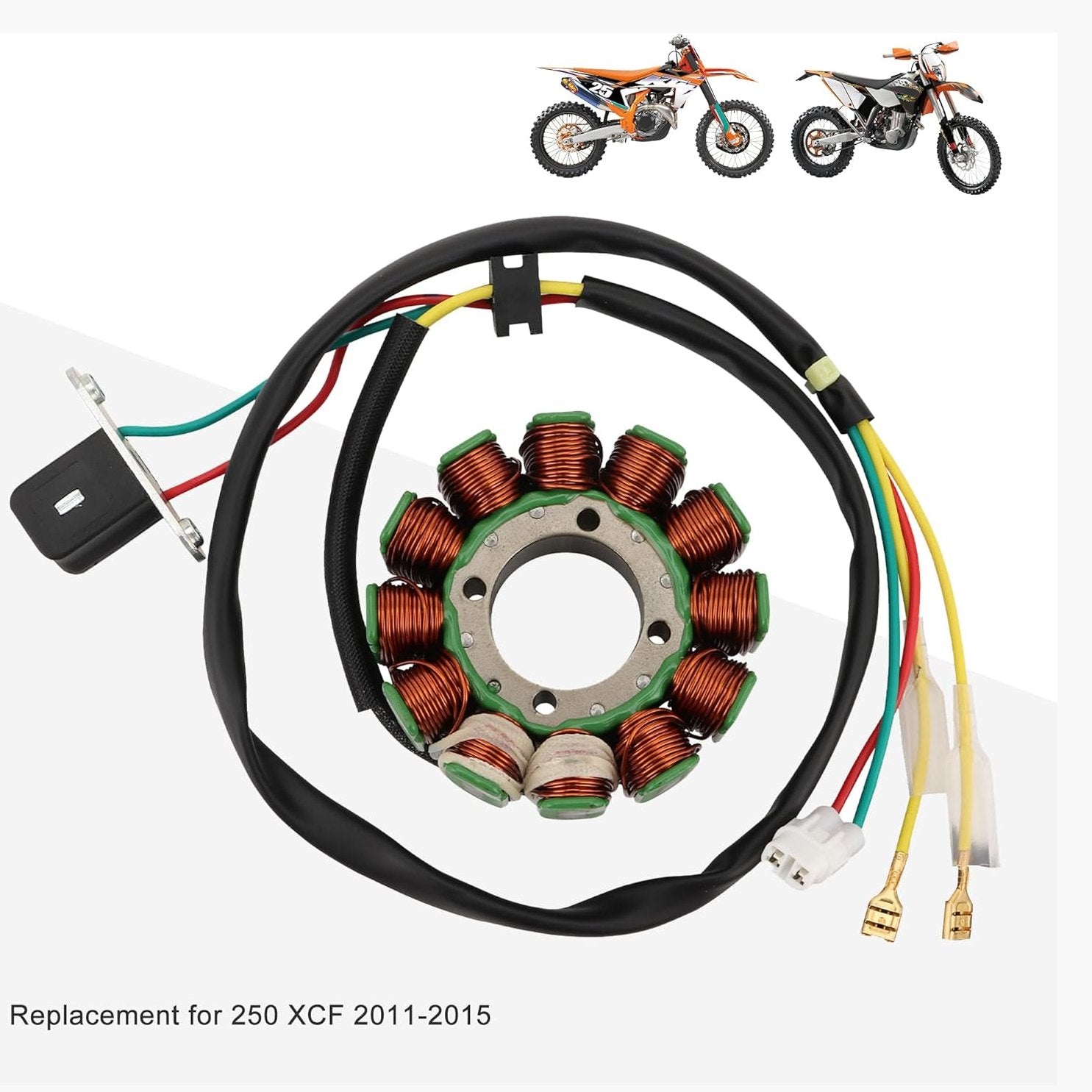

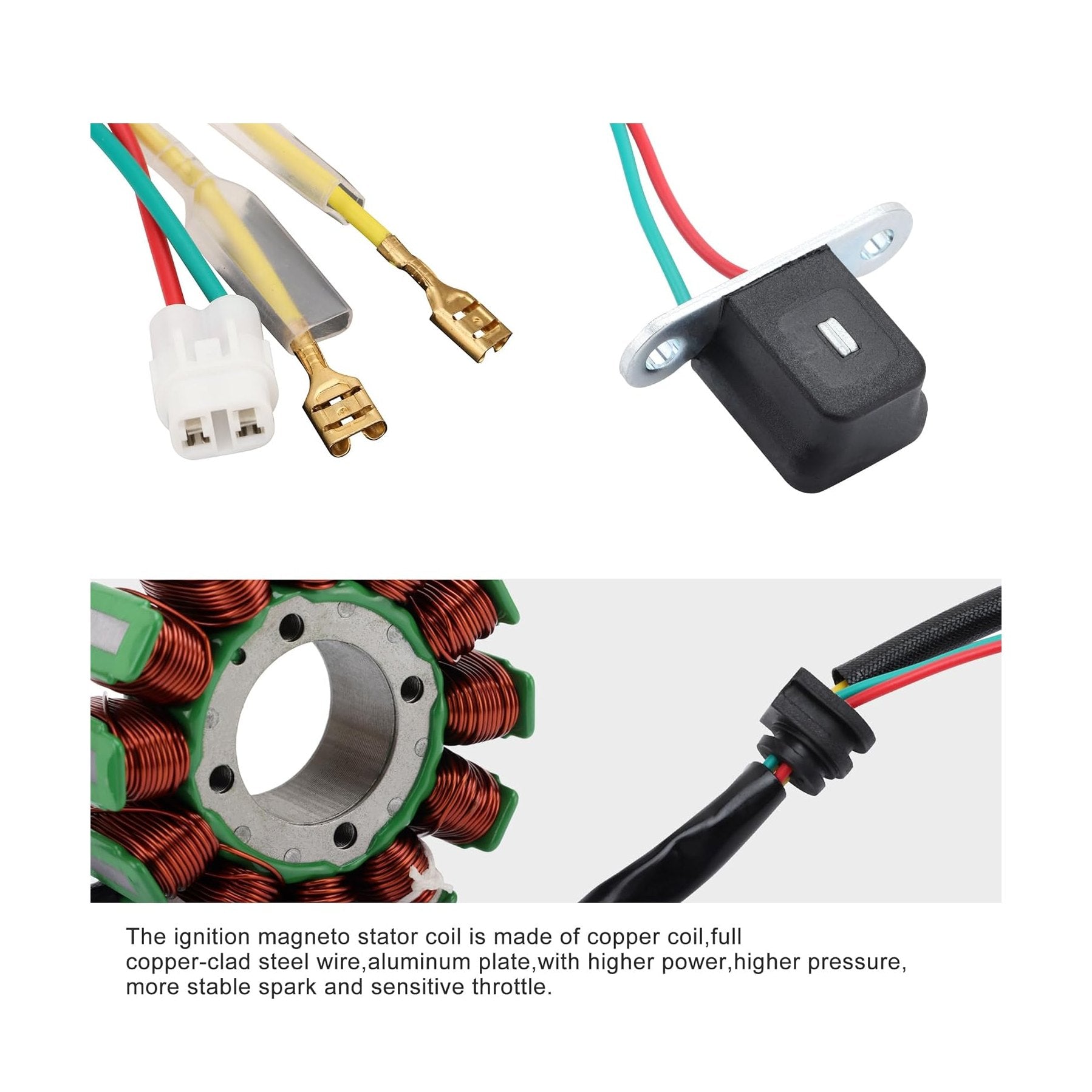

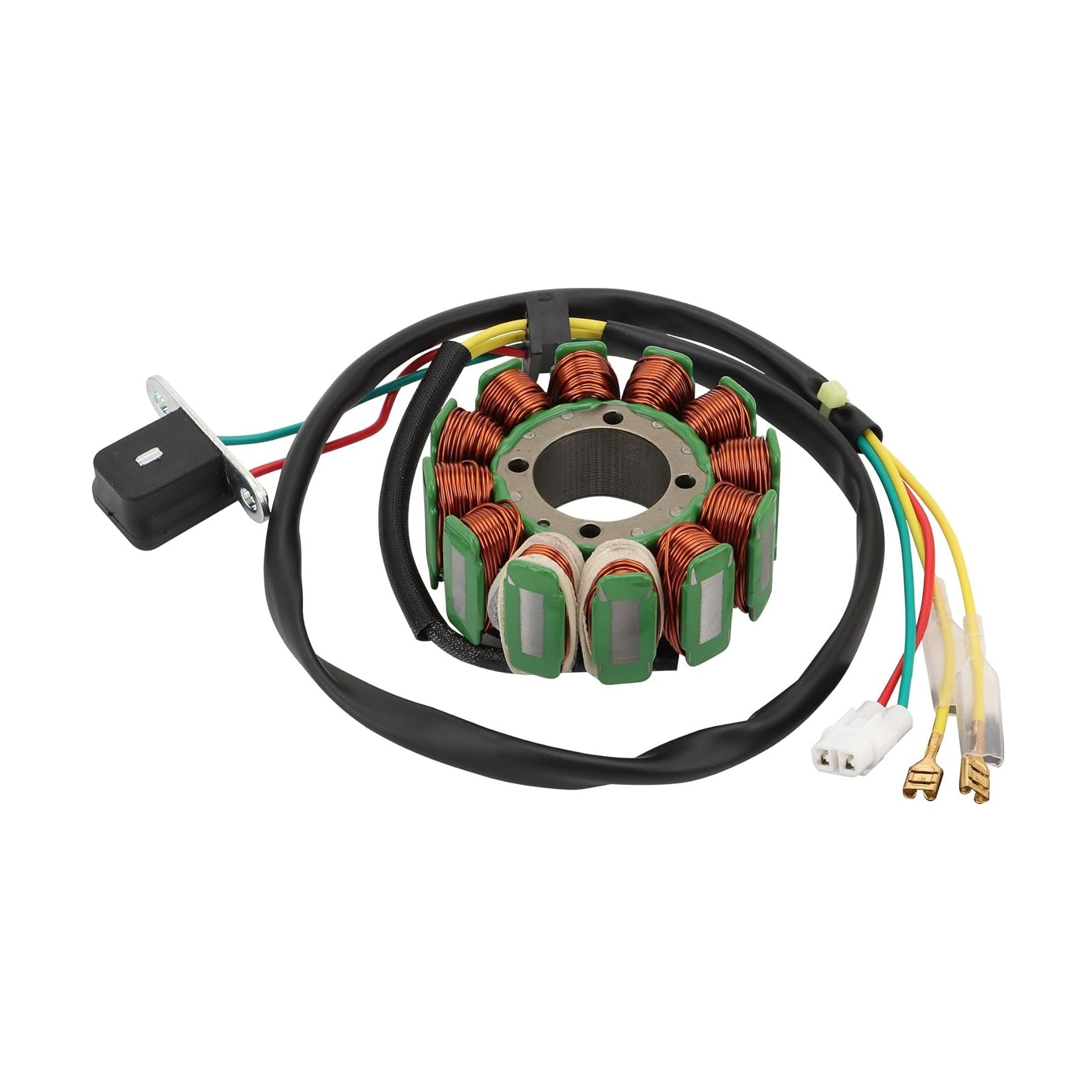

Restore strong ignition and stable power with this high-performance magneto stator for KTM 250 XC-F (2011–2015). Designed for off-road performance, it delivers consistent voltage output for smooth engine operation, quick starts, and improved throttle response. Built with high-purity copper windings and an aluminum base for superior heat dissipation.
Product Compatibility
| Brand | Model | Engine | Year Range |
|---|---|---|---|
| KTM | 250 XC-F | 250cc | 2011–2015 |
OEM Cross Reference:
- 77239004000
- 77139004000
Fitment Notes:
- Please verify stator size (76mm) and OEM number before purchase

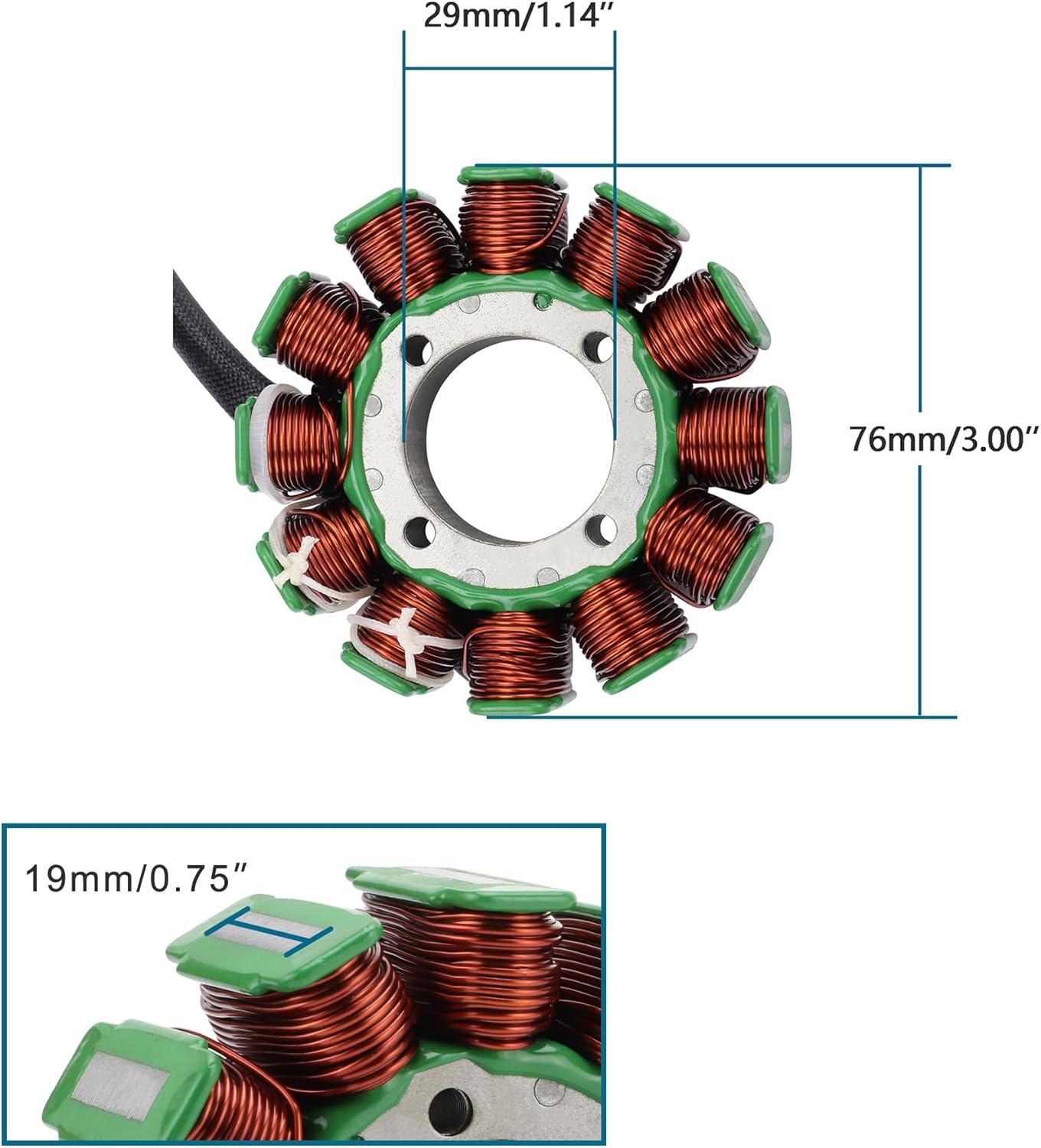

Specifications
| Specification | Details |
|---|---|
| Outer Diameter | 76 mm (2.99") |
| Inner Diameter | 29 mm (1.14") |
| Core Thickness | 19 mm (0.74") |
| Material | Pure copper windings |
| Base Plate | Aluminum |
| Fitment | Direct bolt-on |
| Condition | 100% New Aftermarket |
Key Features
- High Output Ignition Power – Ensures reliable starting and smooth performance
- Stable Voltage Delivery – Improves throttle response and engine efficiency
- Superior Heat Dissipation – Aluminum base reduces overheating risk
- Off-Road Durable Build – مقاist vibration, mud, and extreme conditions
- Direct OEM Replacement – Plug-and-play installation with perfect fit
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine; KTM; 250 XC-F; 250cc; 2011–2015; OEM Cross Reference; 77239004000. It is best matched to original part number(s) 77239004000, 2011-2015. Key physical/spec details from the product data include Please verify stator size (76mm) and OEM number before purchase, Outer Diameter: 76 mm (2.99"), Inner Diameter: 29 mm (1.14"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 77239004000, 2011-2015 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for KTM models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 77239004000, 2011-2015, treat the fitment as unconfirmed. Model years outside 2011–2015, 2011, 2015 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 77239004000, 2011-2015. Recheck listed specs such as Please verify stator size (76mm) and OEM number before purchase, Outer Diameter: 76 mm (2.99"), Inner Diameter: 29 mm (1.14"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
