Magneto Stator for Piaggio 400/500 Scooters 2005–2011 | OEM 58080R / AP8560100
Magneto Stator for Piaggio 400/500 Scooters 2005–2011 | OEM 58080R / AP8560100
Couldn't load pickup availability
Product Overview

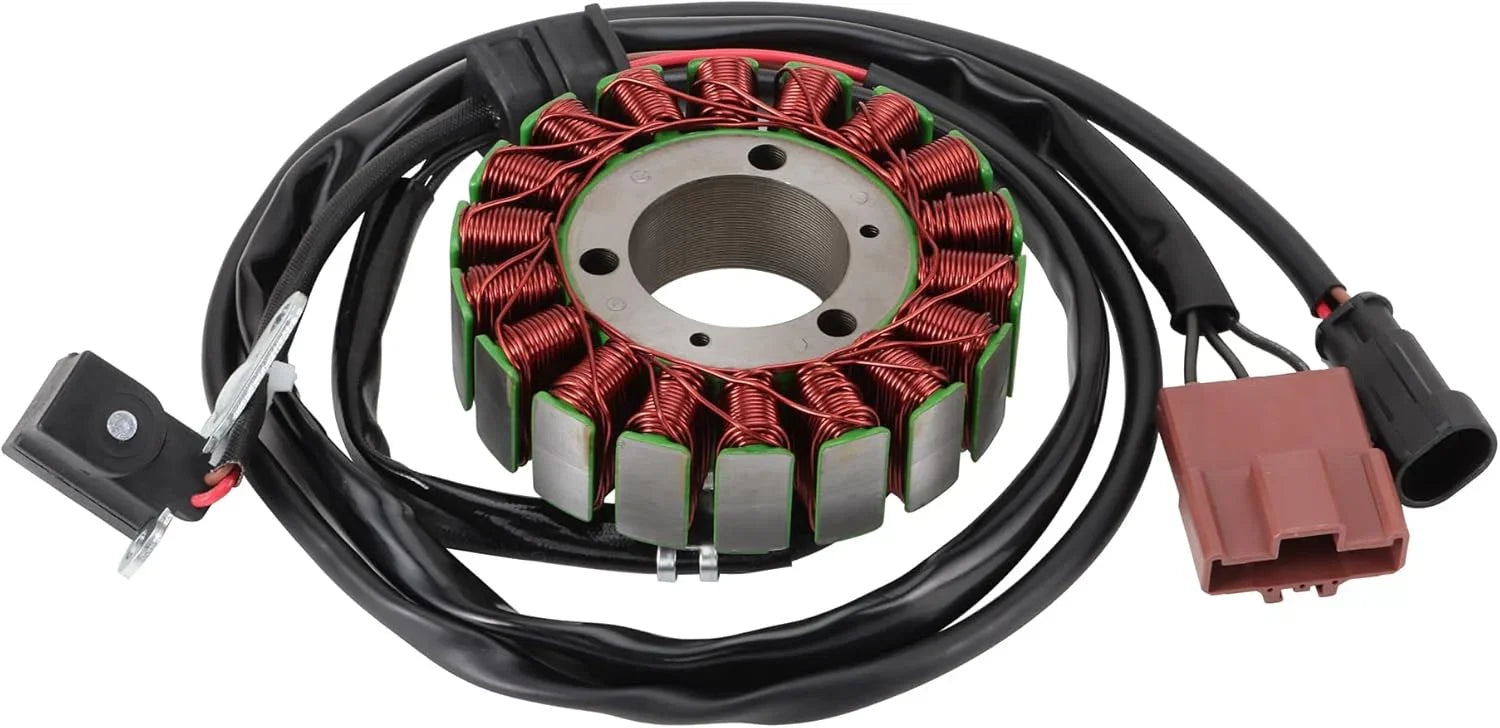

Restore reliable charging and ignition performance to your scooter with this 18 coil magneto stator, designed for selected Piaggio 400cc and 500cc scooter applications.
Built to replace OEM 58080R / AP8560100, this unit helps solve common issues such as battery not charging, weak spark, hard starting, unstable voltage, and intermittent electrical failure. Official Piaggio Group parts data shows 58080R as the current stator reference, with prior cross-references including 58039R, 82736R, 828677, and AP8560100.

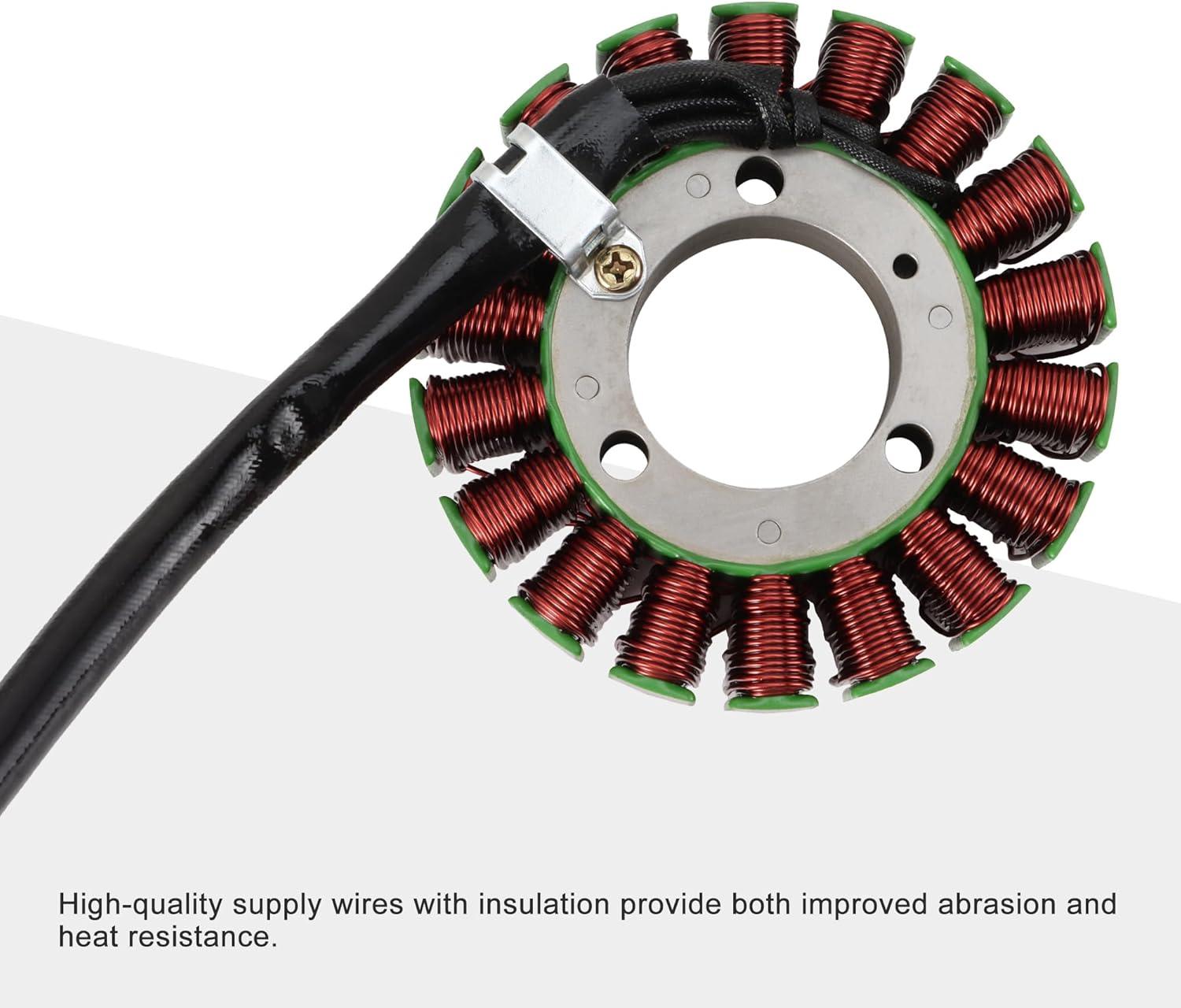

Manufactured with copper windings, full copper-clad steel wire, and an aluminum plate, it is designed for stable output, dependable spark performance, and reliable service life in daily riding conditions.
Product Compatibility
This magneto stator is compatible with the following models:
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Piaggio | Beverly 400 ie | 400cc | 2006–2007 | Verify OEM number before purchase |
| Piaggio | Beverly 500 / Beverly 500 ie / BV 500 | 500cc | 2005–2008 | Includes some USA/CA listings |
| Piaggio | X8 400 ie | 400cc | 2006–2008 | Verify connector style before purchase |
| Piaggio | X Evo 400 | 400cc | 2007–2011 | Verify dimensions before purchase |
| Piaggio | X9 500 Evolution / Evolution ABS | 500cc | 2006–2007 | Verify OEM number before purchase |
OEM Cross Reference:
58080R, 58039R, 82736R, 828677, AP8560100
Specifications
| Specification | Details |
|---|---|
| Part Type | Stator |
| Configuration | 18 Coil |

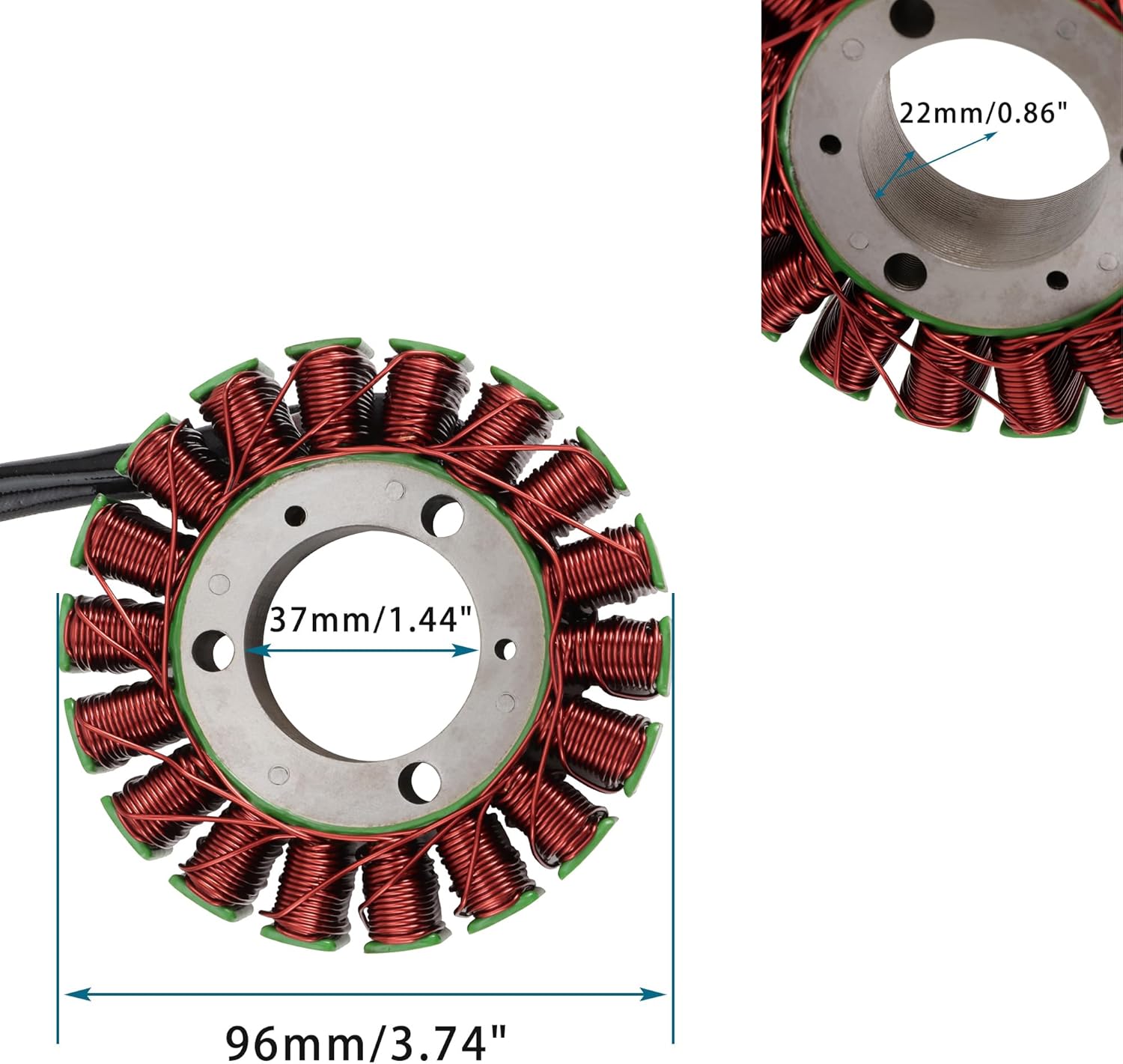

| Outer Diameter | 96 mm |
| Inner Diameter | 37 mm |
| Thickness | 22 mm |
| Connector Type | Please match with original part before ordering |
| Material | Copper winding / Copper-clad steel wire / Aluminum plate |
| Condition | 100% New Aftermarket |
Key Features
- Direct Replacement Design – Engineered to replace the original stator with matching fitment and function
- Reliable Electrical Performance – Helps restore stable charging and ignition output
- Durable Construction – Built with copper windings and aluminum backing materials for improved heat resistance and service life
- Plug-and-Play Installation – Designed for straightforward replacement on compatible models
- Built for Daily Scooter Use – Suitable for commuting and long-distance scooter applications
Common Problems This Part Can Help Solve
This product may help address issues such as:
- Battery not charging
- Weak or no spark
- Hard starting
- Intermittent electrical failure
- Overcharging or unstable voltage
- Poor ignition performance
Package Includes
1 × 18 Coil Magneto Stator
Fitment Note
Please confirm your OEM part number, connector style, stator dimensions, and vehicle model/year before ordering.
This listing is based on the verified 58080R / AP8560100 stator family. Official fitment data clearly supports a defined group of Piaggio 400/500 models, while some aftermarket sellers market similar stators more broadly for Piaggio 400/500 2006–2015. Because of that, matching by OEM number and physical dimensions is strongly recommended before purchase.
If you are unsure about compatibility, contact us with your model, year, OEM number, and part photos before purchase.
Installation Note
Professional installation is recommended.
Before installation, inspect related components such as the battery, wiring harness, regulator/rectifier, flywheel, and charging system to avoid repeat failure caused by another faulty part.
Why Choose This Replacement
A failing stator can lead to charging issues, unstable voltage, weak ignition performance, and unreliable starting. Replacing it with a properly matched unit helps restore dependable electrical performance and keeps your scooter ready for daily use.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for This magneto stator is compatible with the following models; Engine / HP / CC. Listed year information includes 2005–2011, 2006–2007, 2005–2008, 2006–2008, 2007–2011. It is best matched to original part number(s) 828677. Key physical/spec details from the product data include Outer Diameter: 96 mm, Inner Diameter: 37 mm, Thickness: 22 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 828677 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for AP8560100 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 828677, treat the fitment as unconfirmed. Model years outside 2005–2011, 2006–2007, 2005–2008, 2006–2008, 2007–2011 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 828677. Recheck listed specs such as Outer Diameter: 96 mm, Inner Diameter: 37 mm, Thickness: 22 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
