Magneto Stator for Polaris Sportsman, Scrambler & Magnum 500 (1996-2012)
Magneto Stator for Polaris Sportsman, Scrambler & Magnum 500 (1996-2012)
4.0 / 5.0
(1) 1 total reviews
Couldn't load pickup availability

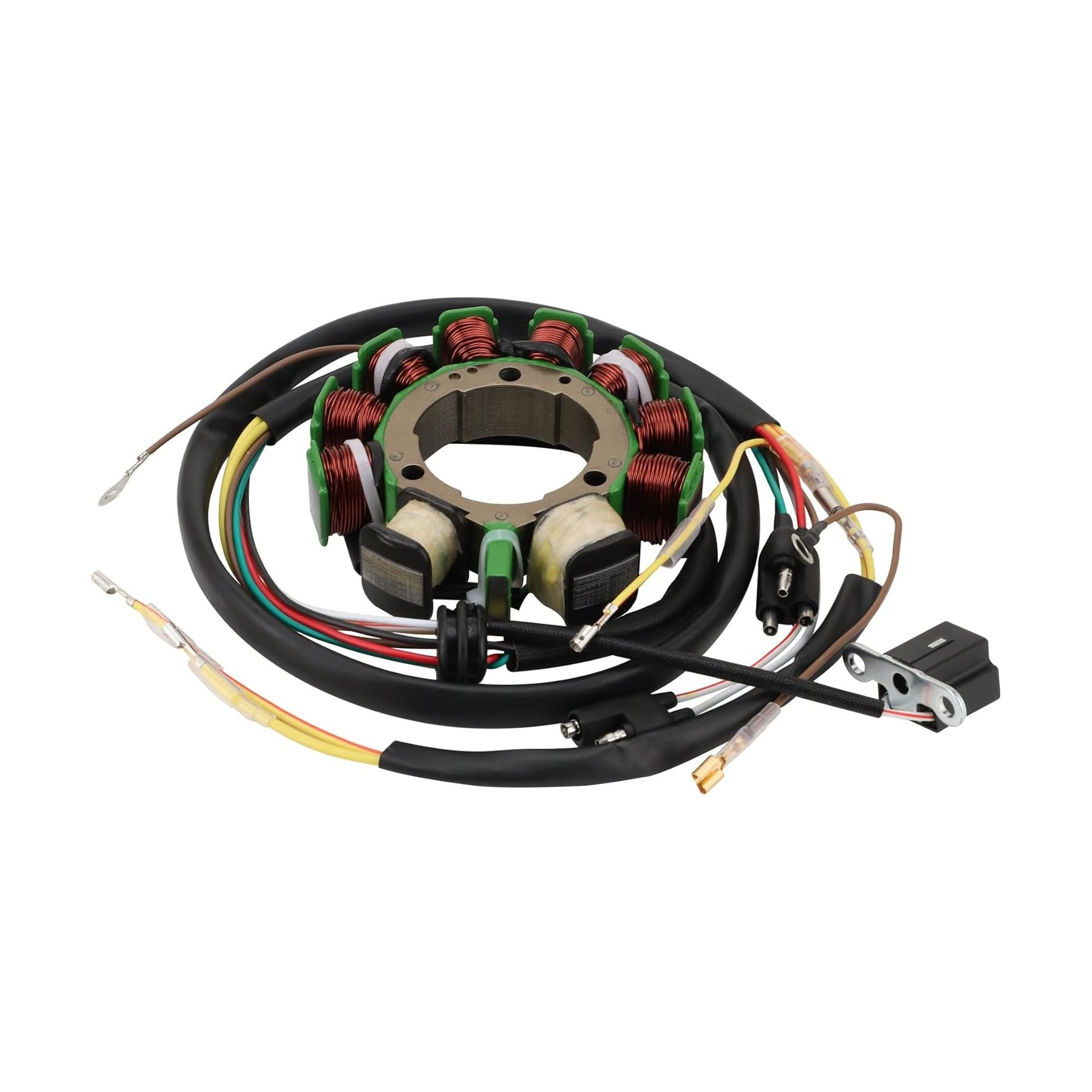

Heavy-Duty Magneto Stator for Polaris 500cc ATVs
Restore your ATV’s factory charging and ignition reliability. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Polaris 500 series, including the iconic Sportsman, Scrambler, and Magnum models. Designed for the rugged demands of utility and trail riding, it ensures your battery stays charged and your engine runs smoothly under all load conditions.
Constructed from high-quality copper wire and premium insulating materials, this stator is built to withstand the high-vibration and intense heat of off-road environments. Its direct plug-and-play design matches factory connectors exactly, requiring no modifications for a straightforward installation that gets you back on the trail quickly.
Product Compatibility
- Polaris Sportsman 500: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
- Polaris Scrambler 500: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
- Polaris Magnum 500: 1999, 2000, 2001, 2002, 2003
- Polaris Ranger 500: 1999, 2005, 2006, 2007, 2008, 2009

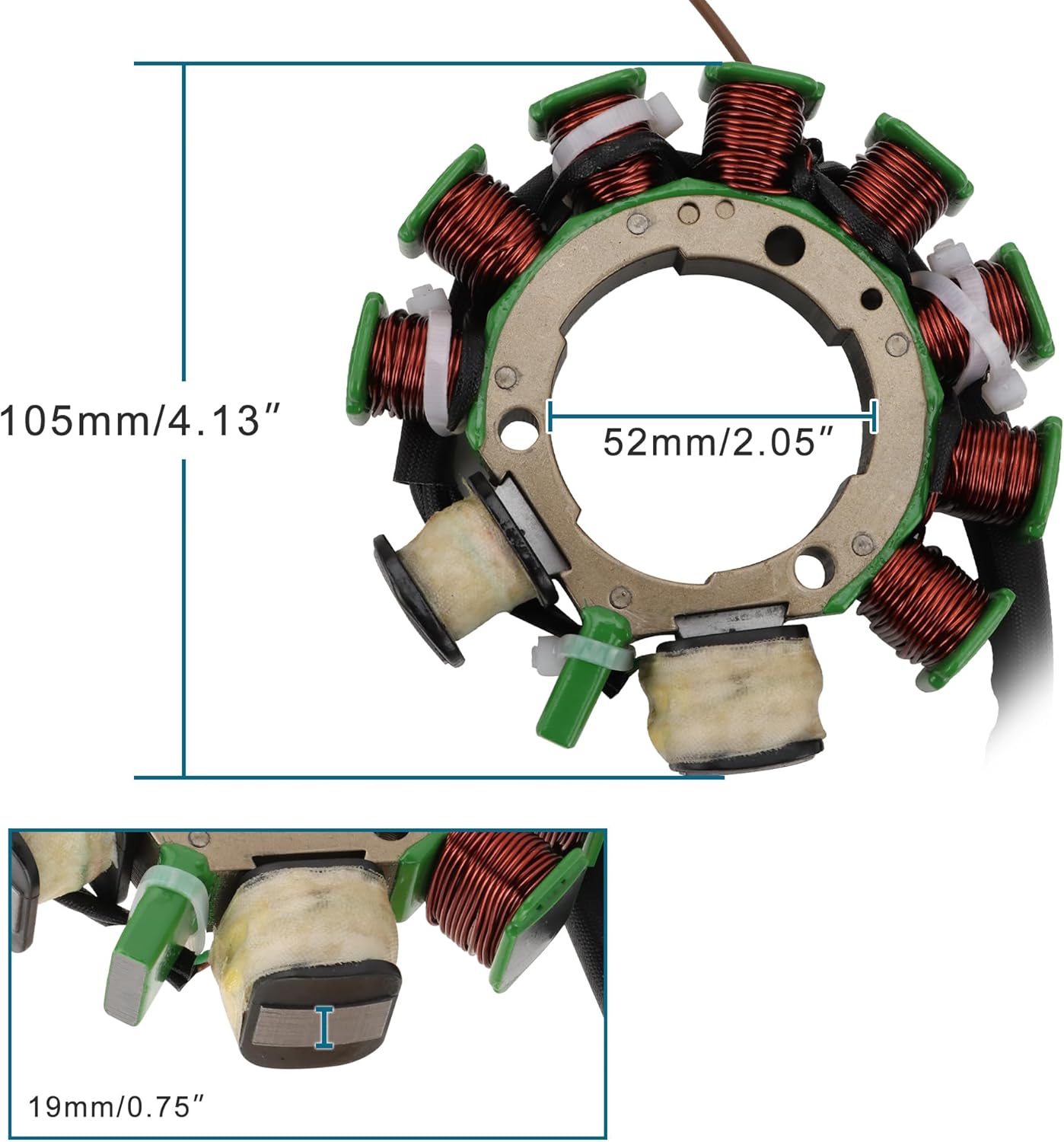

Key Technical Specifications:
- Outer Diameter: 105mm (4.15")
- Inner Diameter: 52mm (2.05")
- Thickness: 19mm (0.75")
- Design: High-efficiency charging coil
- Material: High-temperature resistant copper windings
Why Choose This Stator?

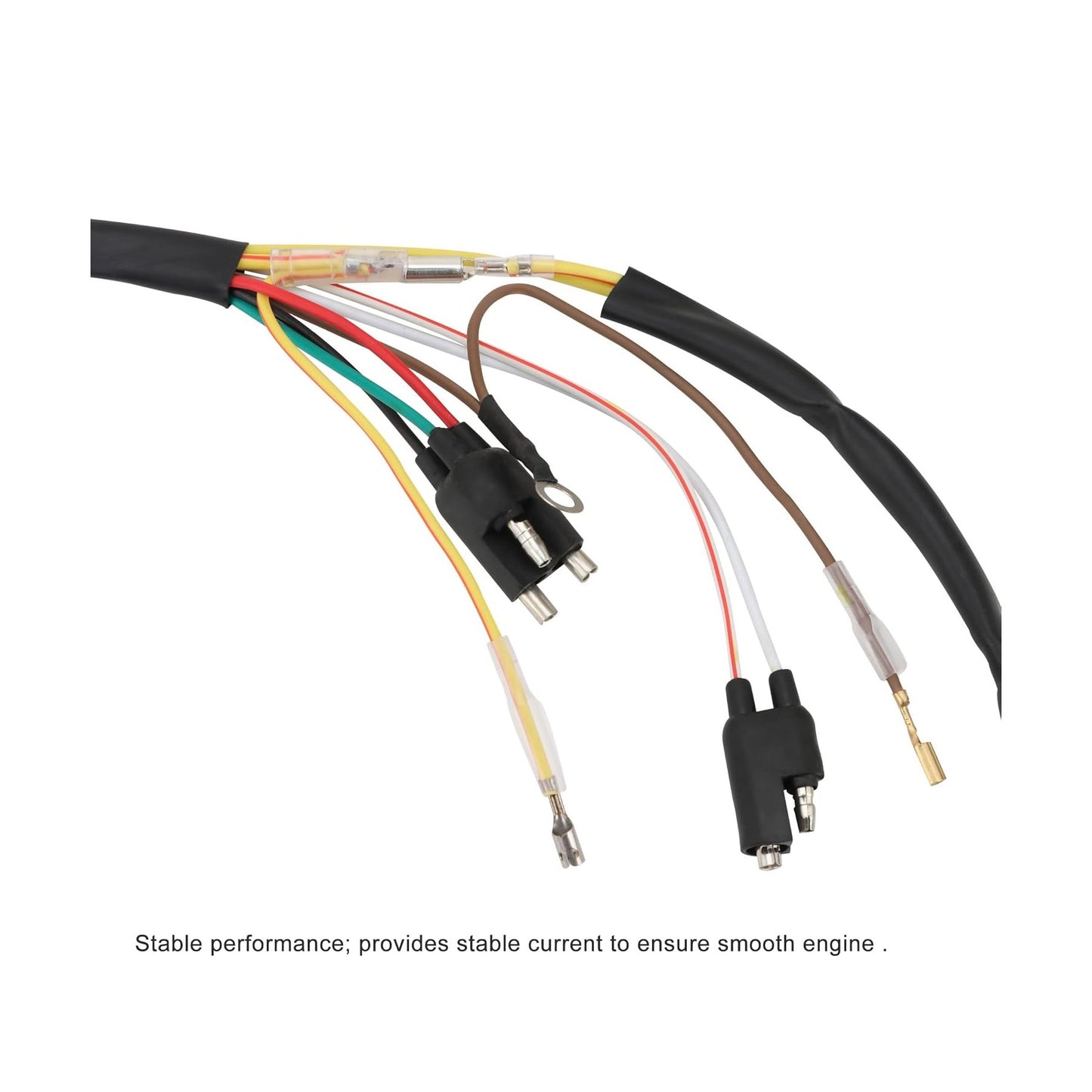

- Stable Power Delivery: Engineered to provide a consistent electrical current, essential for maintaining a strong spark and protecting your battery from draining.

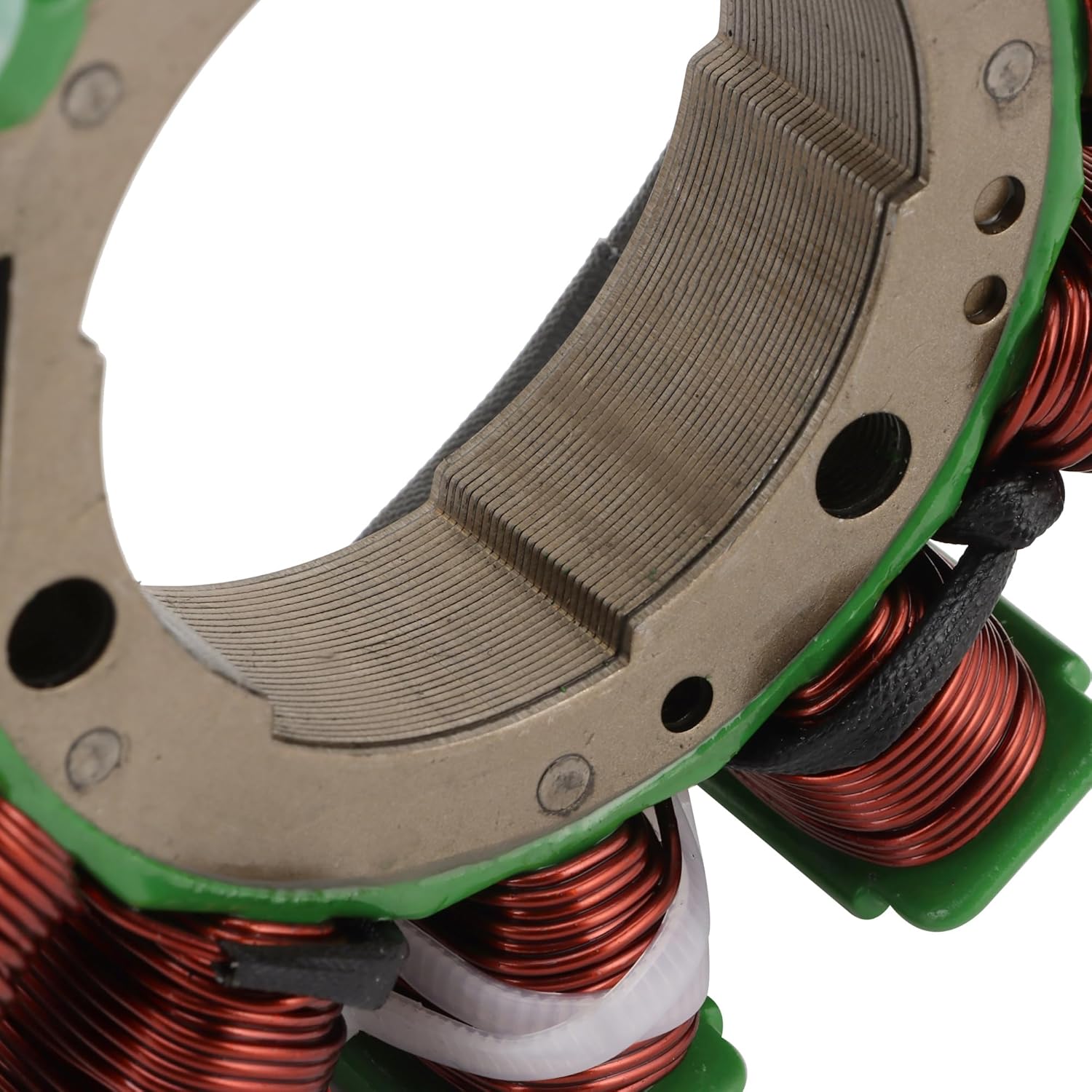

- Rugged Durability: Uses high-grade metal lamination and specialized coatings to resist vibration-related wear and thermal breakdown in air or liquid-cooled engines.
- Easy Installation: Matches factory mounting points and wiring harness lengths for a hassle-free setup that saves you time and effort in the garage.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Polaris Sportsman 500: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010; Polaris Scrambler 500: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012; Polaris Magnum 500: 1999, 2000, 2001, 2002, 2003; Polaris Ranger 500: 1999, 2005, 2006, 2007, 2008, 2009. It is best matched to original part number(s) 1996-2012. Key physical/spec details from the product data include Outer Diameter: 105mm (4.15"), Inner Diameter: 52mm (2.05"), Thickness: 19mm (0.75"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 1996-2012 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Polaris Sportsman/Ranger models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 1996-2012, treat the fitment as unconfirmed. Model years outside 1996–2012, 1996, 2012, 1997, 1998 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 1996-2012. Recheck listed specs such as Outer Diameter: 105mm (4.15"), Inner Diameter: 52mm (2.05"), Thickness: 19mm (0.75"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
I got this for a Polaris 500 HO. It fit correctly and all the connections fit snuggly. It runs the engine well, but isn't charging the battery the way it should. We are currently looking into other possible problems but it seems to have something to do with this stator coil. Otherwise good part. It may work better in a Polaris 500.
