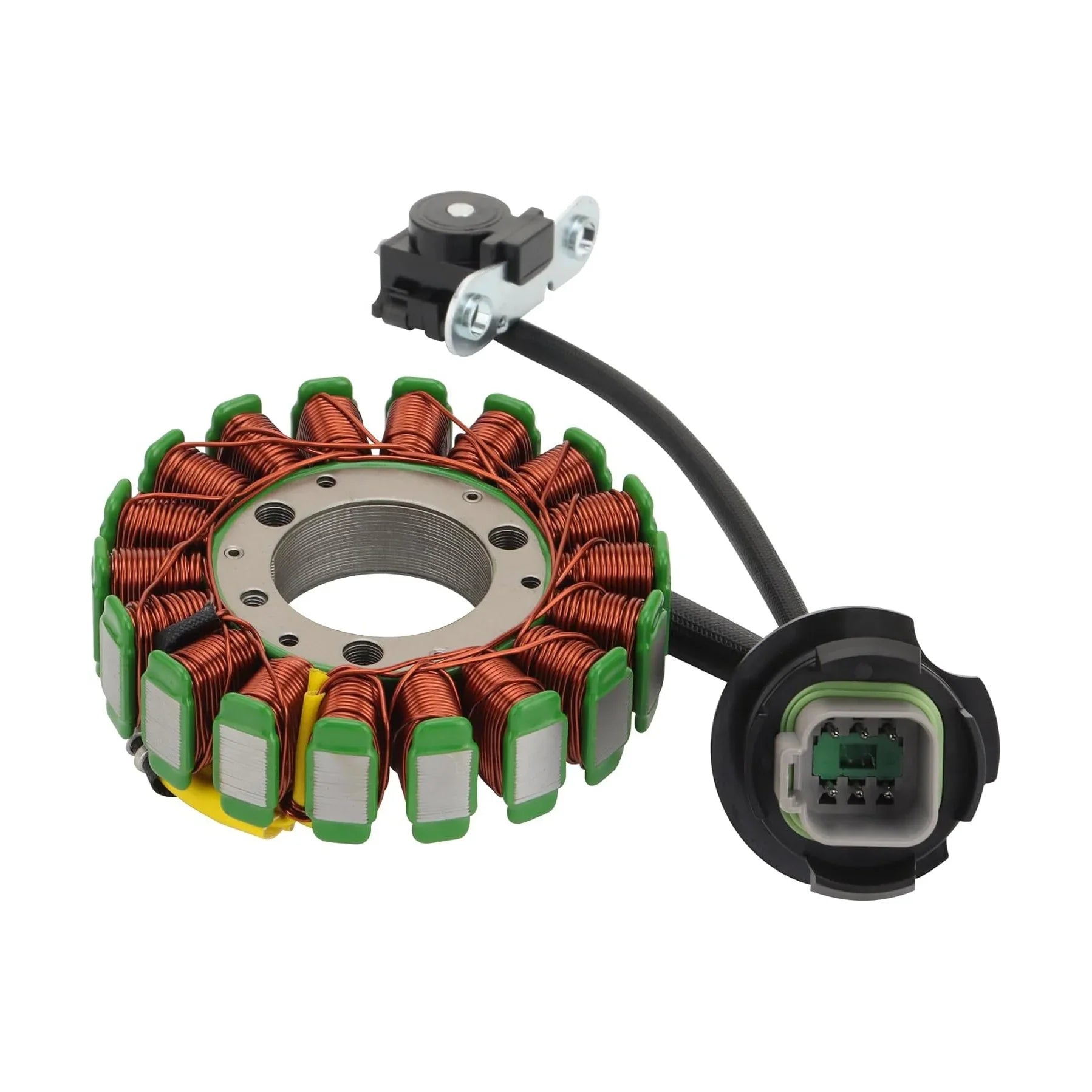

Heavy-Duty Magneto Stator for Sea-Doo 787 (800) & 951 PWC Engines
Get your watercraft back to peak performance. This premium aftermarket Magneto Stator is a precision-engineered replacement for Sea-Doo 2-stroke personal watercraft. Designed to replace OEM part numbers 290886588 and 420886588, it provides the stable electrical output required for reliable ignition, rapid starting, and consistent battery charging on the water.

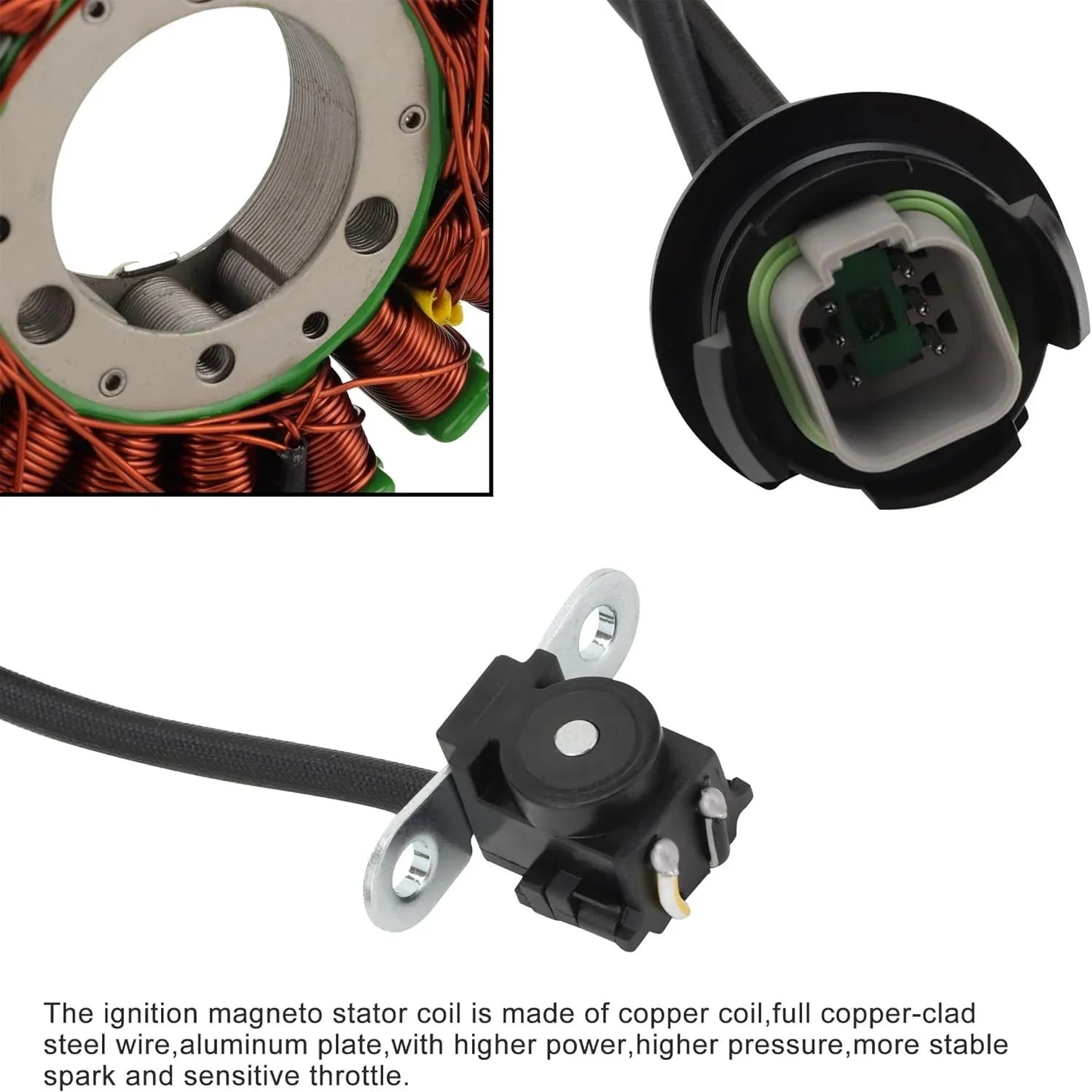

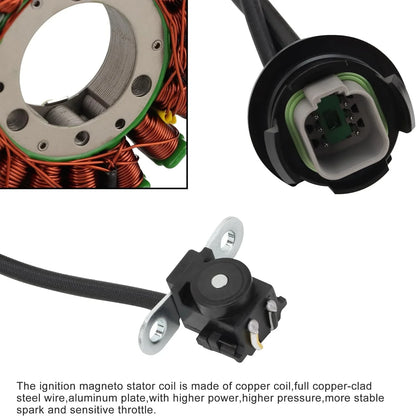

Constructed with high-purity copper coils and full copper-clad steel wire on a durable aluminum plate, this stator is built to survive the extreme vibration and moisture of the marine environment. The optimized winding design delivers higher power and pressure, resulting in a more stable spark and a more sensitive throttle response during acceleration.
Product Compatibility
- Sea-Doo Engines: 787 (800) and 951 (Carbureted & DI models)
- Sea-Doo Models: GTX, GSX, SPX, RX, XP, GS, GSI (1995–2003)
- Sport Boats: Challenger, Speedster (Dual Engine models)
- OEM Cross-Reference: 290886588, 420886588

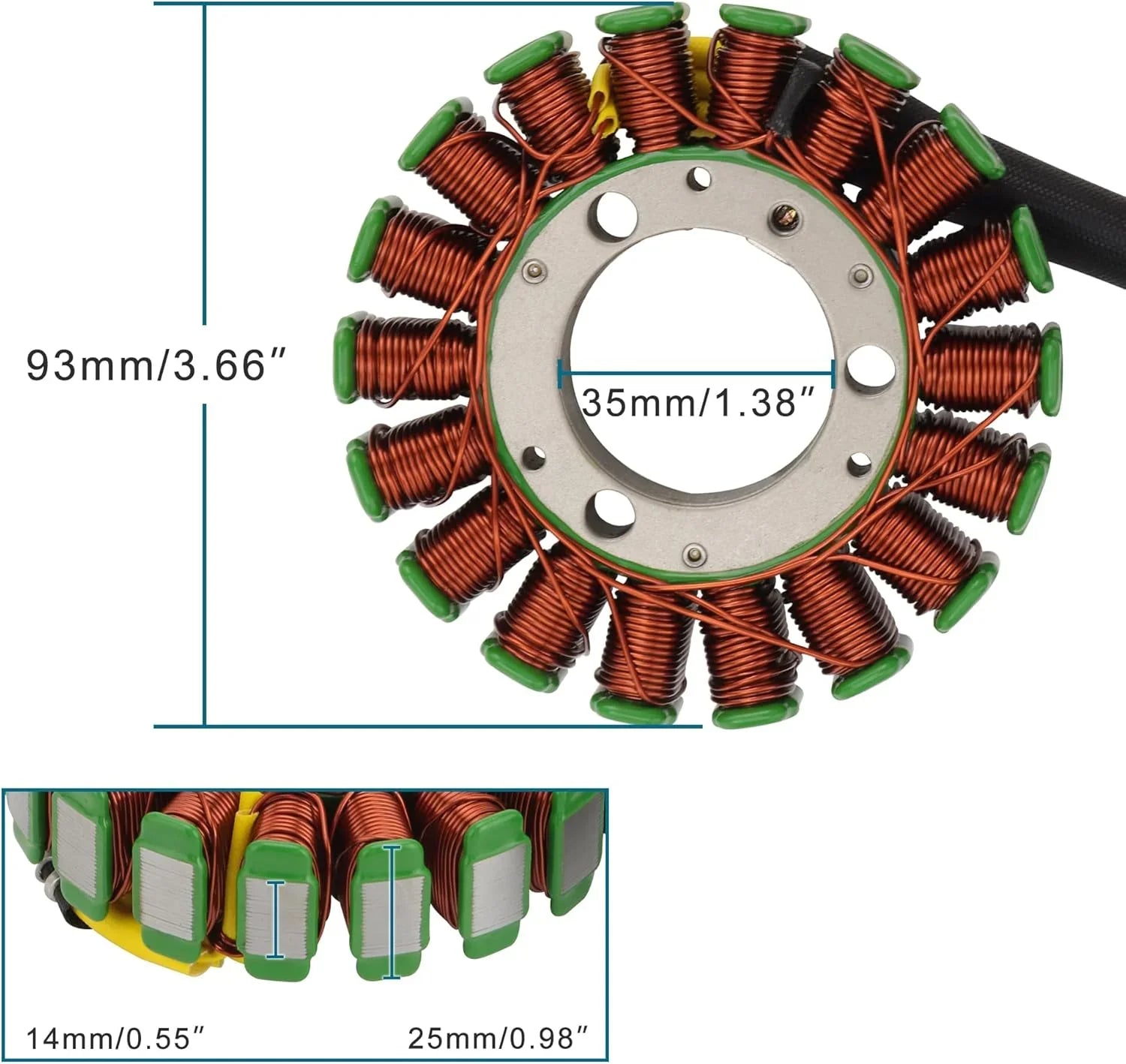

Key Technical Specifications:
- Outer Diameter: 93mm (3.66")
- Inner Diameter: 35mm (1.38")
- Core Thickness: 14mm (0.55")
- Material: High-temp copper windings with aluminum mounting plate
- Design: Direct OEM-style plug-and-play replacement
Why Choose This Stator?
- Superior Electrical Conductivity: The full copper-clad steel wire reduces resistance and heat buildup, preventing the "stator burnout" common in older marine engines.
- Enhanced Performance: Delivers a stronger ignition spark, which is critical for the high-RPM demands of Sea-Doo 2-stroke engines.
- Direct Fitment: Precision-manufactured to match factory dimensions and mounting points, ensuring a straightforward installation with no modifications required.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Sea-Doo Engines: 787 (800) and 951 (Carbureted & DI models); Sea-Doo Models: GTX, GSX, SPX, RX, XP, GS, GSI (1995–2003); Sport Boats: Challenger, Speedster (Dual Engine models); OEM Cross-Reference: 290886588, 420886588. It is best matched to original part number(s) 290886588, 420886588, 1995-2003. Key physical/spec details from the product data include Outer Diameter: 93mm (3.66"), Inner Diameter: 35mm (1.38"), Core Thickness: 14mm (0.55"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 290886588, 420886588, 1995-2003 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Sea-Doo models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 290886588, 420886588, 1995-2003, treat the fitment as unconfirmed. Model years outside 1995–2003, 1995, 2003 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 290886588, 420886588, 1995-2003. Recheck listed specs such as Outer Diameter: 93mm (3.66"), Inner Diameter: 35mm (1.38"), Core Thickness: 14mm (0.55"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
