Magneto Stator for Suzuki Boulevard C90 & C90T (2005-2009) | OEM 32101-10F11
Magneto Stator for Suzuki Boulevard C90 & C90T (2005-2009) | OEM 32101-10F11
Couldn't load pickup availability
Heavy-Duty Magneto Stator for Suzuki Boulevard C90 & C90T
Restore your cruiser's charging reliability. This high-performance Magneto Stator is a precision-engineered replacement for Suzuki OEM part numbers 32101-10F10 and 32101-10F11. Specifically designed for the fuel-injected 2005–2009 Boulevard C90 series, it provides the stable current necessary for a smooth engine idle and consistent battery charging.
Constructed with high-grade copper windings and advanced heat-resistant insulation, this stator is built to withstand the extreme thermal environment of Suzuki's 1500cc V-twin. The precise manufacturing process ensures a direct plug-and-play fit, making it a durable and practical choice for maintaining your bike's electrical health.
Product Compatibility
- Suzuki Boulevard C90: 2005, 2006, 2007, 2008, 2009
- Suzuki Boulevard C90T: 2005, 2006, 2007, 2008, 2009
- Suzuki VL1500: 2005–2009 models (Fuel Injected)
Key Technical Specifications:
- OEM Reference: 32101-10F11, 32101-10F10

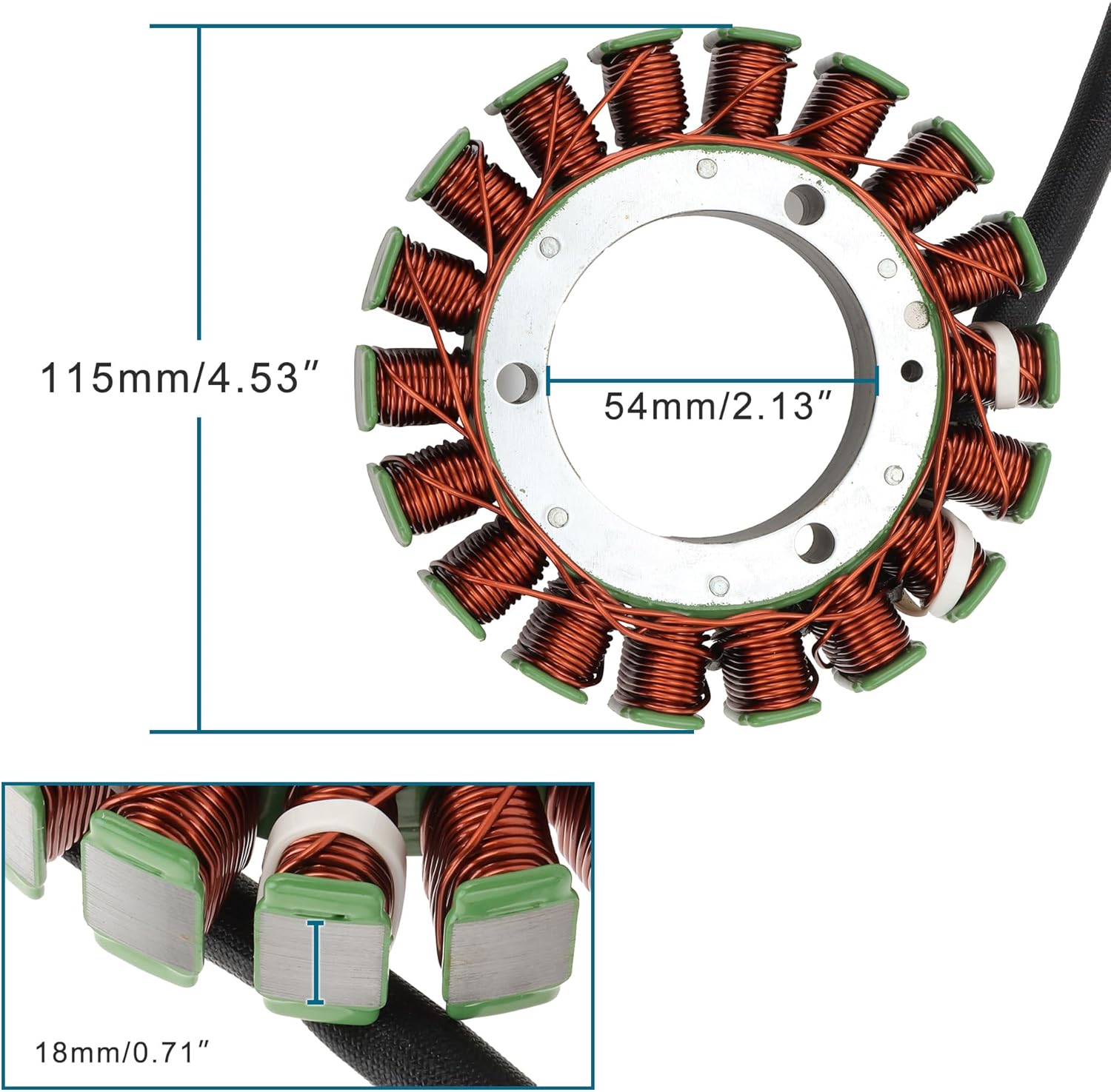

- Outer Diameter: 114.5mm (4.51")
- Inner Diameter: 54mm (2.12")
- Thickness: 18mm (0.71")
- Design: Direct bolt-on unit with factory-style connectors
Why Choose This Stator?
- Superior Thermal Stability: Engineered to prevent "stator burnout" caused by the high heat soak of large-displacement air/oil-cooled engines.
- Stable Power Generation: Precision-wound coils ensure a consistent electrical field, protecting your fuel injection system and battery.
- Hassle-Free Installation: Designed as a direct replacement to match factory mounting points exactly, requiring no wiring modifications.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki Boulevard C90: 2005, 2006, 2007, 2008, 2009; Suzuki Boulevard C90T: 2005, 2006, 2007, 2008, 2009; Suzuki VL1500: 2005–2009 models (Fuel Injected). It is best matched to original part number(s) 32101-10F11, 32101-10F10, 2005-2009. Key physical/spec details from the product data include Outer Diameter: 114.5mm (4.51"), Inner Diameter: 54mm (2.12"), Thickness: 18mm (0.71"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-10F11, 32101-10F10, 2005-2009 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki Boulevard/C90/C90T/VL1500 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-10F11, 32101-10F10, 2005-2009, treat the fitment as unconfirmed. Model years outside 2005–2009, 2005, 2009, 2006, 2007 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-10F11, 32101-10F10, 2005-2009. Recheck listed specs such as Outer Diameter: 114.5mm (4.51"), Inner Diameter: 54mm (2.12"), Thickness: 18mm (0.71"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
