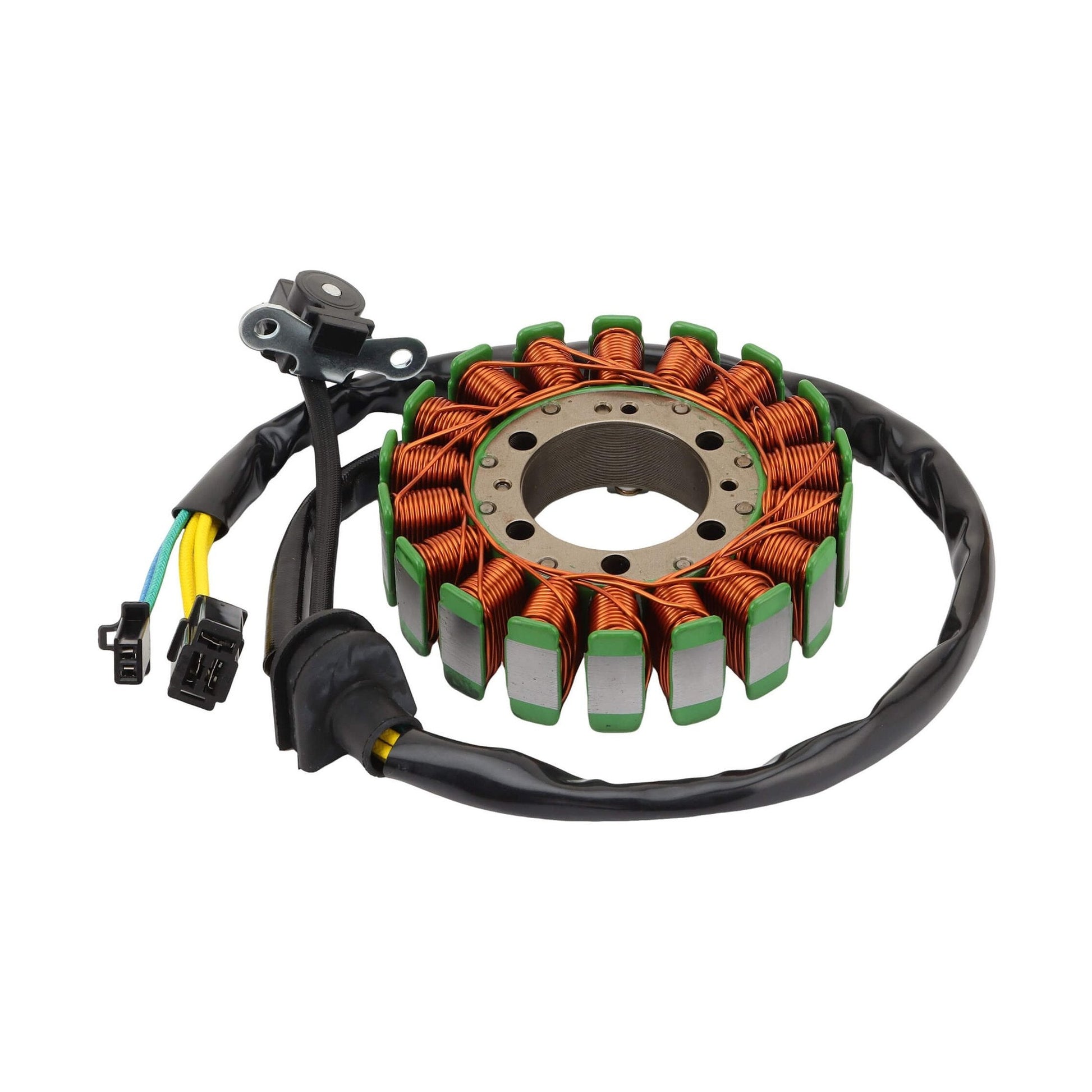

Magneto Stator for Suzuki Burgman 250/400 AN250 AN400 | 32101-14F20-000
Magneto Stator for Suzuki Burgman 250/400 AN250 AN400 | 32101-14F20-000
Couldn't load pickup availability
Restore your scooter's electrical performance with this high-quality Magneto Stator. Specifically engineered for the Suzuki Burgman series, this replacement part ensures reliable starting and a consistent spark, even under demanding riding conditions.
Fitment List:
- Suzuki Burgman 250 (AN250): 1999 - 2002
- Suzuki Burgman 400 (AN400): 1999 - 2002
- Replaces OEM Part Number: 32101-14F20-000
Technical Specifications:

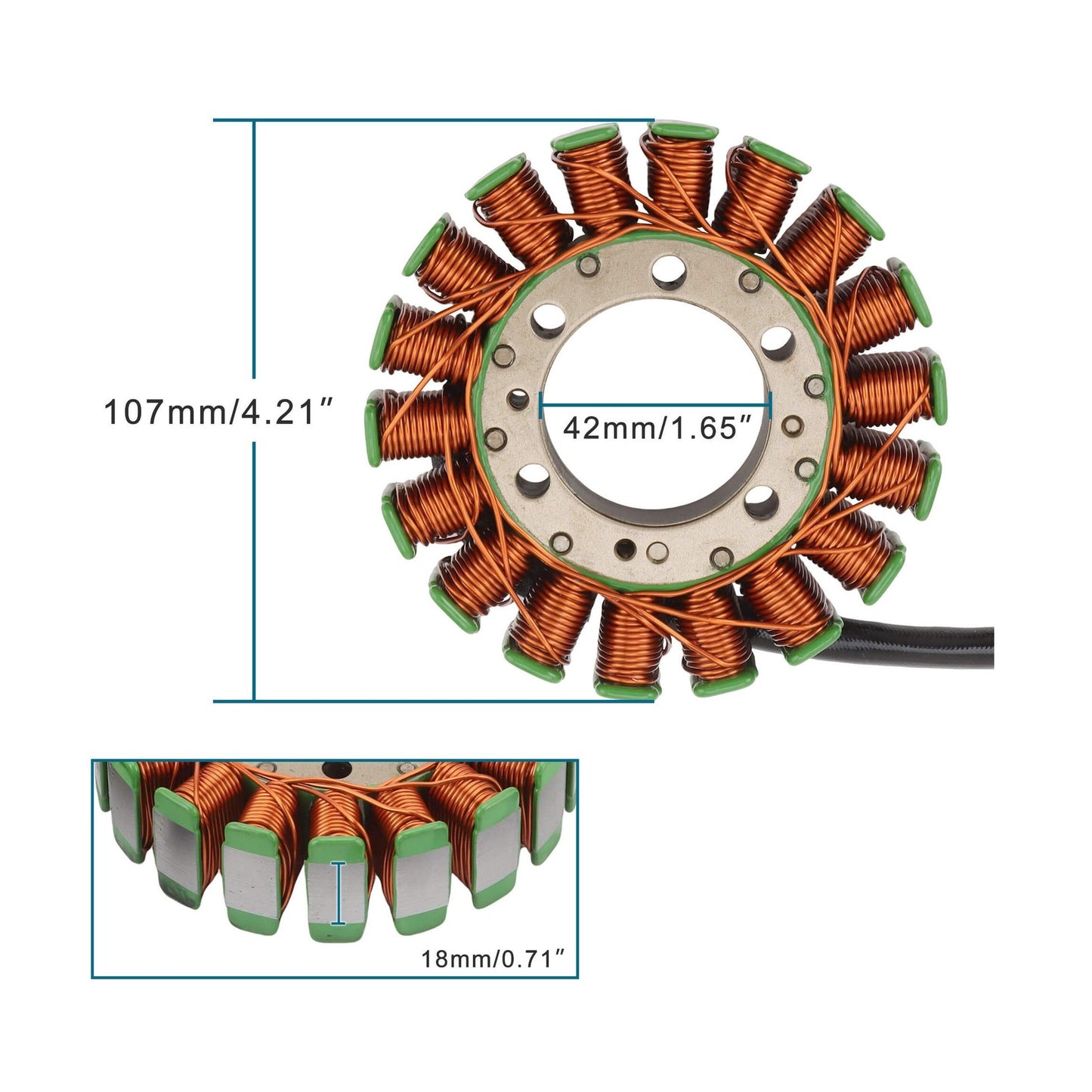

- Outer Diameter: 107mm (4.21")
- Inner Diameter: 42mm (1.65")
- Thickness: 18mm (0.71")
- Material: High-grade copper coil, full copper-clad steel wire, and premium aluminum plate for superior heat resistance.
Key Features:
- Enhanced Performance: Provides higher power output and more stable spark compared to standard aftermarket coils.
- Durable Build: Designed to withstand high pressure and vibration for a longer service life.

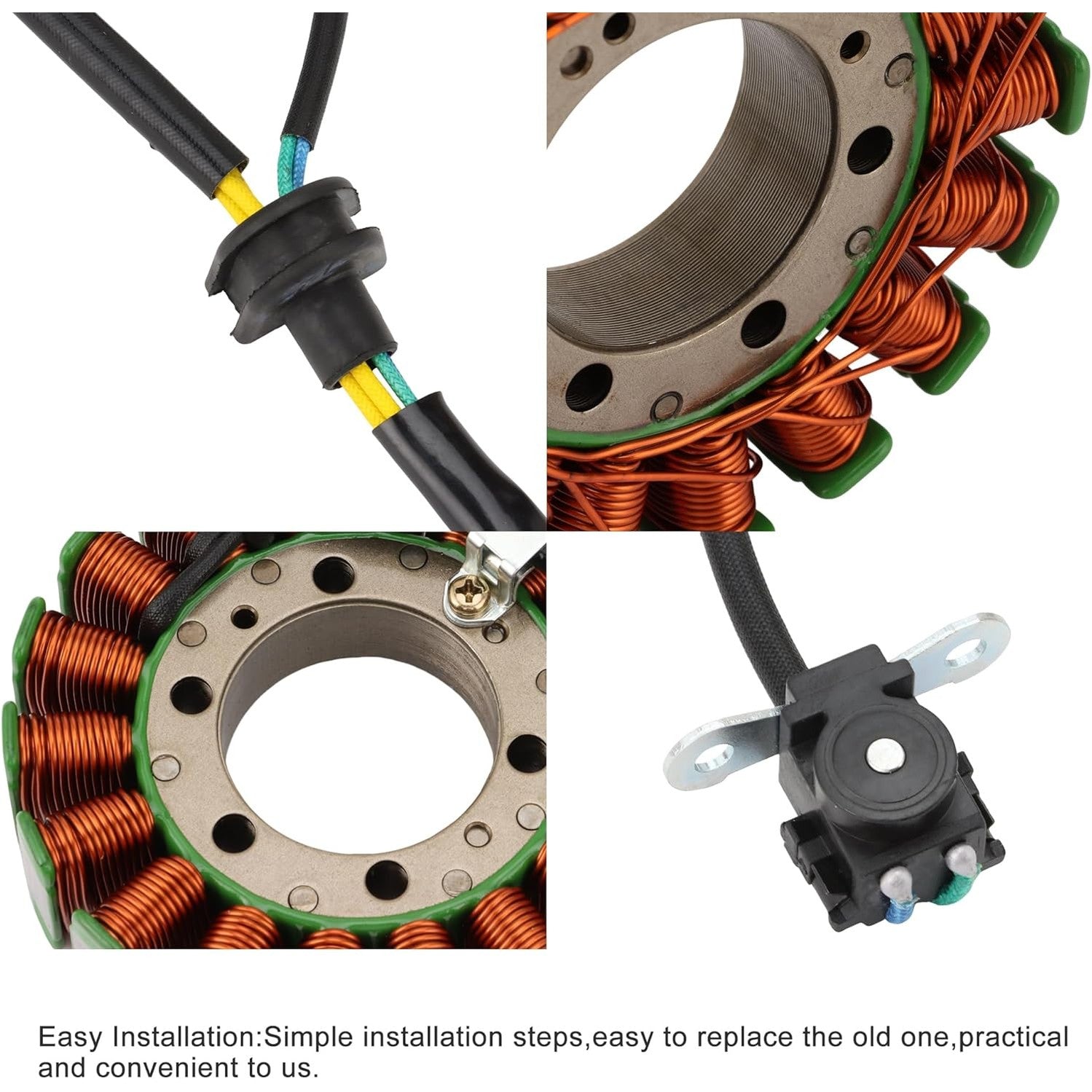

- Direct Replacement: Precision-fit design for a hassle-free installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki Burgman 250/400 AN250 AN400. Listed year information includes 1999–2002, 1999, 2002. It is best matched to original part number(s) 32101-14F20-000. Key physical/spec details from the product data include Outer Diameter: 107mm (4.21"), Inner Diameter: 42mm (1.65"), Thickness: 18mm (0.71"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-14F20-000 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki AN250/AN400 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-14F20-000, treat the fitment as unconfirmed. Model years outside 1999–2002, 1999, 2002 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-14F20-000. Recheck listed specs such as Outer Diameter: 107mm (4.21"), Inner Diameter: 42mm (1.65"), Thickness: 18mm (0.71"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
