Magneto Stator for Suzuki Gixxer 155, SF150 & GSX-R150 | OEM 32101-34J00
Magneto Stator for Suzuki Gixxer 155, SF150 & GSX-R150 | OEM 32101-34J00
Couldn't load pickup availability
Product Overview

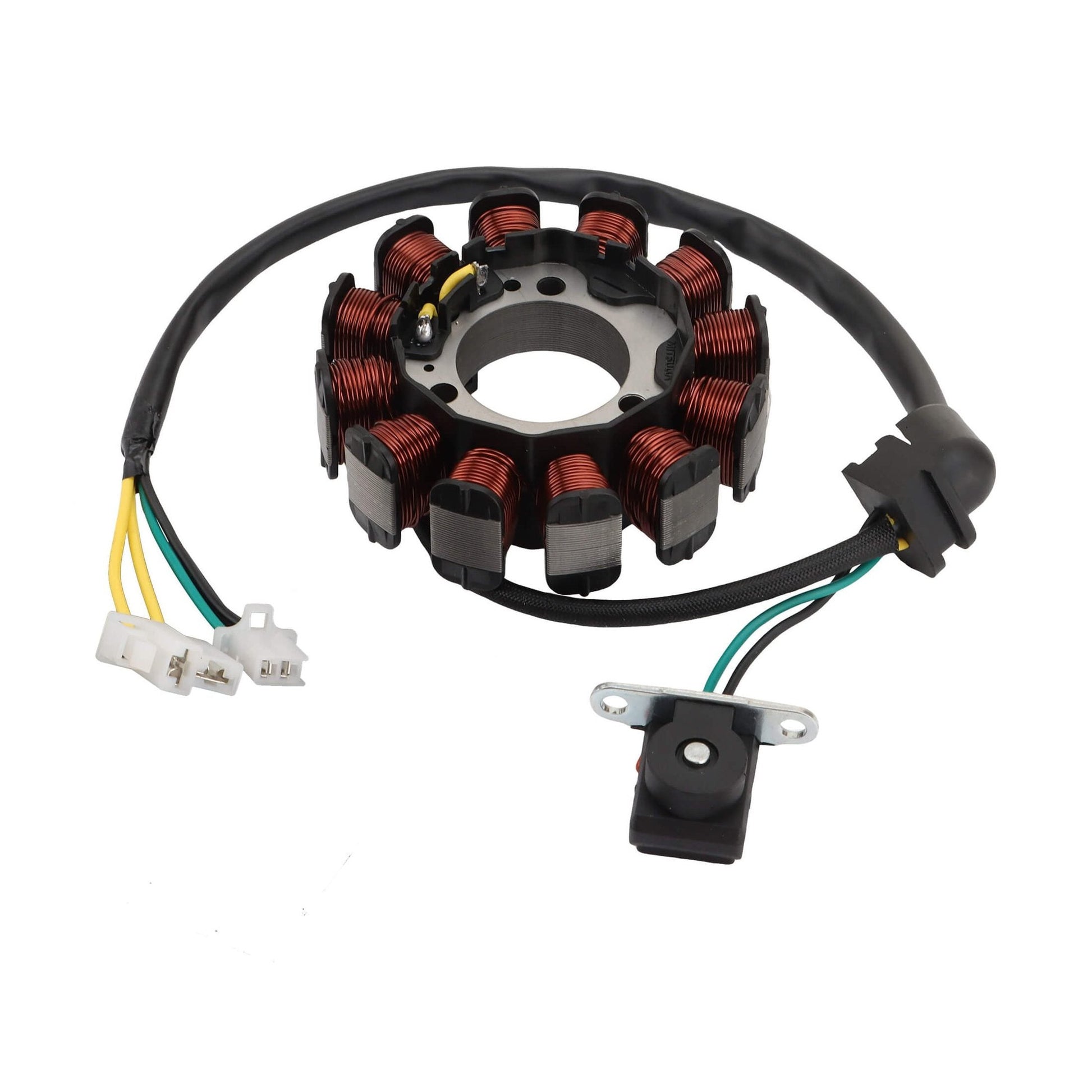

Upgrade your bike’s charging system with this high-performance magneto stator, designed for Suzuki GSX-R150 and Gixxer 155 models. Built with precision-wound copper coils, it ensures stable voltage output, reliable ignition, and long-lasting durability—even under harsh riding conditions. A direct OEM replacement for easy installation.
Product Compatibility
| Brand | Model | Engine | Year Range |
|---|---|---|---|
| Suzuki | Gixxer 155 | 155cc | 2014–2023 |
| Suzuki | Gixxer SF150 | 150cc | 2015–2023 |
| Suzuki | GSX-R150 | 150cc | 2017–2023 |
| Suzuki | GSX150L6 | 150cc | 2017–2021 |
| Suzuki | GSX-S150 | 150cc | 2017–2023 |
OEM Cross Reference:
- 32101-34J00
- 32101-34J10

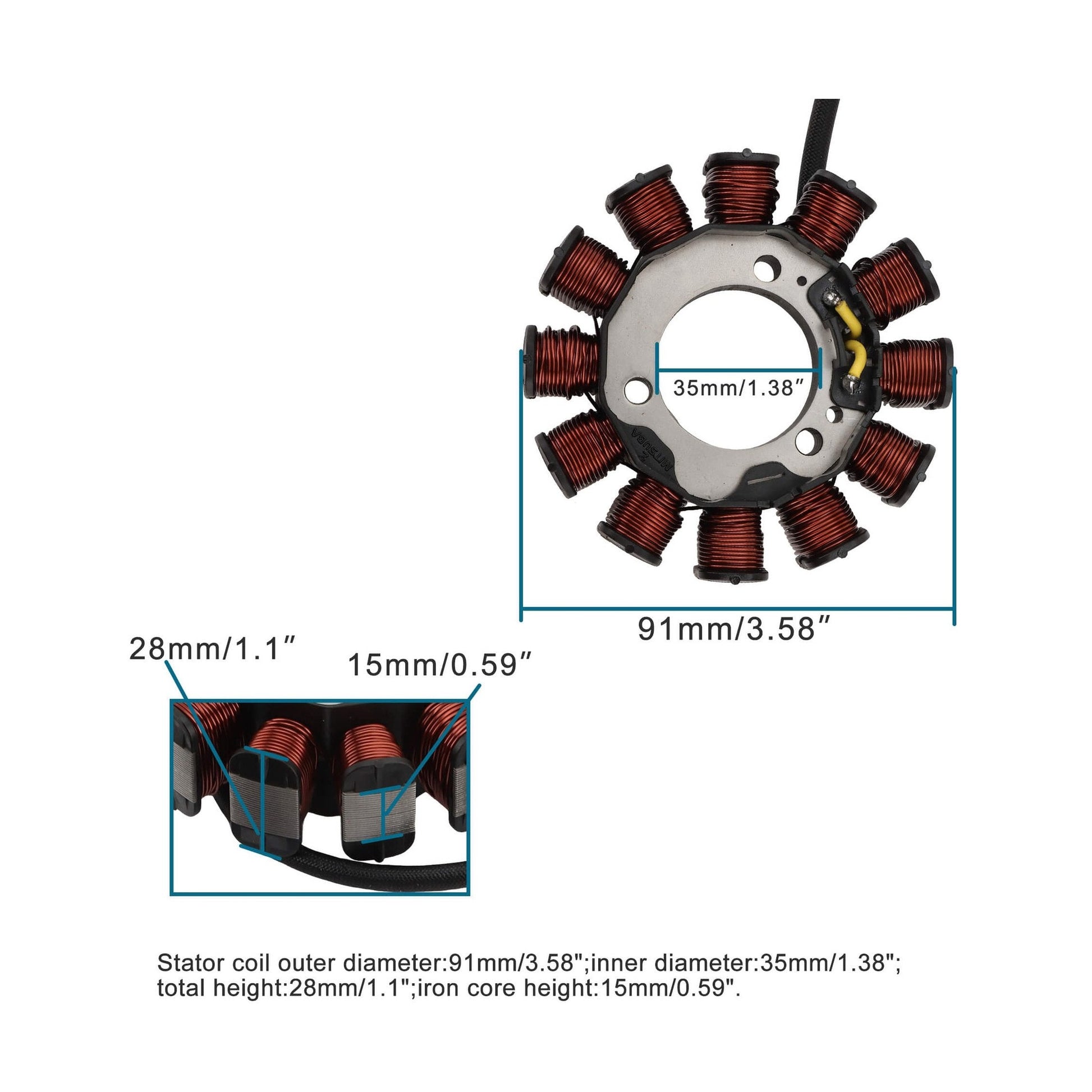

Specifications
| Specification | Details |
|---|---|
| Outer Diameter | 91 mm (3.58") |
| Inner Diameter | 35 mm (1.38") |
| Total Height | 28 mm (1.10") |
| Iron Core Height | 15 mm (0.59") |
| Material | Copper windings + Metal/Plastic housing |
| Condition | 100% New Aftermarket |

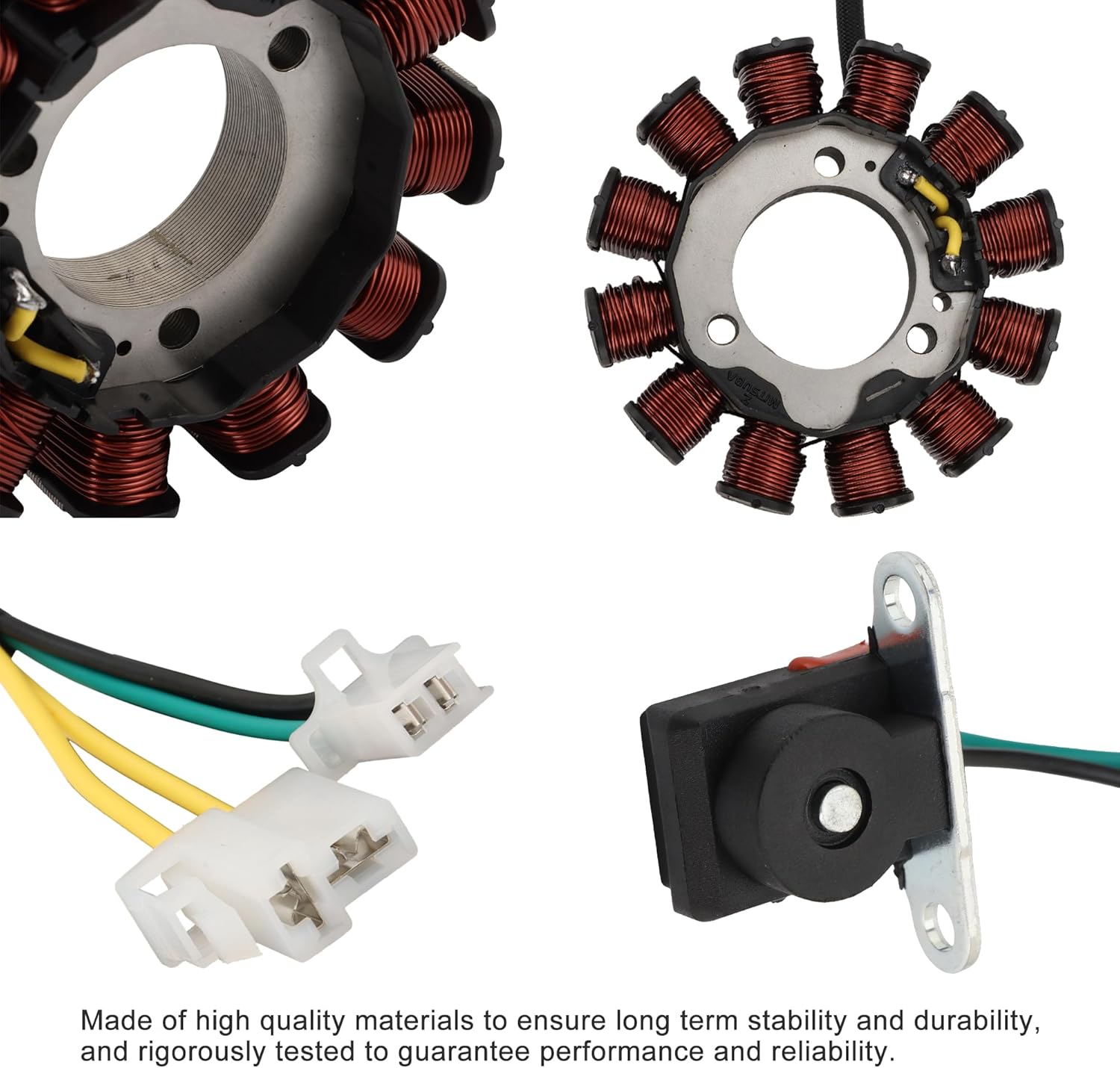

Key Features
- Stable Power Output – Ensures consistent voltage for ECU and ignition system
- High-Efficiency Copper Coils – Improves charging performance and battery life
- OEM Direct Replacement – Plug-and-play fit, no modification required
- Durable Construction – مقاisture, dust, and corrosion resistant
- Enhanced Reliability – Reduces risk of starting issues and electrical failure
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine; Suzuki; Gixxer 155; 155cc; 2014–2023; Gixxer SF150. It is best matched to original part number(s) 32101-34J00, 32101-34J10. Key physical/spec details from the product data include Outer Diameter: 91 mm (3.58"), Inner Diameter: 35 mm (1.38"), Total Height: 28 mm (1.10"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-34J00, 32101-34J10 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki SF150/R150 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-34J00, 32101-34J10, treat the fitment as unconfirmed. Model years outside 2014–2023, 2015–2023, 2017–2023, 2017–2021, 2014 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-34J00, 32101-34J10. Recheck listed specs such as Outer Diameter: 91 mm (3.58"), Inner Diameter: 35 mm (1.38"), Total Height: 28 mm (1.10"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
