Magneto Stator for Suzuki GSX-R600 (2006-2024) & GSX-R750 (2006-2017)
Magneto Stator for Suzuki GSX-R600 (2006-2024) & GSX-R750 (2006-2017)
Couldn't load pickup availability

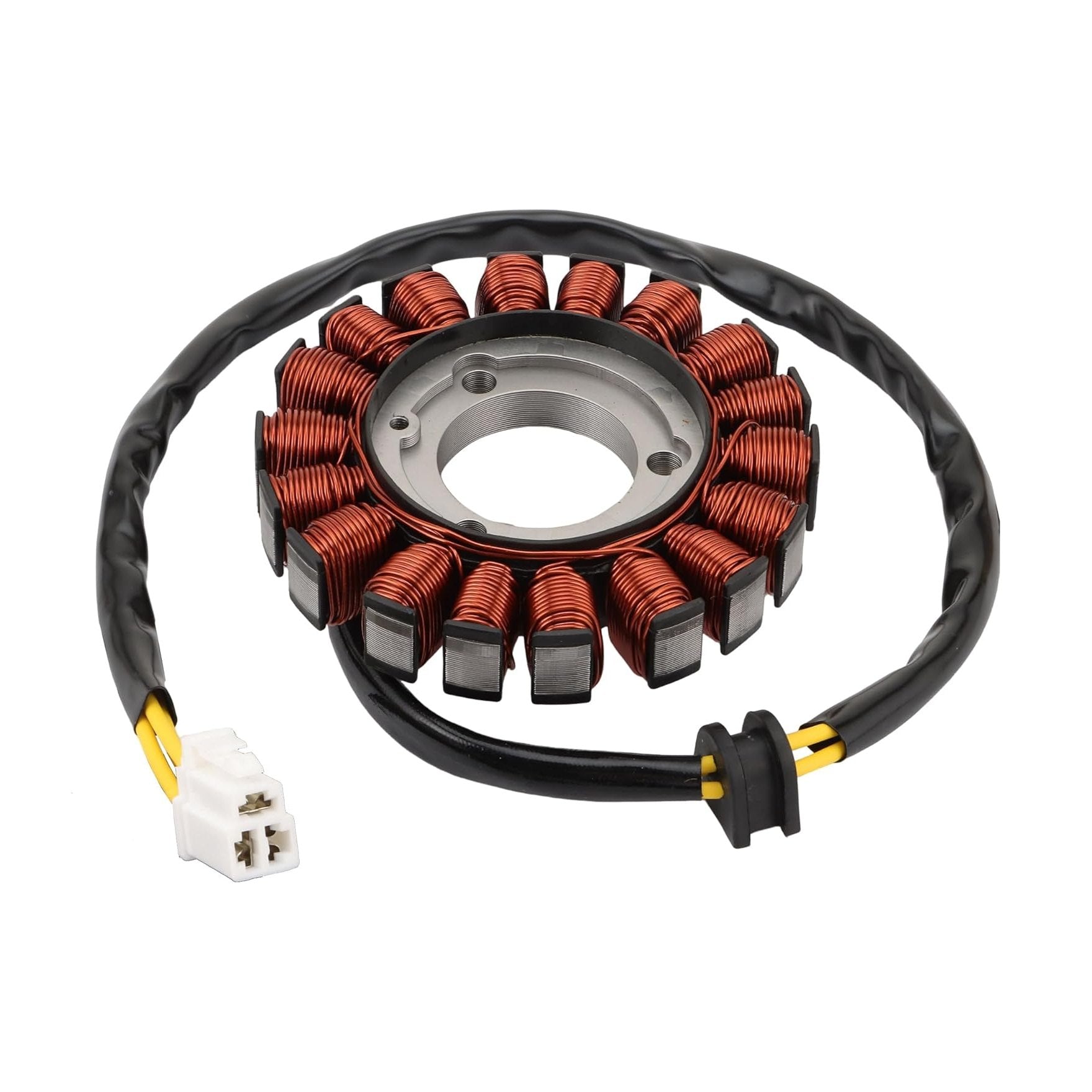

High-Performance Magneto Stator for Suzuki GSX-R600 & GSX-R750
Maintain peak electrical performance on the street or the track. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Suzuki GSX-R600 (2006-2024) and GSX-R750 (2006-2017). Specifically designed for the high-revving demands of the Gixxer series, it ensures your ignition system receives the stable voltage required for maximum throttle response and ignition reliability.
Constructed with high-purity copper coils and full copper-clad steel wire, this stator enhances power generation efficiency. The aluminum base plate provides excellent heat dissipation, protecting the internal windings from the intense heat soak typical of high-performance inline-four engines.
Product Compatibility
- Suzuki GSX-R600: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
- Suzuki GSX-R750: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
- Suzuki GSX-R600Z: 2022, 2023

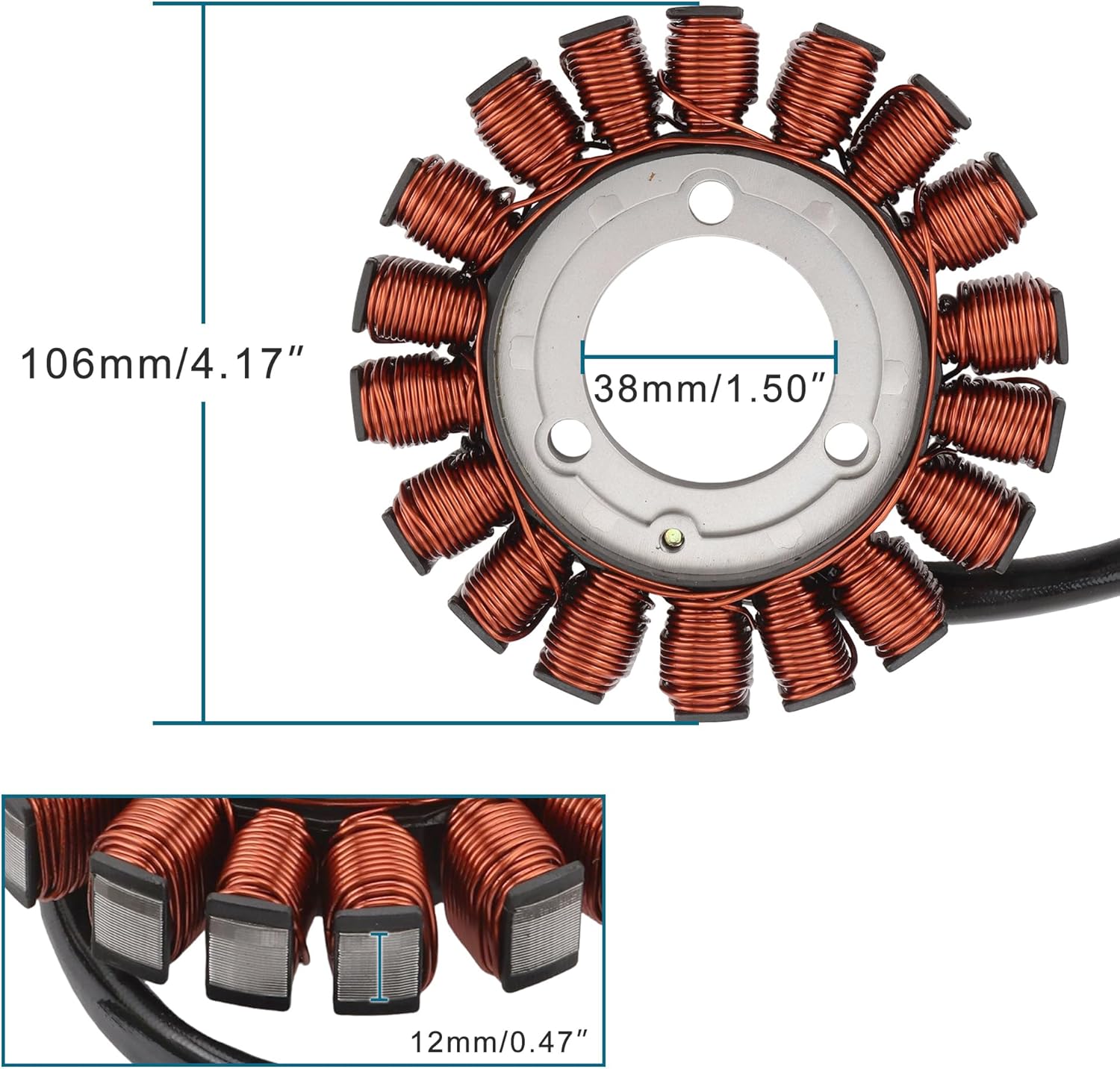

Key Technical Specifications:
- Outer Diameter: 106mm (4.17")
- Inner Diameter: 38mm (1.5")
- Thickness: 12mm (0.47")
- Materials: High-purity copper and aluminum heat-sink plate

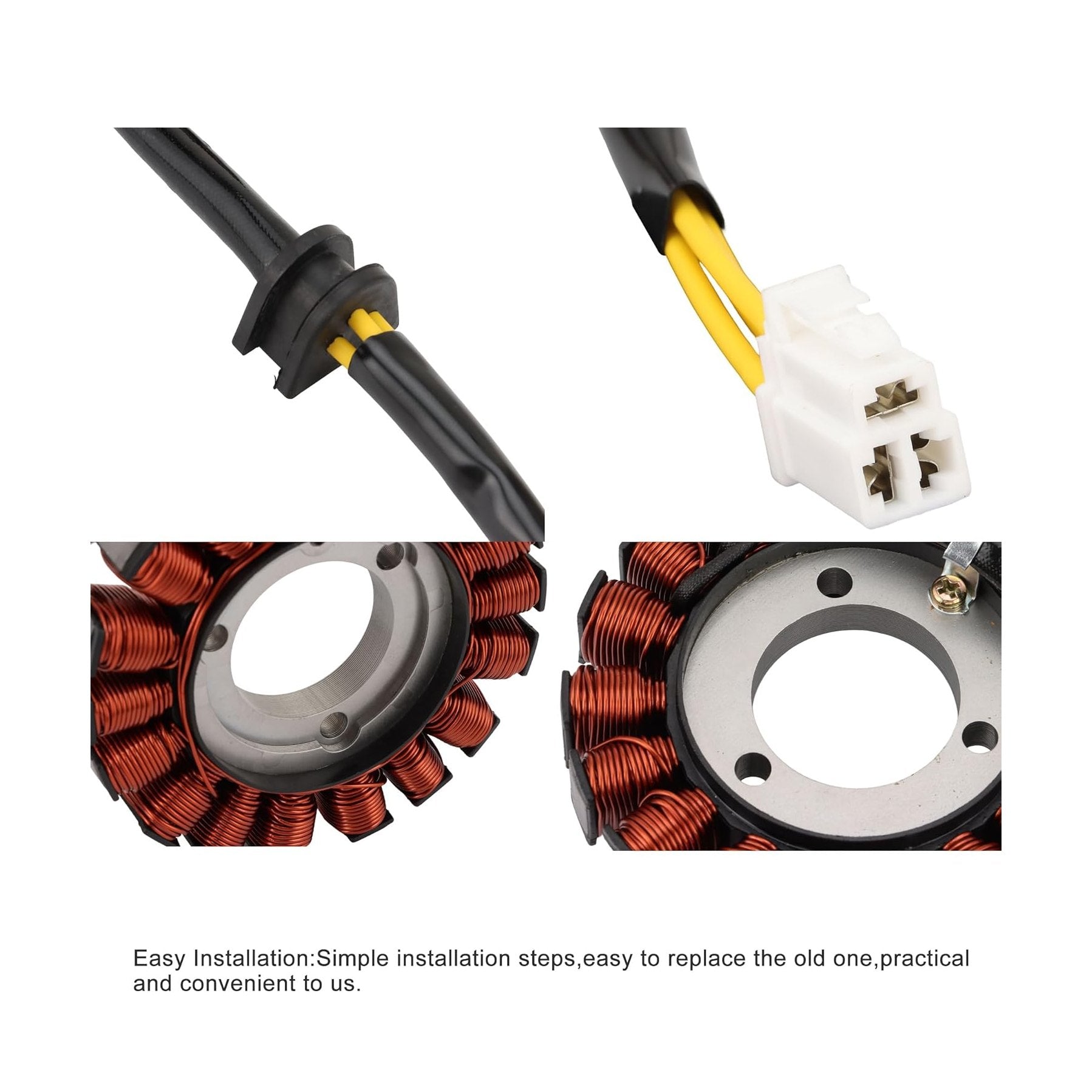

- Design: Direct plug-and-play for hassle-free installation
Why Choose This Stator?
- Stable Power Delivery: Provides the necessary electrical pressure for a consistent spark, ensuring easier starts and smoother engine operation across the RPM range.
- Superior Heat Resistance: Engineered with premium insulating materials to prevent the common "stator burnout" caused by high-displacement engine heat.
- Precision Fitment: Matches factory mounting points and wiring configurations exactly for a straightforward installation without modifications.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki GSX-R600: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024; Suzuki GSX-R750: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017; Suzuki GSX-R600Z: 2022, 2023. Listed year information includes 2006–2024, 2006–2017, 2006, 2024, 2017. It is best matched to original part number(s) 2006-2024, 2006-2017. Key physical/spec details from the product data include Outer Diameter: 106mm (4.17"), Inner Diameter: 38mm (1.5"), Thickness: 12mm (0.47"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 2006-2024, 2006-2017 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki R600/R750/R600Z models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 2006-2024, 2006-2017, treat the fitment as unconfirmed. Model years outside 2006–2024, 2006–2017, 2006, 2024, 2017 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 2006-2024, 2006-2017. Recheck listed specs such as Outer Diameter: 106mm (4.17"), Inner Diameter: 38mm (1.5"), Thickness: 12mm (0.47"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
