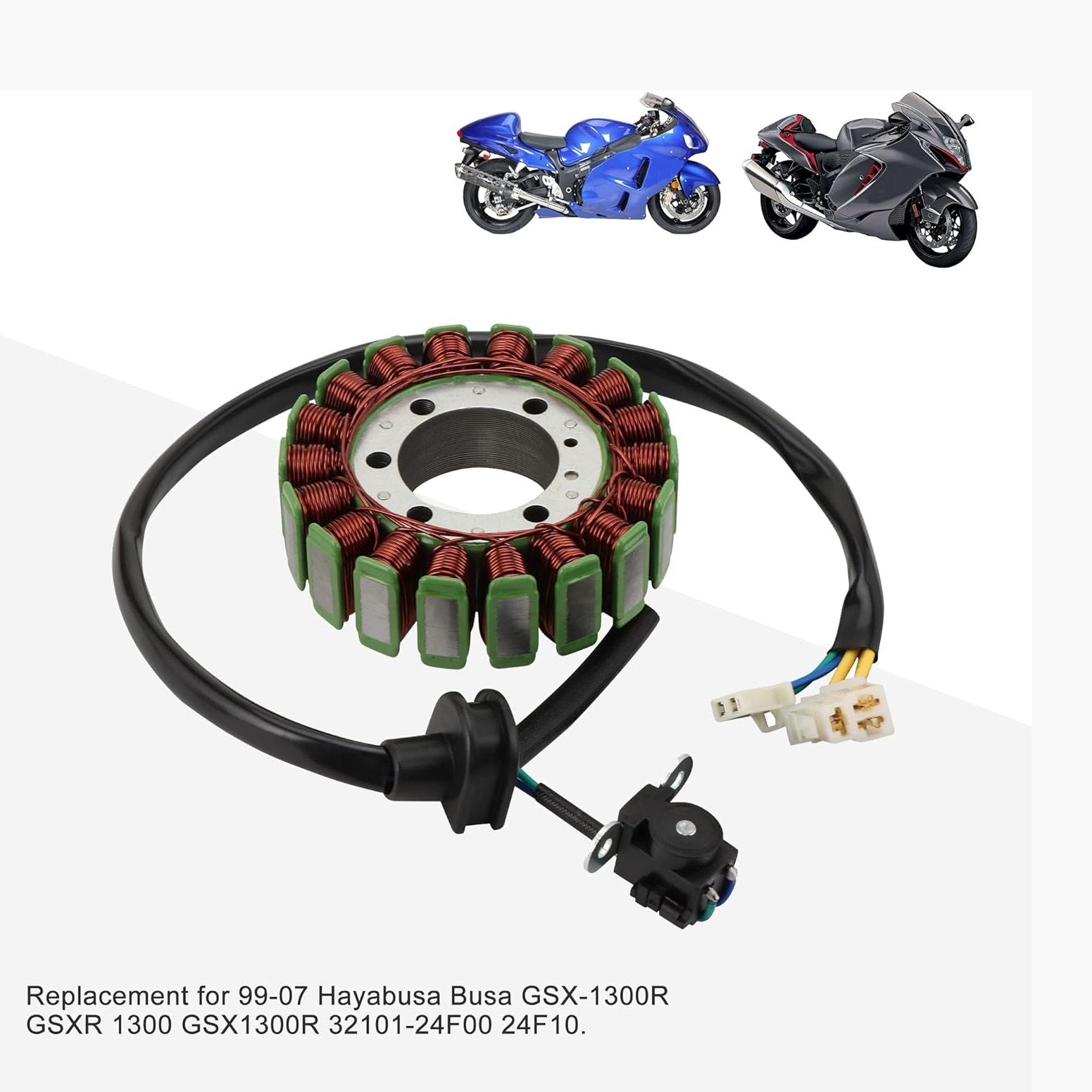

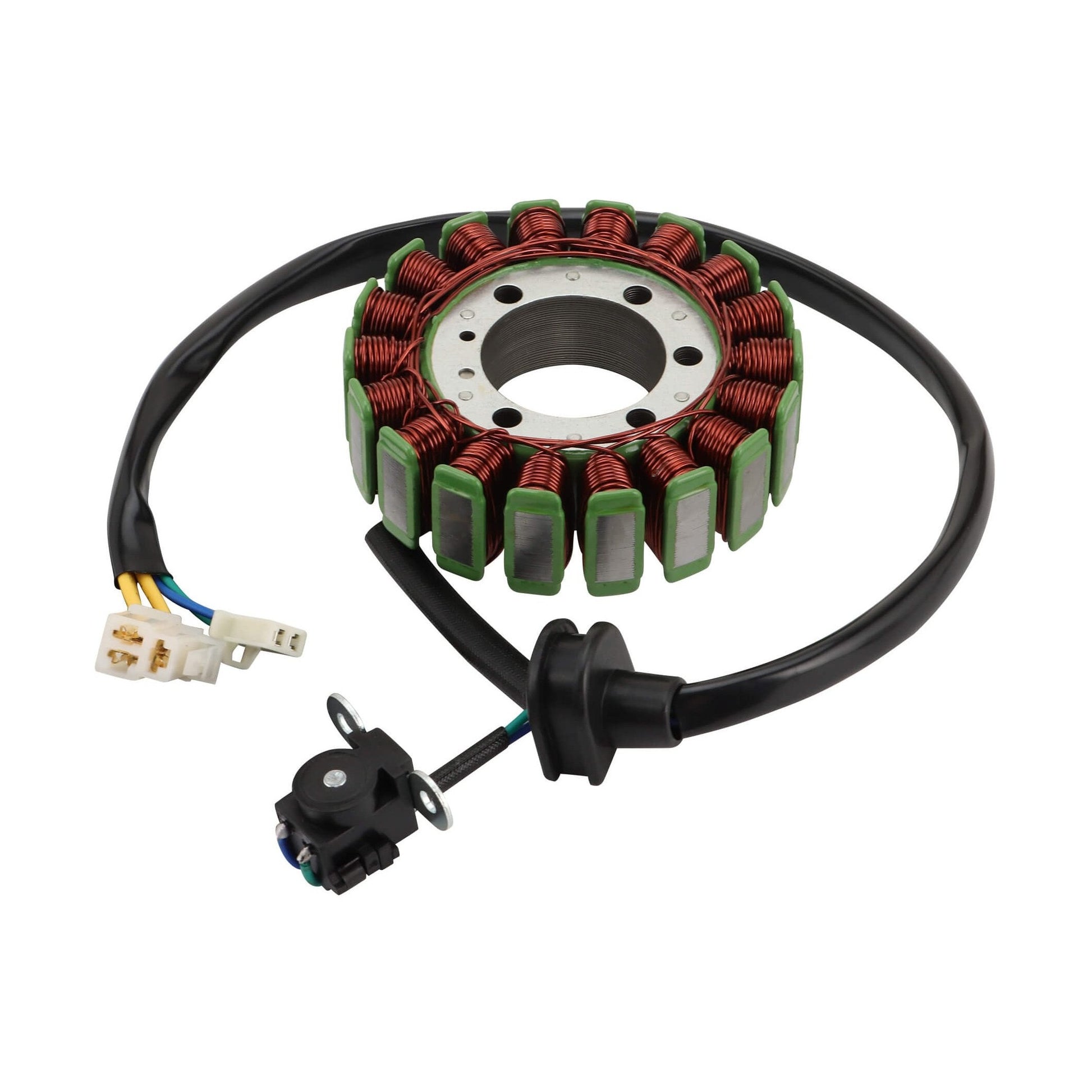

Suzuki Hayabusa GSX1300R Magneto Stator 1999–2007 | Replaces 32101-24F00 32101-24F10
Suzuki Hayabusa GSX1300R Magneto Stator 1999–2007 | Replaces 32101-24F00 32101-24F10
Couldn't load pickup availability
Product Overview
Restore reliable charging and ignition performance to your motorcycle with this magneto stator, designed for Suzuki Hayabusa GSX1300R Gen 1 models from 1999 to 2007.
Built to replace OEM 32101-24F00 / 32101-24F10, this unit helps solve common issues such as battery not charging, hard starting, weak spark, unstable voltage, and intermittent electrical failure.
Manufactured with high-quality copper windings and heat-resistant insulation, this stator is designed to provide stable electrical output, reliable charging performance, and long service life in the high-heat environment of the 1300cc Hayabusa engine.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Suzuki | Hayabusa GSX1300R Gen 1 | 1300cc | 1999–2007 | Verify OEM number and connector style before purchase |
| Suzuki | Hayabusa GSX1300RZ Limited Edition | 1300cc | 2004–2007 | Verify OEM number and connector style before purchase |
OEM Cross Reference:
32101-24F00, 32101-24F10

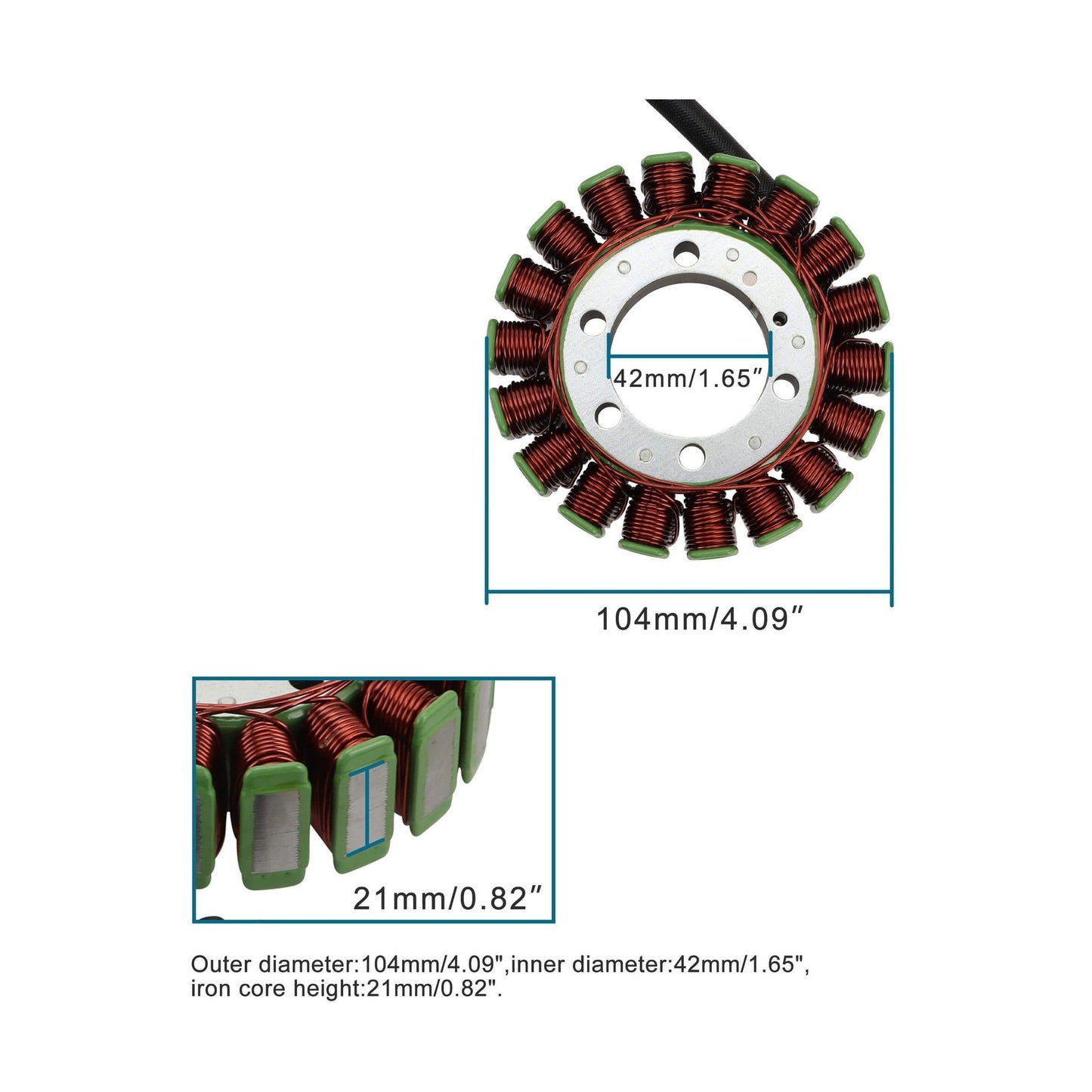

Specifications
| Specification | Details |
|---|---|
| Part Type | Magneto Stator |
| Outer Diameter | 104 mm |
| Inner Diameter | 42 mm |
| Core Height | 21 mm |
| Material | High-purity copper windings / High-grade metal lamination |
| Function | Charging and ignition system support |
| Installation | Direct replacement |
| Condition | 100% New Aftermarket |

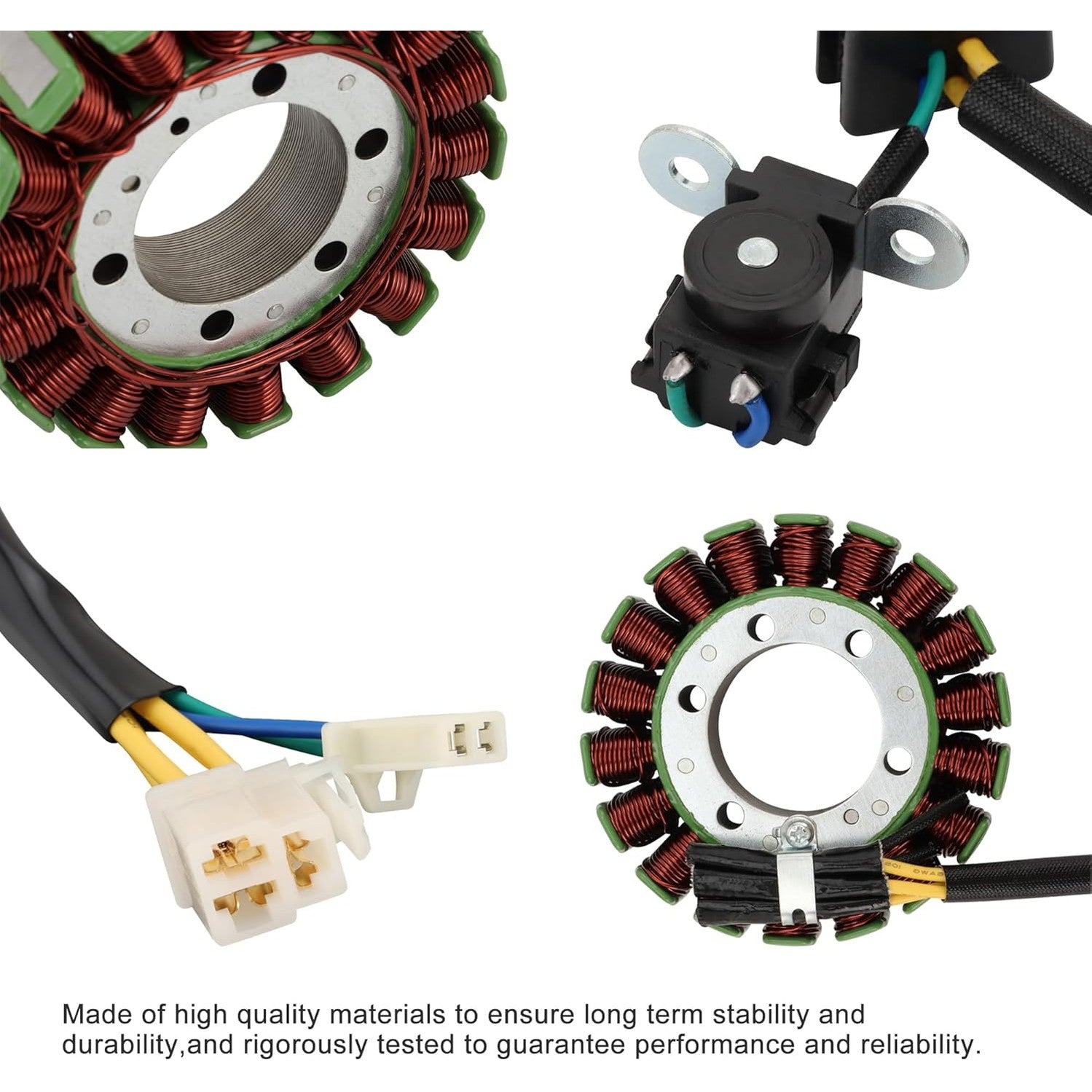

Key Features
- Direct Replacement Design – Built to replace the original GSX1300R stator on correctly matched applications
- Stable Power Generation – Helps support reliable charging, ignition, and fuel-injection performance
- Heat-Resistant Construction – Designed for the high-temperature operating environment of large-displacement sportbike engines
- Copper Winding Design – Helps provide dependable electrical output and long service life
- Bolt-On Installation – Designed for straightforward installation with correctly matched connectors and mounting points
Common Problems This Part Can Help Solve
This product may help address issues such as:
- Battery not charging
- Weak or no spark
- Hard starting
- Intermittent electrical failure
- Unstable charging voltage
- Poor ignition performance
Related Charging System Part
If your Suzuki Hayabusa GSX1300R has charging problems, the issue may involve the stator, voltage regulator rectifier, battery, wiring, or connectors. When replacing the stator, it is also recommended to inspect the regulator rectifier to avoid repeat charging failure.
For a more complete charging system repair, check our Suzuki Hayabusa GSX1300R Voltage Regulator Rectifier, designed to replace OEM 32800-33E21.
Package Includes
1 × Magneto Stator
Fitment Note
Please confirm your OEM part number, connector style, stator dimensions, and vehicle model/year before ordering.
If you are unsure about compatibility, contact us with your model, year, OEM number, connector photos, and stator measurements before purchase.
Installation Note
Professional installation is recommended.
Before installation, inspect related components such as the battery, regulator/rectifier, wiring harness, connectors, flywheel, and charging system to avoid repeat failure caused by another faulty part.
Why Choose This Replacement
A failing stator can lead to charging issues, unstable voltage, weak ignition performance, and unreliable starting. Replacing it with a properly matched stator helps restore dependable electrical performance and keeps your Hayabusa ready for regular riding.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 1999–2007, 2004–2007, 1999, 2007, 2004. It is best matched to original part number(s) 32101-24F00, 32101-24F10, 32800-33E21. Key physical/spec details from the product data include Outer Diameter: 104 mm, Inner Diameter: 42 mm, Core Height: 21 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-24F00, 32101-24F10, 32800-33E21 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki GSX1300R models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-24F00, 32101-24F10, 32800-33E21, treat the fitment as unconfirmed. Model years outside 1999–2007, 2004–2007, 1999, 2007, 2004 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-24F00, 32101-24F10, 32800-33E21. Recheck listed specs such as Outer Diameter: 104 mm, Inner Diameter: 42 mm, Core Height: 21 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
