Magneto Stator for Suzuki LS650 Savage & Boulevard S40 | OEM 32101-24B02
Magneto Stator for Suzuki LS650 Savage & Boulevard S40 | OEM 32101-24B02
Couldn't load pickup availability

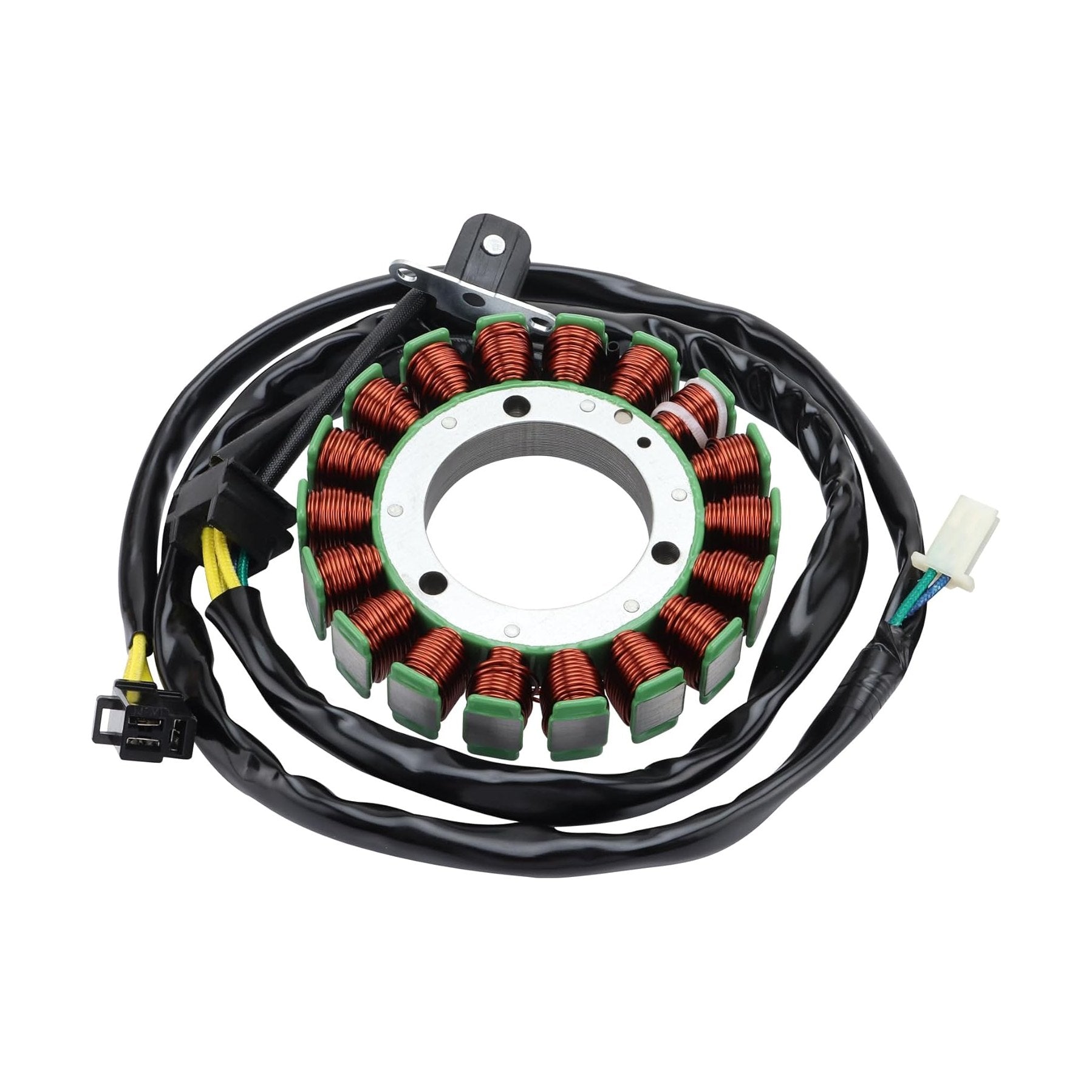

Heavy-Duty Magneto Stator for Suzuki 400cc & 650cc Cruisers
Restore your cruiser's charging reliability and electrical health. This premium aftermarket Magneto Stator is a precision-engineered replacement for Suzuki OEM part number 32101-24B02-000. Designed specifically for the air-cooled big-single engines of the LS650 Savage and Boulevard S40, it provides the stable electrical output needed for consistent ignition and battery maintenance.

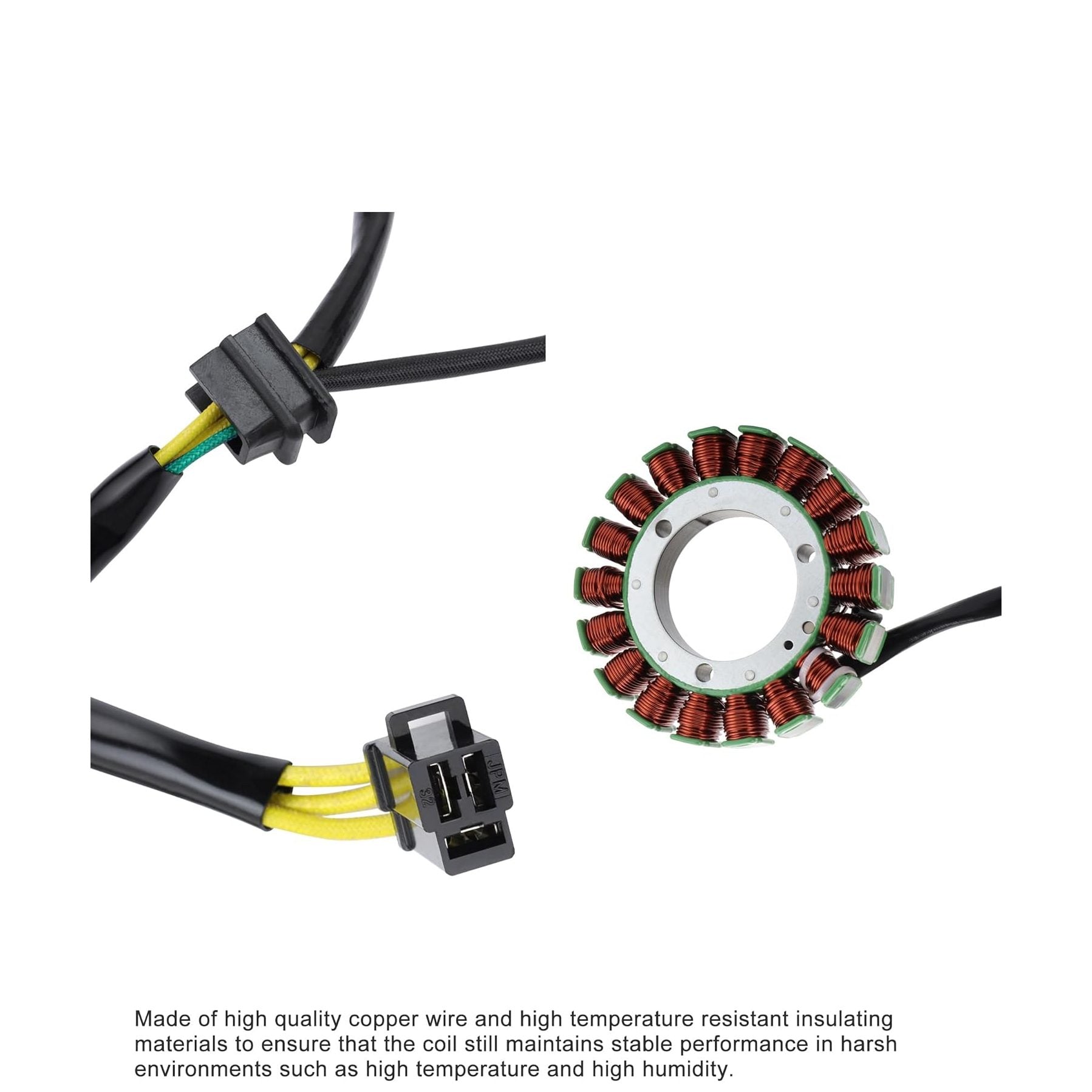

Constructed with high-quality copper wire and advanced heat-resistant insulation, this stator is built to withstand the extreme thermal cycles of an air-cooled engine. The precise manufacturing process ensures that the coil maintains stable performance even in harsh, high-humidity environments, effectively prolonging service life and reducing the need for frequent replacements.

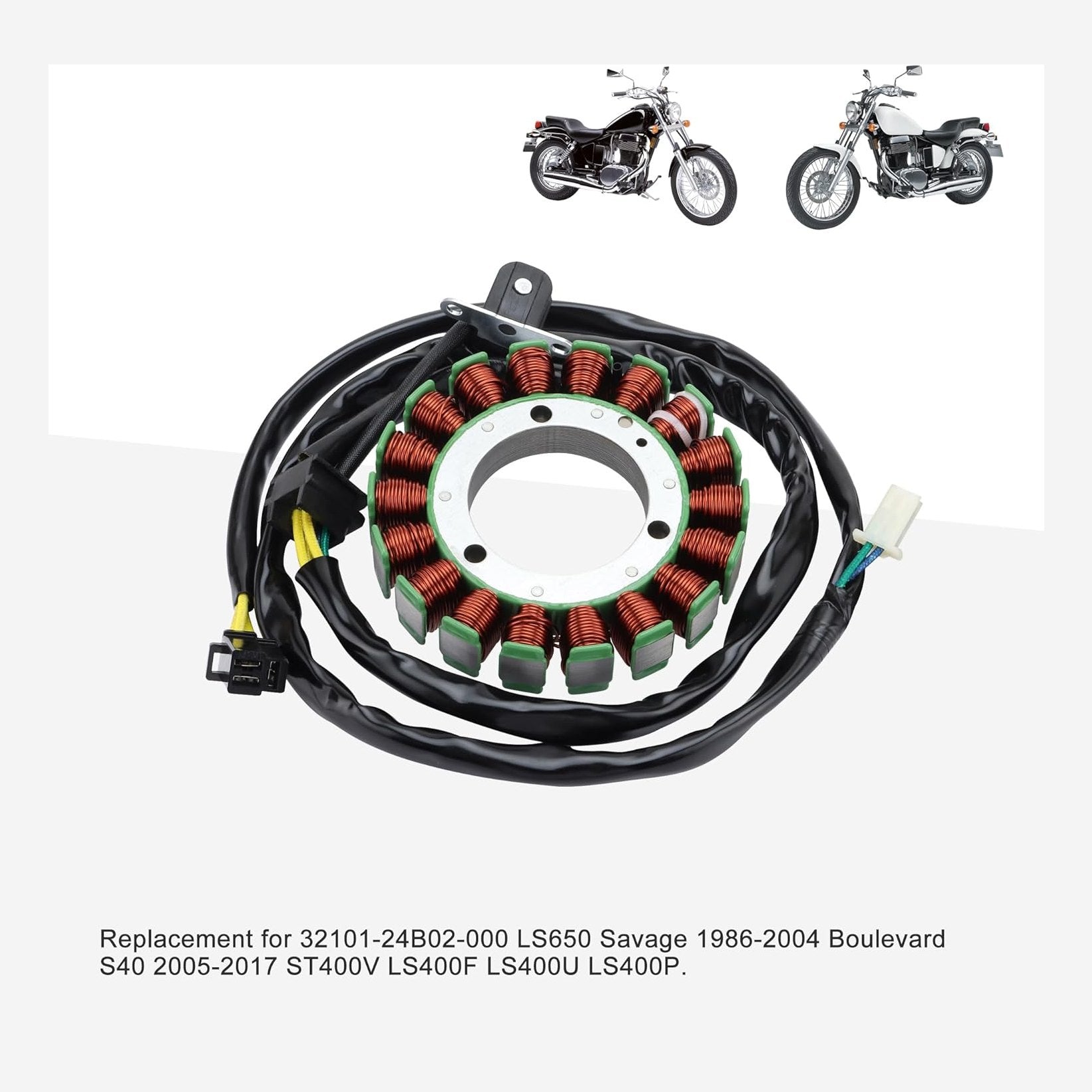

Product Compatibility
- Suzuki LS650 Savage: 1986 – 2004
- Suzuki Boulevard S40: 2005 – 2017
- Suzuki ST400V: All years
- Suzuki LS400 Models: LS400F, LS400U, LS400P
Key Technical Specifications:

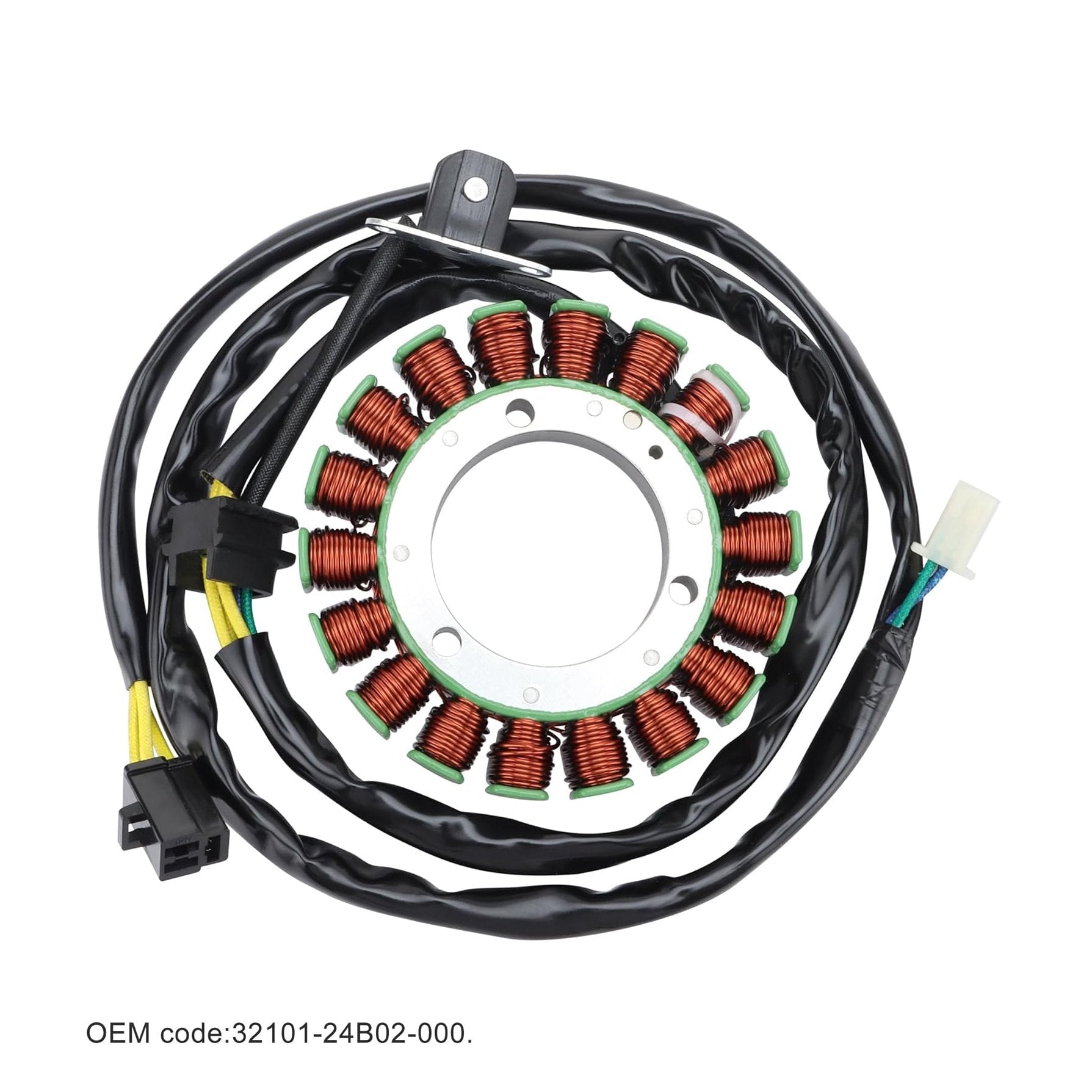

- OEM Reference: 32101-24B02-000
- Configuration: High-output 18-pole design
- Material: 200°C High-temperature resistant copper windings
- Design: Direct "bolt-on" fit with factory-style connectors
Why Choose This Stator?
- Superior Thermal Stability: Engineered to prevent common "stator burnout" caused by the high heat soak of 650cc air-cooled engines.
- Stable Power Delivery: Provides a consistent electrical field for smoother engine idling and reliable voltage for your lights and accessories.
- Direct Plug-and-Play Fit: Matches factory mounting points and wiring configurations exactly for a straightforward, hassle-free installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki LS650 Savage: 1986 – 2004; Suzuki Boulevard S40: 2005 – 2017; Suzuki ST400V: All years; Suzuki LS400 Models: LS400F, LS400U, LS400P. Listed year information includes 1986–2004, 2005–2017, 1986, 2004, 2005. It is best matched to original part number(s) 32101-24B02, 32101-24B02-000. Key physical/spec details from the product data include 400cc, 650cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-24B02, 32101-24B02-000 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki LS650/Boulevard/S40/ST400V models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-24B02, 32101-24B02-000, treat the fitment as unconfirmed. Model years outside 1986–2004, 2005–2017, 1986, 2004, 2005 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-24B02, 32101-24B02-000. Recheck listed specs such as 400cc, 650cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
