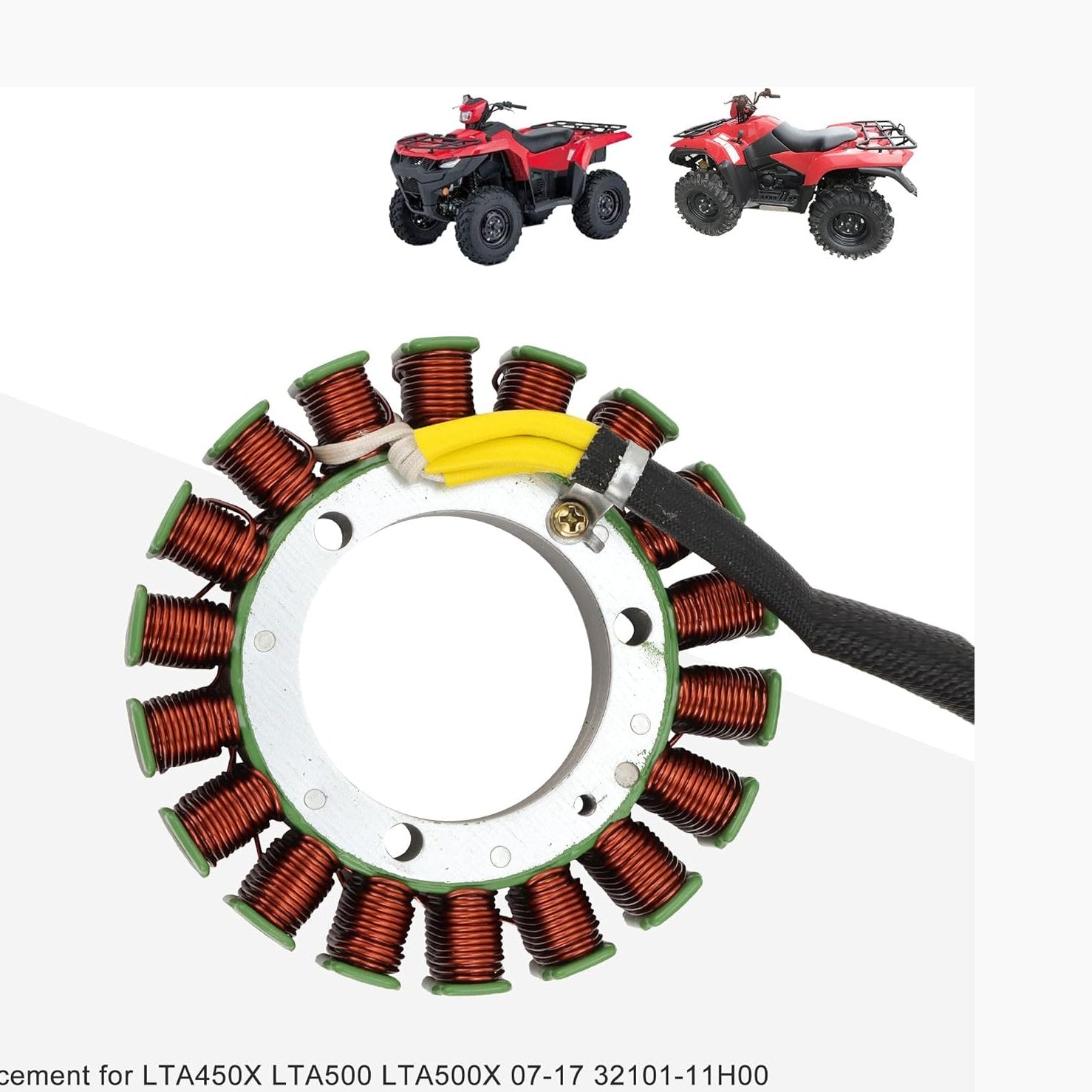

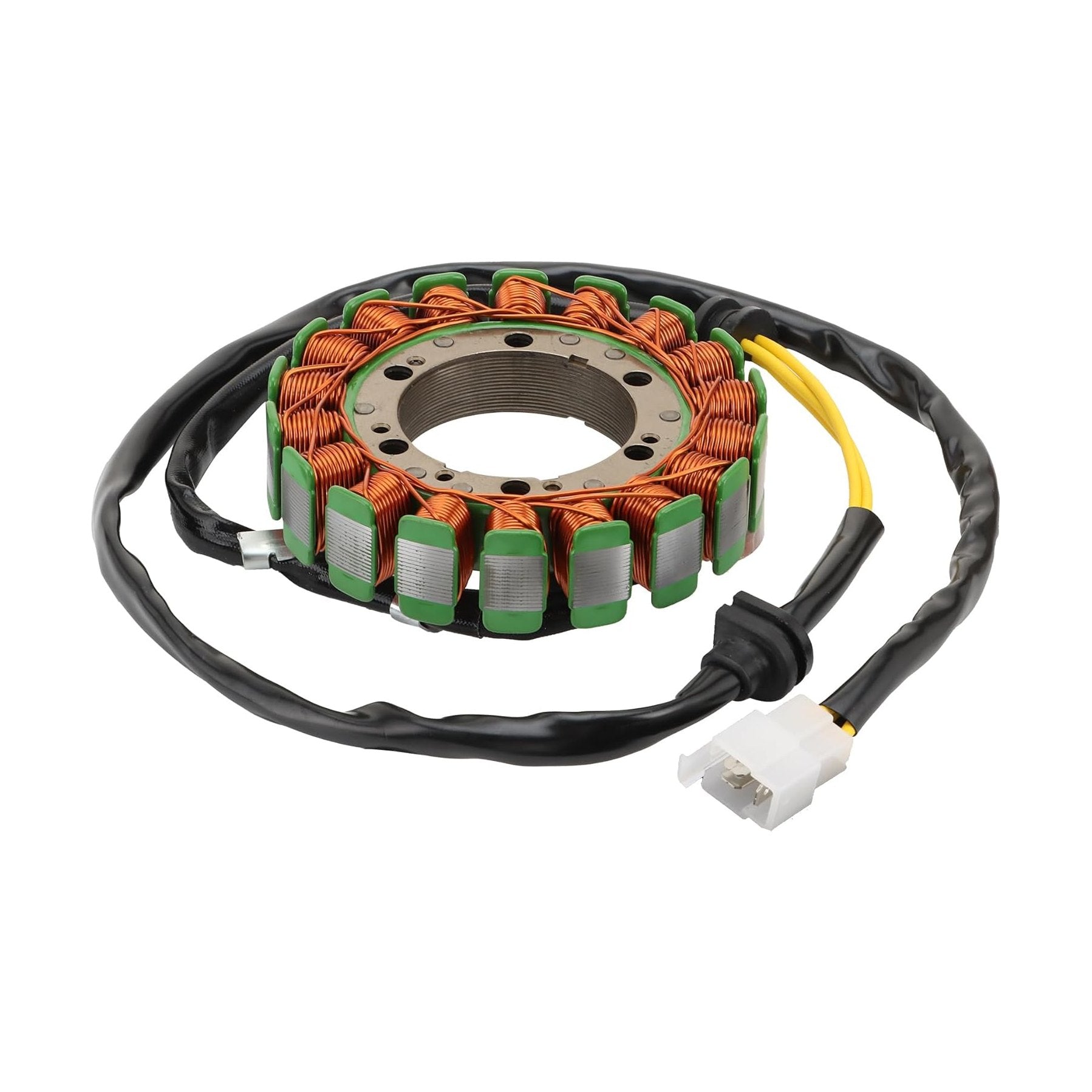

Heavy-Duty Magneto Stator for Suzuki King Quad 450 & 500 (LTA450X/LTA500X)
Keep your ATV powered for the toughest trails. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Suzuki King Quad 450 and 500 series. Designed to meet or exceed OEM specifications, it provides the stable electrical output required for reliable ignition, winching power, and consistent battery charging in demanding off-road environments.
Manufactured with high-quality copper wire and premium insulation, this stator is built to thrive in harsh conditions, including high humidity and extreme engine heat. The precise manufacturing process ensures long-term durability and stable power delivery, reducing the risk of being stranded on the trail due to electrical failure.
Product Compatibility
- Suzuki King Quad 450 (LT-A450X): 2007, 2008, 2009, 2010
- Suzuki King Quad 500 (LT-A500X): 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
- Suzuki King Quad 500 AXi: 2011–2017
- OEM Cross-Reference: 32101-11H00

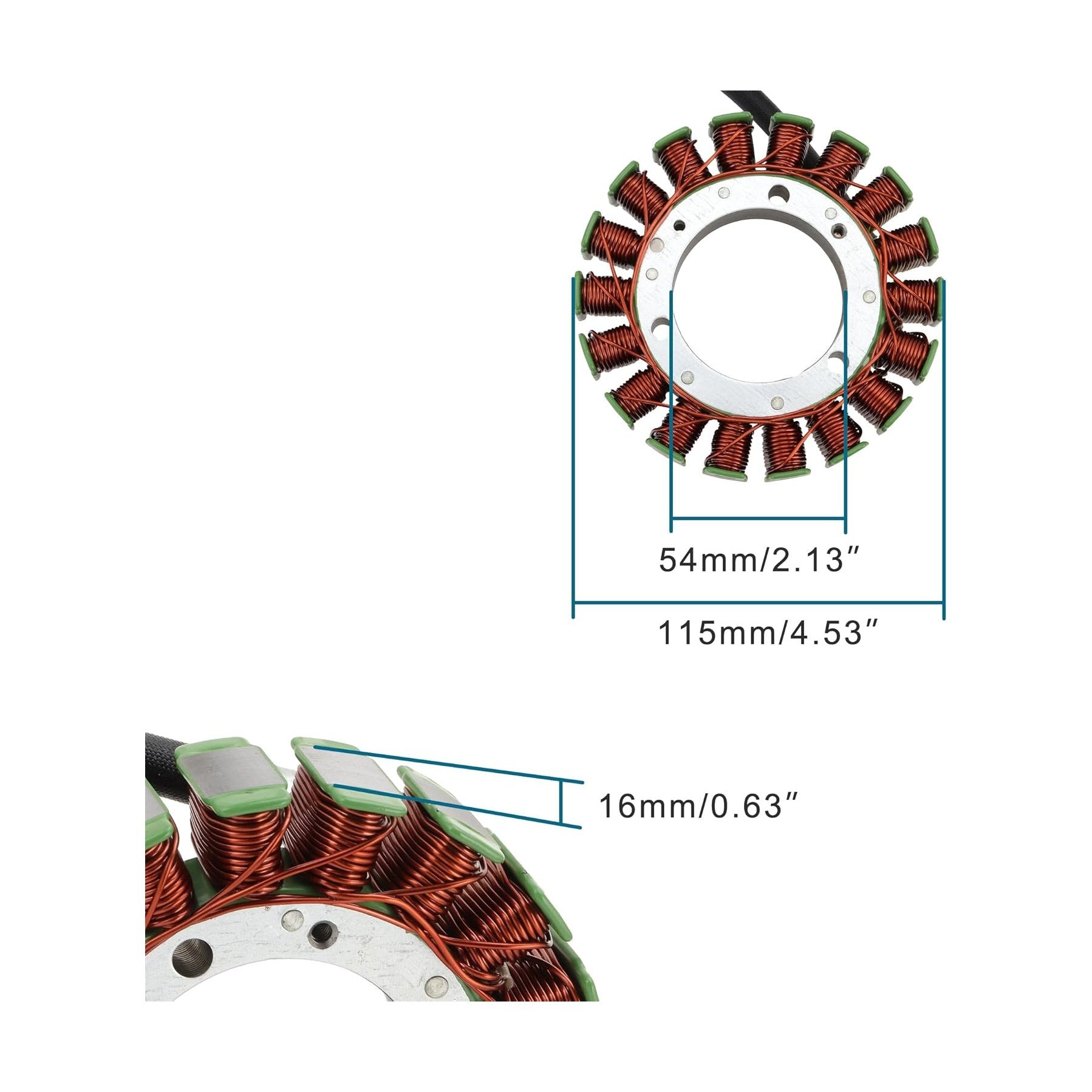

Key Technical Specifications:
- Outer Diameter: 114.5mm (4.51")
- Inner Diameter: 54mm (2.13")
- Thickness: 16mm (0.63")
- Materials: High-purity copper windings with high-temperature insulation
- Fitment: Direct plug-and-play installation
Why Choose This Stator?
- Stable Performance in Harsh Environments: Specially treated insulation protects against moisture and mud, ensuring your electrical system remains stable during deep-water crossings or humid trail rides.
- Precision Power Generation: Delivers a precise and stable charging voltage, protecting your battery and ensuring your headlights and accessories operate at full power.
- Durability You Can Trust: Engineered to reduce the frequency of replacement, this stator features superior thermal conductivity to prevent the burnout common in low-grade aftermarket units.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki King Quad 450 (LT-A450X): 2007, 2008, 2009, 2010; Suzuki King Quad 500 (LT-A500X): 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017; Suzuki King Quad 500 AXi: 2011–2017; OEM Cross-Reference: 32101-11H00. It is best matched to original part number(s) 32101-11H00. Key physical/spec details from the product data include Outer Diameter: 114. 5mm (4. 51"), Inner Diameter: 54mm (2. 13"), Thickness: 16mm (0. 63"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-11H00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki LTA450X/LTA500X/King Quad/A450X models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-11H00, treat the fitment as unconfirmed. Model years outside 2011–2017, 2007, 2008, 2009, 2010 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-11H00. Recheck listed specs such as Outer Diameter: 114. 5mm (4. 51"), Inner Diameter: 54mm (2. 13"), Thickness: 16mm (0. 63"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
