Magneto Stator for Suzuki QuadRunner 500 & QuadMaster 500 (1998-2002) | 32101-09F00
Magneto Stator for Suzuki QuadRunner 500 & QuadMaster 500 (1998-2002) | 32101-09F00
Couldn't load pickup availability

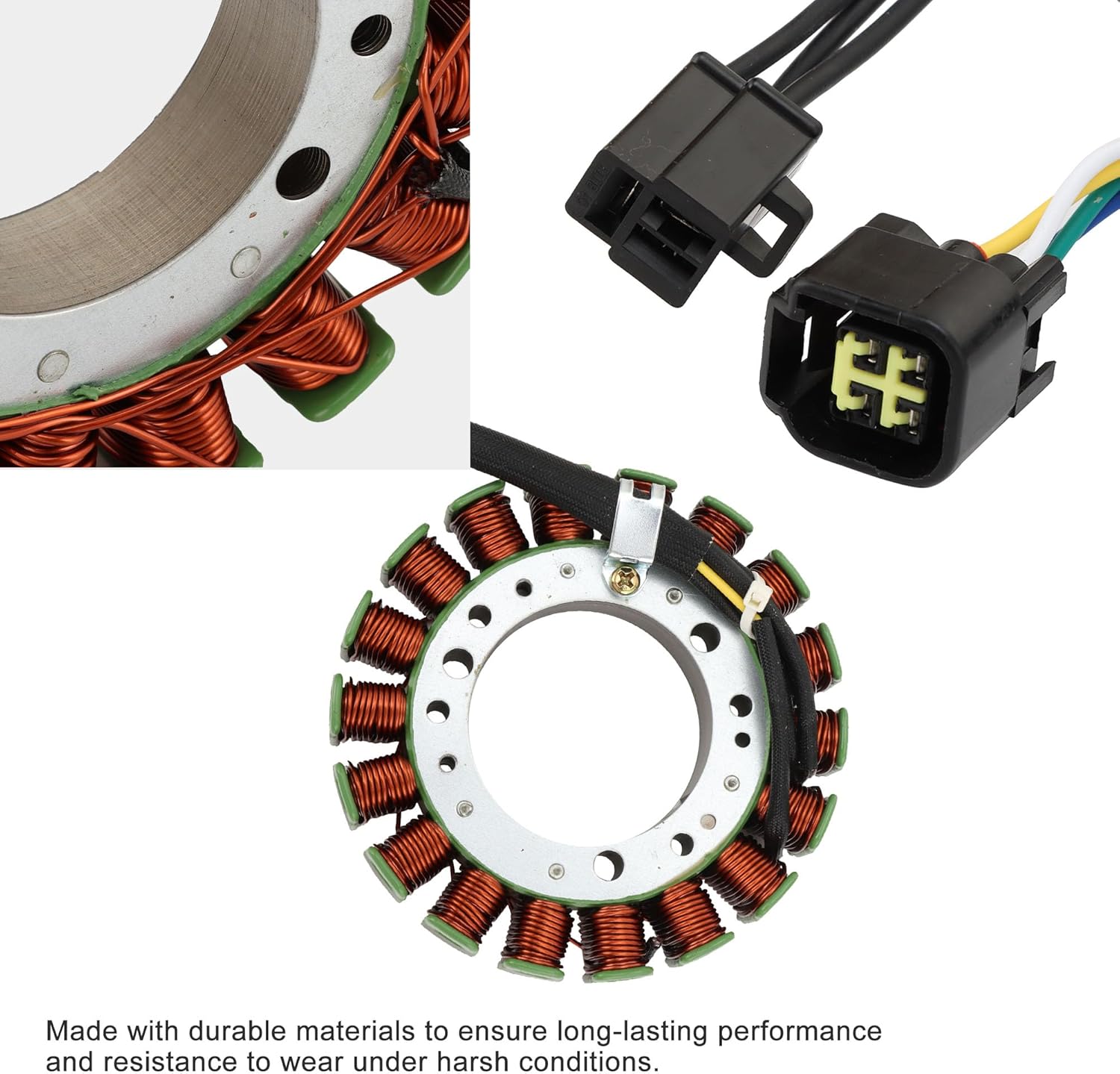

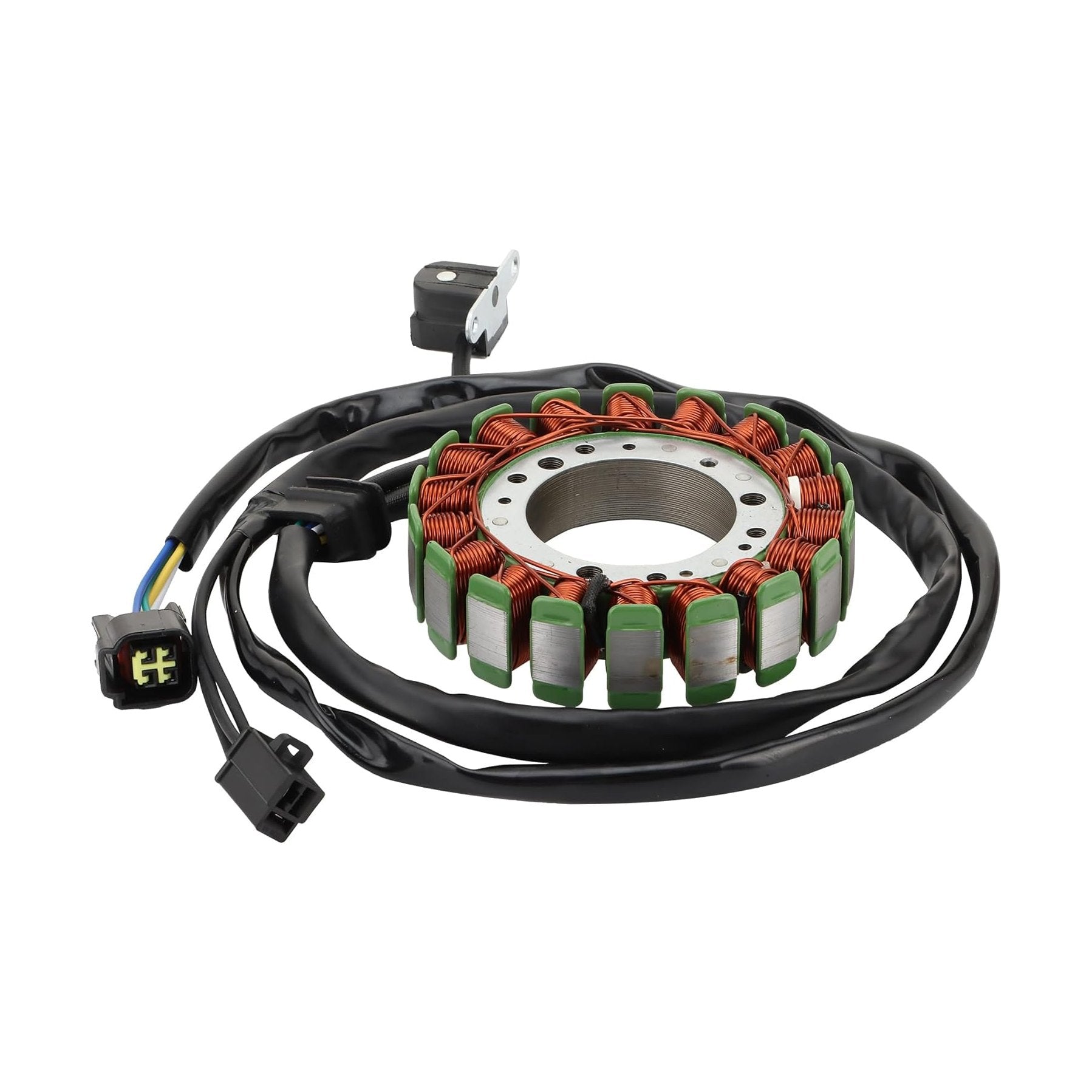

Professional Ignition Stator for Suzuki LT-F500F & LT-A500 ATVs
Restore reliable starts and consistent power to your Suzuki 500. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Suzuki QuadRunner 500 (LT-F500F) and QuadMaster 500 (LT-A500). Designed to meet or exceed factory standards, it provides the stable electrical output required for a strong spark and healthy battery charging, even in the most demanding off-road conditions.
Built with high-grade copper windings and advanced lamination materials, this stator is engineered to resist thermal breakdown up to 200°C. The direct-fit design matches your factory connectors and grommets exactly, ensuring a "plug-and-play" installation that saves you time and expensive shop labor costs.
Product Compatibility
- Suzuki LT-F500F QuadRunner 500 4WD: 1998, 1999, 2000, 2001, 2002
- Suzuki LT-A500 QuadMaster 500: 2000, 2001
- Arctic Cat 500 (Manual/Auto): 1998–2002
- Arctic Cat 400/454 Models: 1996–2002 (select versions)

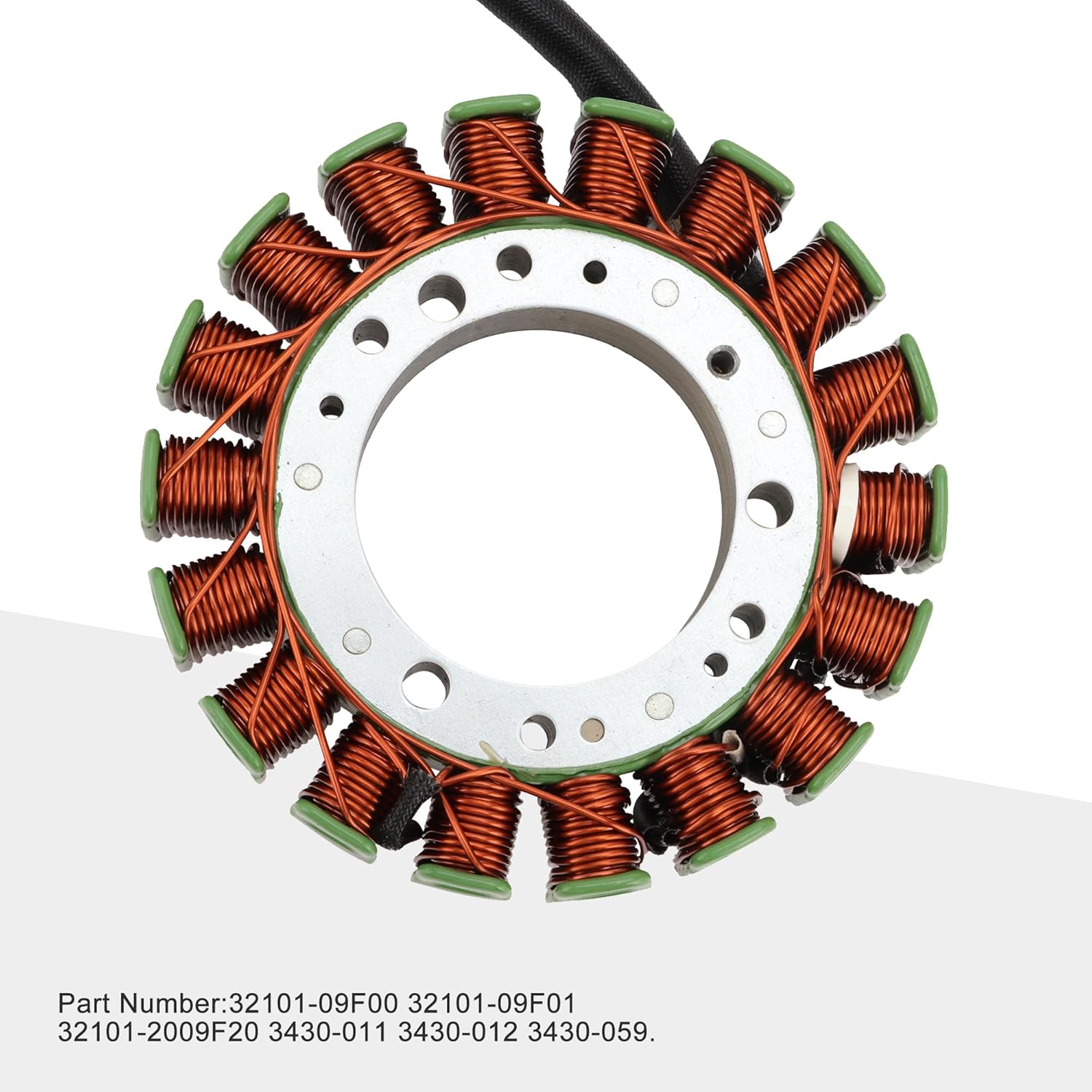

- OEM Cross-Reference: 32101-09F00, 32101-09F01, 32101-09F20, 3430-011, 3430-059
Key Technical Specifications:
- Outer Diameter: 115mm (approx. 4.5")
- Inner Diameter: 53mm
- Thickness: 18mm
- Design: 18-pole high-output coil
- Material: High-temp resistant copper and premium grade steel core
Why Choose This Stator?
- Exceptional Heat Resistance: Features marine-grade insulation to prevent the internal short-circuiting often caused by the high operating temperatures of 500cc engines.
- Direct OEM Fit: Precisely matches factory wiring and mounting points for a seamless installation with no modifications or wire splicing required.
- Stable Charging Performance: Delivers a consistent current to your voltage regulator, ensuring your battery stays charged even when running winches or extra lights.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki LT-F500F QuadRunner 500 4WD: 1998, 1999, 2000, 2001, 2002; Suzuki LT-A500 QuadMaster 500: 2000, 2001; Arctic Cat 500 (Manual/Auto): 1998–2002; Arctic Cat 400/454 Models: 1996–2002 (select versions); OEM Cross-Reference: 32101-09F00, 32101-09F01, 32101-09F20, 3430-011, 3430-059. It is best matched to original part number(s) 32101-09F00, 32101-09F01, 32101-09F20, 3430-011. Key physical/spec details from the product data include Outer Diameter: 115mm (approx. 4.5"), Inner Diameter: 53mm, Thickness: 18mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-09F00, 32101-09F01, 32101-09F20, 3430-011 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki/Arctic Cat F500F/A500 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-09F00, 32101-09F01, 32101-09F20, 3430-011, treat the fitment as unconfirmed. Model years outside 1998–2002, 1996–2002, 1998, 2002, 1999 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-09F00, 32101-09F01, 32101-09F20, 3430-011. Recheck listed specs such as Outer Diameter: 115mm (approx. 4.5"), Inner Diameter: 53mm, Thickness: 18mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
