GOOFIT
Magneto Stator for Suzuki RM125 (1998-2000) | 32101-36E10 & 32101-36E20
Magneto Stator for Suzuki RM125 (1998-2000) | 32101-36E10 & 32101-36E20
Couldn't load pickup availability
Professional-Grade Ignition Stator for Suzuki RM125 (1998-2000)
Restore your bike’s factory spark and throttle response. This premium aftermarket Magneto Stator is a precision-engineered replacement for Suzuki OEM part numbers 32101-36E10, 32101-36E20, and 32101-36E30. Specifically designed for the 1998–2000 RM125 models, it provides the stable electrical output necessary for consistent engine performance on the track.
Built to withstand the high-vibration and extreme heat of motocross racing, this stator is constructed from high-grade copper windings and heat-resistant insulating materials. This ensures that the coil maintains stable performance even in harsh, high-humidity environments, effectively reducing the frequency of replacement and prolonging your engine's service life.
Product Compatibility
- Model: Suzuki RM125 (2-Stroke)
- Year Range: 1998, 1999, 2000
- OEM Cross-Reference: 32101-36E10, 32101-36E20, 32101-36E00, 32101-36E30

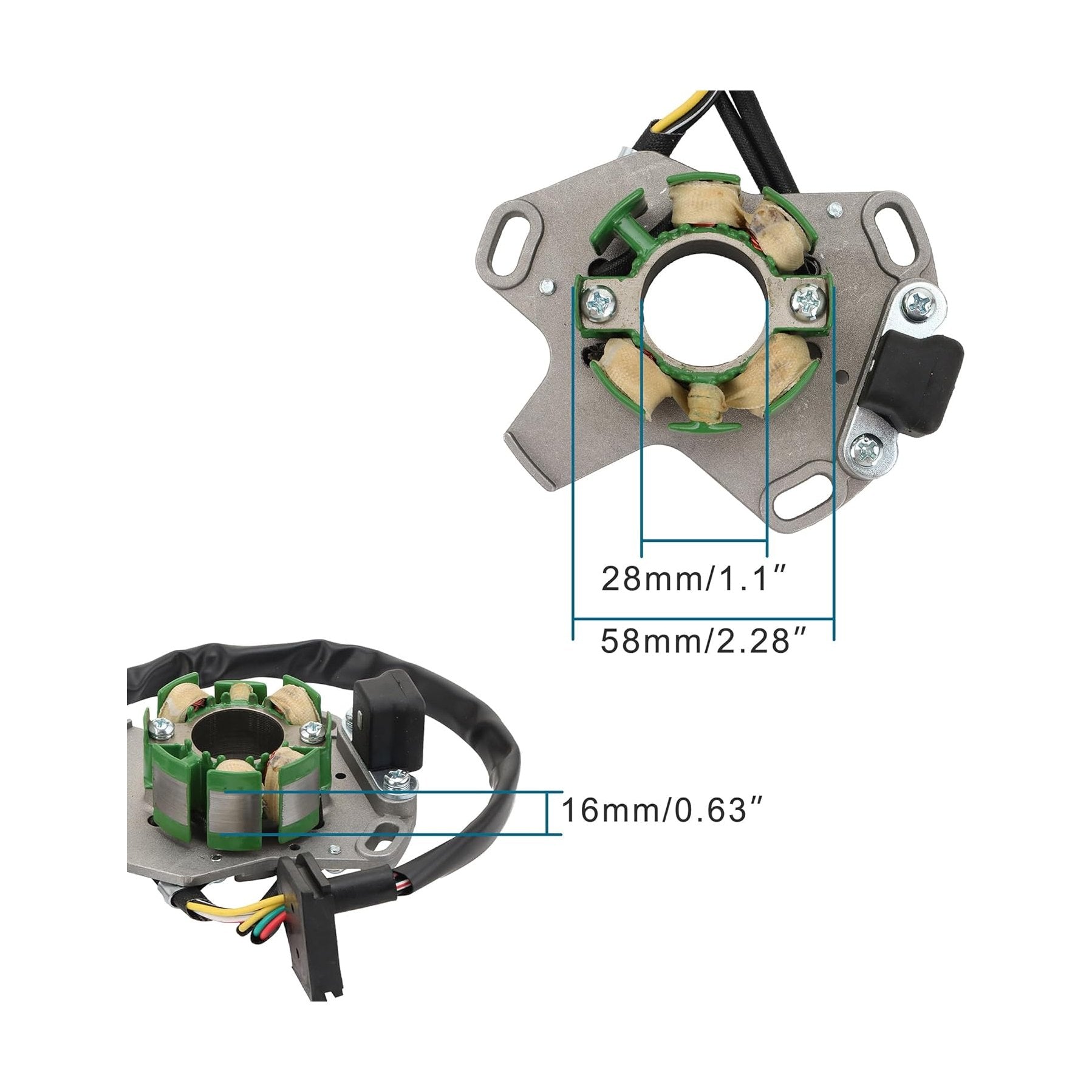

Key Technical Specifications:
- Outer Diameter: 58mm (2.28")
- Inner Diameter: 28mm (1.10")
- Core Thickness: 16mm (0.63")
- Wires/Pins: 10 Wires with 2 Plugs
- Material: 200°C High-temperature resistant copper and metal lamination
Why Choose This Stator?
- Optimized Ignition: Increases energy intensity for faster, easier starting and improved combustion efficiency.
- Rugged Durability: Precision manufacturing and strict quality control ensure the unit can handle intense vibration and thermal loads.
- Plug-and-Play Fit: Designed as a direct replacement to match factory mounting points, ensuring a seamless installation without modifications.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Model: Suzuki RM125 (2-Stroke); Year Range: 1998, 1999, 2000; OEM Cross-Reference: 32101-36E10, 32101-36E20, 32101-36E00, 32101-36E30. It is best matched to original part number(s) 32101-36E10, 32101-36E20, 32101-36E30, 32101-36E00. Key physical/spec details from the product data include Outer Diameter: 58mm (2.28"), Inner Diameter: 28mm (1.10"), Core Thickness: 16mm (0.63"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-36E10, 32101-36E20, 32101-36E30, 32101-36E00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki RM125 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-36E10, 32101-36E20, 32101-36E30, 32101-36E00, treat the fitment as unconfirmed. Model years outside 1998–2000, 1998, 2000, 1999 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-36E10, 32101-36E20, 32101-36E30, 32101-36E00. Recheck listed specs such as Outer Diameter: 58mm (2.28"), Inner Diameter: 28mm (1.10"), Core Thickness: 16mm (0.63"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
