GOOFIT
Magneto Stator for Suzuki RM250 (1996-2000) | 32101-37E00 & 32101-37E40
Magneto Stator for Suzuki RM250 (1996-2000) | 32101-37E00 & 32101-37E40
Couldn't load pickup availability

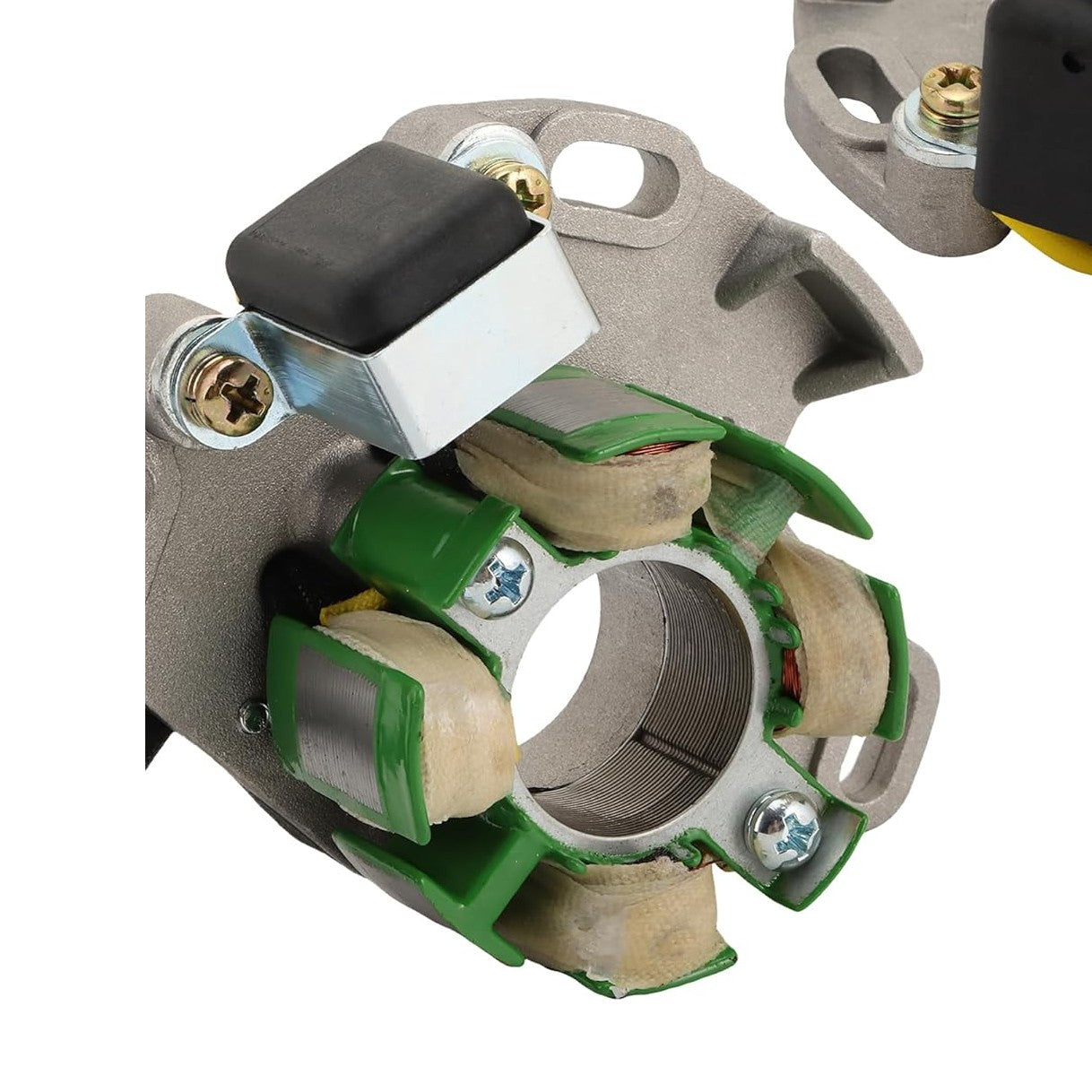

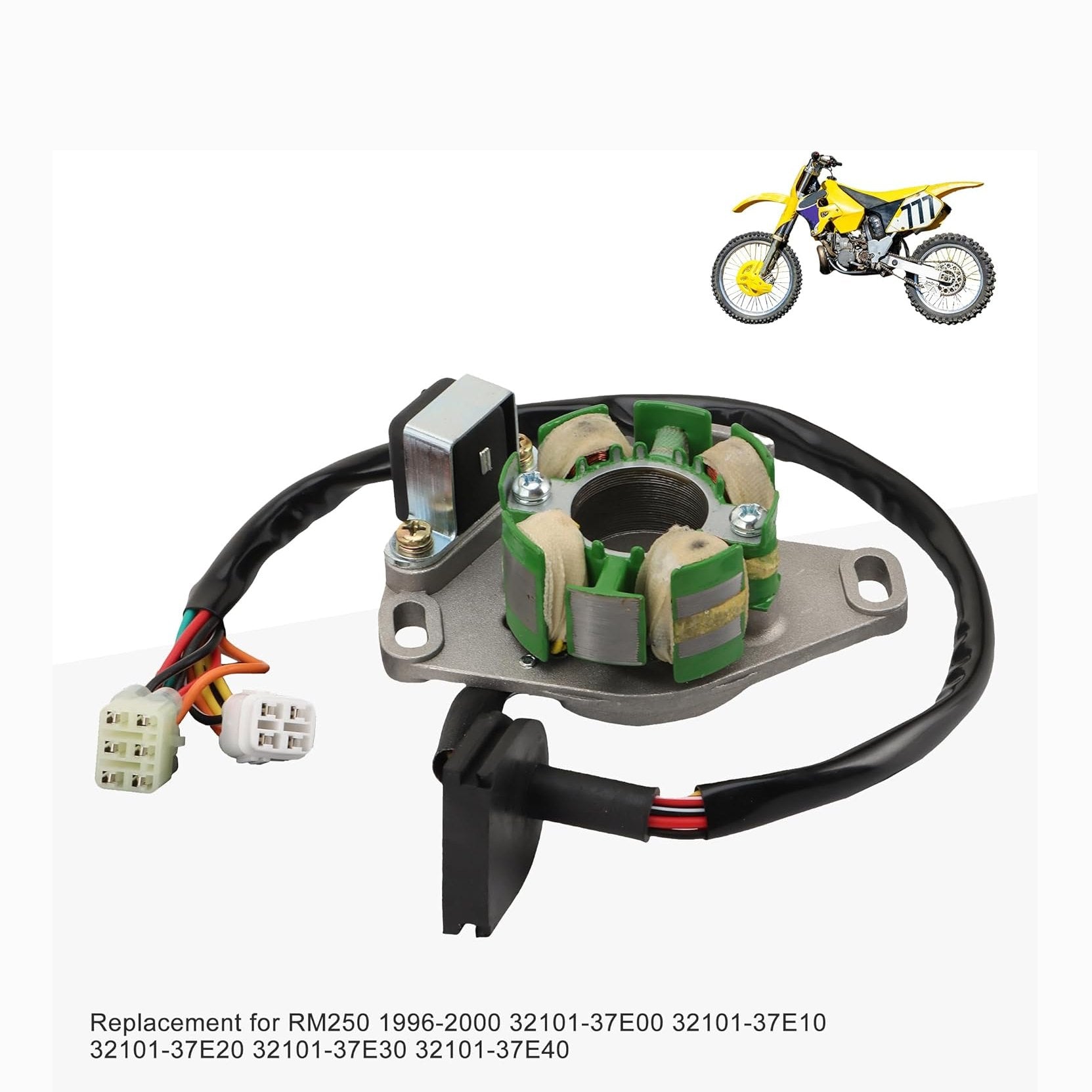

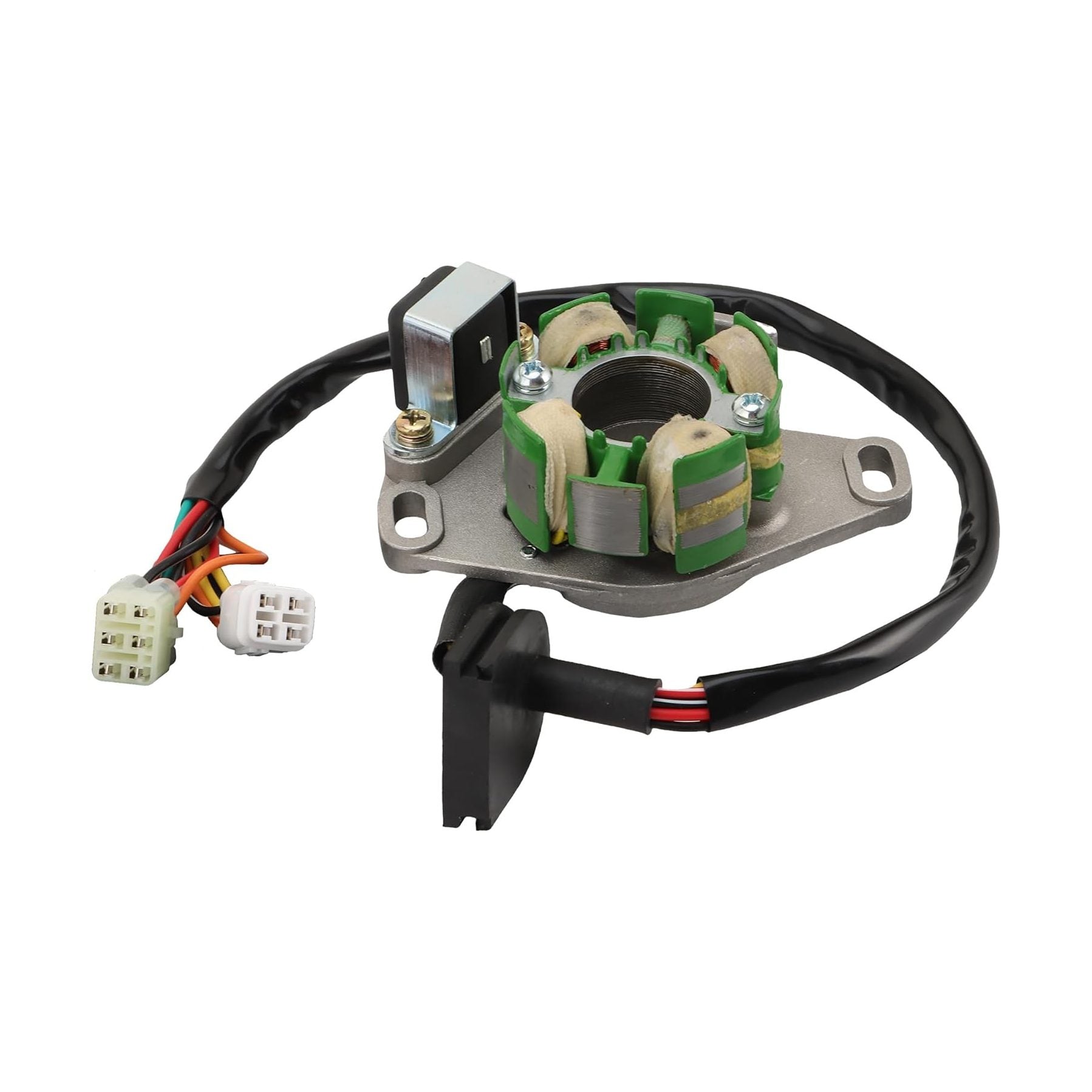

Heavy-Duty Ignition Stator for Suzuki RM250 (1996-2000)
Restore the hard-hitting ignition performance of your vintage Suzuki RM250. This premium aftermarket Magneto Stator is a precision-engineered replacement for Suzuki OEM part numbers 32101-37E00, 32101-37E10, 32101-37E20, 32101-37E30, and 32101-37E40. Specifically designed for the 1996–2000 model years, it provides the stable electrical output required for consistent spark intensity and aggressive throttle response.
Built for the track, this stator features high-quality metal lamination and precision-wound high-purity copper wires that are resistant to temperatures up to 200°C. The rugged construction ensures exceptional durability against the intense vibration and heat soak typical of competitive motocross racing, protecting your ignition system from rust, corrosion, and internal failure.
Product Compatibility
- Model: Suzuki RM250 (2-Stroke)
- Year Range: 1996, 1997, 1998, 1999, 2000
- OEM Cross-Reference: 32101-37E00, 32101-37E10, 32101-37E20, 32101-37E30, 32101-37E40
Key Technical Specifications:

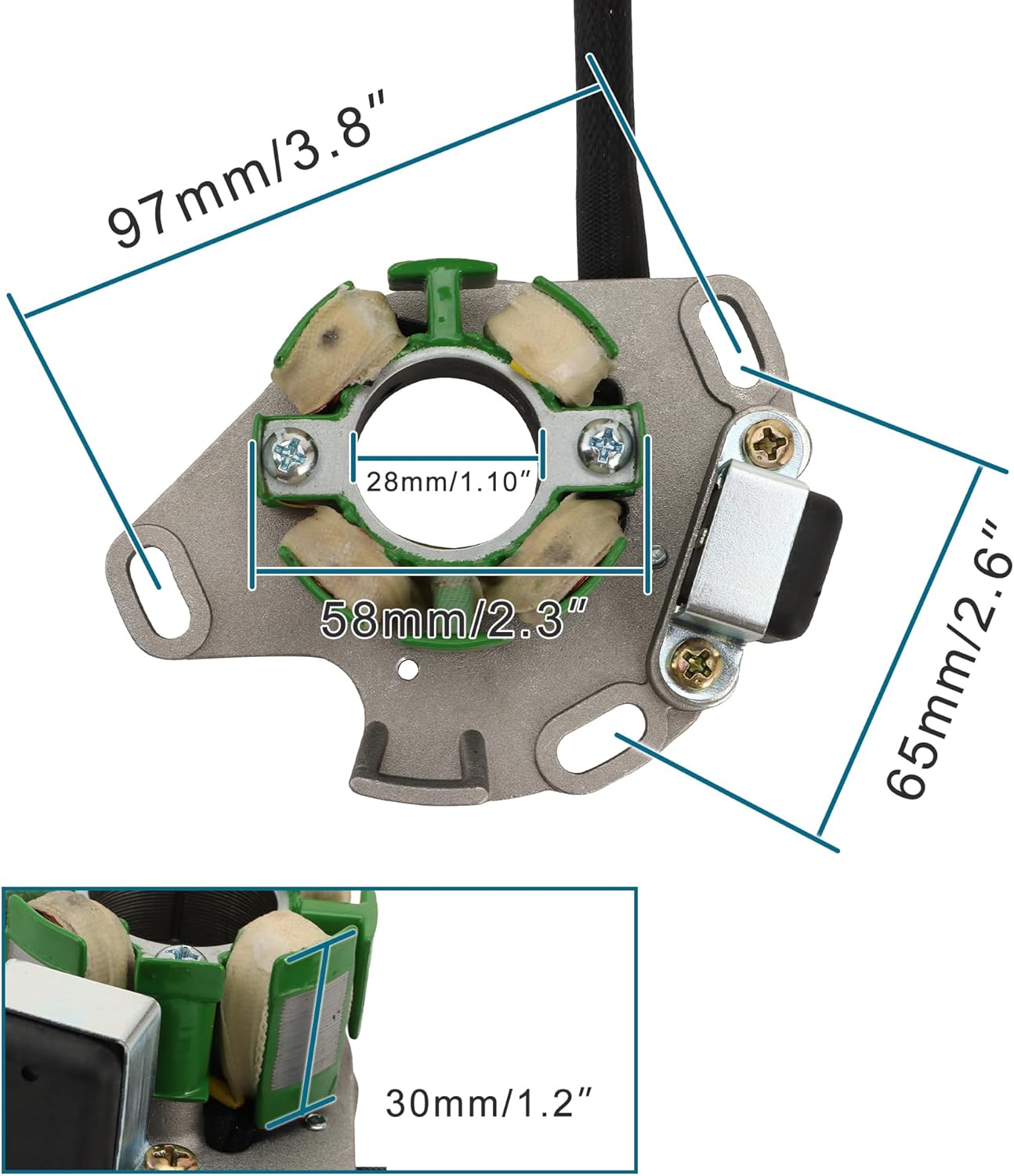

- Outer Diameter: 58mm (2.28")
- Inner Diameter: 28mm (1.1")
- Thickness: 18mm (0.71")

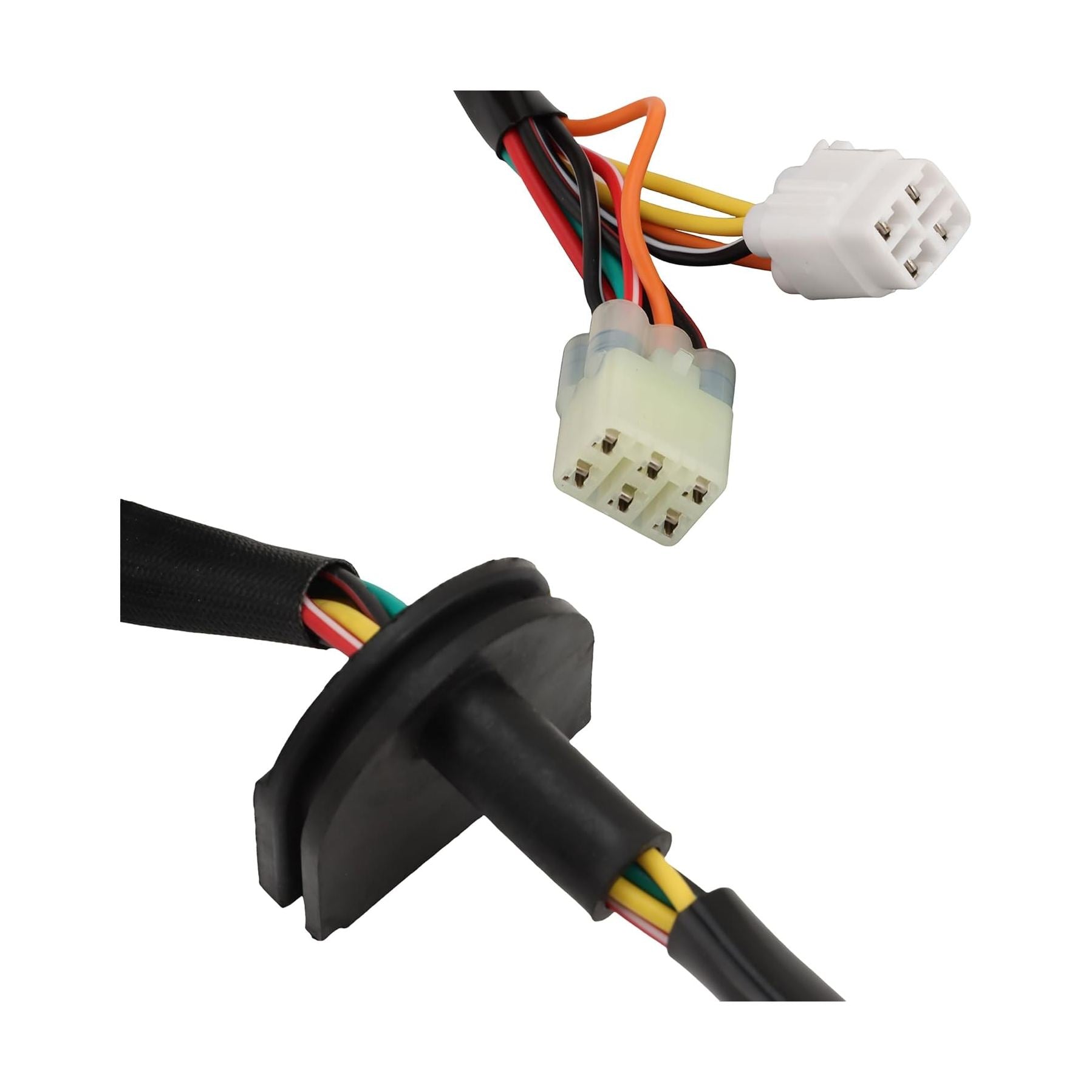

- Configuration: Ignition-only stator with 10 wires and 2 plugs (6+4 pin)
- Material: Precision die-cast base with high-grade copper windings
Why Choose This Stator?
- Optimized Spark Intensity: Enhances ignition energy for easier starting and reliable power delivery throughout the powerband.
- Racing-Grade Durability: Precision-wound coils effectively protect against vibration and environmental factors, prolonging your engine's electrical lifespan.
- Direct Plug-and-Play Fit: Designed as a straightforward replacement to match factory mounting points, ensuring a perfect fit without complex modifications.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Model: Suzuki RM250 (2-Stroke); Year Range: 1996, 1997, 1998, 1999, 2000; OEM Cross-Reference: 32101-37E00, 32101-37E10, 32101-37E20, 32101-37E30, 32101-37E40. It is best matched to original part number(s) 32101-37E00, 32101-37E10, 32101-37E20, 32101-37E30. Key physical/spec details from the product data include Outer Diameter: 58mm (2.28"), Inner Diameter: 28mm (1.1"), Thickness: 18mm (0.71"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-37E00, 32101-37E10, 32101-37E20, 32101-37E30 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki RM250 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-37E00, 32101-37E10, 32101-37E20, 32101-37E30, treat the fitment as unconfirmed. Model years outside 1996–2000, 1996, 2000, 1997, 1998 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-37E00, 32101-37E10, 32101-37E20, 32101-37E30. Recheck listed specs such as Outer Diameter: 58mm (2.28"), Inner Diameter: 28mm (1.1"), Thickness: 18mm (0.71"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
