Magneto Stator for Suzuki VL1500 Intruder LC (1998-2004) | OEM 32101-10F01
Magneto Stator for Suzuki VL1500 Intruder LC (1998-2004) | OEM 32101-10F01
Couldn't load pickup availability

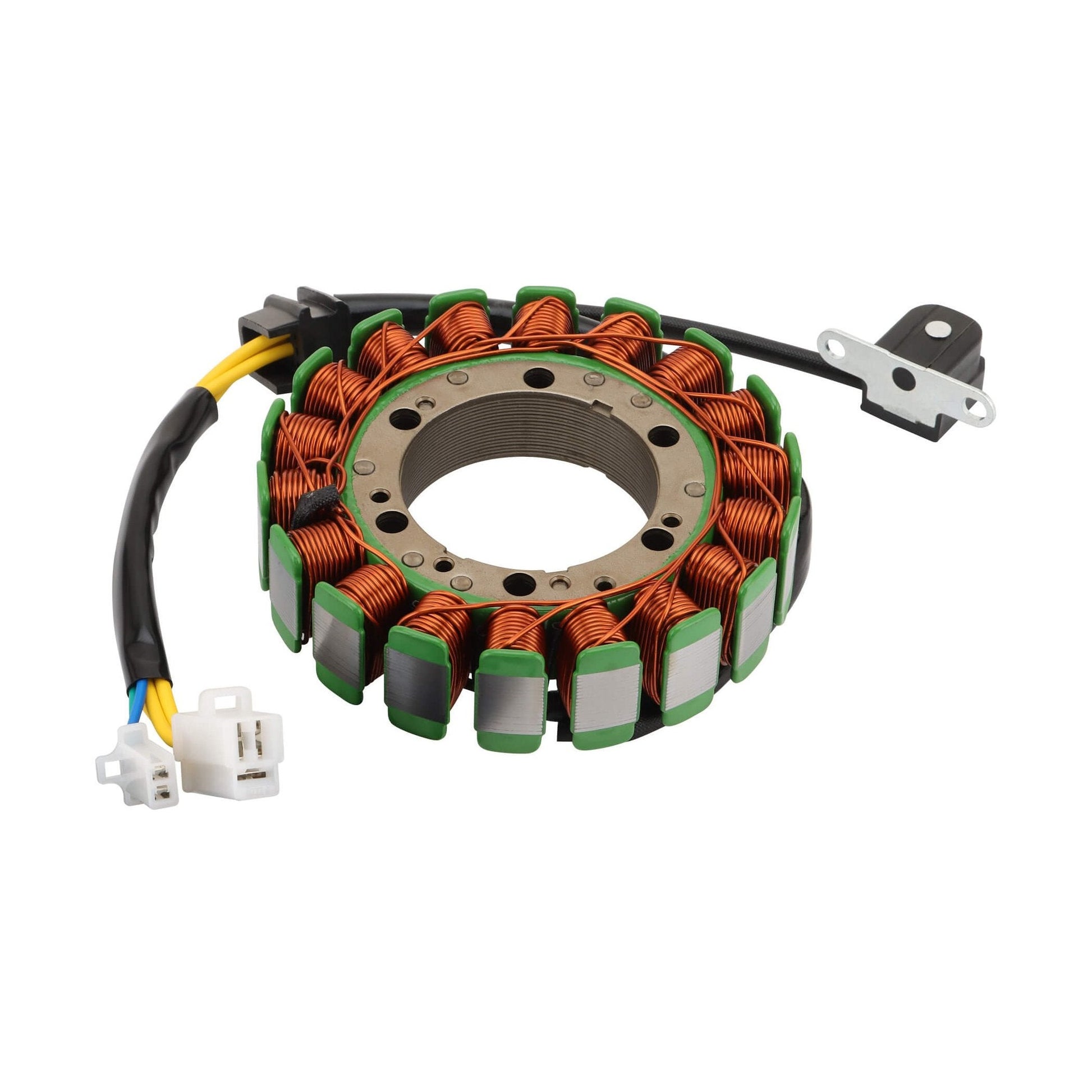

Heavy-Duty Magneto Stator for Suzuki VL1500 Intruder LC
Keep your cruiser powered for the long haul. This high-performance Magneto Stator is a precision-engineered replacement for Suzuki OEM part numbers 32101-10F00 and 32101-10F01. Specifically designed for the 1998–2004 VL1500 LC, it provides the stable electrical output required for reliable ignition and consistent battery charging, even under heavy accessory loads.

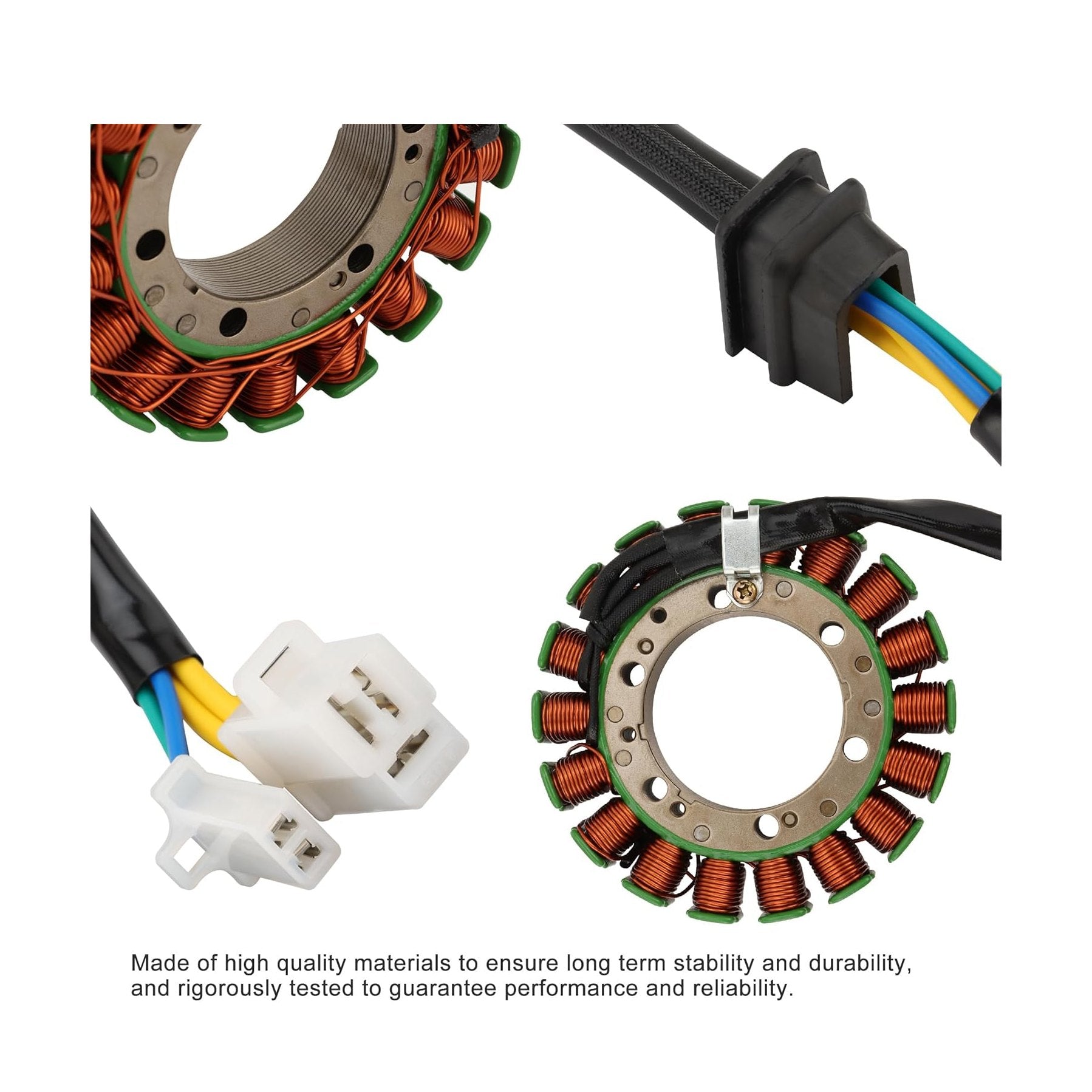

Manufactured from high-purity copper windings and advanced heat-resistant insulation, this stator is built to survive the extreme thermal cycles of a large-displacement V-twin engine. Its direct plug-and-play design matches factory connectors exactly, requiring no modifications for a straightforward and hassle-free installation process.
Product Compatibility
- Model: Suzuki VL1500 Intruder LC
- Year Range: 1998, 1999, 2000, 2001, 2002, 2003, 2004

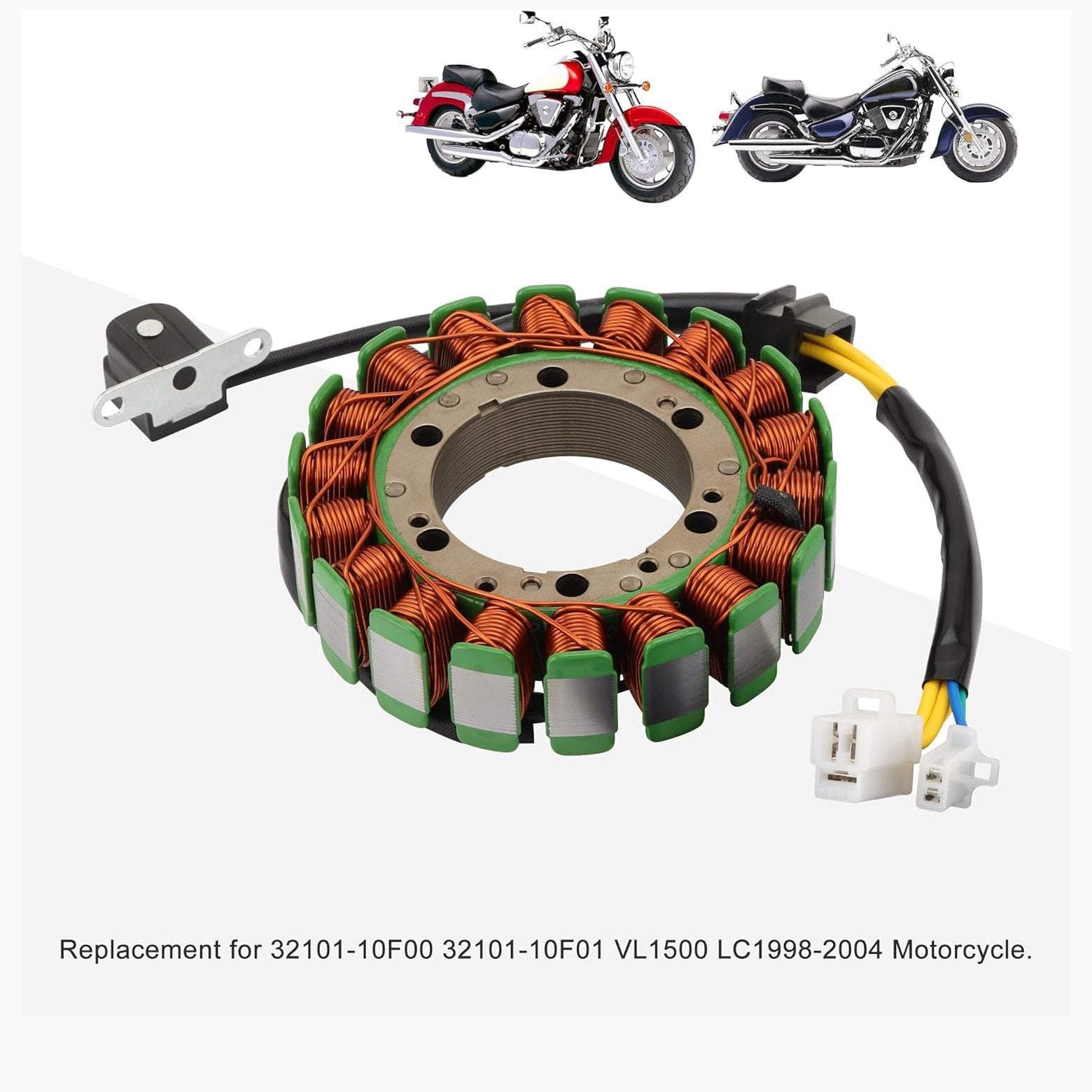

- OEM Cross-Reference: 32101-10F00, 32101-10F01

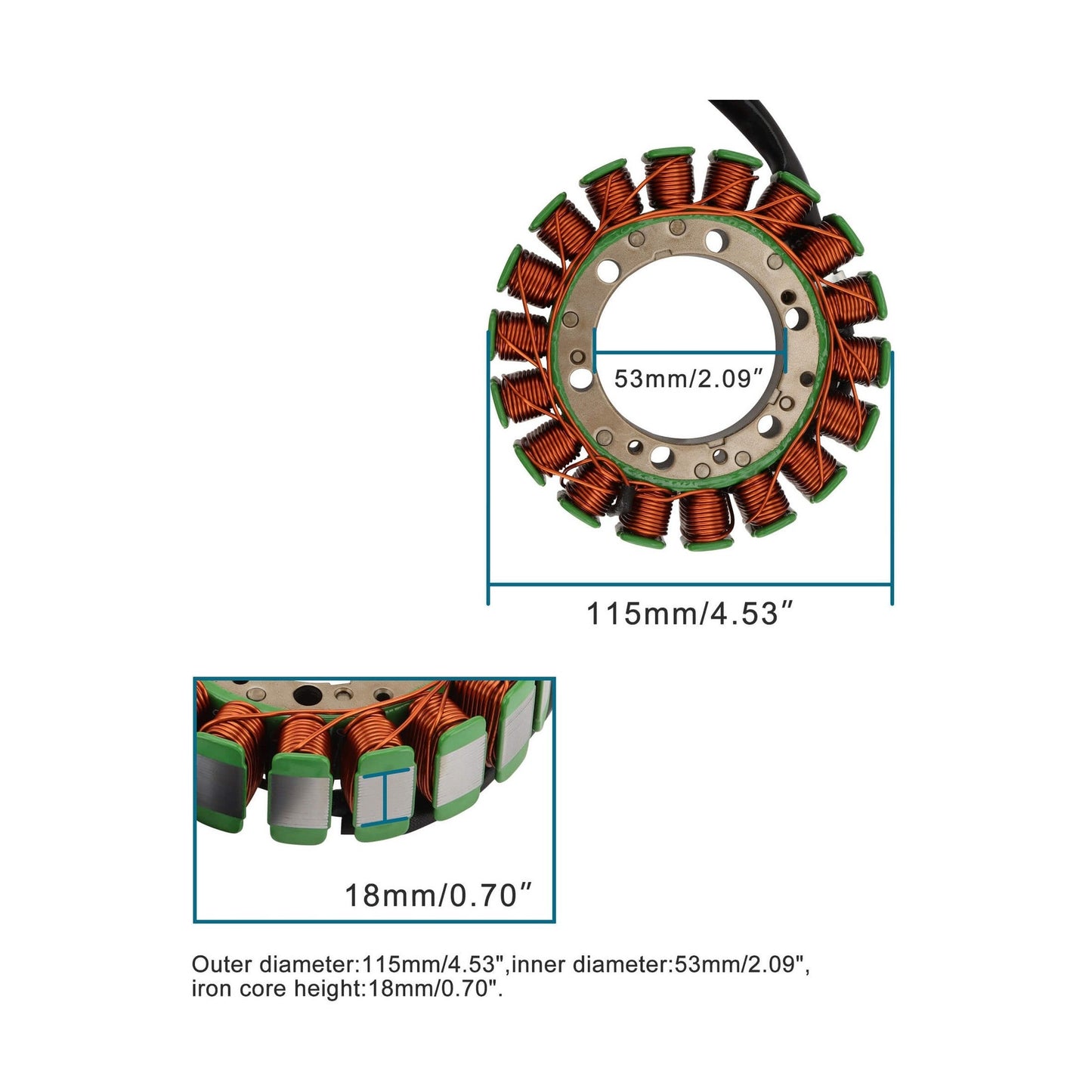

Key Technical Specifications:
- Outer Diameter: 115mm (4.53")
- Inner Diameter: 53mm (2.09")
- Core Height: 18mm (0.70")
- Materials: High-grade metal lamination and 200°C heat-resistant copper
- Design: Direct bolt-on unit with factory-style wiring harness
Why Choose This Stator?
- Superior Thermal Efficiency: Engineered to prevent common "stator burnout" caused by the intense heat soak of 1500cc cruiser engines.
- Stable Power Generation: Precision-wound coils provide a consistent electrical field, ensuring a smooth engine idle and reliable voltage for lights and electronics.
- Ease of Installation: Built as a direct replacement to match factory mounting points, reducing maintenance time and complexity.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Model: Suzuki VL1500 Intruder LC; Year Range: 1998, 1999, 2000, 2001, 2002, 2003, 2004; OEM Cross-Reference: 32101-10F00, 32101-10F01. It is best matched to original part number(s) 32101-10F01, 32101-10F00, 1998-2004. Key physical/spec details from the product data include Outer Diameter: 115mm (4.53"), Inner Diameter: 53mm (2.09"), Core Height: 18mm (0.70"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-10F01, 32101-10F00, 1998-2004 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki VL1500/Intruder models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-10F01, 32101-10F00, 1998-2004, treat the fitment as unconfirmed. Model years outside 1998–2004, 1998, 2004, 1999, 2000 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-10F01, 32101-10F00, 1998-2004. Recheck listed specs such as Outer Diameter: 115mm (4.53"), Inner Diameter: 53mm (2.09"), Core Height: 18mm (0.70"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
