Magneto Stator for Suzuki VL800 Volusia 800 (2001-2005) | OEM 32101-41F00
Magneto Stator for Suzuki VL800 Volusia 800 (2001-2005) | OEM 32101-41F00
Couldn't load pickup availability

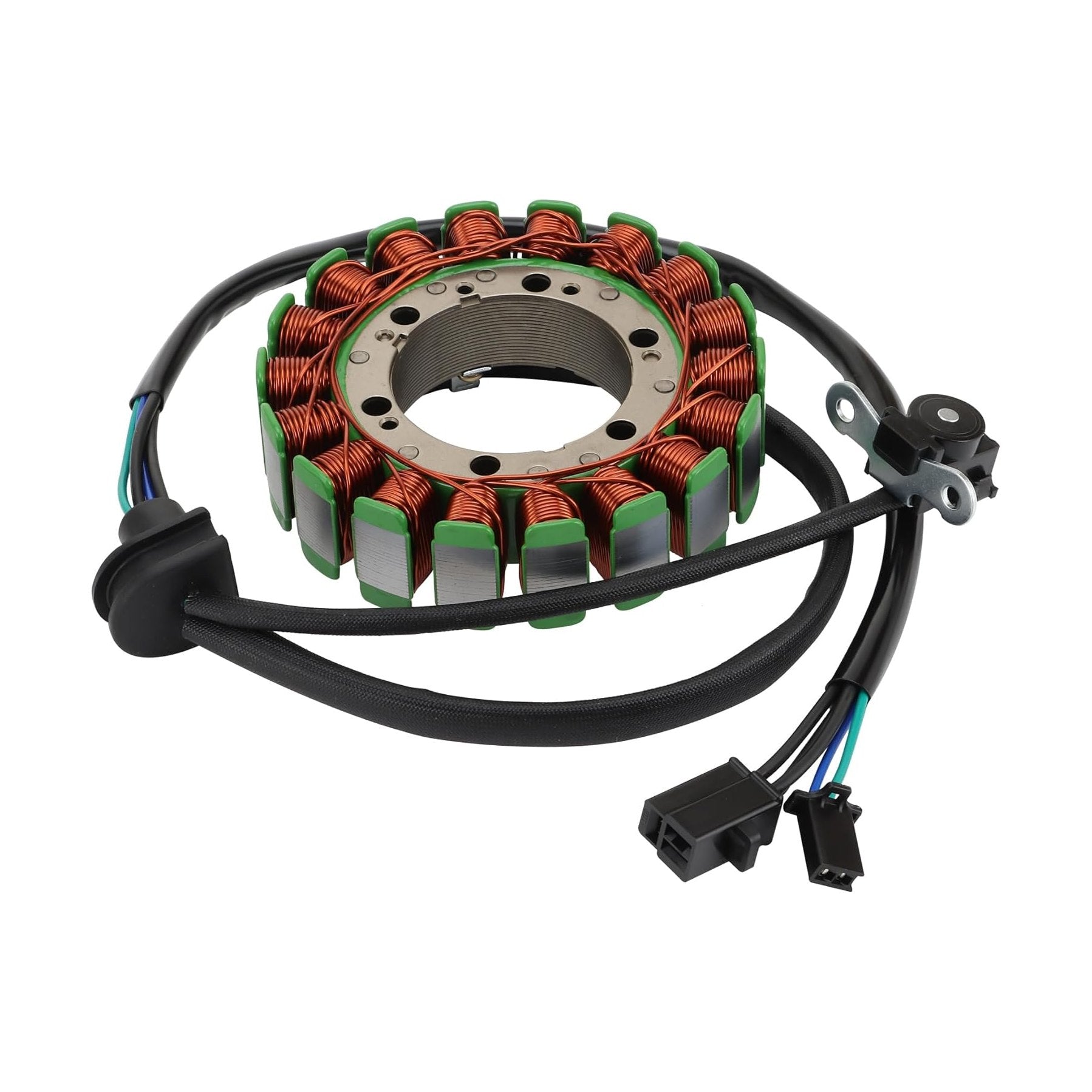

Heavy-Duty Magneto Stator for Suzuki VL800 Volusia 800 (K1-K4)
Restore your cruiser's electrical reliability. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Suzuki VL800 Volusia series. Designed for the 2001–2005 production years, it provides the stable electrical output required for reliable engine starting, smooth acceleration, and consistent battery charging.
Manufactured with high-grade copper windings and premium insulating materials, this stator is built to survive the intense heat and vibration of Suzuki's 800cc V-twin engine. Its direct plug-and-play design matches the factory 115mm specifications exactly, ensuring a straightforward installation that gets your bike back on the road without complex modifications.
Product Compatibility

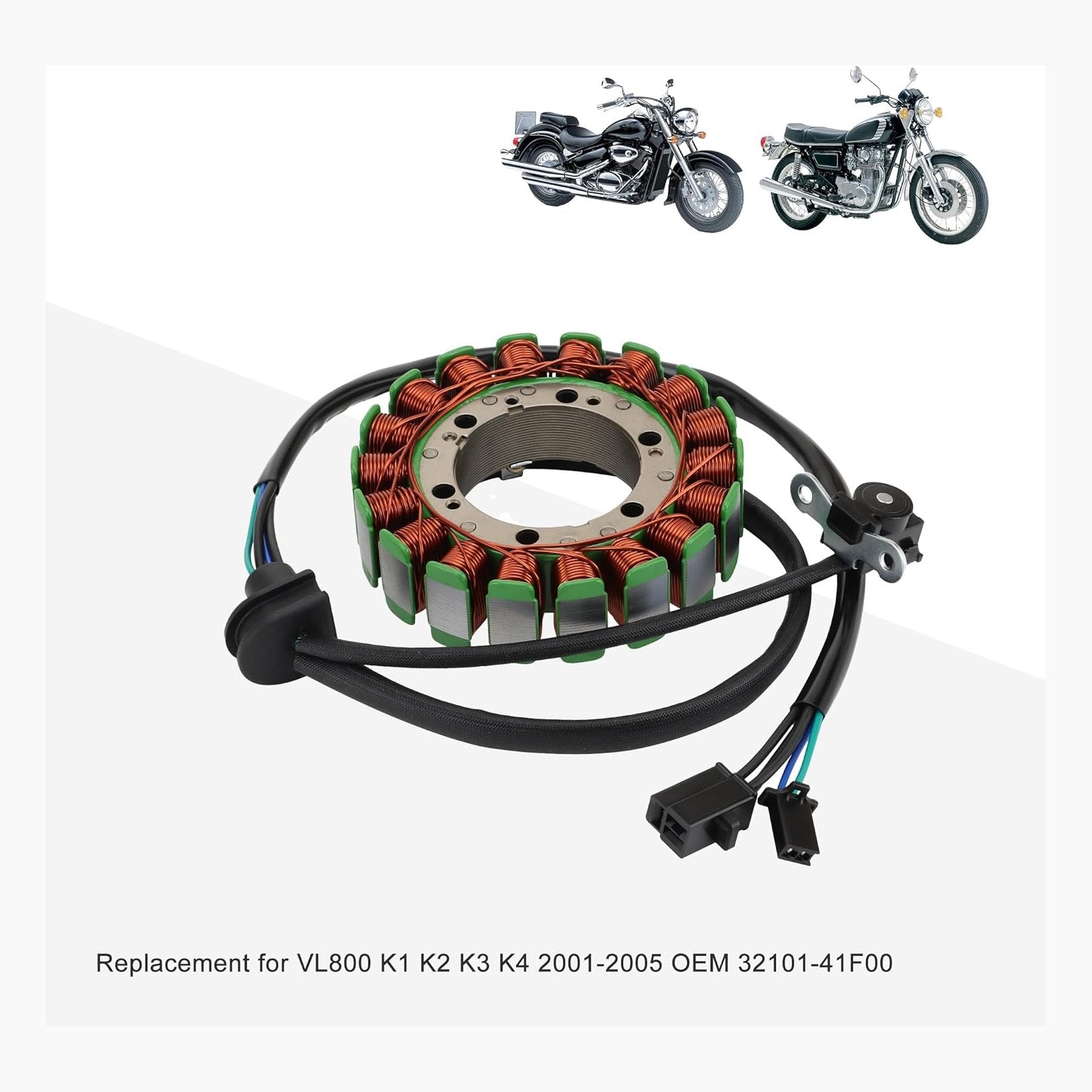

- Suzuki VL800 Volusia: 2001, 2002, 2003, 2004, 2005 (Models K1, K2, K3, K4)
- Suzuki VL800Z Volusia: 2001–2004
- OEM Cross-Reference: 32101-41F00

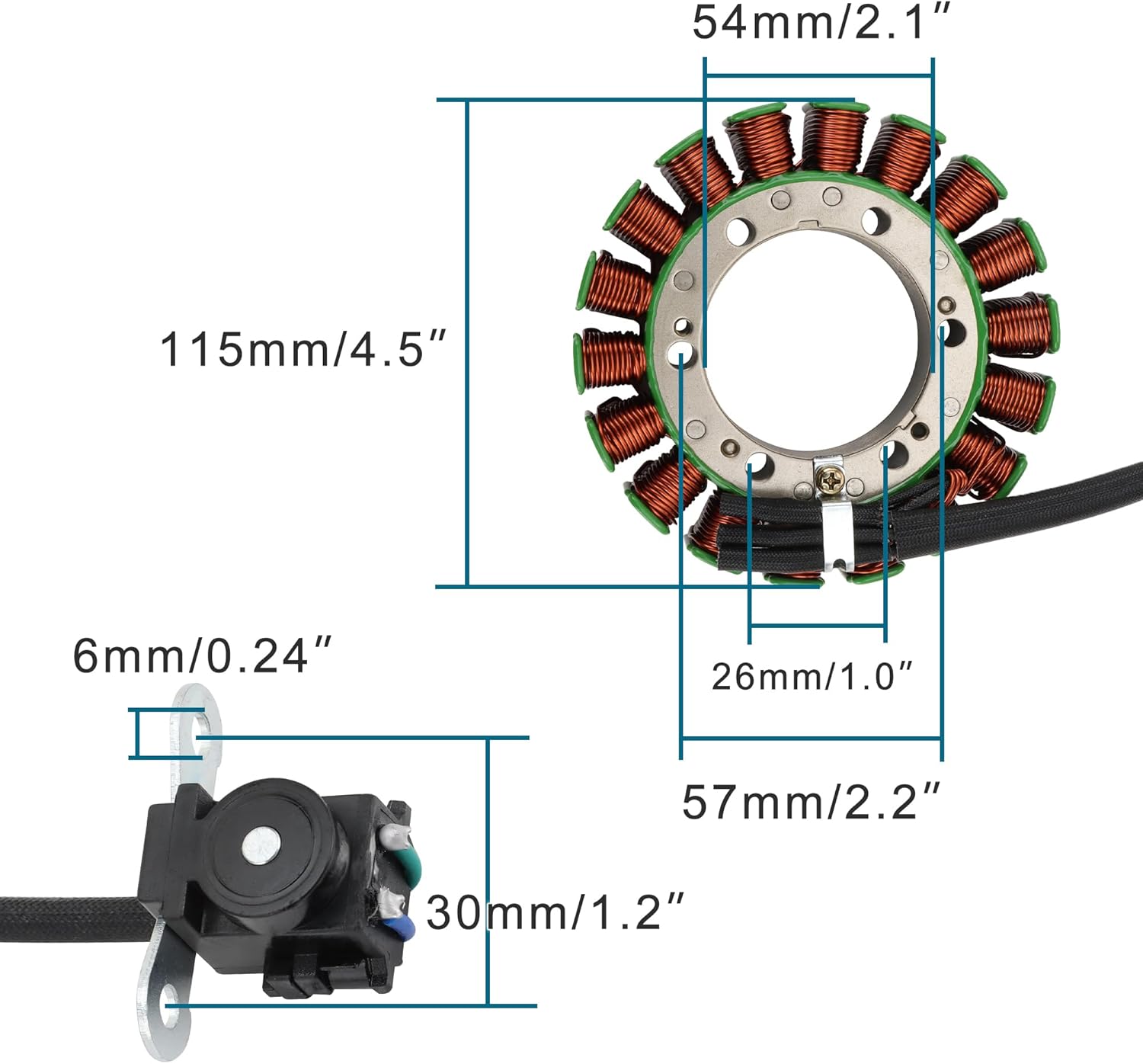

Key Technical Specifications:
- Outer Diameter: 115mm (4.53")
- Inner Diameter: 53mm (2.09")
- Thickness: 18mm
- Design: High-efficiency charging coil with factory-style connectors
- Material: High-temperature resistant copper resistant to 200°C
Why Choose This Stator?
- Enhanced Charging Efficiency: Improves the stability of power generation, ensuring your battery stays charged even when running extra accessories or lights.
- Superior Durability: Uses highest-grade lamination and copper wiring to dramatically improve reliability compared to aging stock units that are prone to short-circuiting.
- Simple Installation: Designed as a direct replacement for the original factory unit, matching mounting points and wiring configurations exactly for an easy "plug-and-play" setup.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki VL800 Volusia: 2001, 2002, 2003, 2004, 2005 (Models K1, K2, K3, K4); Suzuki VL800Z Volusia: 2001–2004; OEM Cross-Reference: 32101-41F00. It is best matched to original part number(s) 32101-41F00, 2001-2005. Key physical/spec details from the product data include Outer Diameter: 115mm (4.53"), Inner Diameter: 53mm (2.09"), Thickness: 18mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-41F00, 2001-2005 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki VL800/VL800Z models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-41F00, 2001-2005, treat the fitment as unconfirmed. Model years outside 2001–2005, 2001–2004, 2001, 2005, 2002 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-41F00, 2001-2005. Recheck listed specs such as Outer Diameter: 115mm (4.53"), Inner Diameter: 53mm (2.09"), Thickness: 18mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
