Magneto Stator for Suzuki VS1400 Intruder & Boulevard S83 | OEM 32101-38B02
Magneto Stator for Suzuki VS1400 Intruder & Boulevard S83 | OEM 32101-38B02
Couldn't load pickup availability

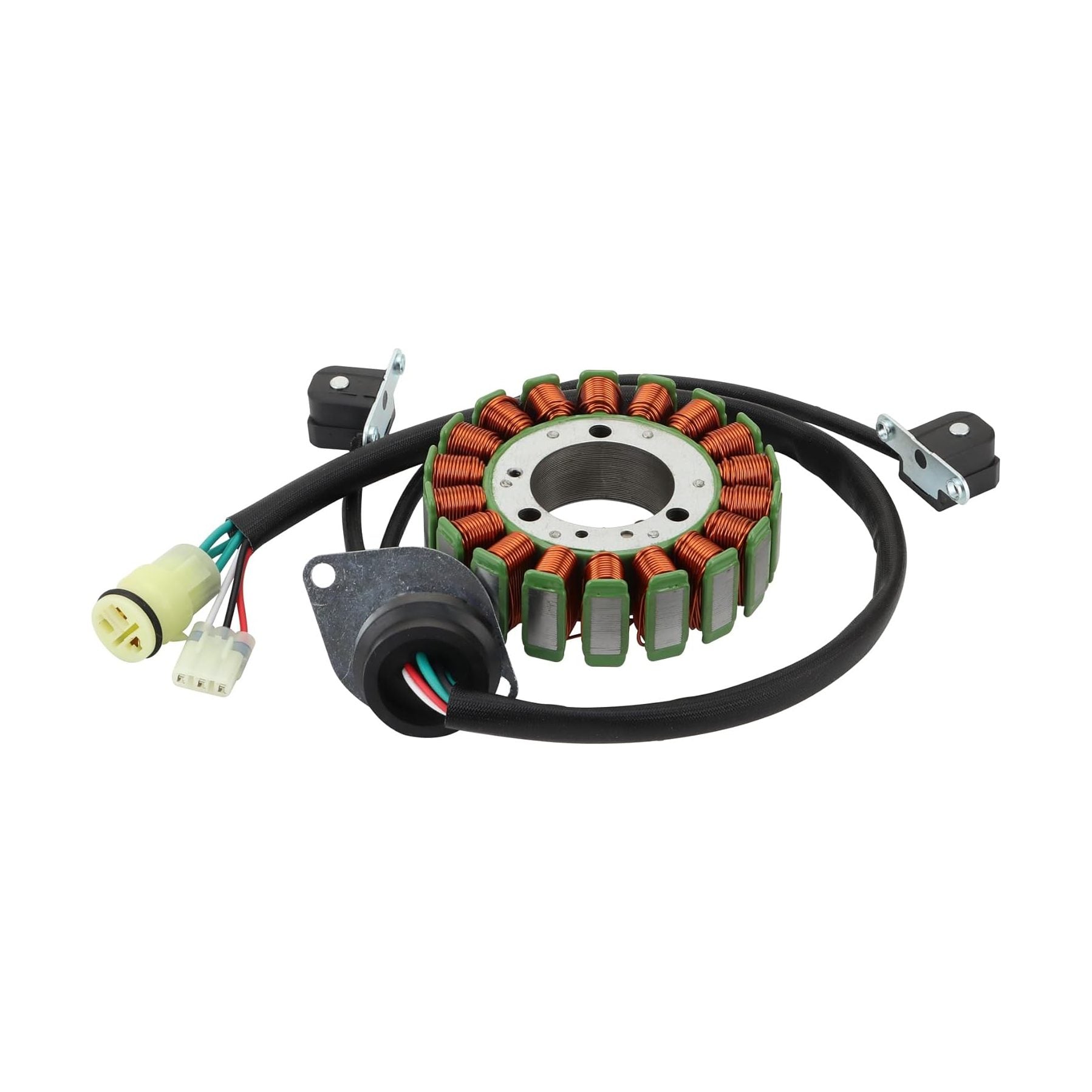

Heavy-Duty Magneto Stator for Suzuki VS1400 Intruder & Boulevard S83
Ensure your big V-twin has the power it needs for the open road. This high-performance Magneto Stator is a precision-engineered replacement for Suzuki OEM part number 32101-38B02-000. Specifically designed for the 1360cc engines found in the Intruder 1400 and Boulevard S83, it provides the stable electrical output required for reliable ignition and consistent battery charging.
Constructed with high-quality copper wire and advanced heat-resistant insulation, this stator is built to survive the extreme thermal environments of a large-displacement cruiser. The precise manufacturing process ensures that the coil maintains stable performance even in high-temperature and high-humidity conditions, effectively prolonging service life and reducing the need for frequent replacements.
Product Compatibility
- Suzuki Intruder 1400 (VS1400): 1987 – 2004
- Suzuki Boulevard S83: 2005 – 2009
- Engine Type: 1360cc (1400) V-Twin
Key Technical Specifications:
- OEM Reference: 32101-38B02-000

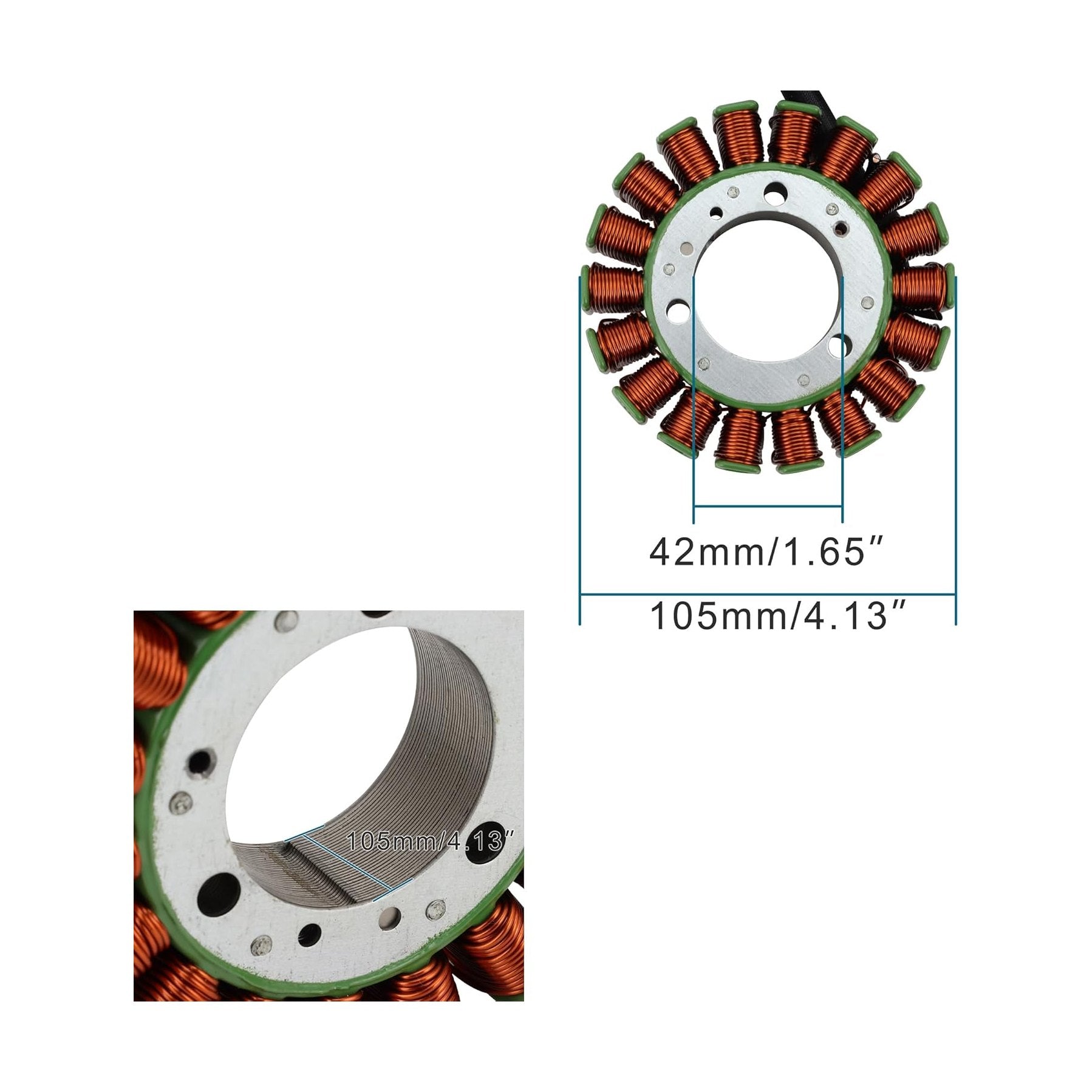

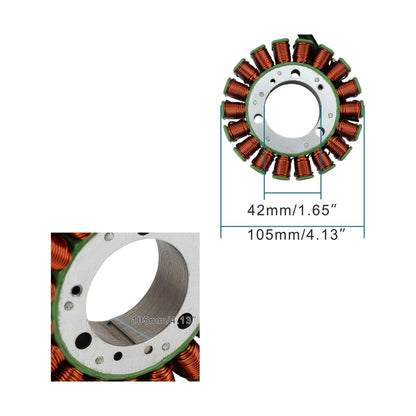

- Outer Diameter: 105mm (4.13")
- Inner Diameter: 42mm (1.65")
- Thickness: 21mm (0.83")
- Design: Direct "plug-and-play" fit with factory-style connectors
Why Choose This Stator?
- Maximum Heat Resistance: Premium windings prevent common "stator burnout" caused by the intense heat soak typical of air/oil-cooled V-twins.
- Stable Power Delivery: Engineered to maintain a consistent electrical field, ensuring your lights, ignition, and accessories receive steady voltage.

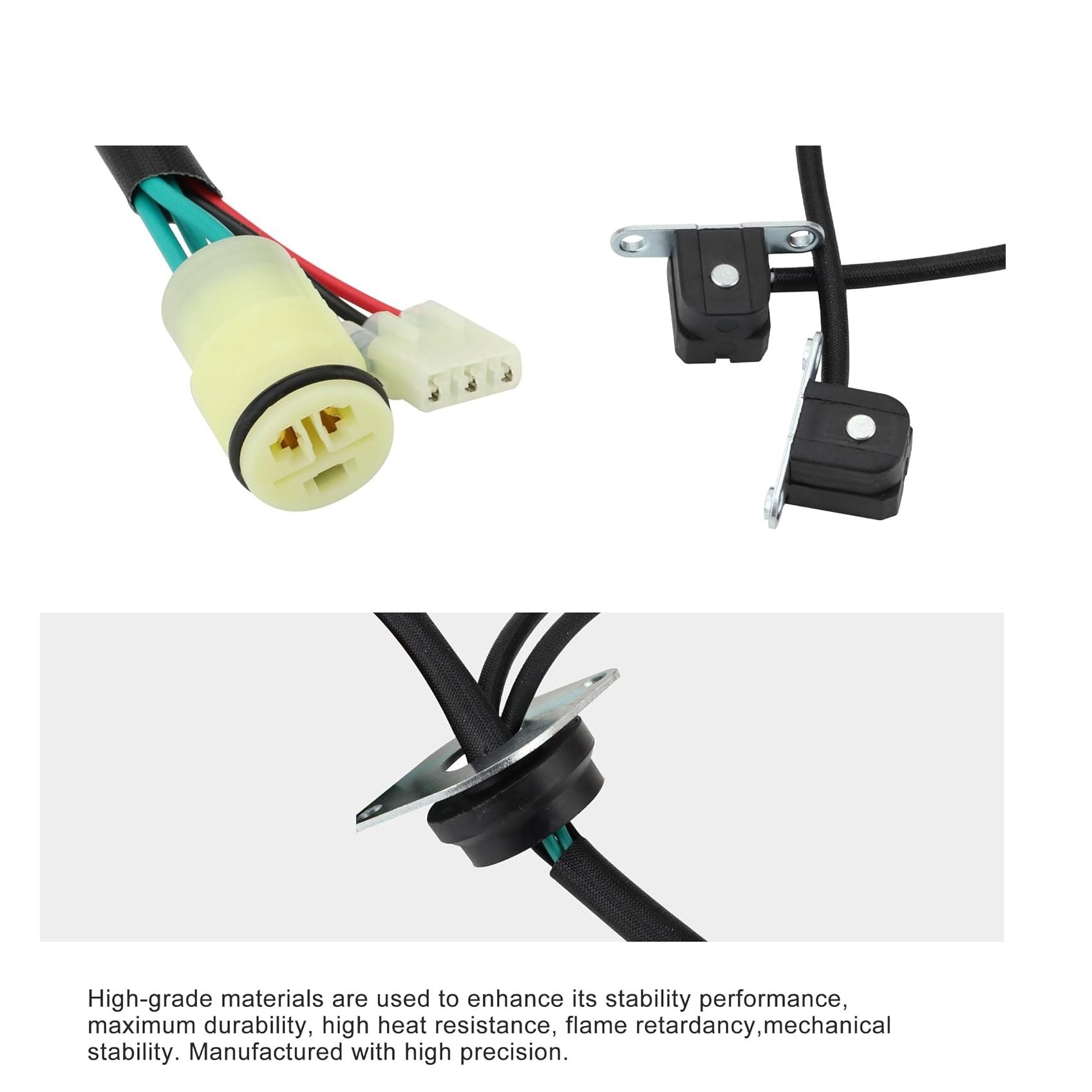

- Direct Replacement: Features an OEM-style connector and rubber grommet for a hassle-free, "no-splice" installation that matches factory mounting points.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki Intruder 1400 (VS1400): 1987 – 2004; Suzuki Boulevard S83: 2005 – 2009; Engine Type: 1360cc (1400) V-Twin. Listed year information includes 1987–2004, 2005–2009, 1987, 2004, 2005. It is best matched to original part number(s) 32101-38B02, 32101-38B02-000. Key physical/spec details from the product data include Outer Diameter: 105mm (4.13"), Inner Diameter: 42mm (1.65"), Thickness: 21mm (0.83"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-38B02, 32101-38B02-000 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki VS1400/Intruder/Boulevard/S83 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-38B02, 32101-38B02-000, treat the fitment as unconfirmed. Model years outside 1987–2004, 2005–2009, 1987, 2004, 2005 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-38B02, 32101-38B02-000. Recheck listed specs such as Outer Diameter: 105mm (4.13"), Inner Diameter: 42mm (1.65"), Thickness: 21mm (0.83"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
