GOOFIT
Magneto Stator for Triumph Speed Triple, Tiger 1050, Sprint GT/ST | OEM T1300111
Magneto Stator for Triumph Speed Triple, Tiger 1050, Sprint GT/ST | OEM T1300111
Couldn't load pickup availability
Product Overview
Restore stable charging performance for your Triumph 1050cc triple engine. This 115mm magneto stator is a precision-engineered replacement for OEM T1300111 and related part numbers, delivering consistent voltage for fuel injection, ignition, and battery charging.
Built with high-grade copper windings and durable lamination, it is designed to withstand high engine temperatures and long-term use. The plug-and-play design ensures a direct fit, making installation quick and hassle-free.
Fitment Note: Triumph uses two stator sizes. This unit is 115mm outer diameter only—please measure your original stator before ordering.
Product Compatibility
| Make | Model | Years | Fitment Notes |
|---|---|---|---|
| Triumph | Speed Triple 1050 | 2005–2018 | Check stator size (115mm only) |
| Triumph | Tiger 1050 / SE | 2007–2012 | 115mm version |
| Triumph | Tiger 1050 Sport | 2013–2021 | Up to VIN 750469 |
| Triumph | Sprint ST 1050 | 2005–2012 | From VIN 208167 |
| Triumph | Sprint GT 1050 | 2010–2020 | Compatible |
Specifications
| Item | Details |
|---|---|
| OEM Reference | T1300111 / T1300509 / T1300510 / T1300507 |

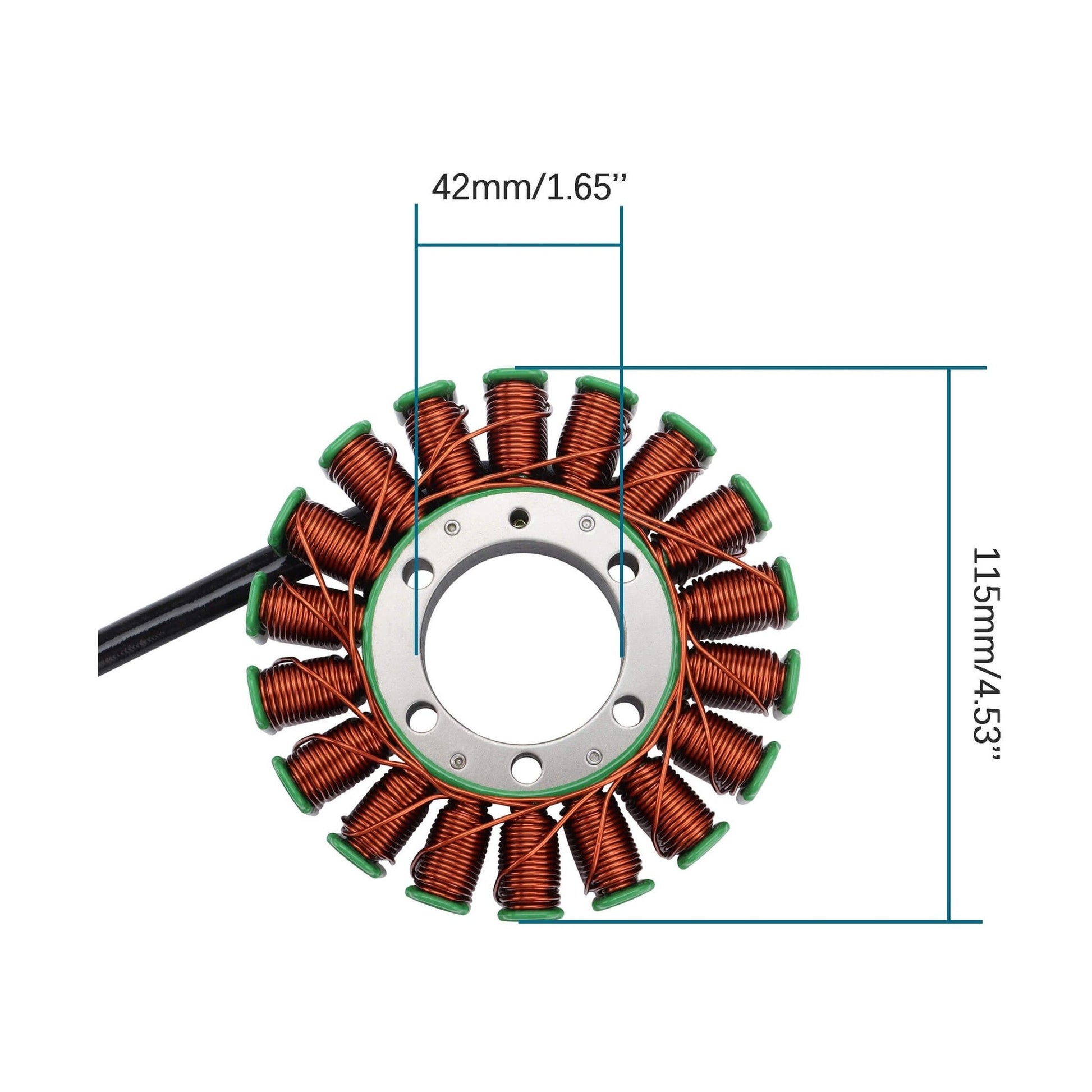

| Outer Diameter | 115mm (4.53") |
| Inner Diameter | 42mm (1.65") |
| Thickness | 19mm (0.74") |
| Coil Design | 18-Pole |
| Material | High-grade copper windings + metal lamination |
| Installation | Plug-and-play |
| Function | AC power generation for charging system |
Key Features
- Stable Power Output – Ensures reliable charging for EFI and ignition systems
- 115mm Precision Fit – Designed for correct stator size compatibility
- High Heat Resistance – Withstands high temperatures of 1050cc triple engines
- OEM Direct Replacement – Matches factory mounting points and connectors
- Durable Construction – مقاust to wear, corrosion, and internal short circuits
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Triumph Speed Triple, Tiger 1050, Sprint GT/ST. Listed year information includes 2005–2018, 2007–2012, 2013–2021, 2005–2012, 2010–2020. Key physical/spec details from the product data include Fitment Note: Triumph uses two stator sizes. This unit is 115mm outer diameter only —please measure your original stator before ordering., Check stator size (115mm only), Outer Diameter: 115mm (4.53"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Triumph models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Model years outside 2005–2018, 2007–2012, 2013–2021, 2005–2012, 2010–2020 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Fitment Note: Triumph uses two stator sizes. This unit is 115mm outer diameter only —please measure your original stator before ordering., Check stator size (115mm only), Outer Diameter: 115mm (4.53"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
