Magneto Stator for Yamaha BWS100 & Axis 100
Magneto Stator for Yamaha BWS100 & Axis 100
Couldn't load pickup availability

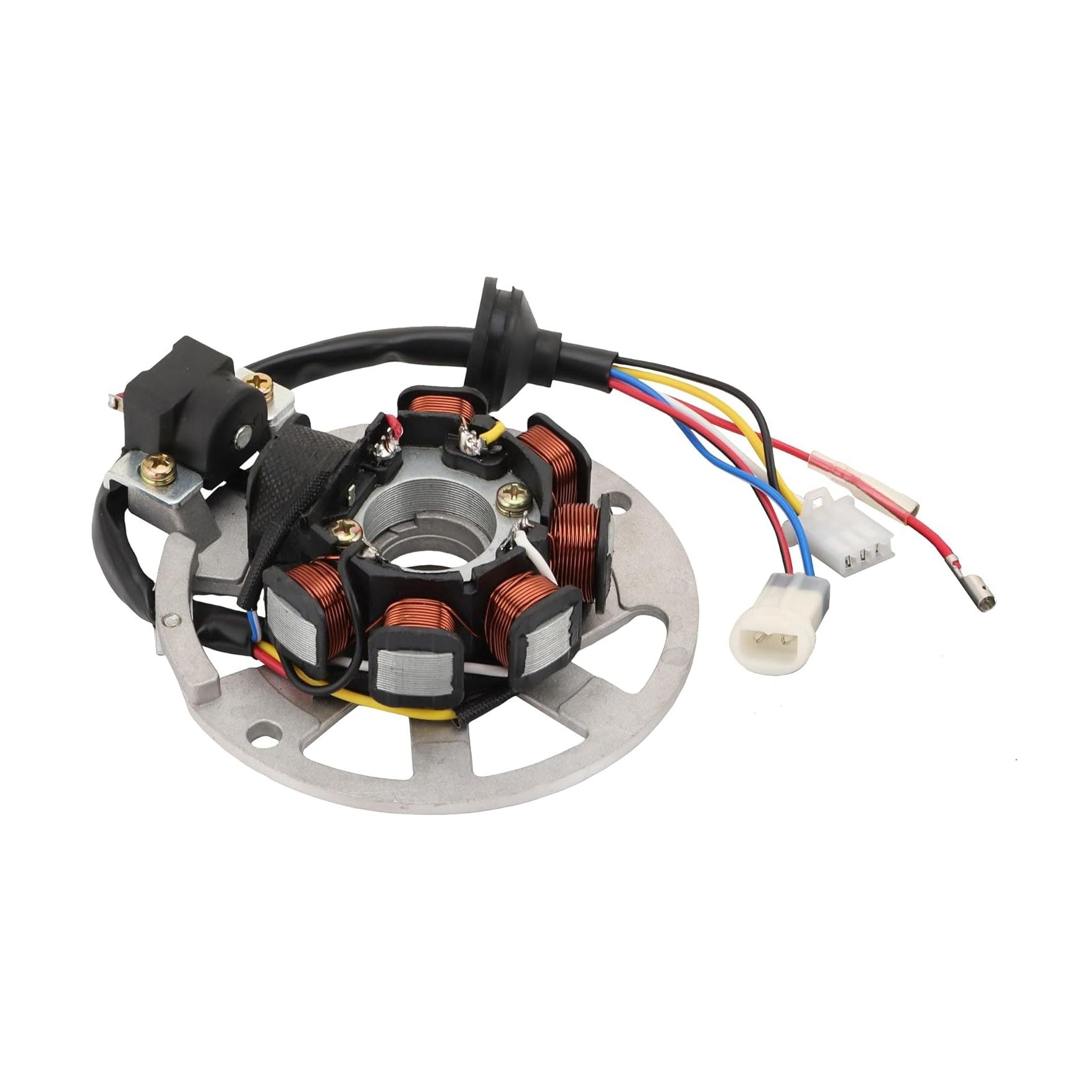

Precision-Engineered Magneto Stator for Yamaha BWS100 & Axis 100
Ensure a reliable spark and peak engine performance. This premium aftermarket Magneto Stator is a direct replacement for the Yamaha BWS100 and Axis 100 series. Designed to meet or exceed factory specifications, it provides the stable electrical output needed for consistent ignition and proper battery charging, ensuring your scooter starts easily and runs smoothly.

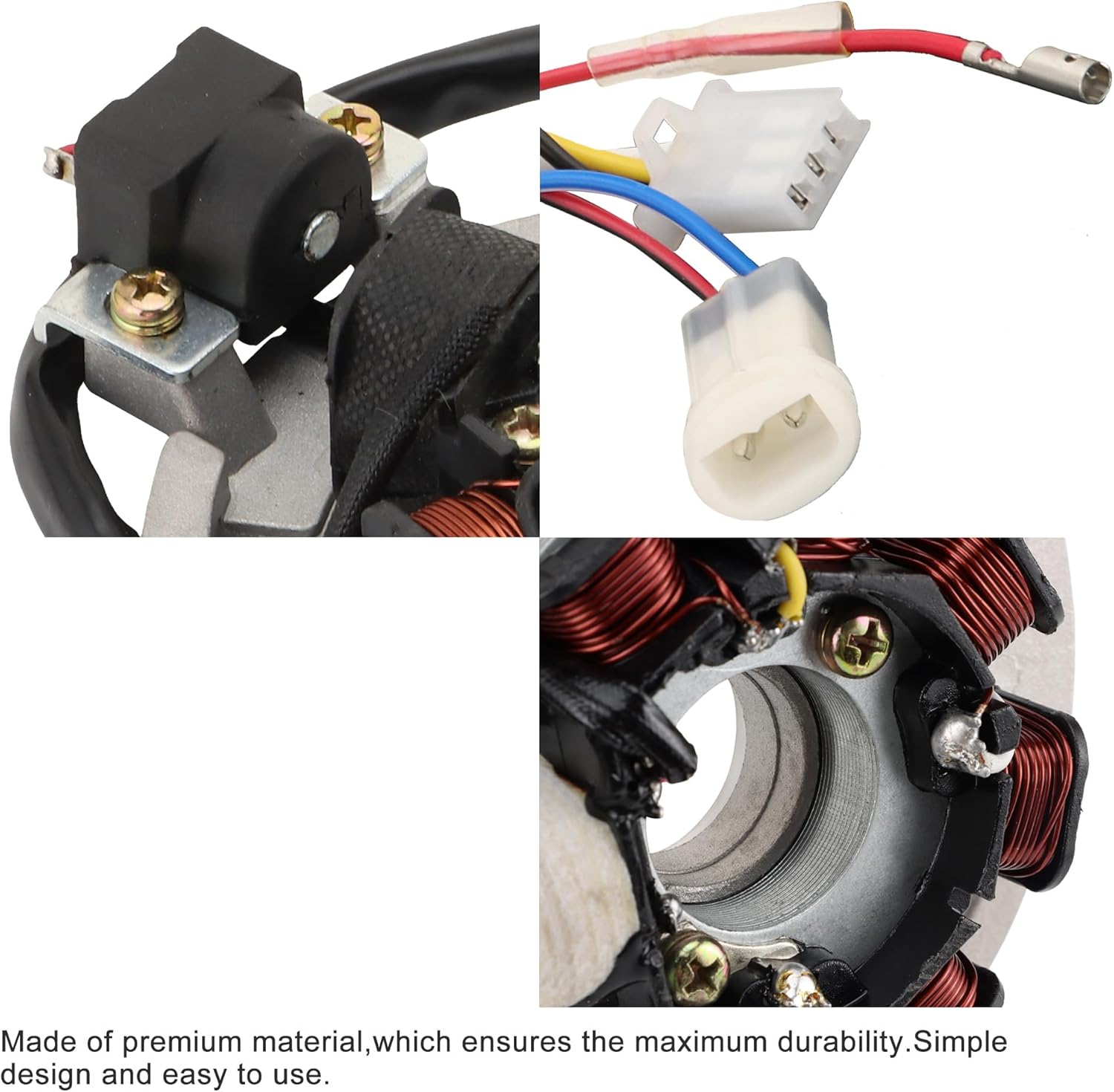

Crafted with premium high-temperature copper wire, the windings are installed using a computer-controlled winding machine. This precision manufacturing process ensures the highest quality winding density, significantly improving the unit's reliability and durability compared to standard hand-wound alternatives.
Product Compatibility
- Yamaha Models: BWS100 (Bee-Wiz), Axis 100
- Engine Type: 100cc 2-Stroke
- Replacement For: Estator Completo Bws100 / Axis 100

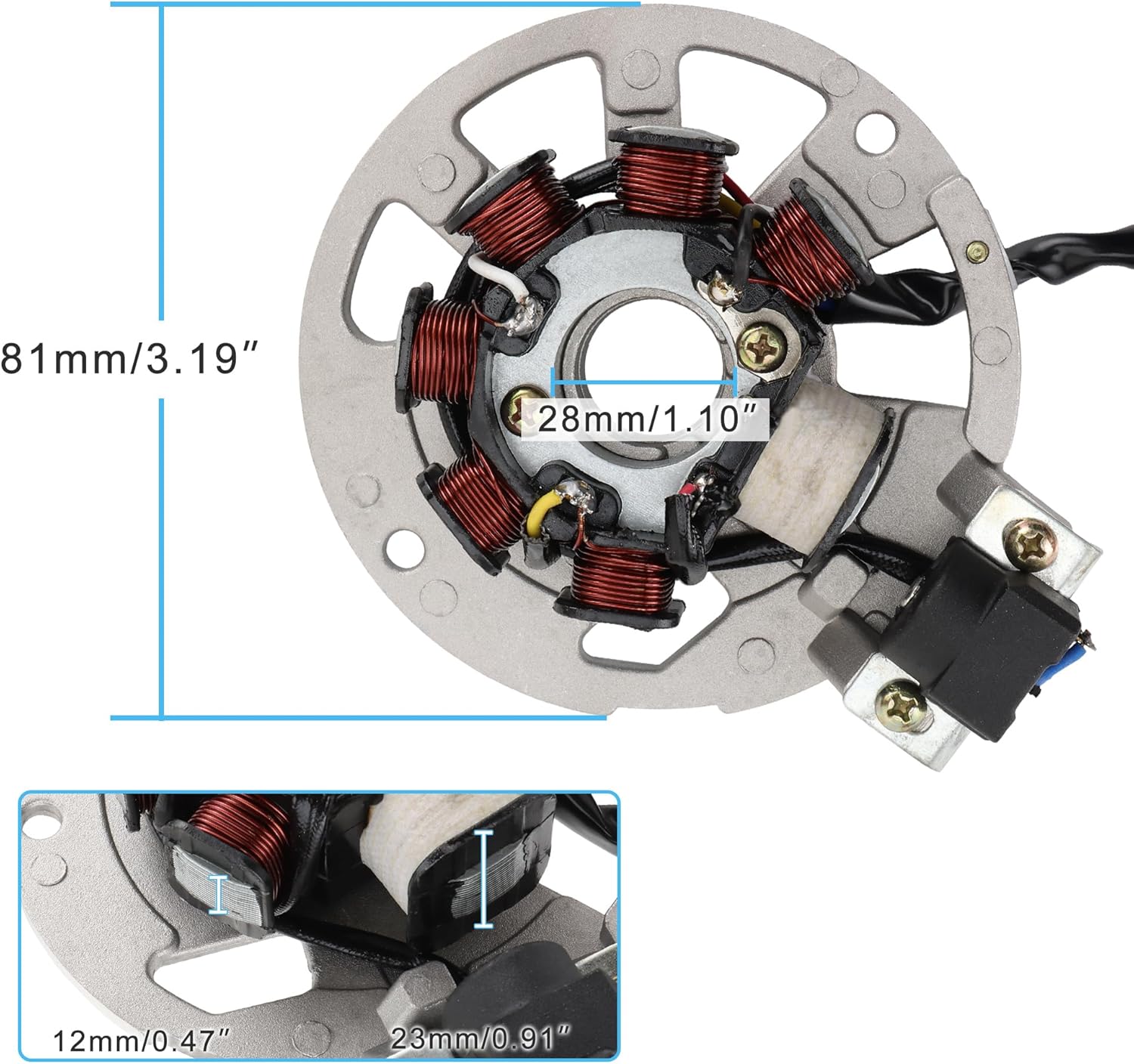

Key Technical Specifications:
- Outer Diameter: 81mm (3.19")
- Inner Diameter: 28mm (1.1")
- Total Thickness: 23mm (0.9")
- Core Thickness: 12mm (0.47")
- Material: High-temp copper windings and heavy-duty metal lamination
Why Choose This Stator?
- Optimal Spark Generation: The precision-wound coils provide a stronger ignition energy intensity, leading to better combustion efficiency and more sensitive throttle response.
- Superior Thermal Durability: Uses high-grade insulation and copper wire designed to withstand the heat soak of a high-revving 2-stroke engine.
- Direct Fitment: Engineered as a direct "bolt-on" replacement to match factory mounting points and wiring configurations for a hassle-free installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha Models: BWS100 (Bee-Wiz), Axis 100; Engine Type: 100cc 2-Stroke; Replacement For: Estator Completo Bws100 / Axis 100. Key physical/spec details from the product data include Outer Diameter: 81mm (3.19"), Inner Diameter: 28mm (1.1"), Total Thickness: 23mm (0.9"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha BWS100 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Outer Diameter: 81mm (3.19"), Inner Diameter: 28mm (1.1"), Total Thickness: 23mm (0.9"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
