Magneto Stator for Yamaha Drag Star 650 XVS (2005-2008)
Magneto Stator for Yamaha Drag Star 650 XVS (2005-2008)
Couldn't load pickup availability

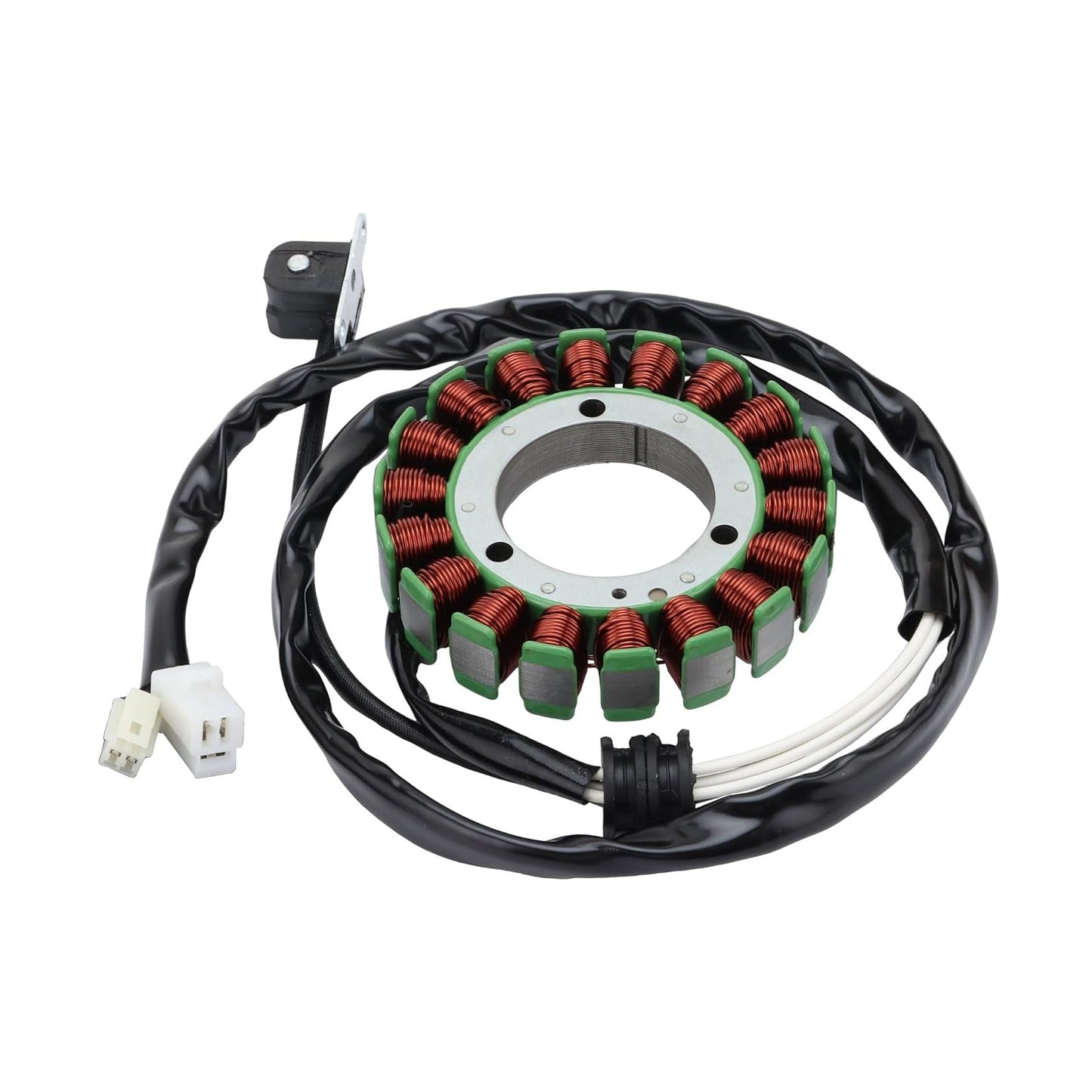

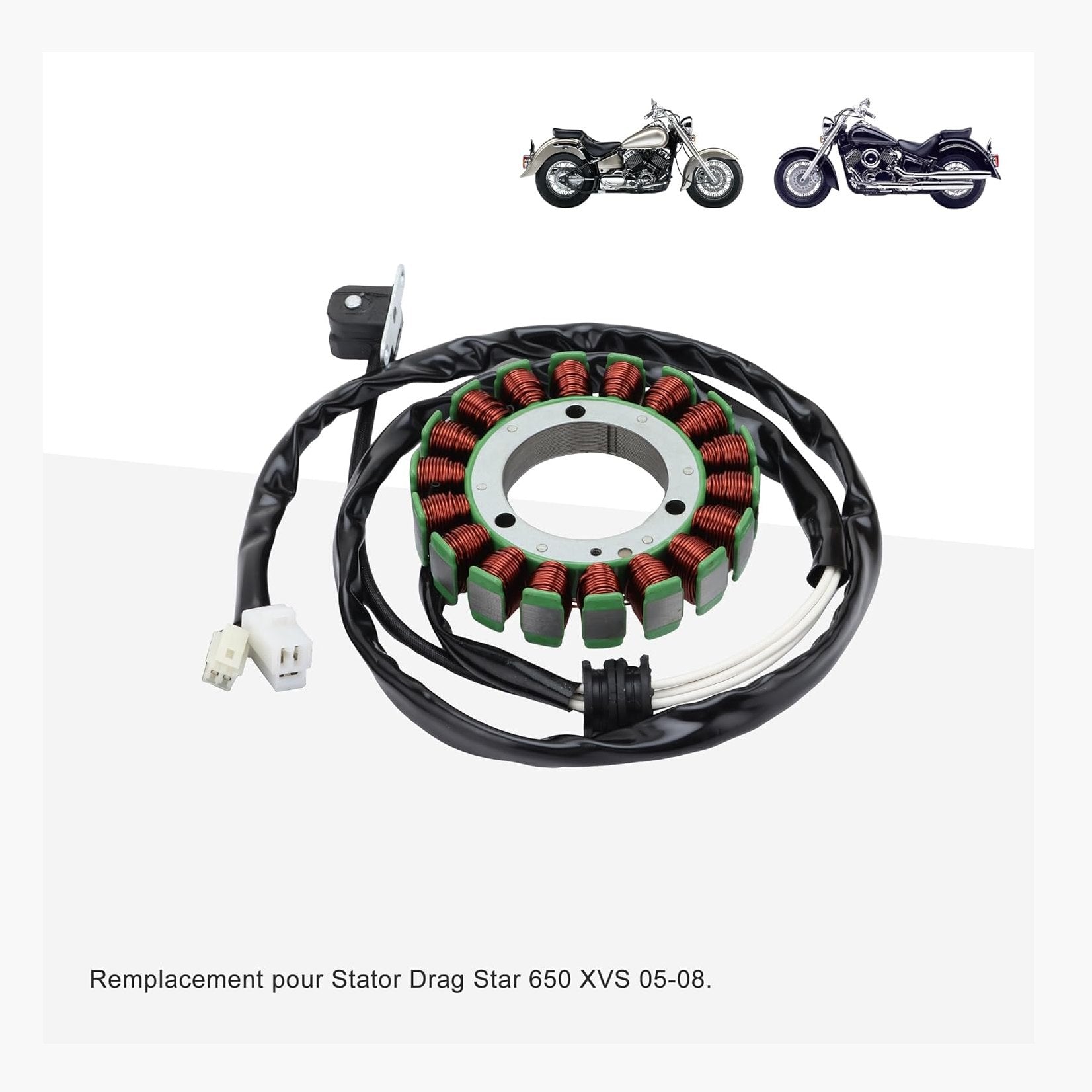

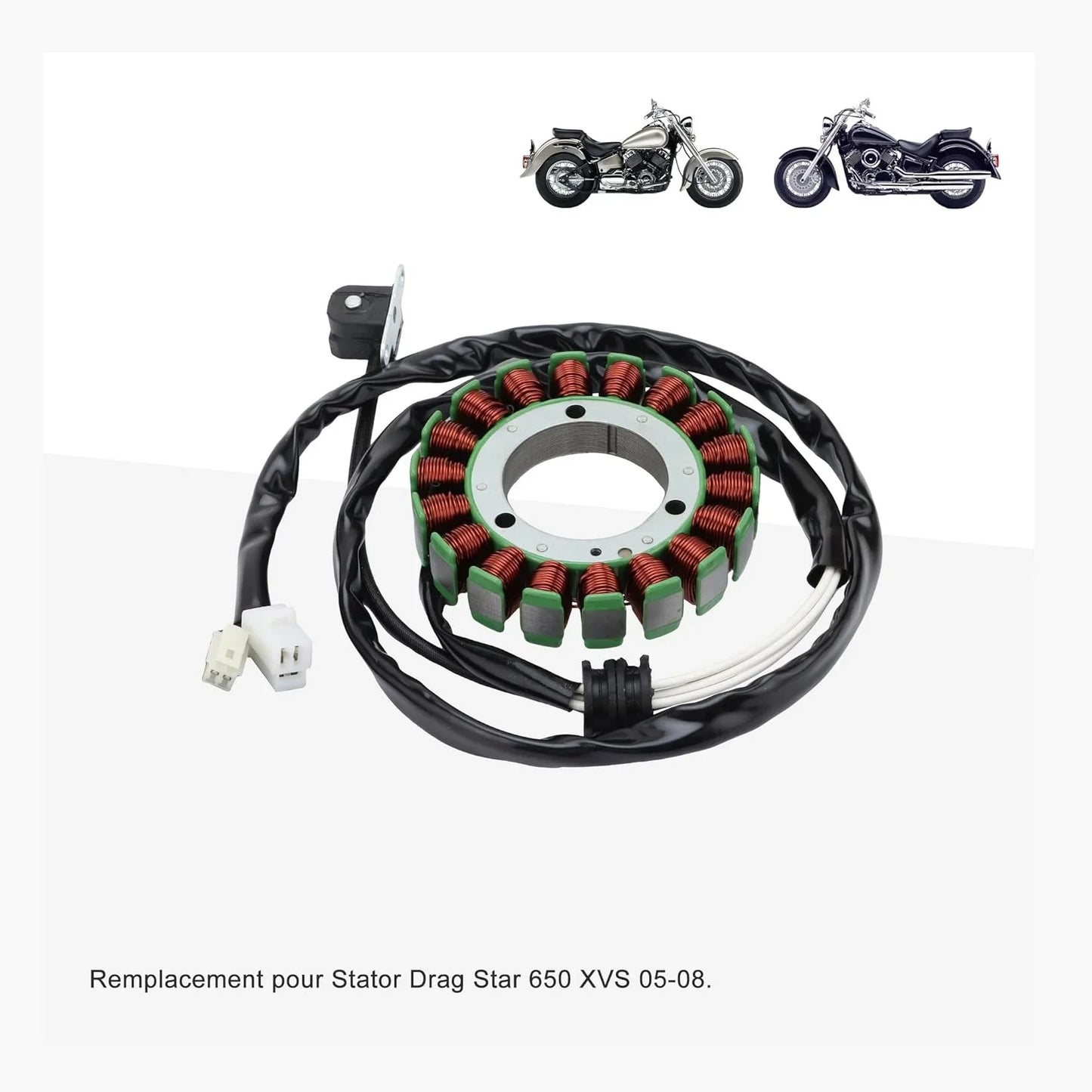

Heavy-Duty Magneto Stator for Yamaha Drag Star 650 XVS
Engineered for superior charging reliability. This high-performance Magneto Stator is a precision replacement for the Yamaha Drag Star 650 (XVS650) 2005–2008. Specifically designed to address the common electrical demands of the 650 V-twin engine, it provides the stable voltage required for smooth engine operation and consistent battery charging.
Unlike standard replacements, this unit features an increased number of coil windings and thicker copper wire. These enhancements significantly improve thermal durability and electrical conductivity, ensuring the stator can withstand the high-heat environment of a cruiser engine without premature failure.
Product Compatibility
- Yamaha Drag Star 650 (XVS650): 2005, 2006, 2007, 2008
- Models: Custom, Classic, and Silverado (Check year compatibility)
- OEM Reference: 5SC-81410-01-00, 5SC-81410-02-00, 5SC-81410-03-00
Key Technical Specifications:

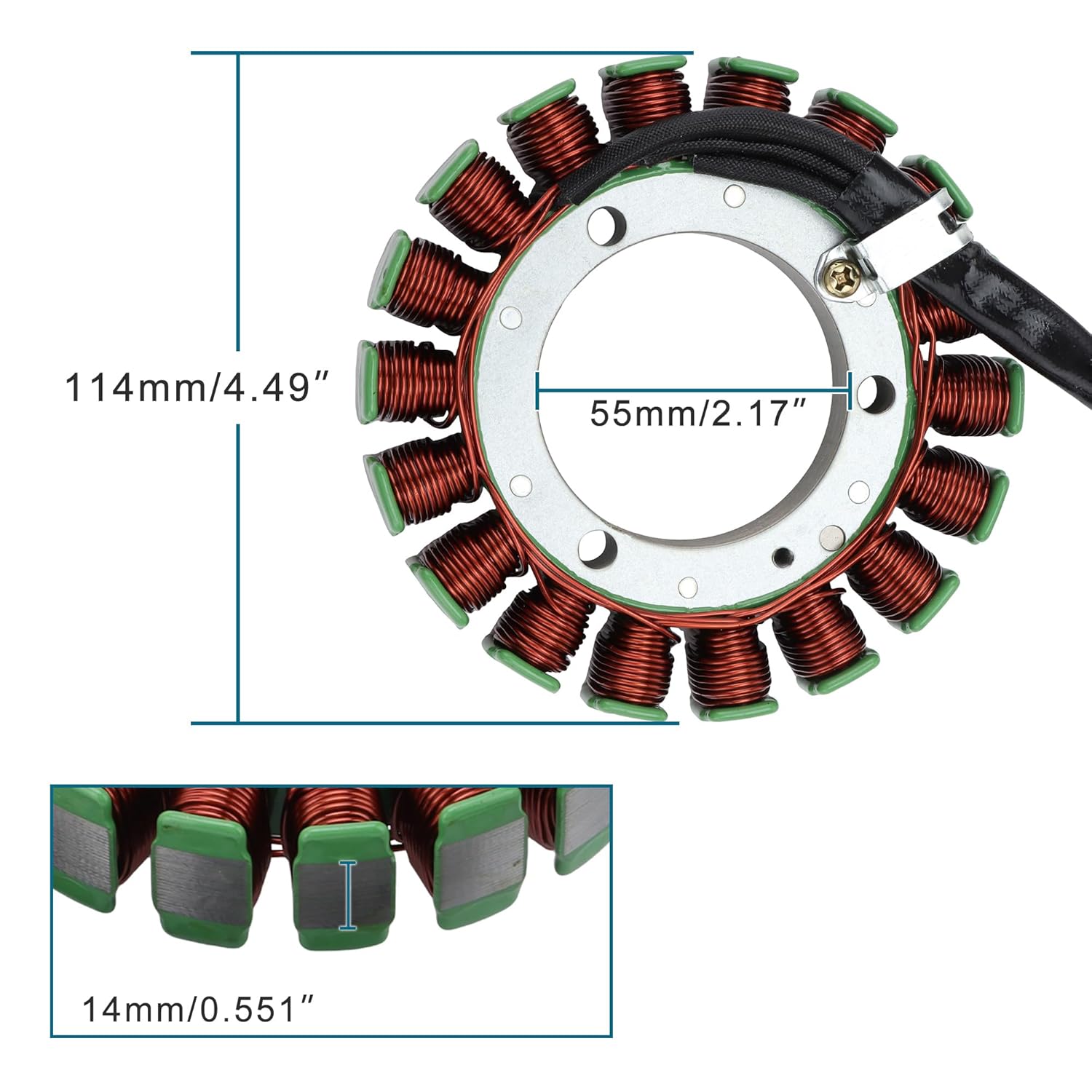

- Outer Diameter: 114mm (4.48")
- Inner Diameter: 55mm (2.16")
- Core Material: High-grade magnetically conductive lamination
- Winding: High-purity, thick-gauge copper wire
- Design: Direct bolt-on replacement for factory mounting points
Why Choose This Stator?
- Enhanced Durability: Thicker copper coils offer better resistance to vibration and thermal stress, reducing the likelihood of internal shorts.
- Stable Electrical Output: Provides a consistent current across the RPM range, which is critical for maintaining fuel system and ignition health.

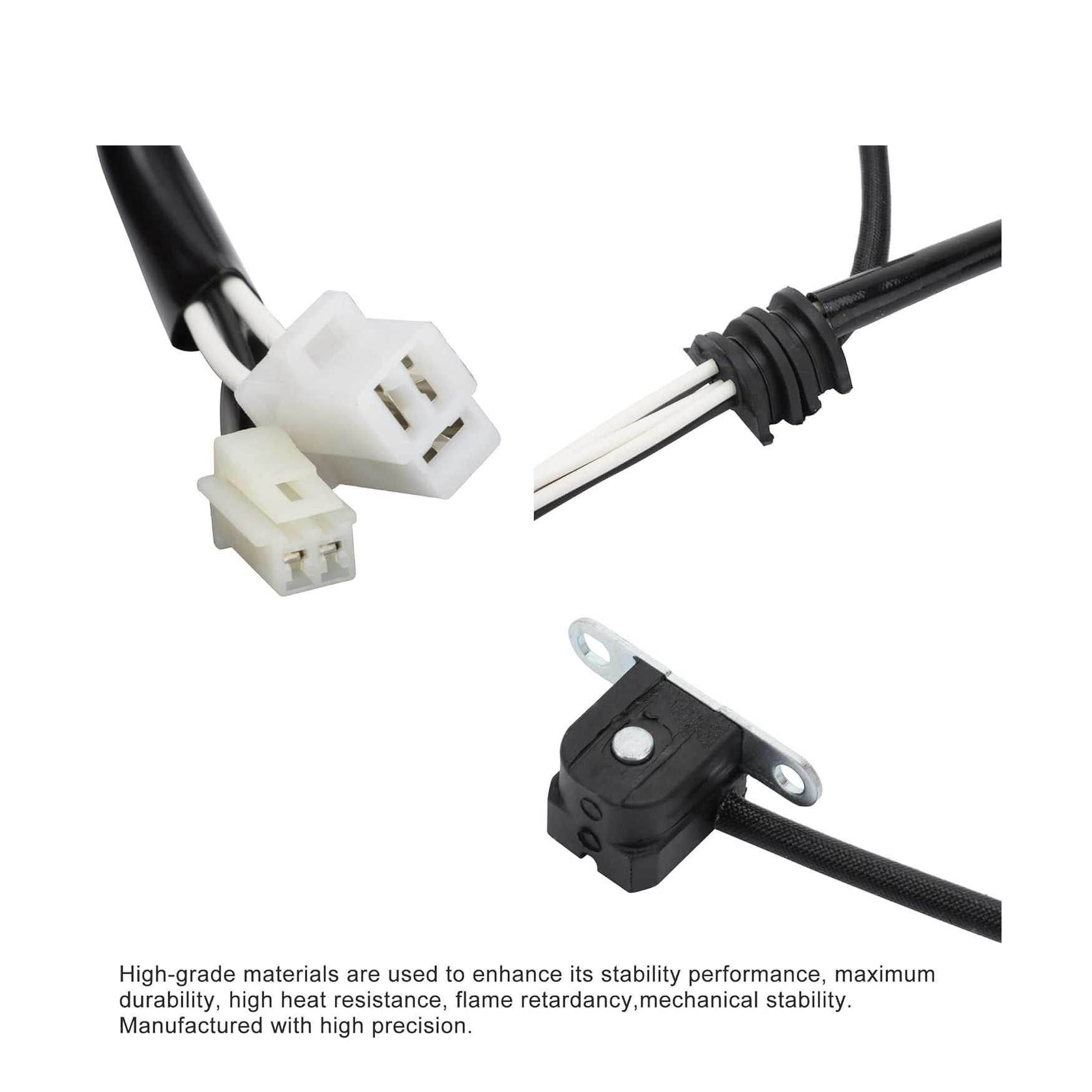

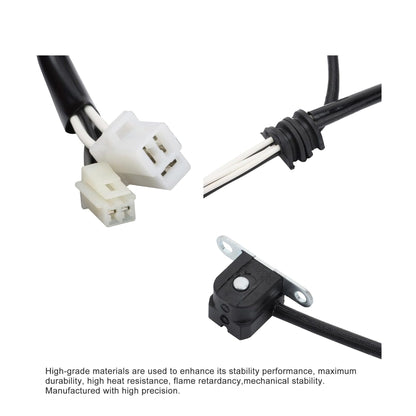

- Precision Fitment: Designed as a direct replacement, ensuring a straightforward installation process that matches your bike's original wiring harness and connectors.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha Drag Star 650 (XVS650): 2005, 2006, 2007, 2008; Models: Custom, Classic, and Silverado (Check year compatibility); OEM Reference: 5SC-81410-01-00, 5SC-81410-02-00, 5SC-81410-03-00. It is best matched to original part number(s) 5SC-81410-01-00, 5SC-81410-02-00, 5SC-81410-03-00, 2005-2008. Key physical/spec details from the product data include Outer Diameter: 114mm (4.48"), Inner Diameter: 55mm (2.16"), 650 V. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 5SC-81410-01-00, 5SC-81410-02-00, 5SC-81410-03-00, 2005-2008 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha Drag Star/XVS650 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 5SC-81410-01-00, 5SC-81410-02-00, 5SC-81410-03-00, 2005-2008, treat the fitment as unconfirmed. Model years outside 2005–2008, 2005, 2008, 2006, 2007 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 5SC-81410-01-00, 5SC-81410-02-00, 5SC-81410-03-00, 2005-2008. Recheck listed specs such as Outer Diameter: 114mm (4.48"), Inner Diameter: 55mm (2.16"), 650 V. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
