Magneto Stator for Yamaha F75, F80, F90, F100 Outboards | OEM 6D8-81410-00
Magneto Stator for Yamaha F75, F80, F90, F100 Outboards | OEM 6D8-81410-00
Couldn't load pickup availability
Marine-Grade Magneto Stator for Yamaha F75 - F100 4-Stroke Outboards
Keep your Yamaha outboard running reliably on the water. This high-performance Magneto Stator is a precision-engineered replacement for Yamaha OEM part number 6D8-81410-00. Designed specifically for the 2005–2017 4-stroke series, it provides the stable electrical output required for consistent ignition and battery charging in the most demanding marine environments.

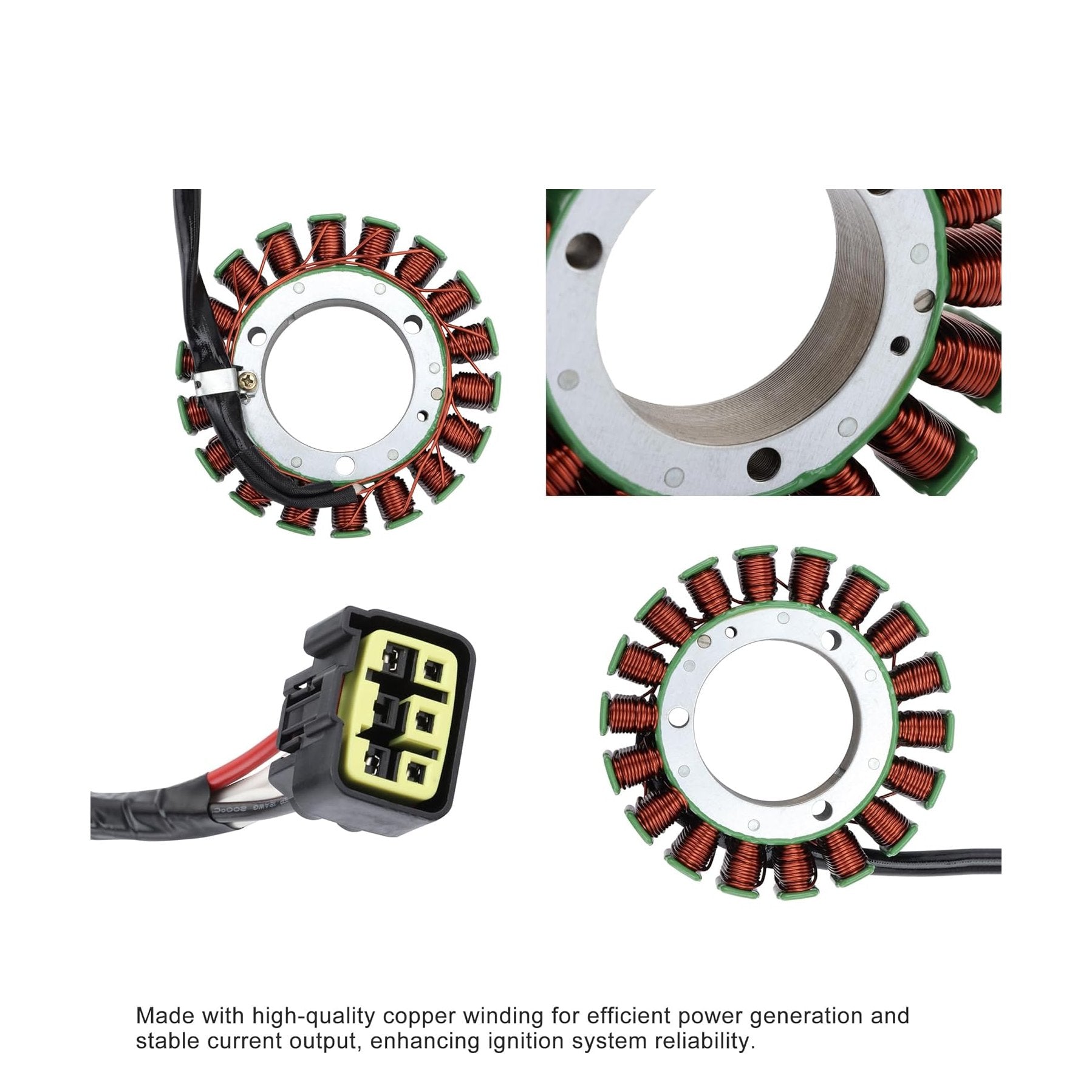

Manufactured from high-quality lamination materials and high-purity copper windings, this stator is built to resist the salt spray, oil, and severe vibration that typically cause electrical failure. The advanced insulation ensures the coil remains reliable under high-intensity use, effectively preventing aging and short circuits.
Product Compatibility
- Yamaha F75: 2005–2017
- Yamaha F80: 2005–2017
- Yamaha F90: 2005–2017
- Yamaha F100: 2005–2017
- Engine Type: 4-Stroke Outboard

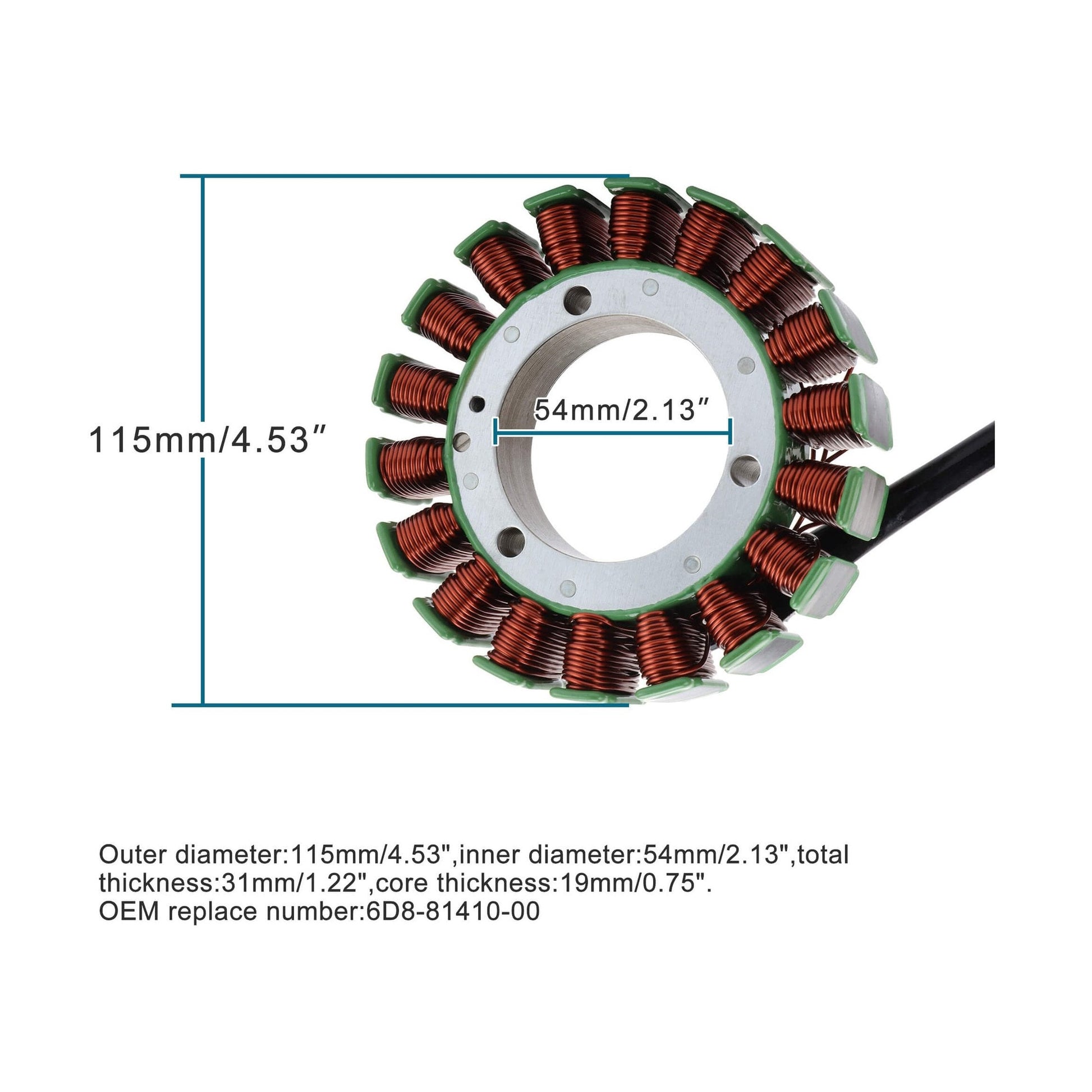

Key Technical Specifications:
- OEM Reference: 6D8-81410-00
- Inner Diameter: 54mm (2.13")
- Total Thickness: 31mm (1.22")
- Core Thickness: 19mm (0.75")
Why Choose This Stator?
- Built for the Ocean: Specially coated to resist salt spray corrosion and environmental aging, ensuring a long service life in saltwater or freshwater.
- Direct Plug-and-Play Fit: Designed as a direct replacement for the original unit with factory-style connectors for a fast, hassle-free installation.
- Stable Charging Performance: High-grade windings provide a consistent 12V charge, keeping your batteries topped up for electronics, pumps, and engine restarts.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha F75: 2005–2017; Yamaha F80: 2005–2017; Yamaha F90: 2005–2017; Yamaha F100: 2005–2017; Engine Type: 4-Stroke Outboard. It is best matched to original part number(s) 6D8-81410-00. Key physical/spec details from the product data include Inner Diameter: 54mm (2.13"), Total Thickness: 31mm (1.22"), Core Thickness: 19mm (0.75"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 6D8-81410-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha F75/F80/F90/F100 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 6D8-81410-00, treat the fitment as unconfirmed. Model years outside 2005–2017, 2005, 2017 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 6D8-81410-00. Recheck listed specs such as Inner Diameter: 54mm (2.13"), Total Thickness: 31mm (1.22"), Core Thickness: 19mm (0.75"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
