Magneto Stator for Yamaha FZ25 (2018) | OEM B97-H1410-00
Magneto Stator for Yamaha FZ25 (2018) | OEM B97-H1410-00
Couldn't load pickup availability

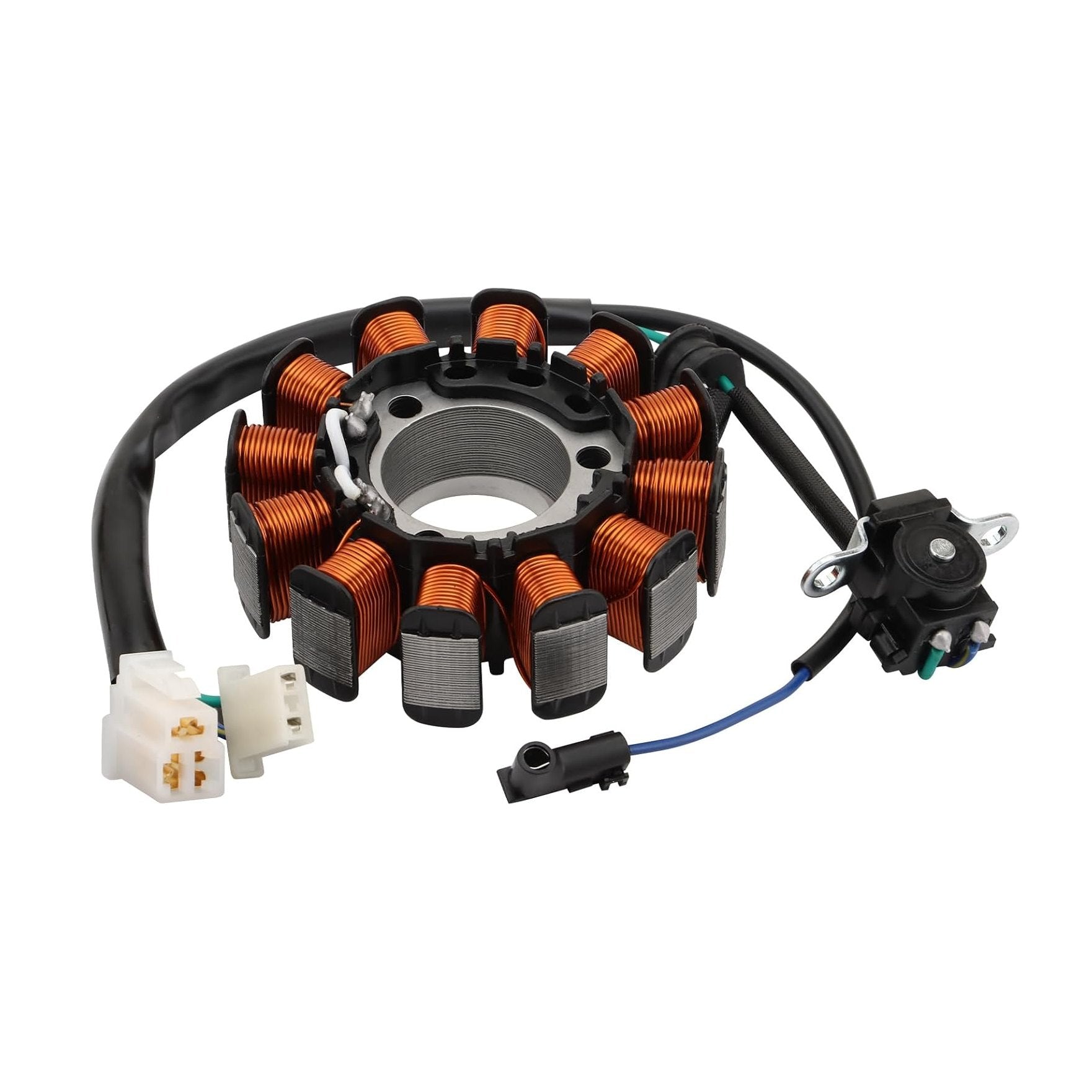

High-Performance Magneto Stator for Yamaha FZ25 (2018)
Ensure your motorcycle's electrical system is track-ready. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Yamaha FZ25 (2018). Designed to replace OEM part number B97-H1410-00, it provides the stable electrical output required for reliable ignition and consistent battery charging, even under high-performance riding conditions.

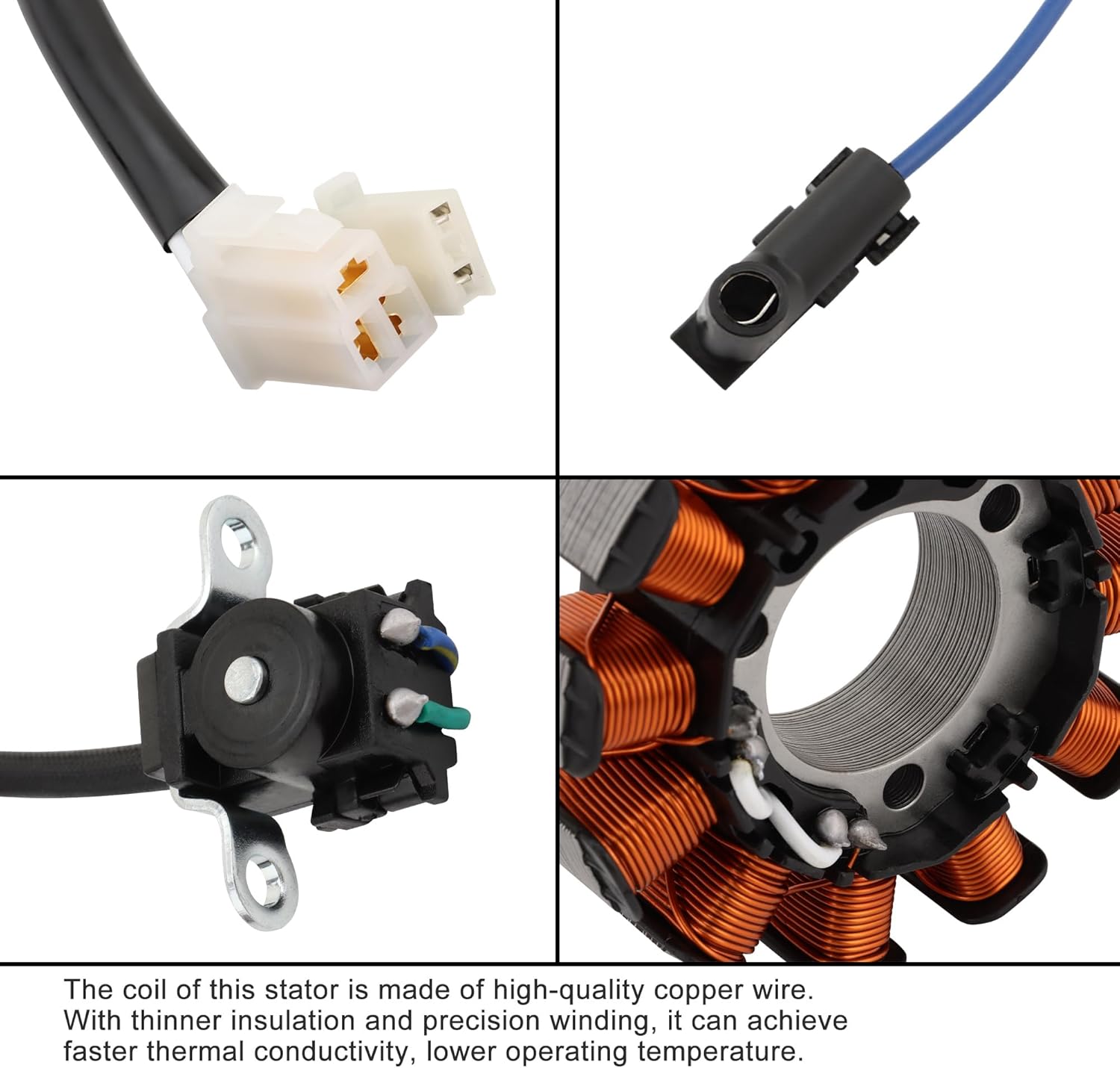

Manufactured with high-quality copper wire and precision winding techniques, this stator is built for efficiency. The specialized thin-insulation design allows for faster thermal conductivity, resulting in a lower operating temperature and a significantly longer service life compared to standard replacement coils.
Product Compatibility
- Yamaha Model: FZ25 (2018)
- Other Applications: Also fits various 150cc, 160cc, and 250cc Pit Dirt Bikes and ATVs/4-Wheelers using the 93mm stator configuration.
- OEM Cross-Reference: B97-H1410-00

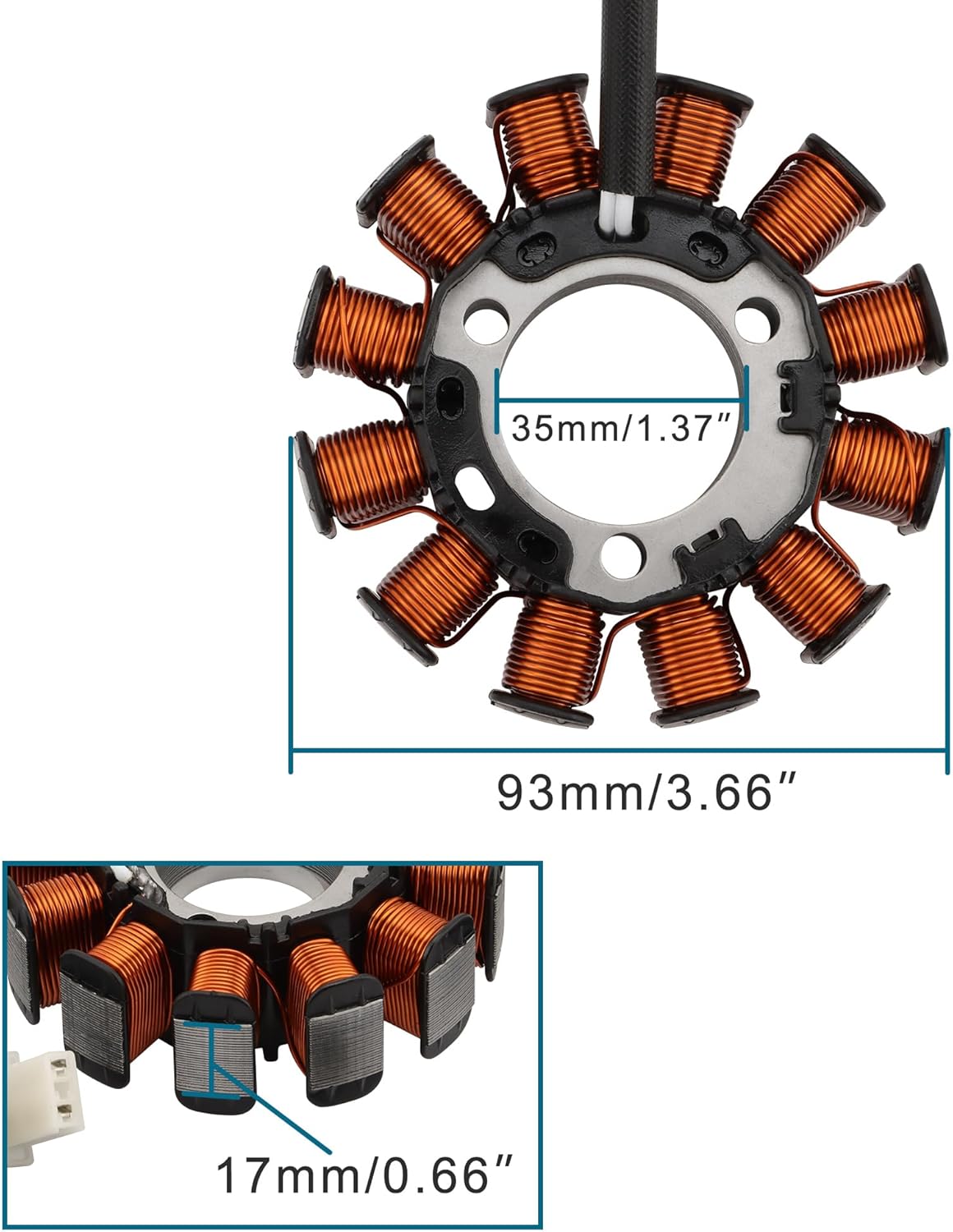

Key Technical Specifications:
- Outer Diameter: 93mm (3.66")
- Inner Diameter: 35mm (1.37")
- Core Height: 17mm (0.66")
- Material: High-purity copper windings with optimized thermal insulation.
- Fitment: Direct OEM replacement with factory-style mounting points.
Why Choose This Stator?
- Superior Heat Management: The precision winding and thinner insulation allow heat to dissipate quickly, preventing the thermal breakdown that often causes OEM stators to fail.
- Stable Electrical Performance: Provides a consistent current flow, ensuring your ignition system and fuel injection (if applicable) receive the steady power they need.
- Rugged Durability: Designed to withstand the vibration and harsh environments of both street riding and off-road use.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha Model: FZ25 (2018); Other Applications: Also fits various 150cc, 160cc, and 250cc Pit Dirt Bikes and ATVs/4-Wheelers using the 93mm stator configuration.; OEM Cross-Reference: B97-H1410-00. It is best matched to original part number(s) B97-H1410-00. Key physical/spec details from the product data include Outer Diameter: 93mm (3. 66"), Inner Diameter: 35mm (1. 37"), Core Height: 17mm (0. 66"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to B97-H1410-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha FZ25/B97/H1410 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with B97-H1410-00, treat the fitment as unconfirmed. Model years outside 2018 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): B97-H1410-00. Recheck listed specs such as Outer Diameter: 93mm (3. 66"), Inner Diameter: 35mm (1. 37"), Core Height: 17mm (0. 66"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
