Magneto Stator for Yamaha Grizzly 700 & Kodiak 700 (2016-2018) | B16-H1410-00-00
Magneto Stator for Yamaha Grizzly 700 & Kodiak 700 (2016-2018) | B16-H1410-00-00
Couldn't load pickup availability

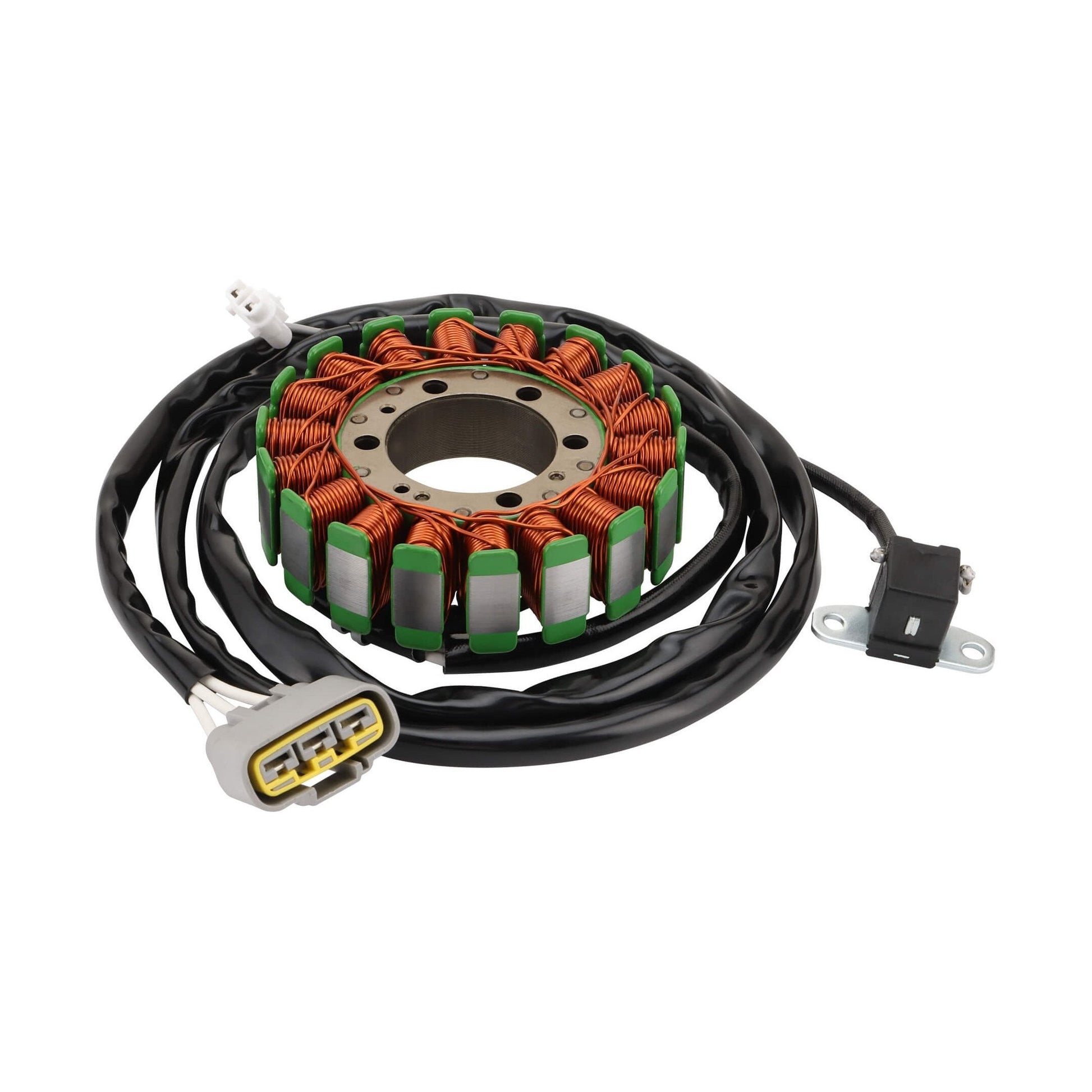

High-Performance Magneto Stator for Yamaha Grizzly & Kodiak 700
Ensure your ATV remains trail-ready. This premium aftermarket Magneto Stator is a precision replacement for Yamaha OEM part number B16-H1410-00-00. Specifically engineered for the 2016–2018 Grizzly and Kodiak 700 series, it delivers the stable electrical output required for consistent ignition and reliable battery charging in the most demanding off-road conditions.
Constructed with high-quality copper wire and advanced heat-resistant insulation (rated to 200°C), this stator is designed to thrive in high-temperature environments. The 18-pole design ensures efficient power generation, while the direct plug-and-play harness—complete with connectors and a rubber grommet—makes for a straightforward, modification-free installation.
Product Compatibility

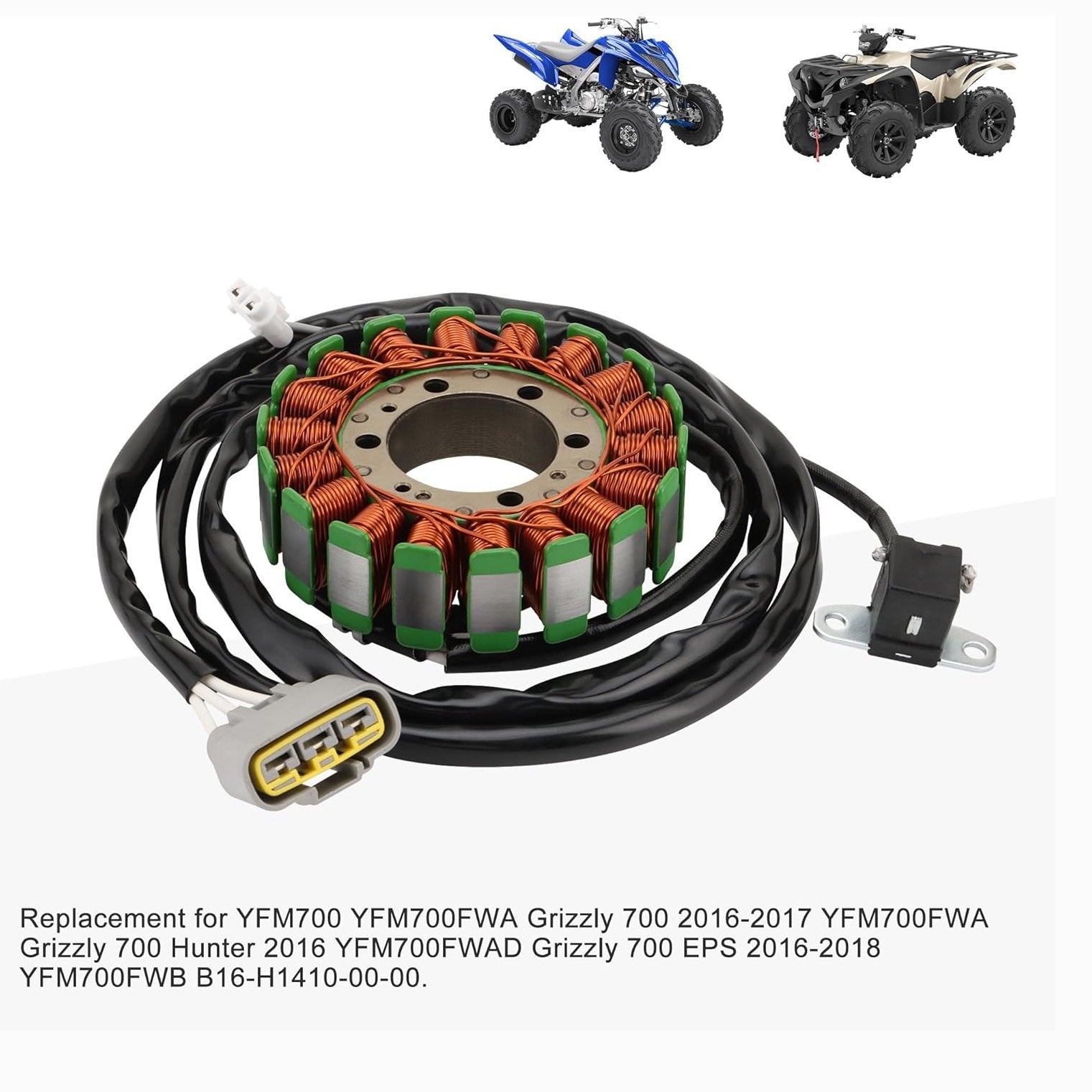

- Yamaha Grizzly 700 (YFM700): 2016, 2017, 2018 (All Editions)
- Yamaha Kodiak 700 (YFM700K): 2016, 2017, 2018 (All Editions)
- OEM Cross-Reference: B16-H1410-00-00, B16-H1410-00
Key Technical Specifications:
- Design: 18-Pole Magneto Stator

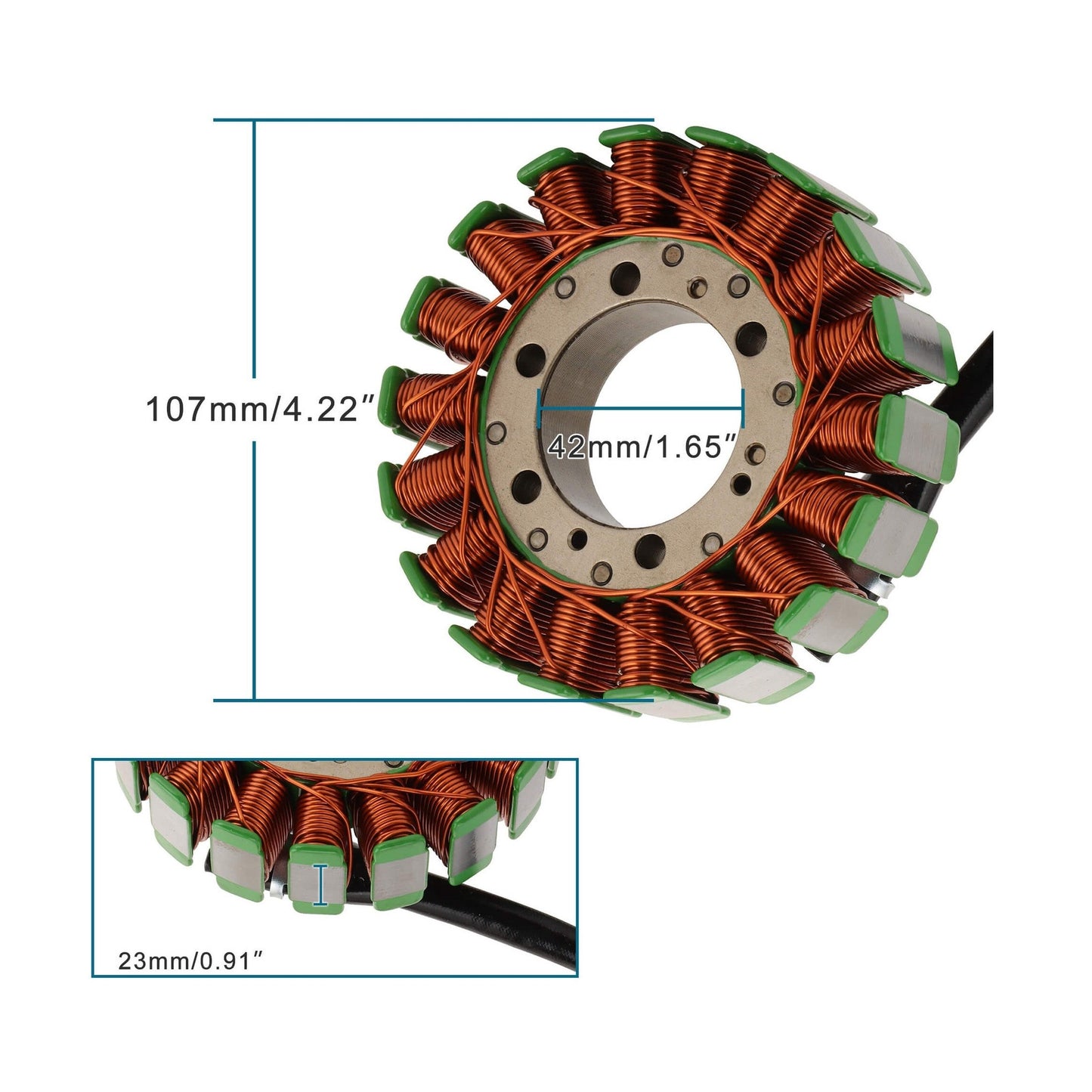

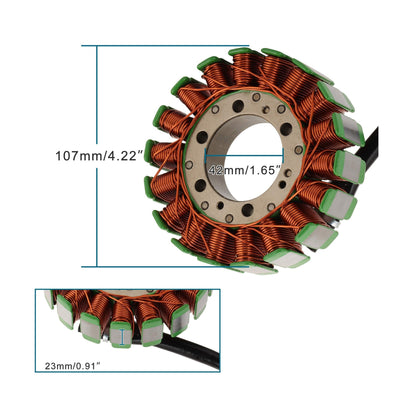

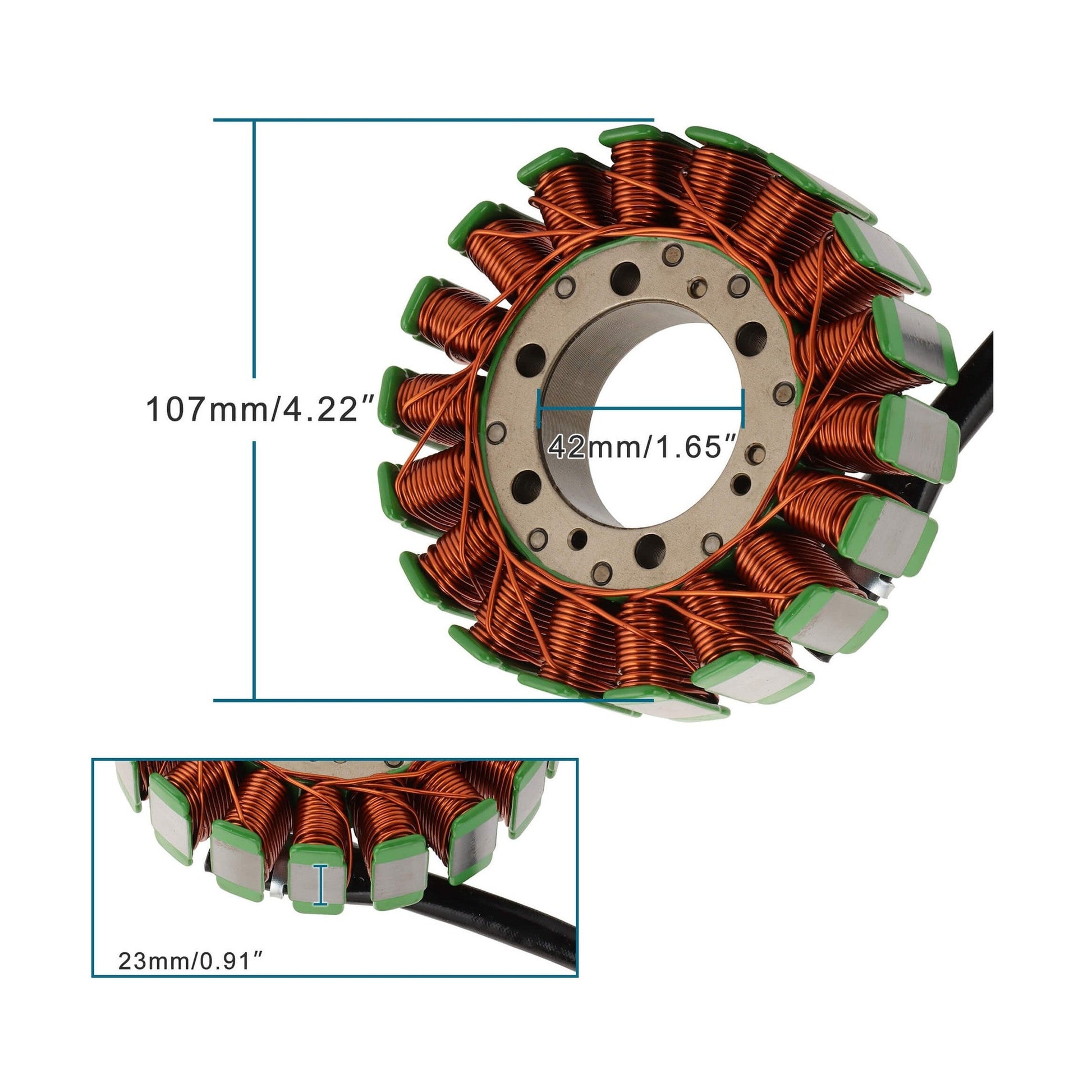

- Outer Diameter: 107mm (4.22")
- Inner Diameter: 42mm (1.65")
- Iron Core Height: 23mm (0.91")

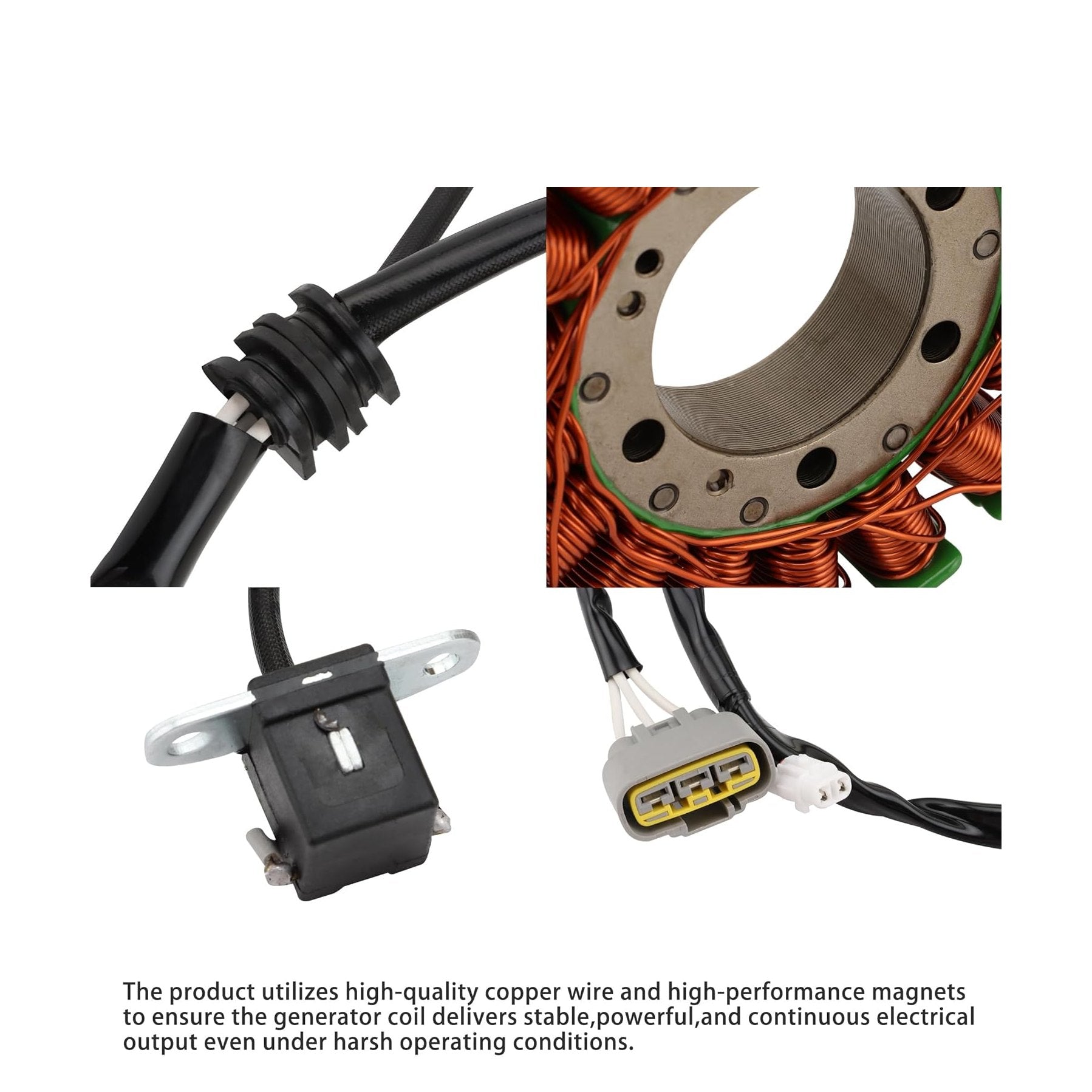

- Components: Includes connector, rubber grommet, and pickup pulsar coil
Why Choose This Stator?
- Superior Thermal Resilience: Engineered with materials that resist aging and short-circuiting in harsh environments, including high heat and high humidity.
- Seamless Integration: Features a direct fit design that matches your factory harness exactly, reducing installation time and effort.
- Reliable Power: Precision-wound coils provide a stable electrical current, essential for protecting your ignition system and ensuring your battery stays fully charged during long rides.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha Grizzly 700 (YFM700): 2016, 2017, 2018 (All Editions); Yamaha Kodiak 700 (YFM700K): 2016, 2017, 2018 (All Editions); OEM Cross-Reference: B16-H1410-00-00, B16-H1410-00. It is best matched to original part number(s) B16-H1410-00-00, B16-H1410-00, 2016-2018. Key physical/spec details from the product data include Outer Diameter: 107mm (4.22"), Inner Diameter: 42mm (1.65"), Iron Core Height: 23mm (0.91"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to B16-H1410-00-00, B16-H1410-00, 2016-2018 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha Grizzly/Kodiak/B16/H1410 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with B16-H1410-00-00, B16-H1410-00, 2016-2018, treat the fitment as unconfirmed. Model years outside 2016–2018, 2016, 2018, 2017 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): B16-H1410-00-00, B16-H1410-00, 2016-2018. Recheck listed specs such as Outer Diameter: 107mm (4.22"), Inner Diameter: 42mm (1.65"), Iron Core Height: 23mm (0.91"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
