Magneto Stator for Yamaha MT-03, MT-25 & YZF-R3 (2015-2021)
Magneto Stator for Yamaha MT-03, MT-25 & YZF-R3 (2015-2021)
Couldn't load pickup availability

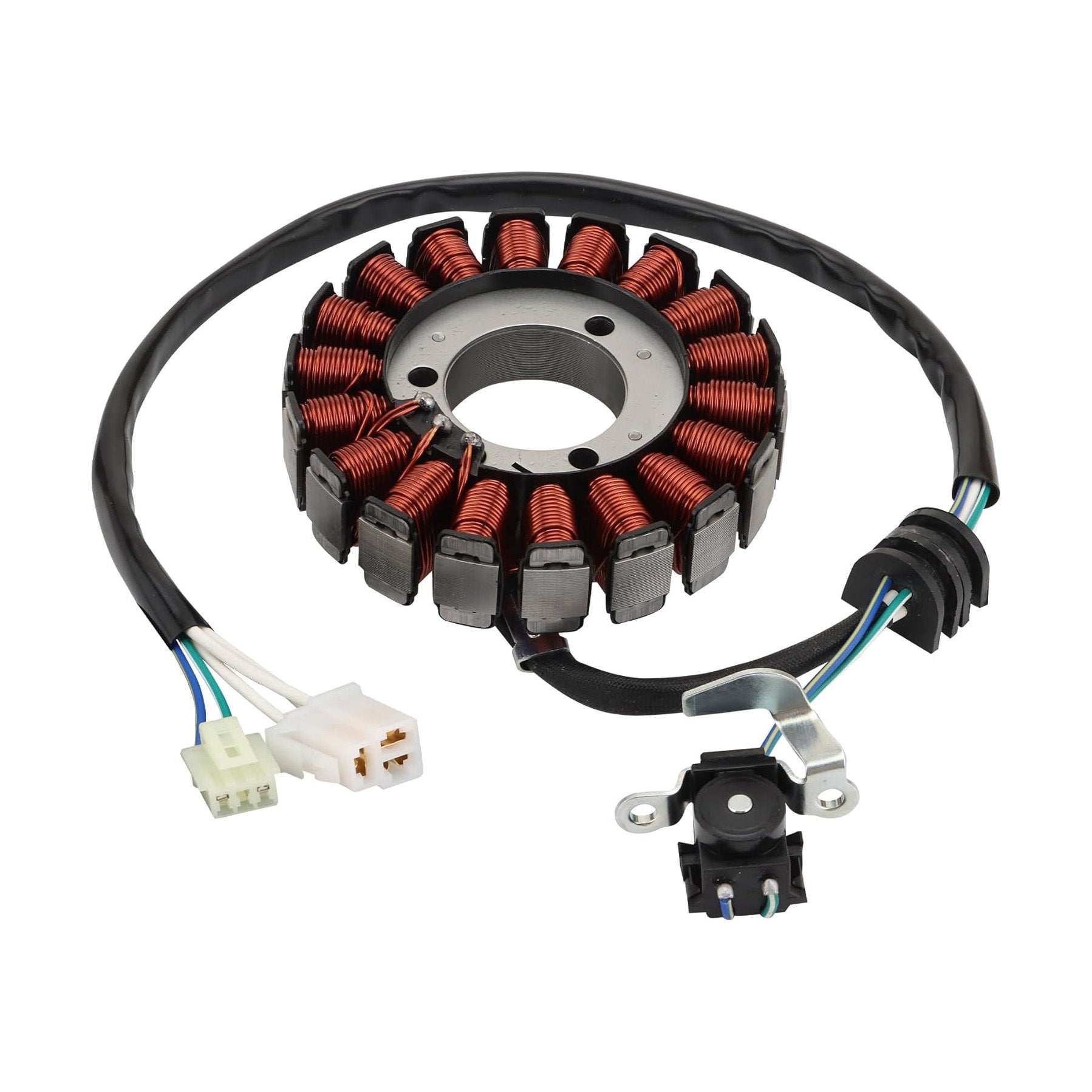

High-Performance Magneto Stator for Yamaha 250cc & 321cc Engines
Restore your bike’s factory charging and ignition reliability. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Yamaha MT-03, MT-25, and YZF-R3. Designed for the high-revving demands of Yamaha's small-displacement parallel twins, it ensures your battery stays charged and your ignition stays strong.
Constructed from high-quality copper wire and premium insulating materials, this stator is built to withstand the high-vibration and extreme heat of daily commuting and spirited riding. Its direct plug-and-play design matches factory connectors exactly, requiring no modifications for a straightforward installation.

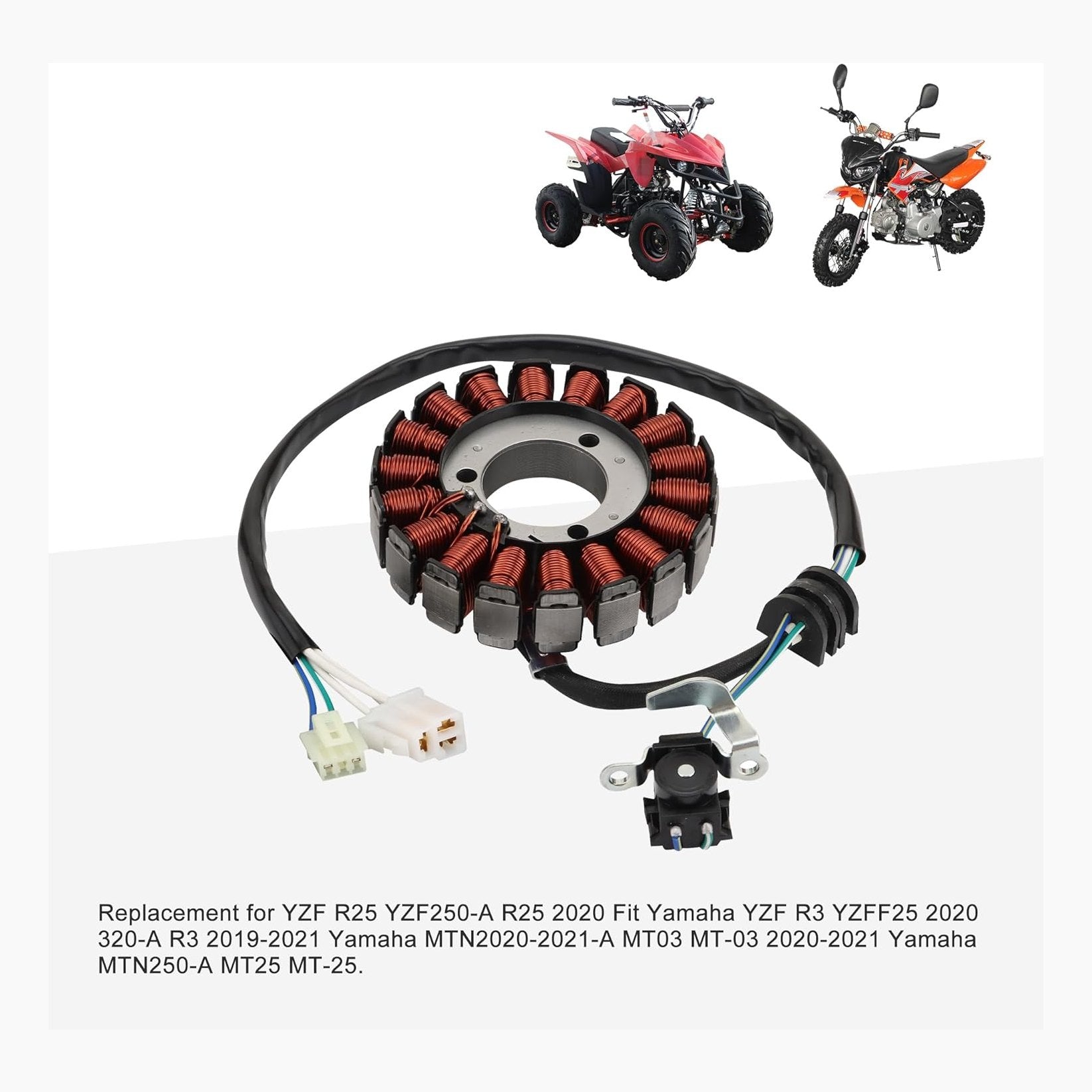

Product Compatibility
- Yamaha MT-03: 2016, 2017, 2018, 2019, 2020, 2021
- Yamaha MT-25 (MTN250-A): 2015, 2016, 2017, 2018, 2019, 2020, 2021
- Yamaha YZF-R3 / R25: 2015, 2016, 2017, 2018, 2019, 2020, 2021
- OEM Cross-Reference: 1WD-H1410-00, 1WD-H1410-01, B04-H1410-00
Key Technical Specifications:

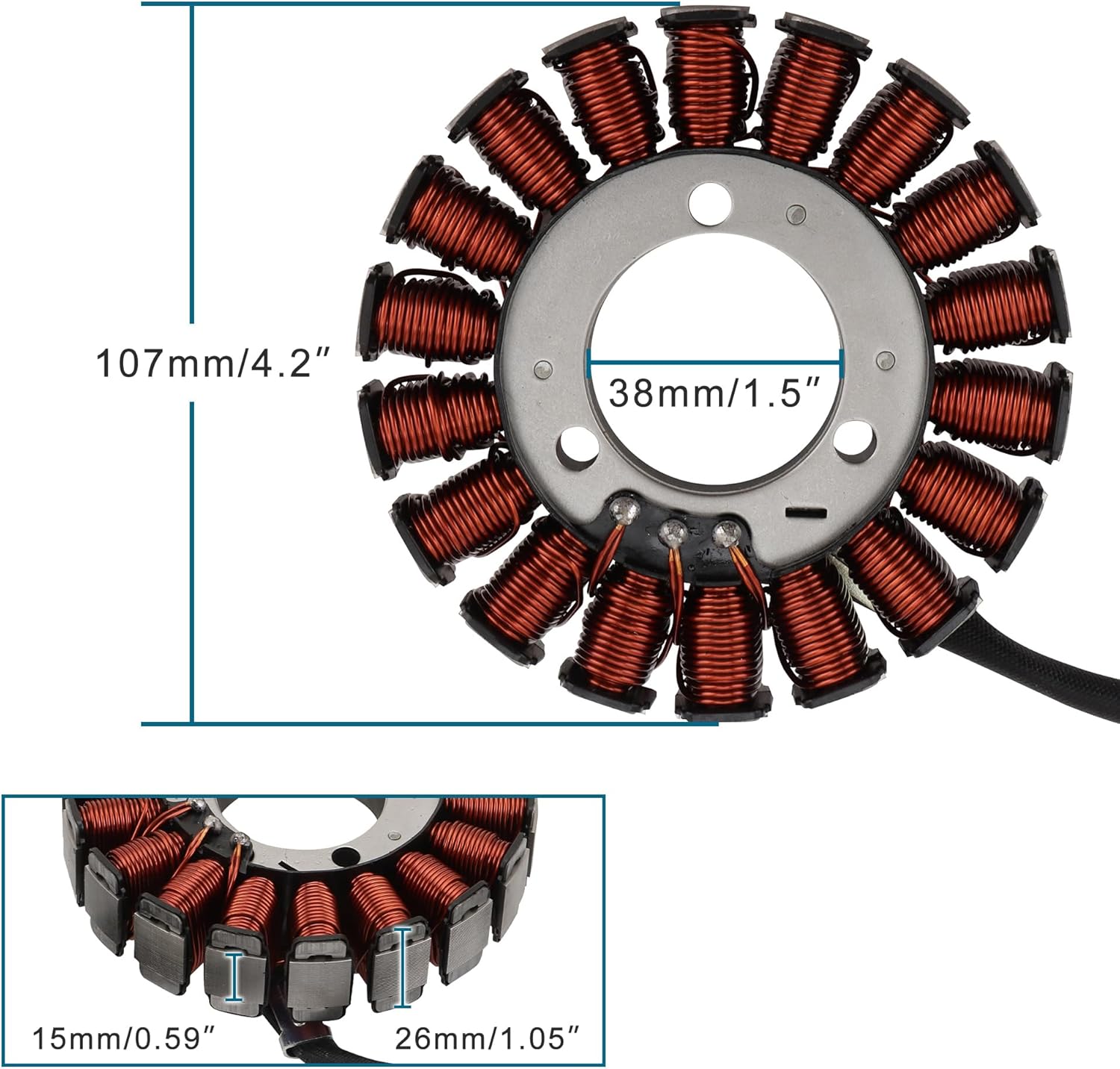

- Outer Diameter: 107mm (4.21")
- Inner Diameter: 38mm (1.50")
- Design: Direct "bolt-on" replacement
- Material: High-temperature resistant copper windings
- Quality: Precision manufacturing for extended service life
Why Choose This Stator?
- Stable Current Output: Engineered to provide a consistent electrical field, protecting your bike's fuel injection and sensitive electronics.
- Rugged Durability: Uses high-grade metal lamination and coatings to resist vibration-related wear and thermal breakdown.
- Easy Installation: Matches factory mounting points and wiring harness lengths for a hassle-free setup that gets you back on the road faster.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha MT-03: 2016, 2017, 2018, 2019, 2020, 2021; Yamaha MT-25 (MTN250-A): 2015, 2016, 2017, 2018, 2019, 2020, 2021; Yamaha YZF-R3 / R25: 2015, 2016, 2017, 2018, 2019, 2020, 2021; OEM Cross-Reference: 1WD-H1410-00, 1WD-H1410-01, B04-H1410-00. It is best matched to original part number(s) 1WD-H1410-00, 1WD-H1410-01, B04-H1410-00, 2015-2021. Key physical/spec details from the product data include Outer Diameter: 107mm (4.21"), Inner Diameter: 38mm (1.50"), 250cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?

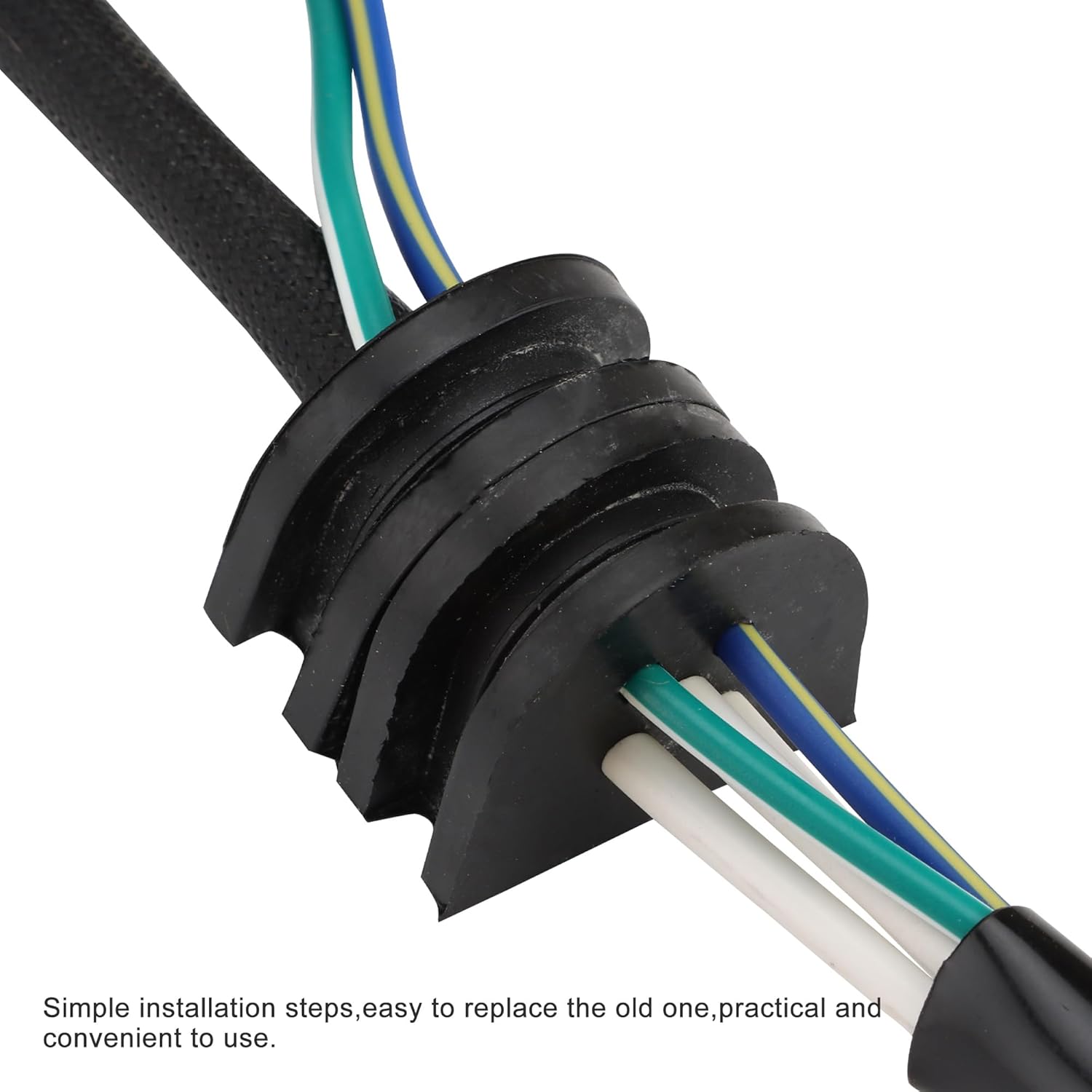

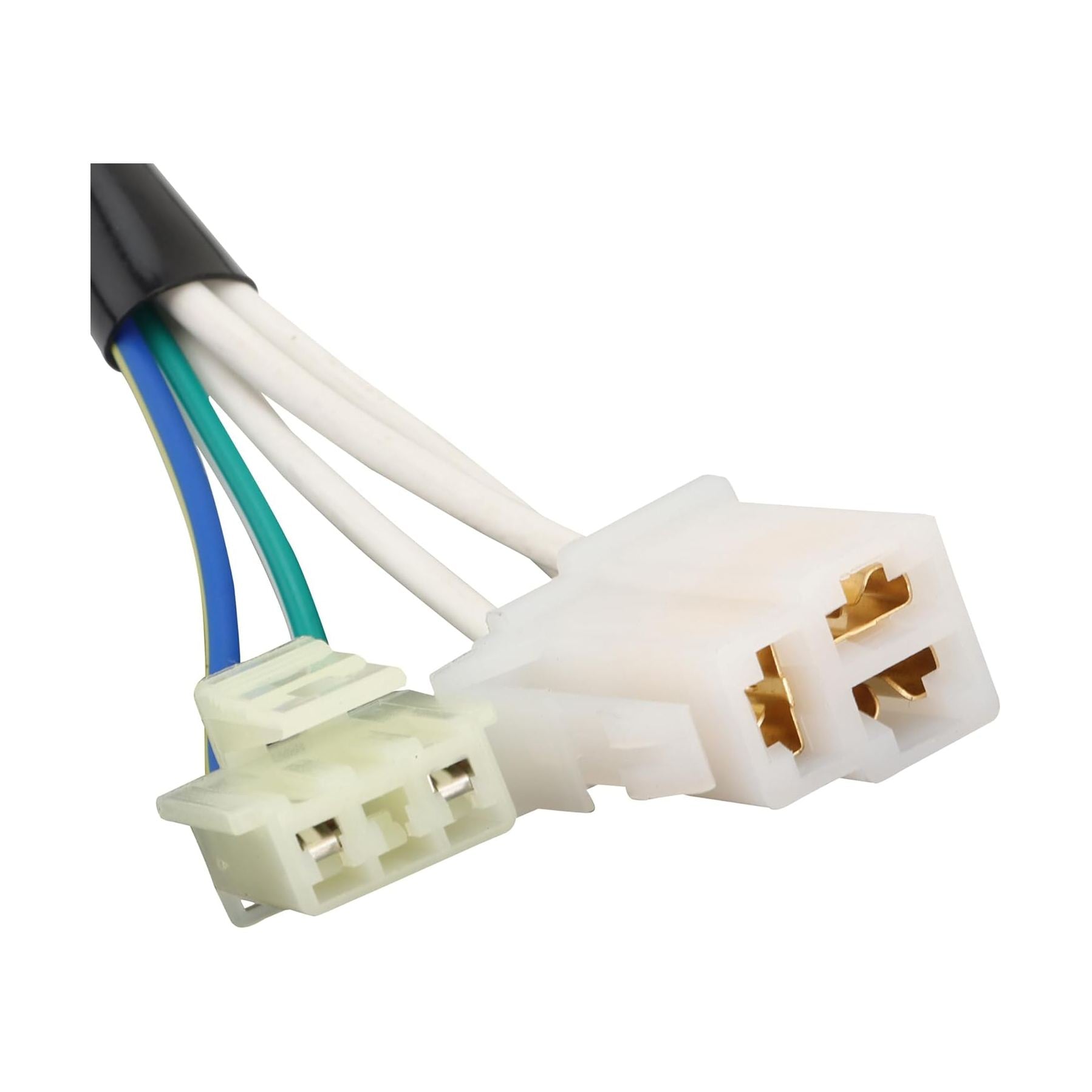

Yes. Match your original part number to 1WD-H1410-00, 1WD-H1410-01, B04-H1410-00, 2015-2021 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha MT-03/MT-25/YZF-R3/MTN250 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 1WD-H1410-00, 1WD-H1410-01, B04-H1410-00, 2015-2021, treat the fitment as unconfirmed. Model years outside 2015–2021, 2015, 2021, 2016, 2017 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 1WD-H1410-00, 1WD-H1410-01, B04-H1410-00, 2015-2021. Recheck listed specs such as Outer Diameter: 107mm (4.21"), Inner Diameter: 38mm (1.50"), 250cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
