Magneto Stator for Yamaha Outboard 115HP F115 FL115A | OEM 68V-81410-00
Magneto Stator for Yamaha Outboard 115HP F115 FL115A | OEM 68V-81410-00
5.0 / 5.0
(4) 4 total reviews
Couldn't load pickup availability
Product Overview

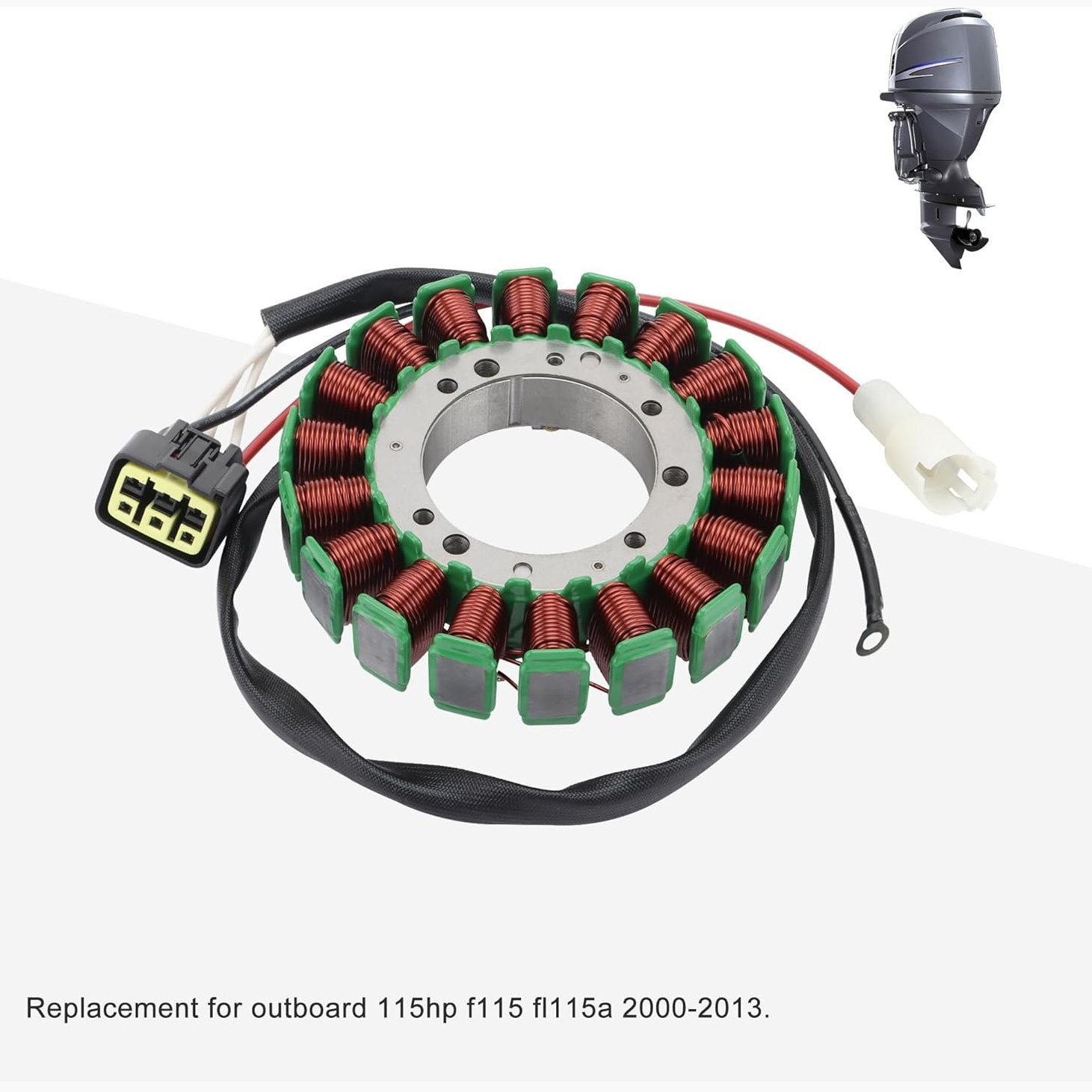

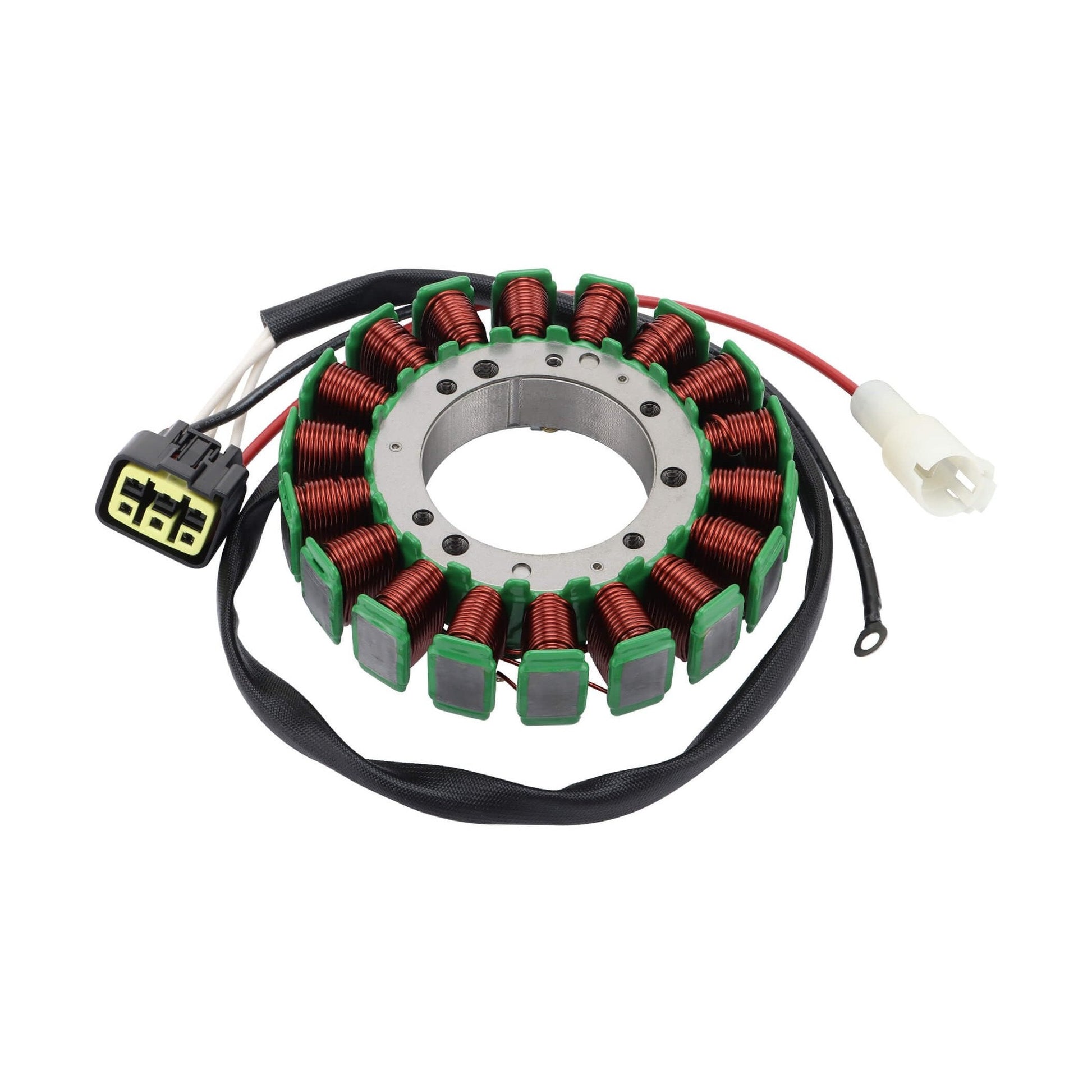

Restore reliable charging performance to your Yamaha 115HP outboard engine with this professional-grade magneto stator. Designed for F115 and FL115A 4-stroke marine engines, it delivers stable electrical output for ignition and battery charging—ensuring dependable performance on the water.
Built with high-grade copper windings and marine-grade heat-resistant insulation, this stator is engineered to withstand saltwater exposure, high load operation, and continuous marine use.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range |
|---|---|---|---|
| Yamaha | F115 | 4-Stroke Outboard Engine | 2000–2013 |
| Yamaha | FL115A | 4-Stroke Outboard Engine | 2000–2013 |
| Mercury | 115HP (select) | Yamaha-based powerhead units | 2000–2013 |
- Compatible with Yamaha 115HP F115 / FL115A only
- Some Mercury 115HP models using Yamaha powerhead
- Please verify OEM part number before purchase
Specifications
| Specification | Details |
|---|---|
| OEM Reference | 68V-81410-00, 68V-81460-00 |
| Engine Type | Yamaha 115HP 4-Stroke Outboard |

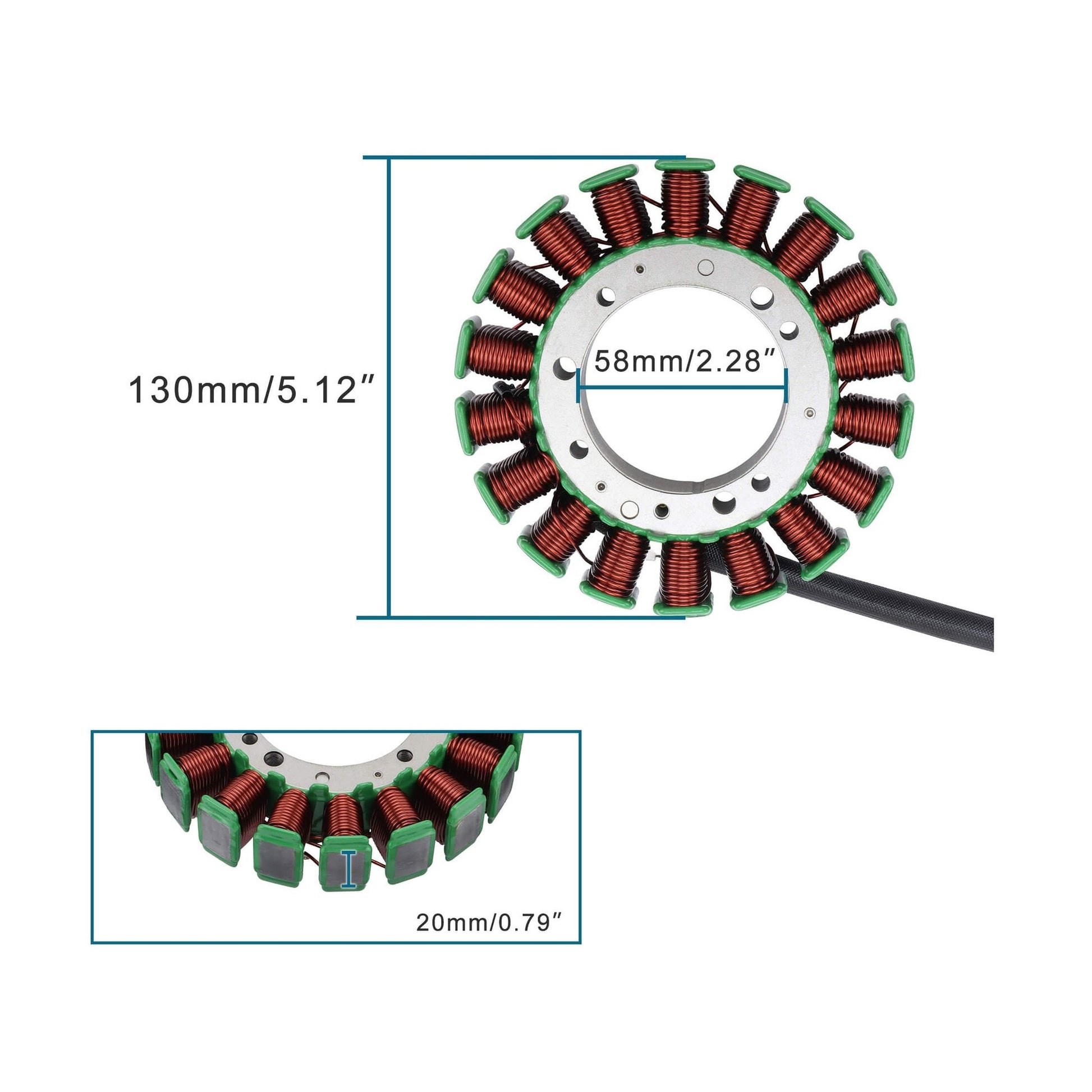

| Outer Diameter | 130 mm (5.12") |
| Inner Diameter | 58 mm (2.28") |
| Thickness | 20 mm (0.78") |
| Configuration | 18-Pole / 5-wire system |
| Material | Marine-grade copper windings |
| Installation Type | Direct plug-and-play |
Key Features
- Designed for Yamaha 115HP F115 / FL115A outboard engines
- Stable charging for ignition and marine battery systems
- Marine-grade construction resists saltwater corrosion
- High-efficiency 18-pole output for consistent voltage
- Direct OEM-fit installation with no modifications required
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha; F115; 4-Stroke Outboard Engine; 2000–2013; FL115A. It is best matched to original part number(s) 68V-81410-00, 68V-81460-00. Key physical/spec details from the product data include Outer Diameter: 130 mm (5.12"), Inner Diameter: 58 mm (2.28"), Thickness: 20 mm (0.78"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 68V-81410-00, 68V-81460-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha F115/FL115A models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 68V-81410-00, 68V-81460-00, treat the fitment as unconfirmed. Model years outside 2000–2013, 2000, 2013 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 68V-81410-00, 68V-81460-00. Recheck listed specs such as Outer Diameter: 130 mm (5.12"), Inner Diameter: 58 mm (2.28"), Thickness: 20 mm (0.78"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
The original Yamaha stator was much more expensive, so I decided to try this one. The build quality looks solid, and the wire insulation feels heavy enough for marine use. After replacing the old stator, my battery voltage is stable at idle and under throttle. I have only used it for a few weekends so far, but it is working as expected.
I installed this stator on my 2006 Yamaha F115 . The fit was correct and the connector matched my original part.
Direct fit and works great
Good product works great
