Magneto Stator for Yamaha TW200 Trailway, TW125 & TW225 | OEM 4WP-85510-10
Magneto Stator for Yamaha TW200 Trailway, TW125 & TW225 | OEM 4WP-85510-10
Couldn't load pickup availability

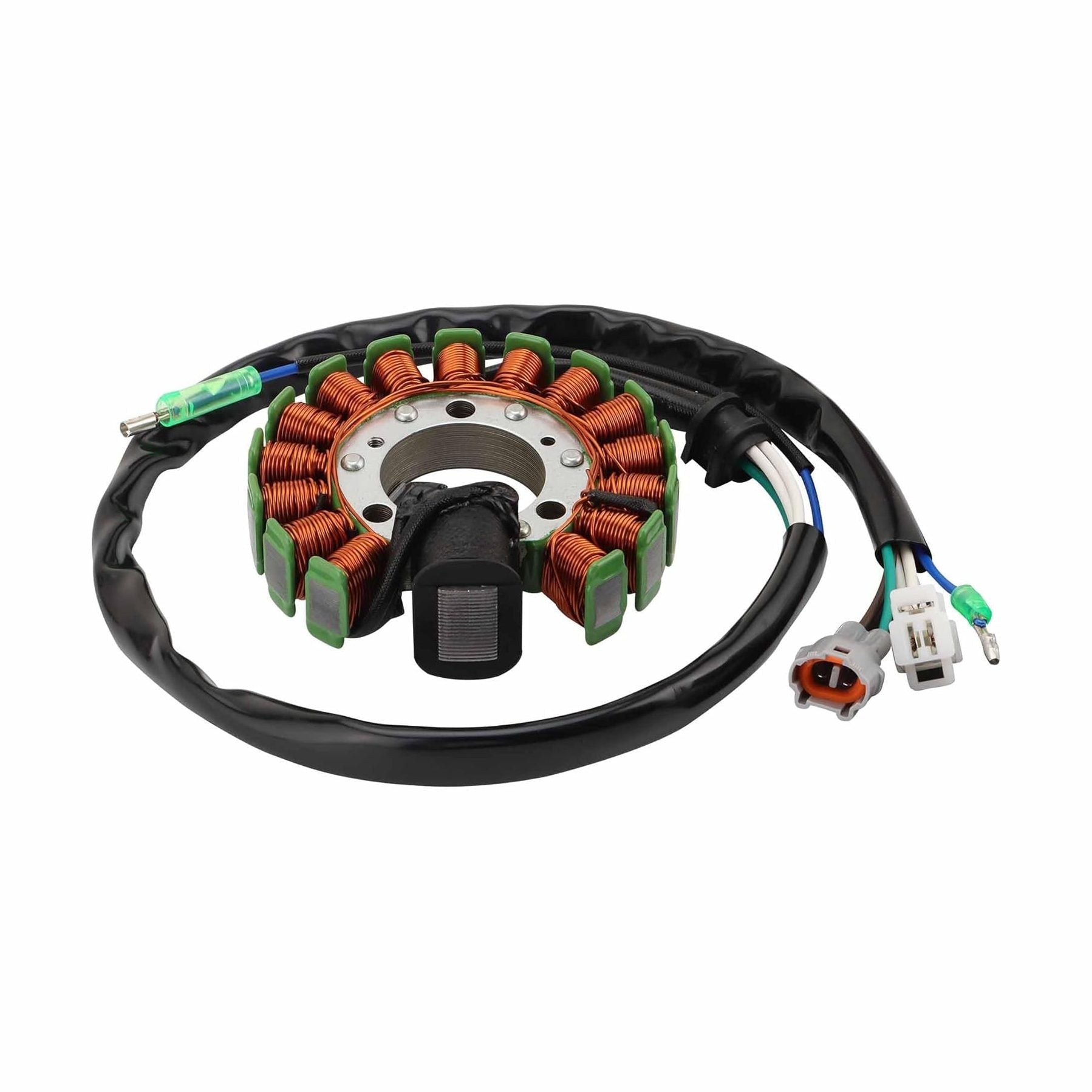

Heavy-Duty Magneto Stator for Yamaha TW125, TW200 & TW225 Trailway
Ensure your dual-sport is ready for any adventure. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Yamaha TW series. Designed to meet or exceed factory standards, it provides the stable electrical output required for reliable ignition, bright lighting, and consistent battery charging, whether you're commuting or hitting the trails.
Built with highest-grade copper windings and advanced lamination materials, this stator is engineered to resist thermal breakdown up to 200°C. The direct plug-and-play design matches your factory 97mm specifications exactly, ensuring a seamless installation that gets your bike back on the road without the need for wire splicing or complex modifications.
Product Compatibility
- Yamaha TW200 Trailway: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
- Yamaha TW125: 1999, 2000, 2001, 2002, 2003, 2004
- Yamaha TW225: 2002, 2003, 2004, 2005, 2006, 2007
- OEM Cross-Reference: 4WP-85510-10, 4WP-85510-10-00, 4WP-85510-12-00

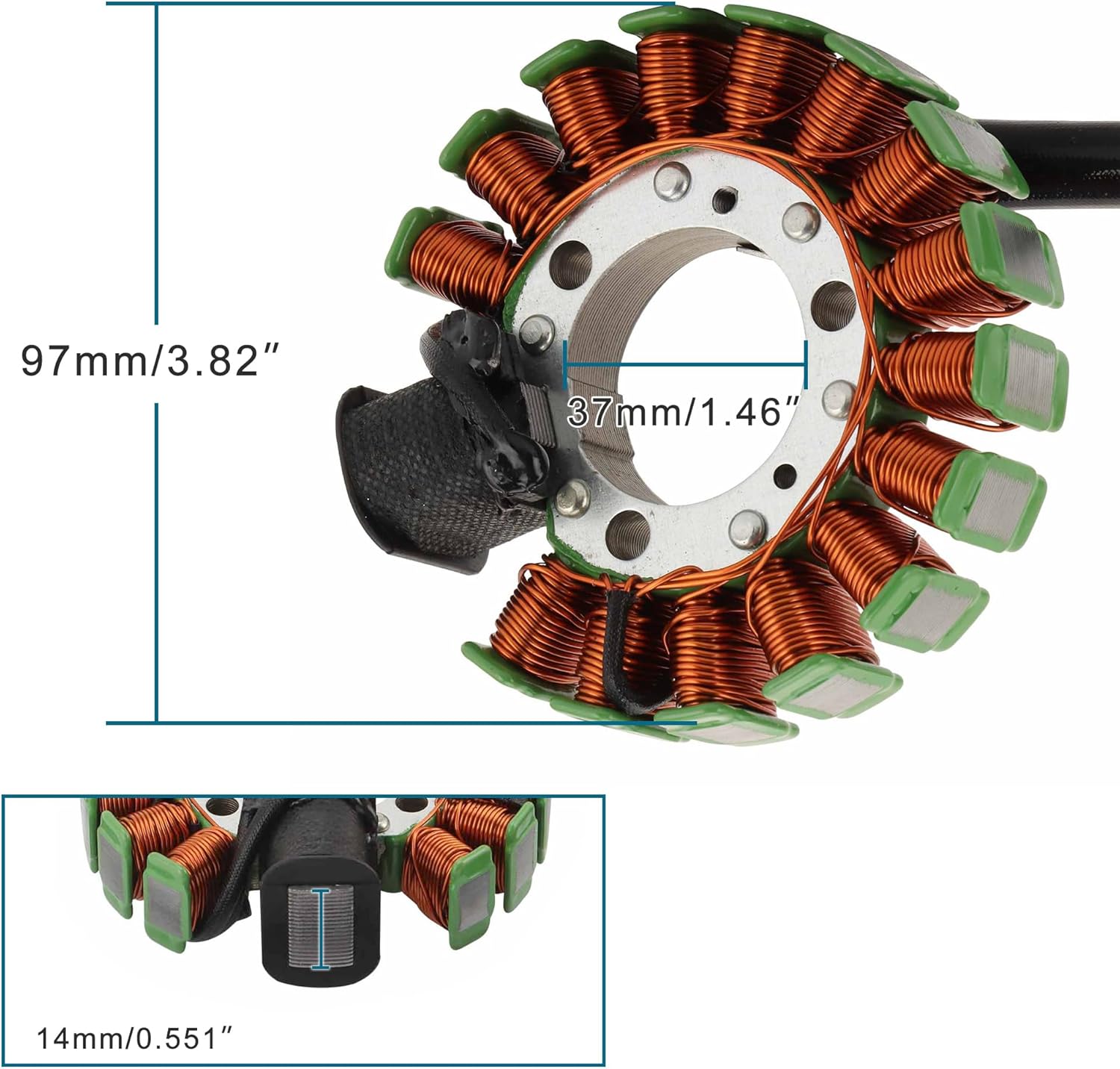

Key Technical Specifications:
- Outer Diameter: 97mm (3.82")
- Inner Diameter: 37mm (1.46")
- Thickness: 14mm (0.55")

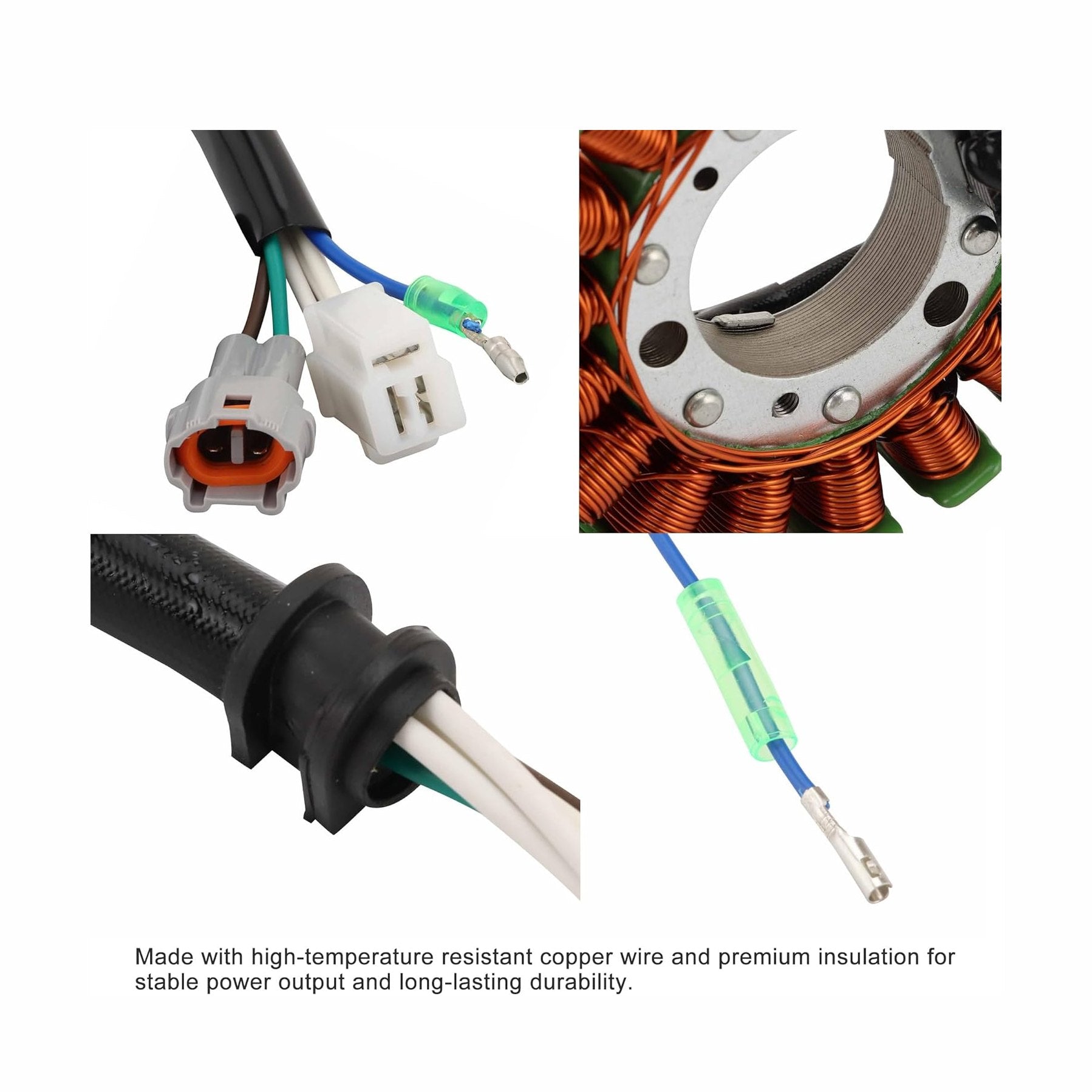

- Wiring: 5-wire configuration with 2 factory-style plugs
- Material: High-temp resistant copper and premium grade steel core
Why Choose This Stator?
- Exceptional Heat Resistance: Features industrial-grade insulation to prevent internal short-circuiting, a common failure point in original units under high loads.

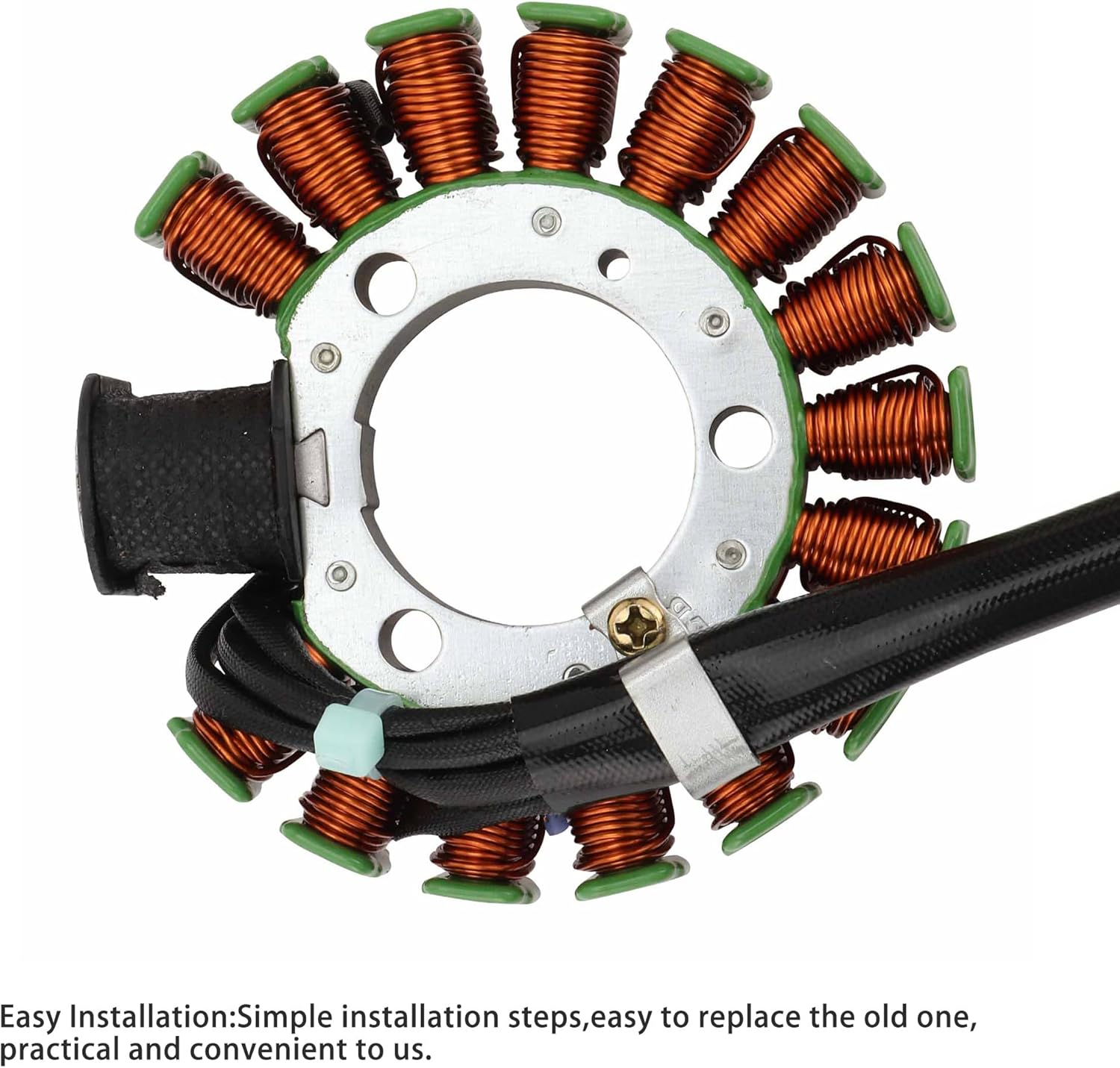

- Direct Plug-and-Play Fit: Matches factory connectors and mounting points exactly for a straightforward installation that saves time and shop labor costs.
- Stable Power Generation: Delivers a consistent current to your voltage regulator, ensuring your battery stays charged even when running auxiliary lights or heated gear.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha TW200 Trailway: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024; Yamaha TW125: 1999, 2000, 2001, 2002, 2003, 2004; Yamaha TW225: 2002, 2003, 2004, 2005, 2006, 2007; OEM Cross-Reference: 4WP-85510-10, 4WP-85510-10-00, 4WP-85510-12-00. It is best matched to original part number(s) 4WP-85510-10, 4WP-85510-10-00, 4WP-85510-12-00. Key physical/spec details from the product data include Outer Diameter: 97mm (3. 82"), Inner Diameter: 37mm (1. 46"), Thickness: 14mm (0. 55"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 4WP-85510-10, 4WP-85510-10-00, 4WP-85510-12-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha TW200/TW125/TW225 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 4WP-85510-10, 4WP-85510-10-00, 4WP-85510-12-00, treat the fitment as unconfirmed. Model years outside 2001, 2002, 2003, 2004, 2005 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 4WP-85510-10, 4WP-85510-10-00, 4WP-85510-12-00. Recheck listed specs such as Outer Diameter: 97mm (3. 82"), Inner Diameter: 37mm (1. 46"), Thickness: 14mm (0. 55"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
