Magneto Stator for Yamaha V-Star 650 XVS650 | OEM 5SC-81410
Magneto Stator for Yamaha V-Star 650 XVS650 | OEM 5SC-81410
4.0 / 5.0
(1) 1 total reviews
Couldn't load pickup availability
Product Overview

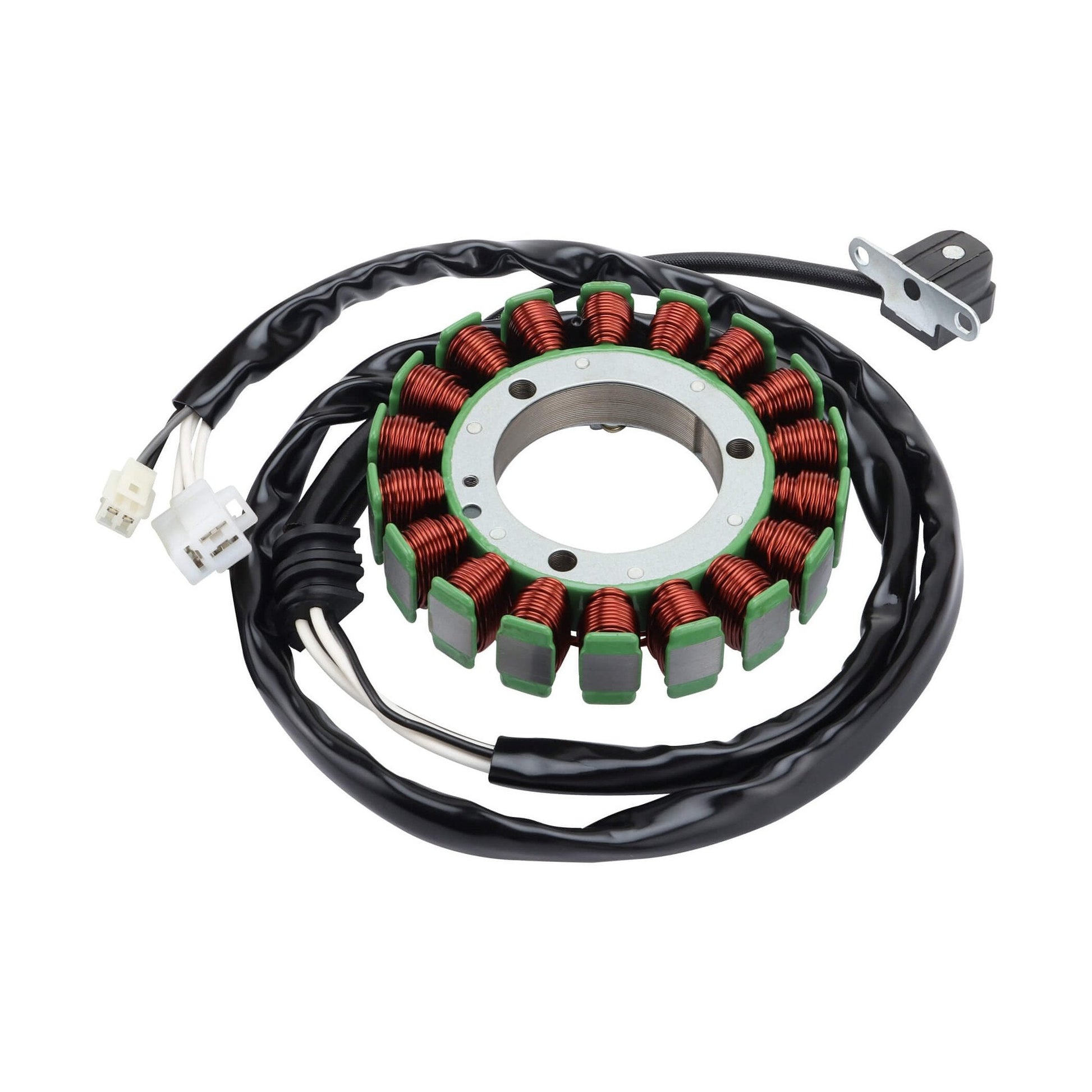

Restore reliable charging and ignition performance for your Yamaha V-Star 650. This high-performance magneto stator is a direct replacement for OEM 5SC-81410 series, delivering stable electrical output for consistent starting and battery charging.
Engineered with thicker-gauge copper windings and enhanced insulation, it is built to handle the high heat and vibration of air-cooled V-twin engines. The plug-and-play design ensures quick installation with no modifications required.
Product Compatibility
| Make | Model | Years | OEM Reference |
|---|---|---|---|
| Yamaha | V-Star 650 Custom (XVS650) | All Years | 5SC-81410-01 / 02 / 03 |
| Yamaha | V-Star 650 Classic (XVS650A) | All Years | 5SC-81410-01 / 02 / 03 |
| Yamaha | V-Star 650 Silverado (XVS650AT) | All Years | 5SC-81410-01 / 02 / 03 |
| Yamaha | Drag Star 650 (XVS650) | All Years | 5SC-81410-01 / 02 / 03 |
Specifications
| Item | Details |
|---|---|
| OEM Reference | 5SC-81410-01 / 02 / 03 |

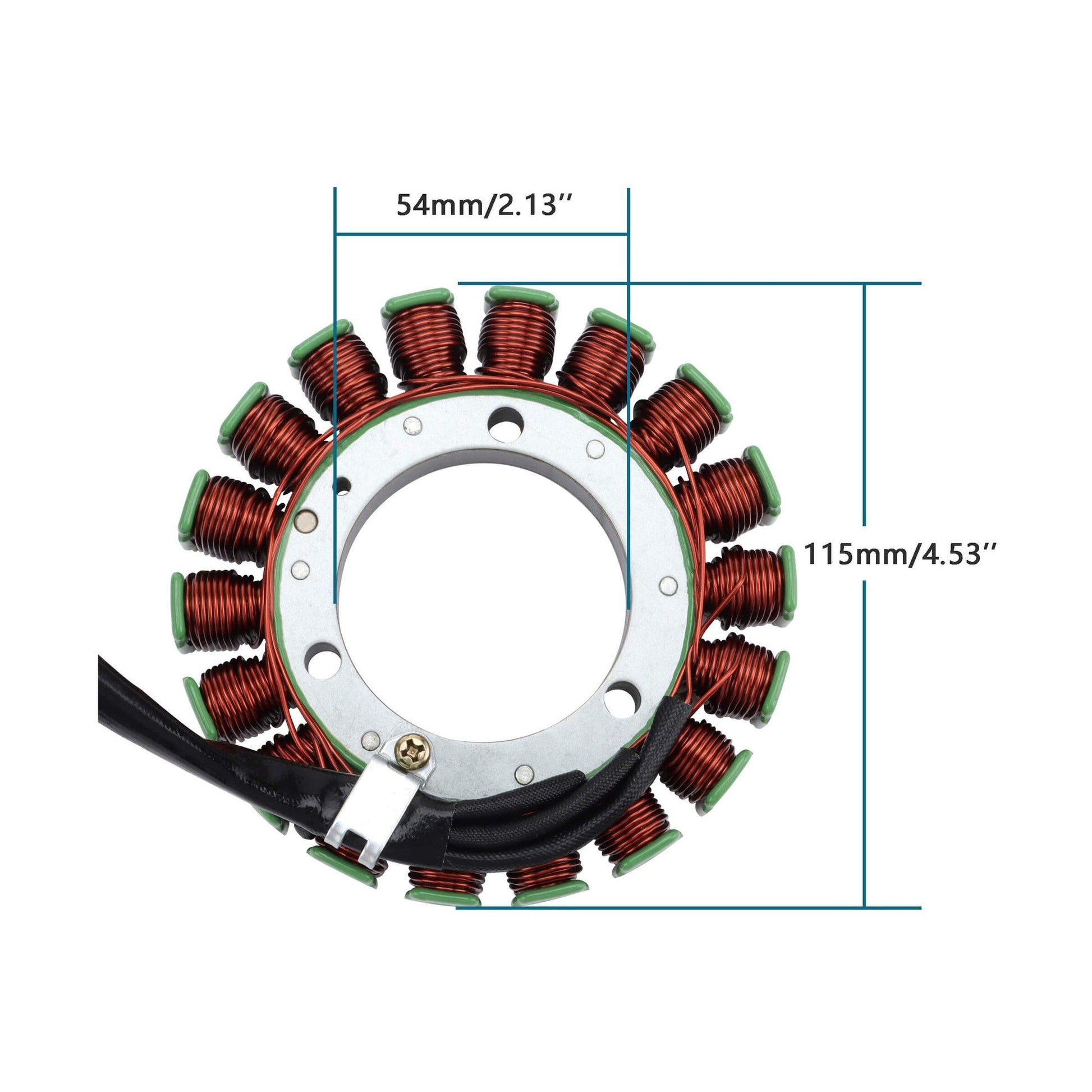

| Outer Diameter | 115mm (4.53") |
| Inner Diameter | 54mm (2.13") |
| Material | Thick-gauge high-purity copper + insulating housing |
| Design | High-output multi-coil stator |
| Installation | Direct bolt-on / plug-and-play |
| Function | Charging system power generation |
Key Features
- Stable Power Output – Ensures reliable ignition and battery charging
- Heavy-Duty Copper Windings – Improved conductivity and reduced heat buildup
- High Heat Resistance – Designed for air-cooled V-twin engine conditions
- OEM Direct Fit – Matches factory mounting points and connectors
- Long Service Life – Enhanced durability against vibration and thermal stress
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Years; OEM Reference; Yamaha; V-Star 650 Custom (XVS650); All Years; 5SC-81410-01 / 02 / 03. It is best matched to original part number(s) 5SC-81410, 5SC-81410-01. Key physical/spec details from the product data include Outer Diameter: 115mm (4.53"), Inner Diameter: 54mm (2.13"), 115mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?

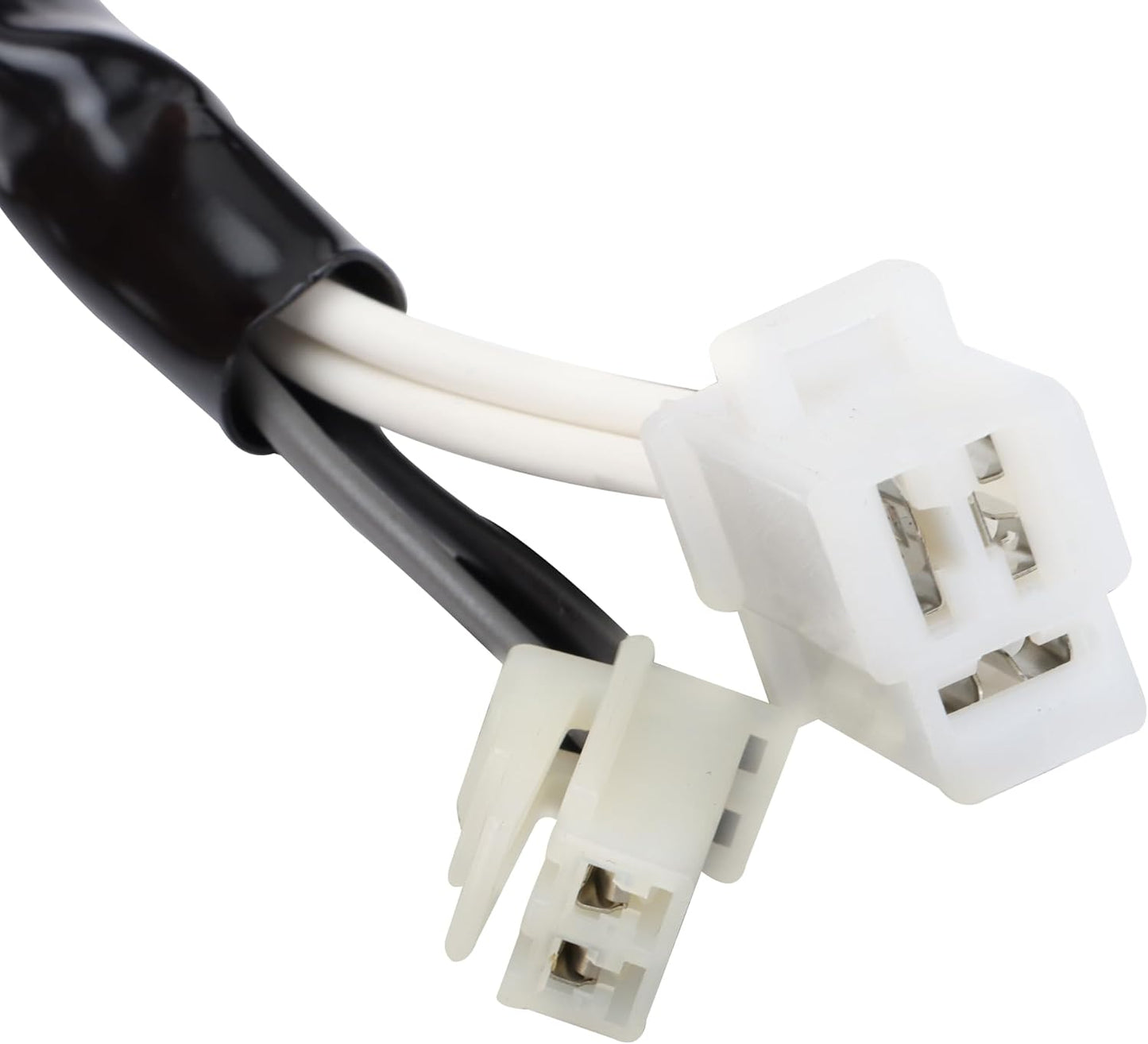

Yes. Match your original part number to 5SC-81410, 5SC-81410-01 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha V-Star/XVS650 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 5SC-81410, 5SC-81410-01, treat the fitment as unconfirmed. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 5SC-81410, 5SC-81410-01. Recheck listed specs such as Outer Diameter: 115mm (4.53"), Inner Diameter: 54mm (2.13"), 115mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
It did ultimately work, but the grommets are weird and youll nee to use some permatex to get a proper seal. Also the harness for the pickup coils to connect to the bike was the improper connector, so I had to splice them but had good spark after installing.
