Magneto Stator for Yamaha XJR400 & XJR400R (1993-2007) | 4HM-81410-00-00
Magneto Stator for Yamaha XJR400 & XJR400R (1993-2007) | 4HM-81410-00-00
Couldn't load pickup availability

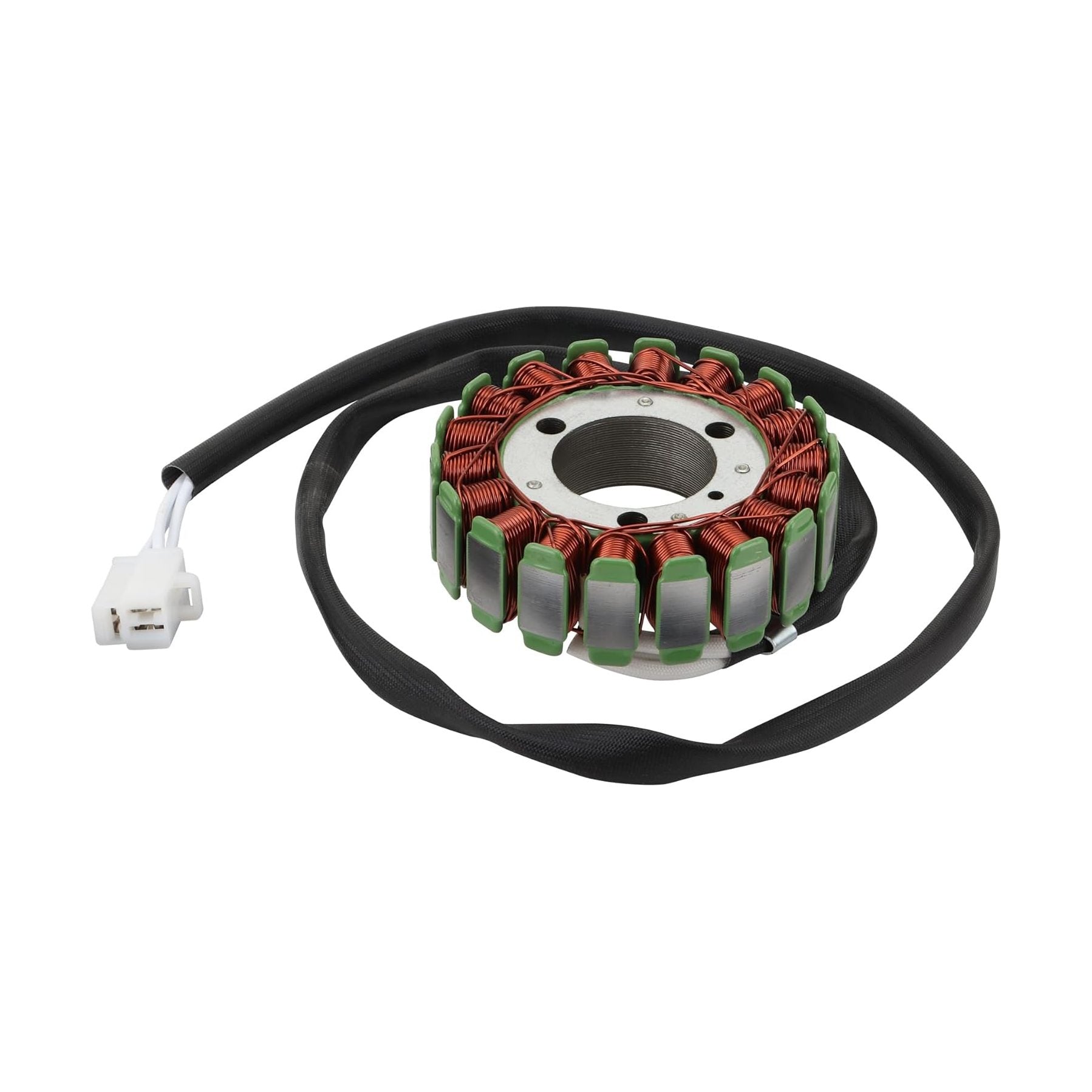

High-Performance Magneto Stator for Yamaha XJR400 & XJR400R
Ensure your legendary air-cooled four remains road-ready. This premium aftermarket Magneto Stator is a precision replacement for Yamaha OEM part number 4HM-81410-00-00. Specifically engineered for the 1993–2007 XJR400 series, it delivers the stable electrical output required for consistent ignition and reliable battery charging across the entire RPM range.

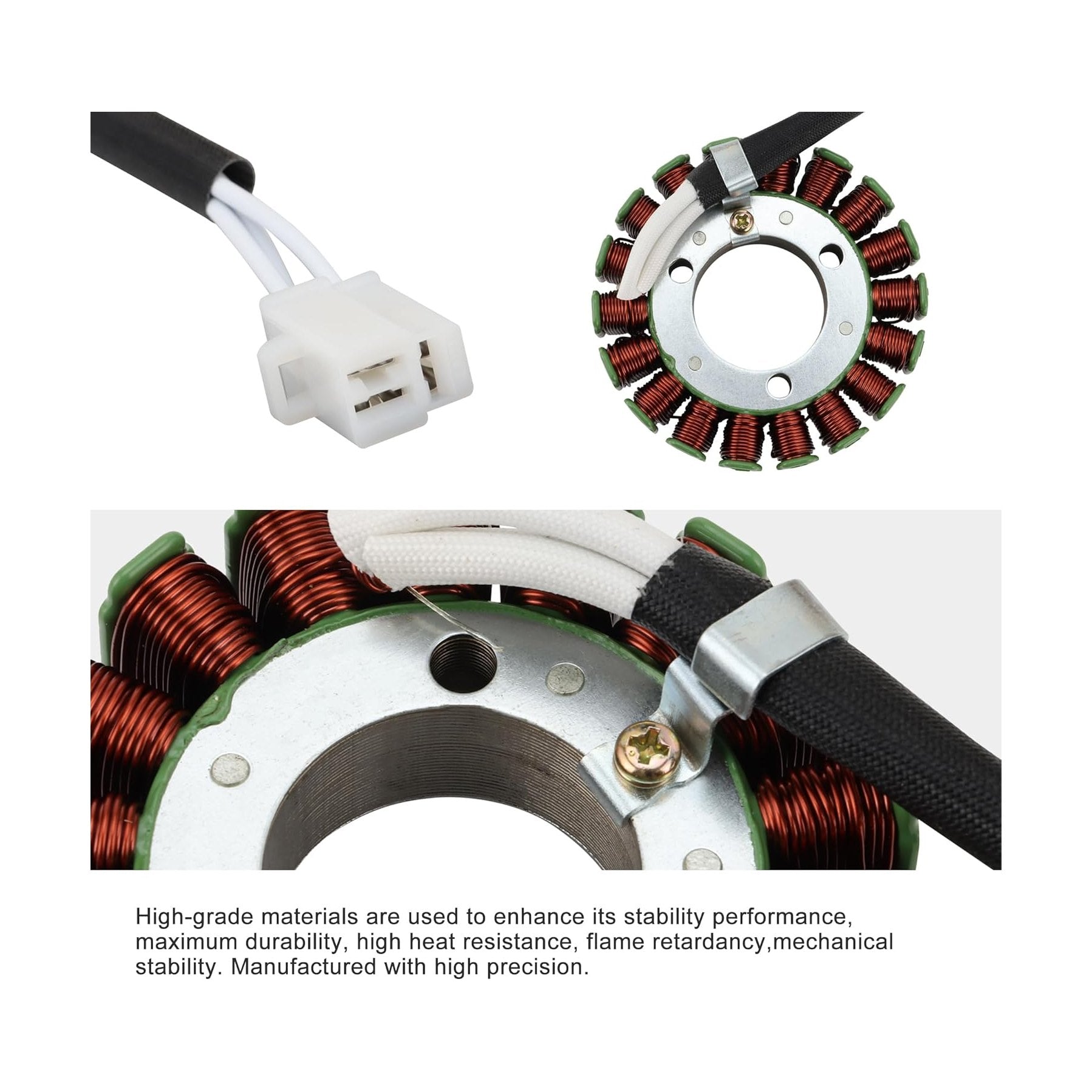

Constructed with high-quality copper wire and advanced heat-resistant insulation, this stator is designed to thrive in the high-temperature environment of an air-cooled engine. The 18-pole design ensures efficient power generation, while the direct plug-and-play harness—complete with a rubber grommet and pulsar coil—makes for a straightforward, modification-free installation.
Product Compatibility
- Yamaha XJR400 (4HM): 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
- Yamaha XJR400R: 1995–2007
- OEM Cross-Reference: 4HM-81410-00-00, 4HM-81410-00

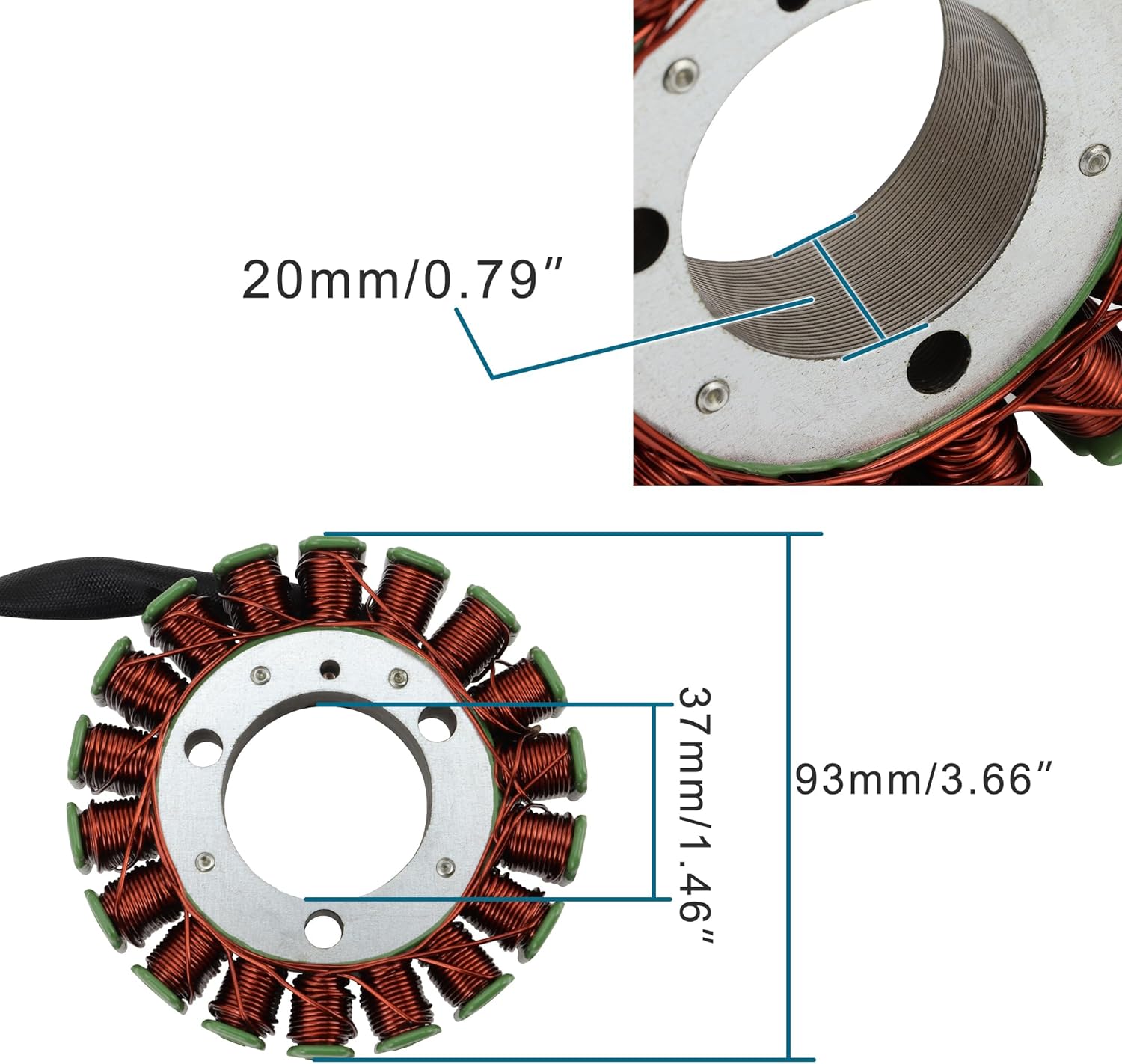

Key Technical Specifications:
- Design: 18-Pole Magneto Stator
- Outer Diameter: 93.5mm (3.68")
- Inner Diameter: 37mm (1.45")
- Thickness: 20mm (0.79")
- Components: Includes connector, rubber grommet, and pick-up pulsar coil
Why Choose This Stator?
- Superior Thermal Resilience: Engineered with materials that resist aging and short-circuiting in high-heat and high-humidity environments.
- Seamless Integration: Features a direct fit design that matches your factory harness exactly, reducing installation time and effort.
- Reliable Power: Precision-wound coils provide a stable 12V current, essential for protecting your ignition system and ensuring consistent engine performance.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha XJR400 (4HM): 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007; Yamaha XJR400R: 1995–2007; OEM Cross-Reference: 4HM-81410-00-00, 4HM-81410-00. It is best matched to original part number(s) 4HM-81410-00-00, 4HM-81410-00, 1993-2007. Key physical/spec details from the product data include Outer Diameter: 93.5mm (3.68"), Inner Diameter: 37mm (1.45"), Thickness: 20mm (0.79"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 4HM-81410-00-00, 4HM-81410-00, 1993-2007 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha XJR400/XJR400R models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 4HM-81410-00-00, 4HM-81410-00, 1993-2007, treat the fitment as unconfirmed. Model years outside 1993–2007, 1995–2007, 1993, 2007, 1994 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 4HM-81410-00-00, 4HM-81410-00, 1993-2007. Recheck listed specs such as Outer Diameter: 93.5mm (3.68"), Inner Diameter: 37mm (1.45"), Thickness: 20mm (0.79"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
