Product Overview

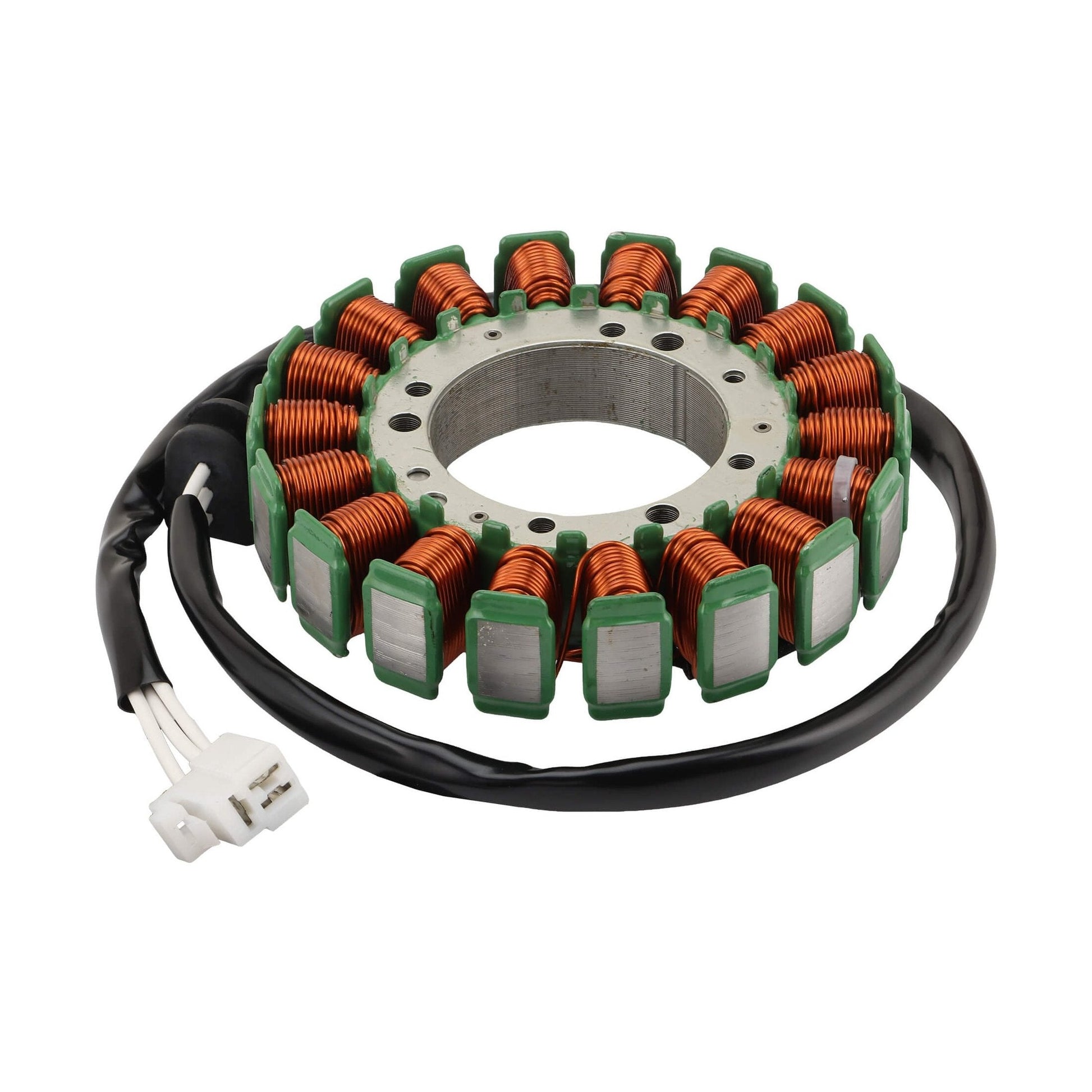

Power your V-4 cruiser with confidence. This heavy-duty Magneto Stator is a precision replacement for the Yamaha XVZ1300 series, including the Royal Star, Venture, and Tour Deluxe. Engineered to handle the high-output demands of touring bikes, it ensures stable ignition and consistent battery charging for every long-haul journey.
Product Compatibility
| Model Series | Specific Models | Applicable Years | OEM Cross-Reference |
| Royal Star | XVZ1300A | 1996 - 2001 | 4XY-81410-02 |
| Royal Star Tour Classic | XVZ1300AT | 1996 - 2000 | 4NK-81410-00 |
| Royal Star Tour Deluxe | XVZ1300CT / XVZ1300LT | 1997 - 2009 | 4XY-81410-00 |
| Royal Star Venture | XVZ1300TF / XVZ1300TFS | 1999 - 2013 | 4XY-81410-00-00 |
Specifications

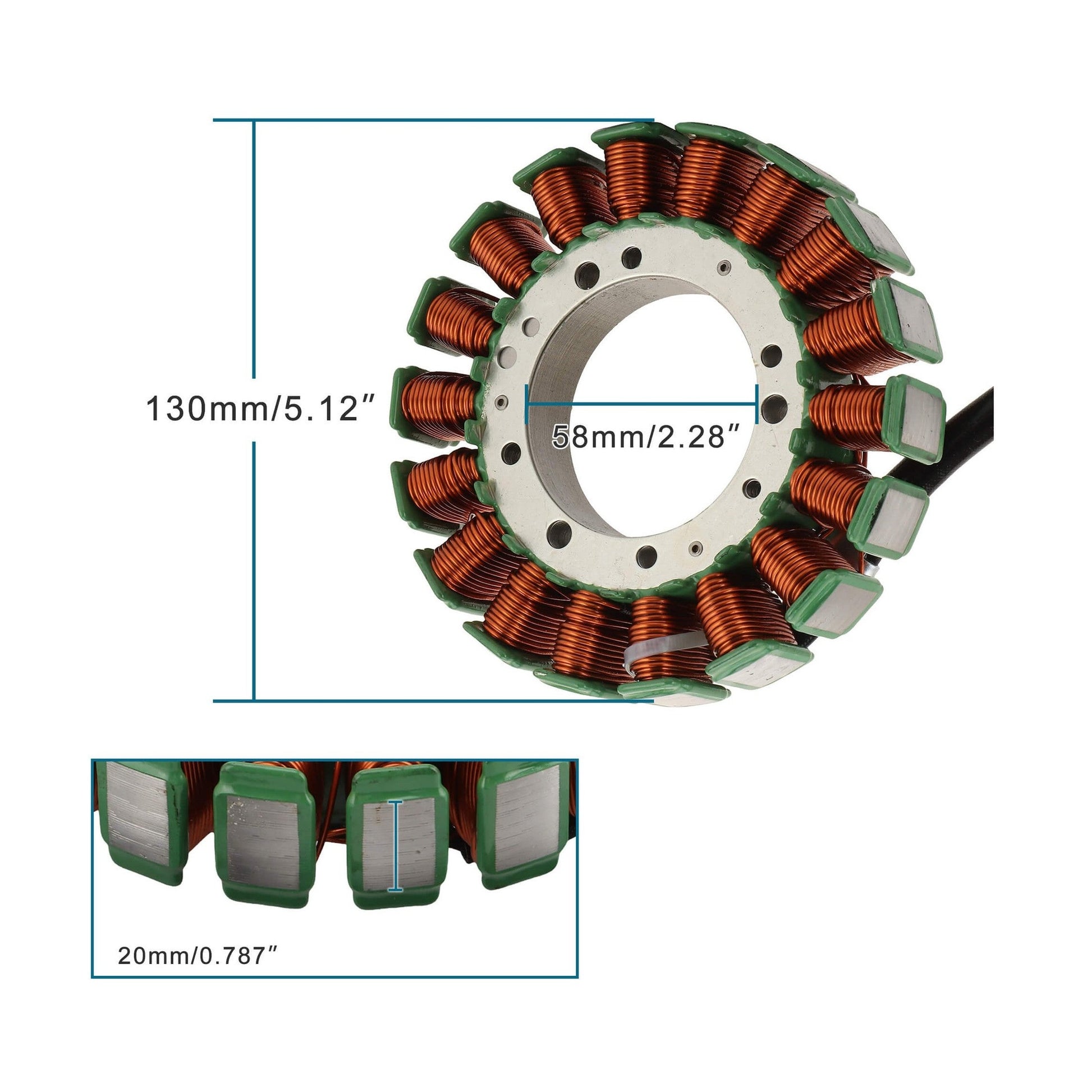

| Feature | Technical Details |
| Outer Diameter (OD) | 130mm (5.12") |
| Inner Diameter (ID) | 58mm (2.28") |
| Thickness | 20mm (0.79") |
| Core Material | High-Grade Magnetic Steel & Aluminum Plate |
| Winding Material | High-Temperature Resistant Copper |
Key Features
- Superior Thermal Stability: Engineered with premium heat-resistant windings to prevent "stator burnout," a common issue caused by the high heat soak of 1300cc liquid-cooled engines.
- Stable Power Delivery: Precision-wound coils ensure a consistent electrical field, protecting your cruiser's sensitive ignition system and touring accessories (radio, lights, etc.).
- Direct OEM Fit: Manufactured to match factory mounting points and dimensions (130mm OD) exactly, requiring no wiring modifications for a quick "bolt-on" installation.

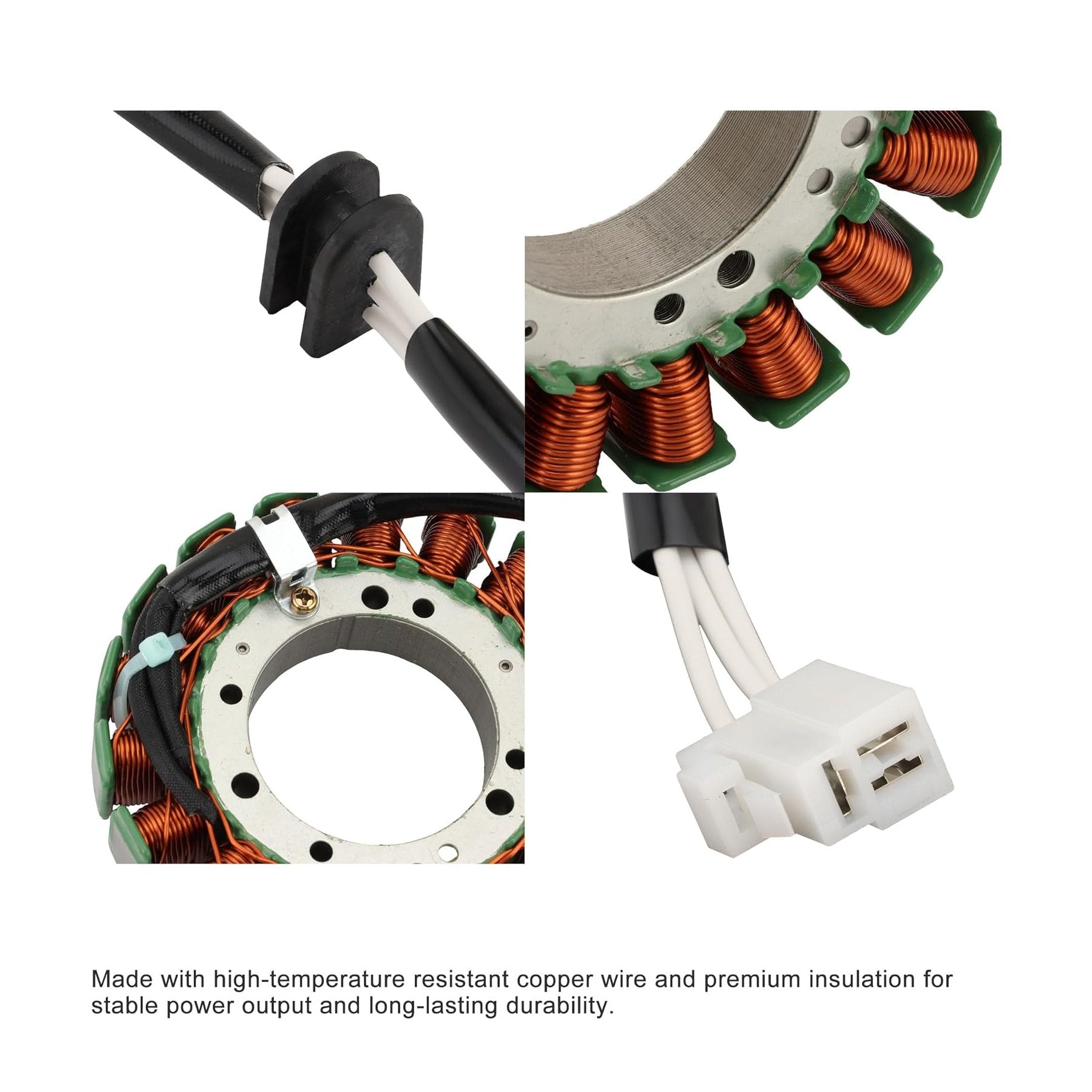

- V-4 Engine Optimized: Built with high-grade insulating materials to withstand the intense vibration and thermal cycles typical of large-displacement V-4 powerplants.
- Heavy-Duty Durability: Features corrosion-resistant coatings and reinforced wiring harnesses to extend the service life of your motorcycle’s charging system.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Model Series; Specific Models; Applicable Years; OEM Cross-Reference; Royal Star; XVZ1300A; 1996 - 2001. Listed year information includes 1996–2001, 1996–2000, 1997–2009, 1999–2013, 1996. It is best matched to original part number(s) 4XY-81410-02, 4NK-81410-00, 4XY-81410-00, 4XY-81410-00-00. Key physical/spec details from the product data include Outer Diameter (OD): 130mm (5.12"), Inner Diameter (ID): 58mm (2.28"), Thickness: 20mm (0.79"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 4XY-81410-02, 4NK-81410-00, 4XY-81410-00, 4XY-81410-00-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha XVZ1300/XVZ1300A models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 4XY-81410-02, 4NK-81410-00, 4XY-81410-00, 4XY-81410-00-00, treat the fitment as unconfirmed. Model years outside 1996–2001, 1996–2000, 1997–2009, 1999–2013, 1996 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 4XY-81410-02, 4NK-81410-00, 4XY-81410-00, 4XY-81410-00-00. Recheck listed specs such as Outer Diameter (OD): 130mm (5.12"), Inner Diameter (ID): 58mm (2.28"), Thickness: 20mm (0.79"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
