Magneto Stator for Yamaha YZF-R3 (2015-2018) & MT-03 (2016-2018) | 1WD-H1410-01
Magneto Stator for Yamaha YZF-R3 (2015-2018) & MT-03 (2016-2018) | 1WD-H1410-01
Couldn't load pickup availability

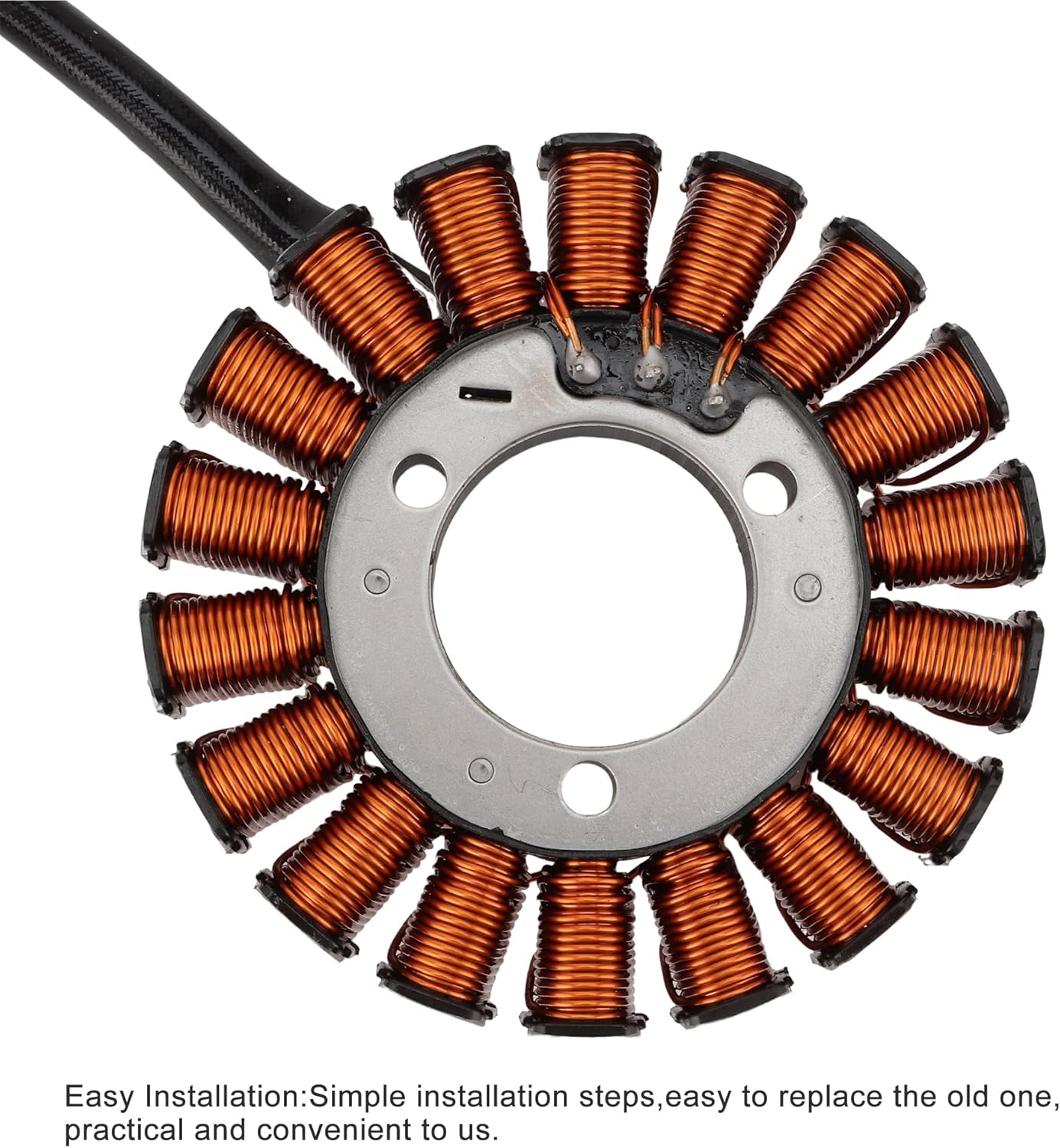

High-Performance Magneto Stator for Yamaha YZF-R3 & MT-03
Keep your sportbike charging at peak efficiency. This premium aftermarket Magneto Stator is a precision-engineered replacement for Yamaha OEM part numbers 1WD-H1410-00 and 1WD-H1410-01. Designed for the high-revving 321cc parallel twin, it delivers the stable electrical output needed for consistent ignition and reliable battery charging across the entire RPM range.

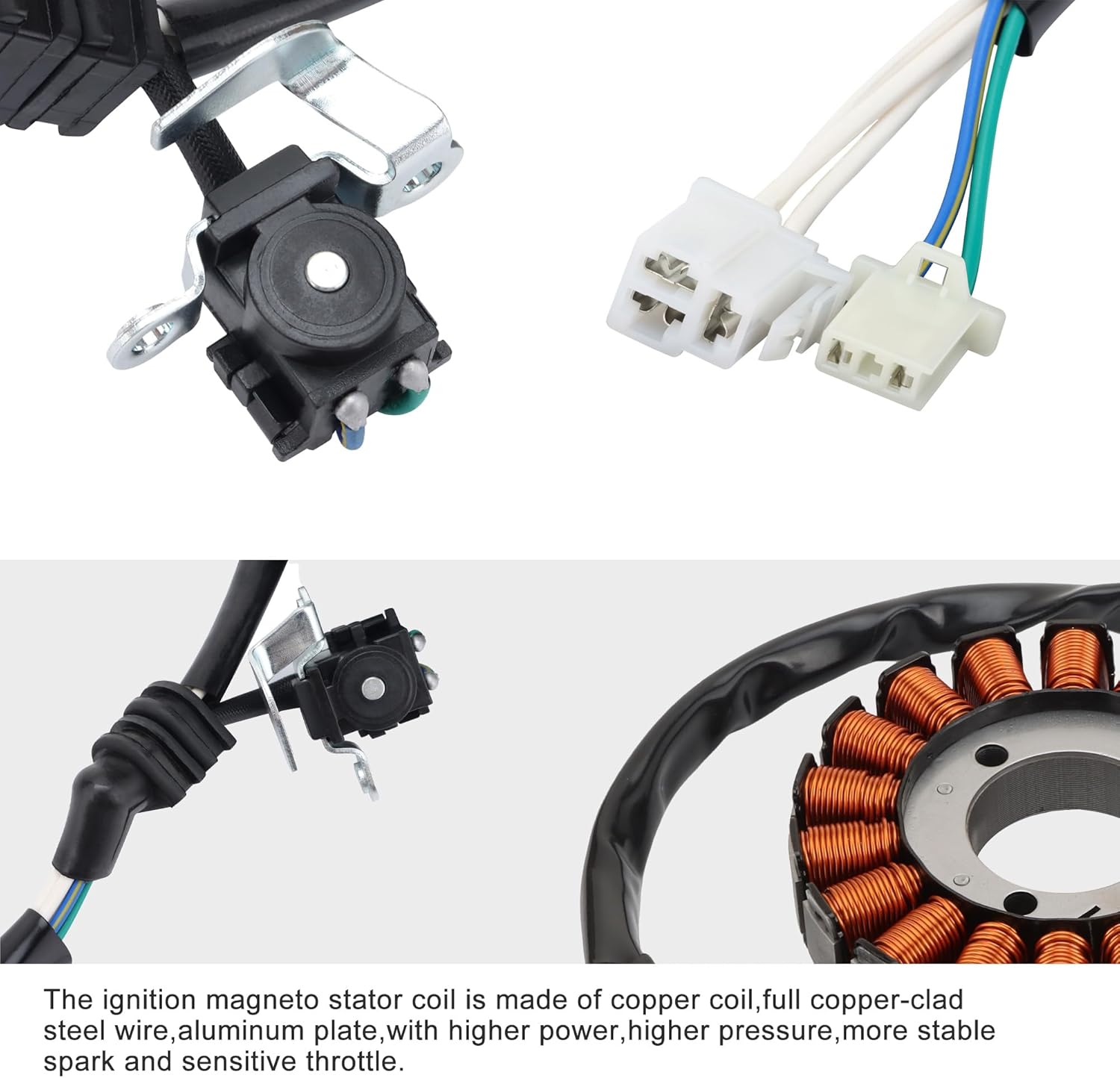

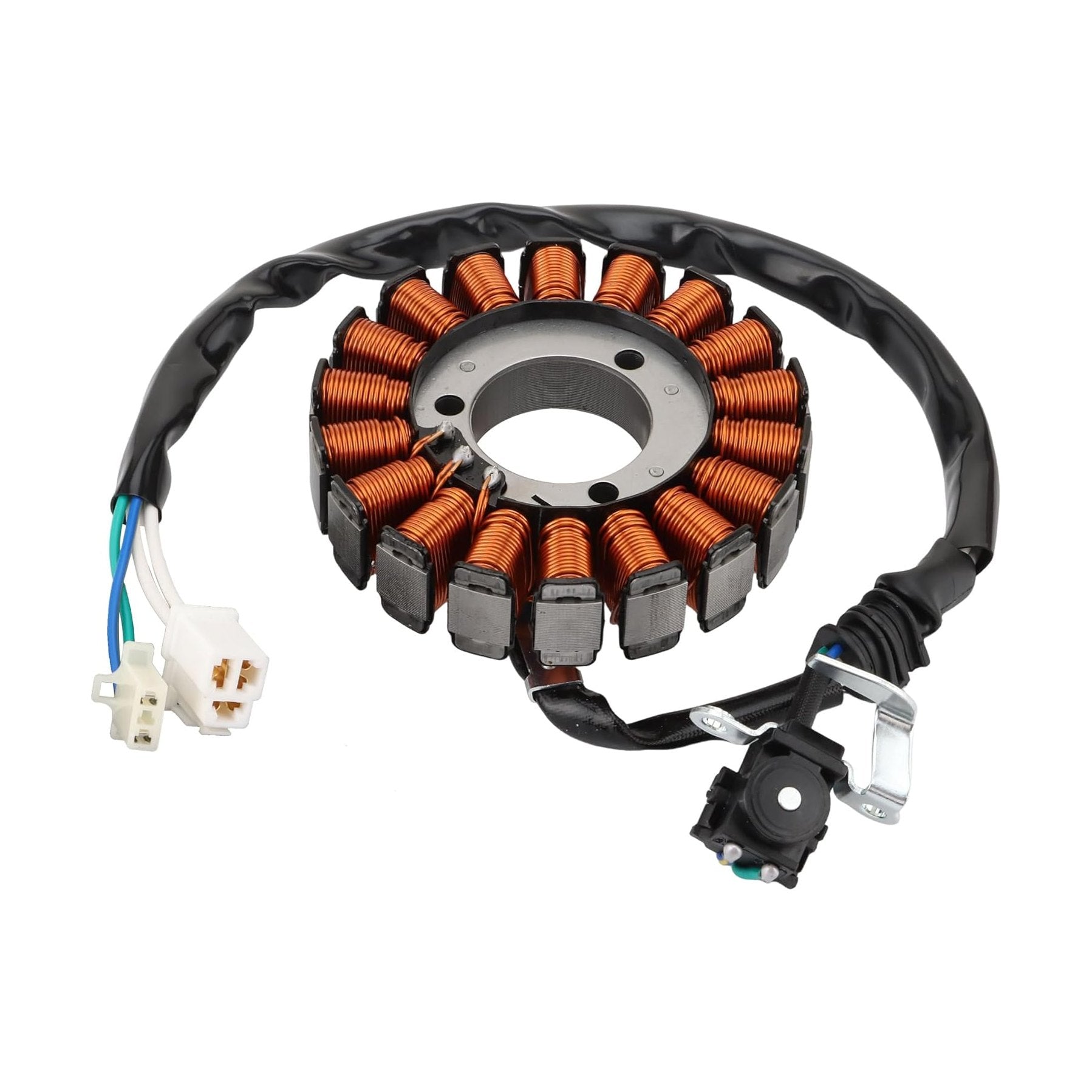

Crafted with highest-grade copper windings (resistant up to 200°C) and premium lamination materials, this stator is built to withstand the extreme heat soak typical of high-performance engines. The direct plug-and-play design includes the connector, rubber grommet, and pick-up pulsar coil, ensuring a seamless installation that gets you back on the road faster.
Product Compatibility
- Yamaha YZF-R3 / R3A (ABS): 2015, 2016, 2017, 2018
- Yamaha MT-03 (MTN320): 2016, 2017, 2018
- Yamaha YZF-R25: 2015, 2016, 2017
- Yamaha MT-25 (MTN250): 2016, 2017
- OEM Cross-Reference: 1WD-H1410-01-00, 1WD-H1410-00-00

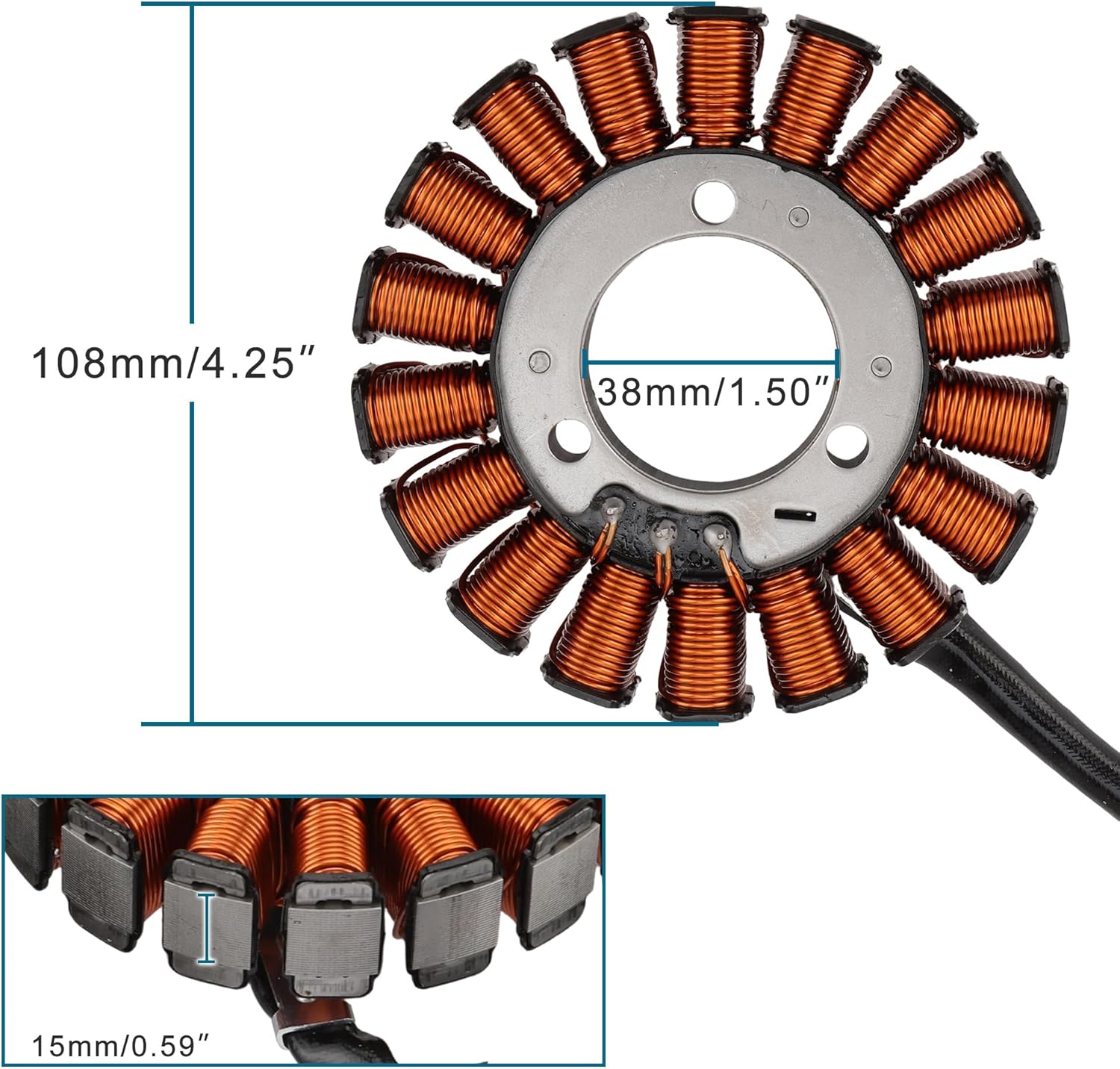

Key Technical Specifications:
- Outer Diameter: 108mm (4.25")
- Inner Diameter: 38mm (1.50")
- Core Thickness: 15mm (0.59")
- Design: 18-Pole configuration with 5-wire / 2-plug connector
- Features: High-temp copper windings, resistant to 200°C
Why Choose This Stator?
- Optimized Ignition Energy: Provides a stronger high-pressure spark, which improves combustion efficiency and makes for more sensitive throttle response.
- Thermal Durability: Engineered with materials that resist aging and short-circuiting in high-temperature environments, significantly prolonging service life.
- Easy Installation: Designed as a direct "bolt-on" replacement that matches your factory wiring harness exactly—no cutting or splicing required.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is designed for Yamaha YZF-R3 / R3A ABS 2015–2018, Yamaha MT-03 / MTN320 2016–2018, Yamaha YZF-R25 2015–2017, and Yamaha MT-25 / MTN250 2016–2017 applications using the 1WD-H1410 series stator. It is made for the 321cc / 250cc Yamaha twin platform with the matching 18-pole stator layout, rubber grommet, pickup pulsar coil, and 5-wire / 2-plug connector arrangement.
Do I need to match the OEM part number?
Yes. Please compare your original stator with Yamaha OEM references 1WD-H1410-00-00 and 1WD-H1410-01-00. Matching the OEM number is especially important because YZF-R3, MT-03, R25, and MT-25 models can vary by market, ABS version, production year, and wiring harness design.
What models or situations does this part not fit?
This stator may not fit Yamaha R3 / MT-03 models outside the listed years, later-generation models with different wiring, or motorcycles with a different connector count, wire count, grommet location, pickup coil layout, or stator size. It is not recommended for any Yamaha sportbike simply based on engine size alone.
What should I check before ordering?
Before ordering, verify the OEM number, model year, 18-pole configuration, 5-wire / 2-plug connector, rubber grommet position, pickup pulsar coil, outer diameter 108 mm, inner diameter 38 mm, core thickness 15 mm, and the shape of your original stator plate.
