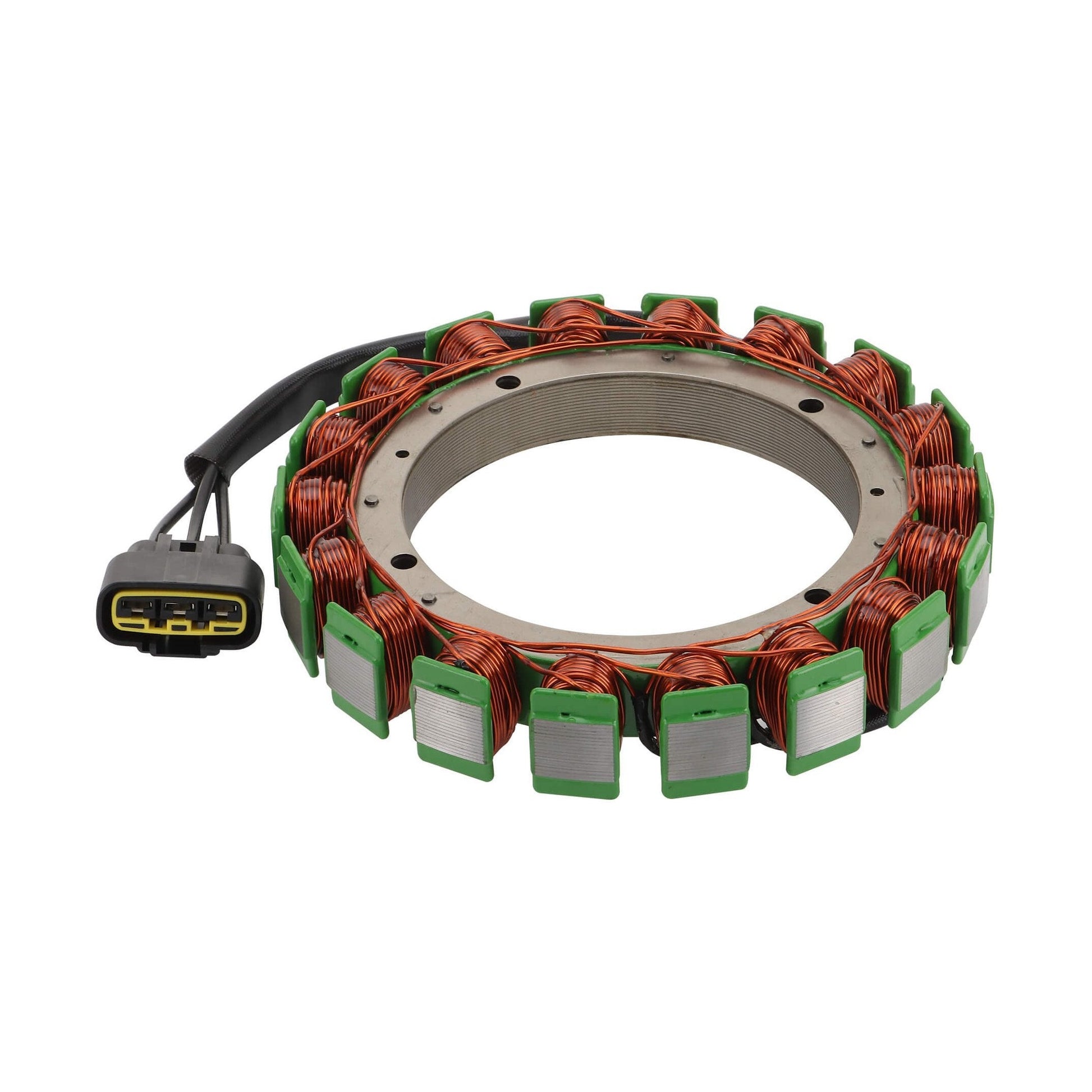

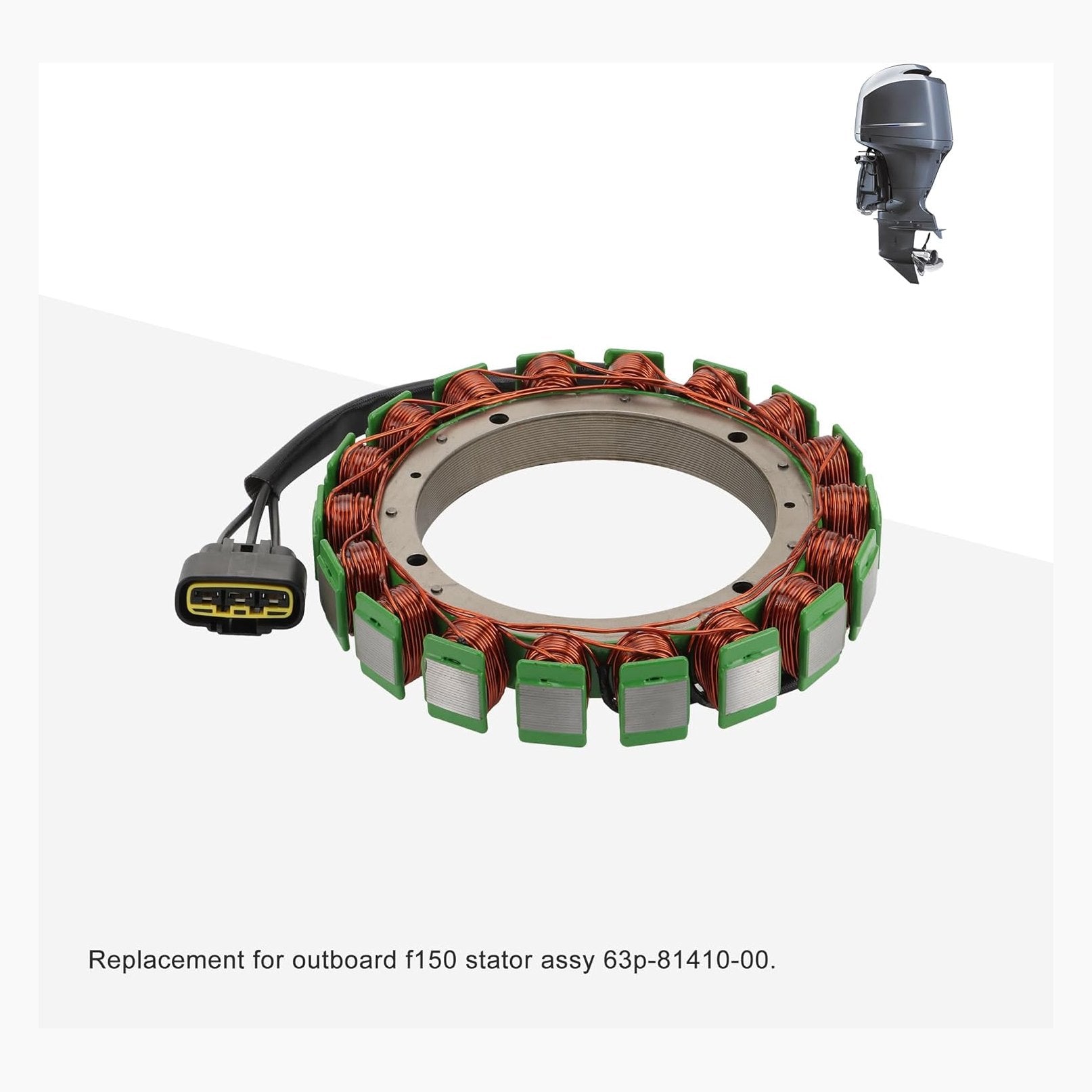

Magneto Stator for Yamaha F150 Outboard | OEM 63P-81410-00
Magneto Stator for Yamaha F150 Outboard | OEM 63P-81410-00
Couldn't load pickup availability
Product Overview
Restore reliable offshore performance to your Yamaha F150 outboard engine with this high-output marine magneto stator. Designed for long-term durability, it delivers stable charging and ignition power to ensure consistent engine operation in demanding marine conditions.

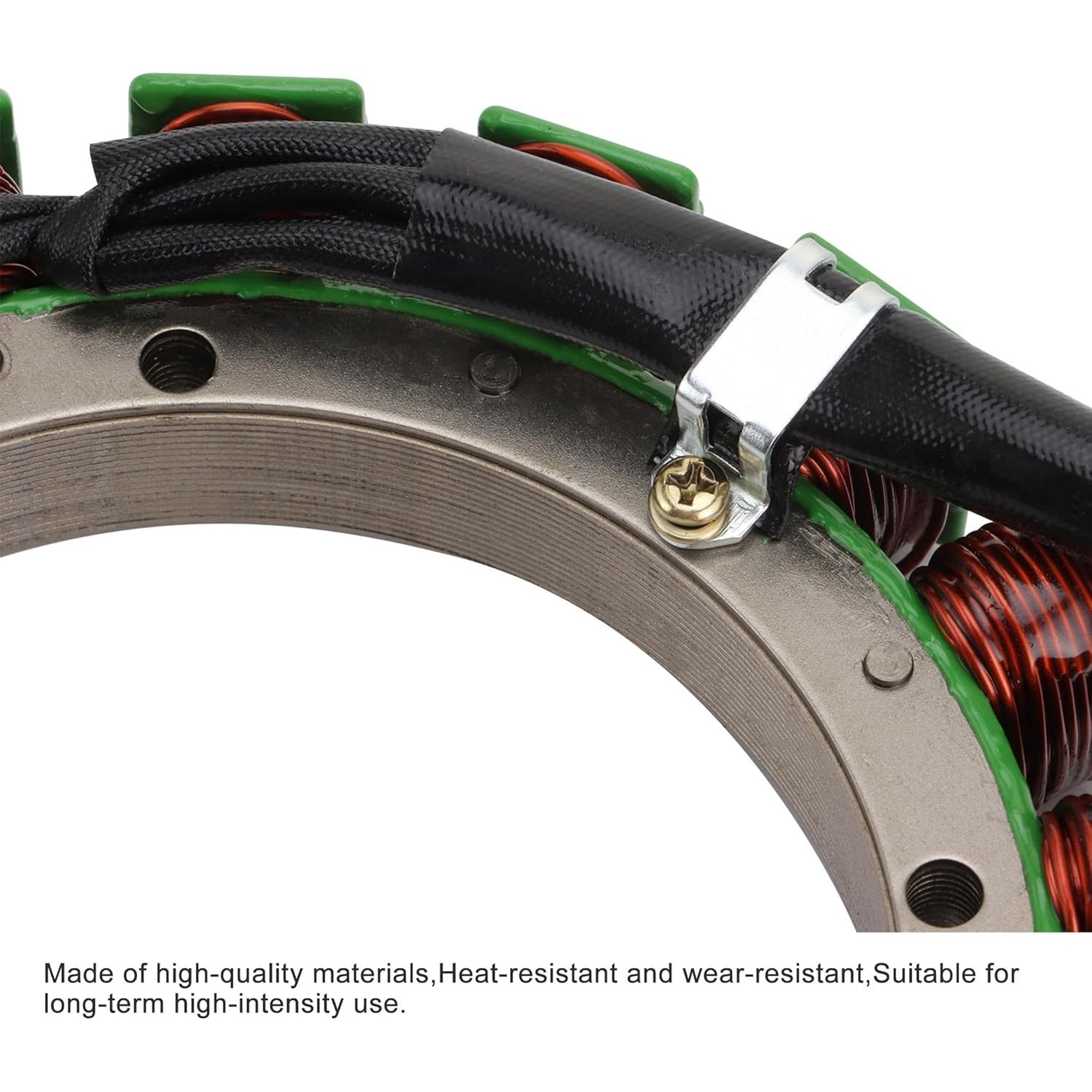

Built with marine-grade copper windings and corrosion-resistant insulation, this stator is engineered to withstand saltwater exposure, vibration, and continuous high-load operation.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range |
|---|---|---|---|
| Yamaha | F150 | 4-Stroke Outboard | 2004–2023 |
| Yamaha | F150TXR | Variant | 2004–2023 |
| Yamaha | F150LA | Variant | 2004–2023 |
| Yamaha | LF150 | Counter-rotation models | 2004–2023 |
- Compatible with Yamaha F150 4-stroke outboard engines only
- Includes multiple F150 variants (TXR / LA / LF150)
- Please verify OEM part number before purchase
Specifications
| Specification | Details |
|---|---|
| OEM Reference | 63P-81410-00, 63P-81410-00-00 |
| Engine Type | Yamaha F150 4-Stroke Outboard |

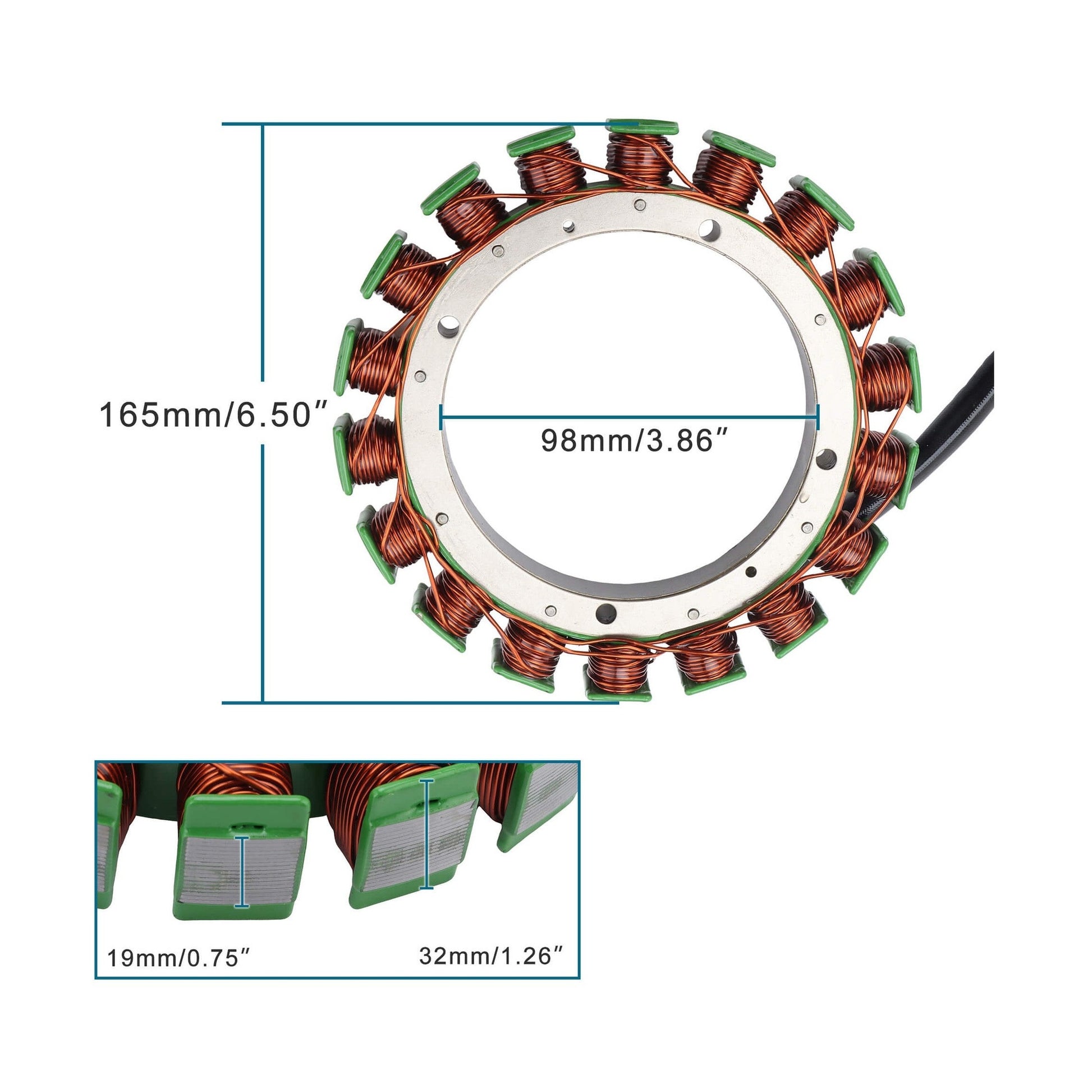

| Outer Diameter | 165 mm (6.5") |
| Inner Diameter | 98 mm (3.86") |
| Thickness | 18.6 mm (0.73") |
| Material | Marine-grade copper windings |
| Insulation | Corrosion-resistant coating |
| Installation Type | Direct plug-and-play |
Key Features
- Designed for Yamaha F150 4-stroke outboard engines
- Stable charging for marine electronics and ignition systems
- Marine-grade corrosion resistance for saltwater environments
- High-efficiency output for consistent voltage supply
- Direct OEM-fit installation with no modifications required
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha; F150; 4-Stroke Outboard; 2004–2023; F150TXR; Variant. It is best matched to original part number(s) 63P-81410-00, 63P-81410-00-00. Key physical/spec details from the product data include Counter-rotation models, Outer Diameter: 165 mm (6.5"), Inner Diameter: 98 mm (3.86"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?

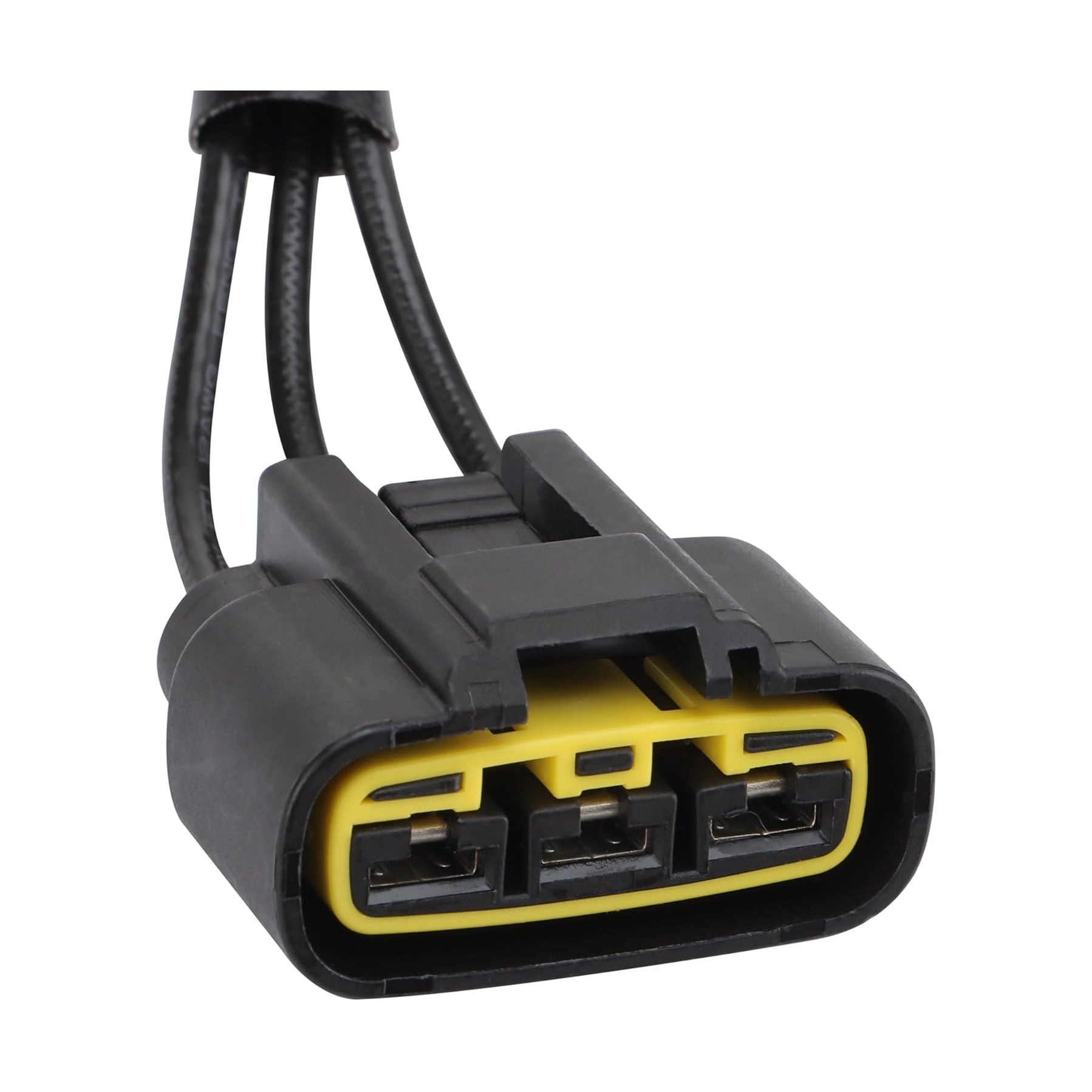

Yes. Match your original part number to 63P-81410-00, 63P-81410-00-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha F150 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 63P-81410-00, 63P-81410-00-00, treat the fitment as unconfirmed. Model years outside 2004–2023, 2004, 2023 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 63P-81410-00, 63P-81410-00-00. Recheck listed specs such as Counter-rotation models, Outer Diameter: 165 mm (6.5"), Inner Diameter: 98 mm (3.86"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
