Polaris LY84 Sportsman Ranger 18 Coil Magneto Stator | 4010911
Polaris LY84 Sportsman Ranger 18 Coil Magneto Stator | 4010911
Couldn't load pickup availability
Product Overview

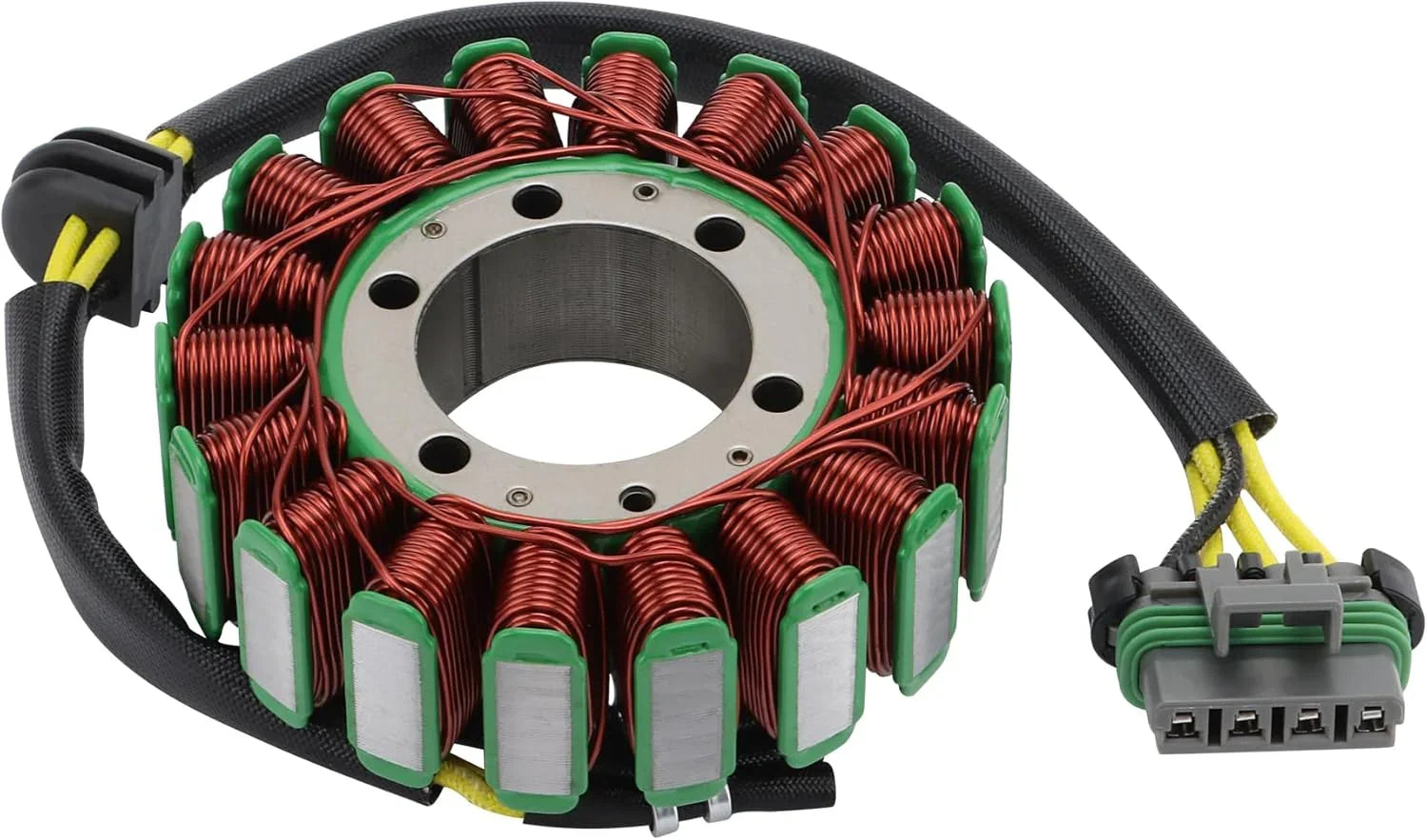

Restore reliable charging and ignition performance with this 18 coil magneto stator, designed for selected Polaris LY84 / Polaris ATV and UTV applications using a matching stator layout.
This replacement stator helps solve common electrical issues such as battery not charging, weak or no spark, hard starting, unstable voltage, and intermittent charging failure.

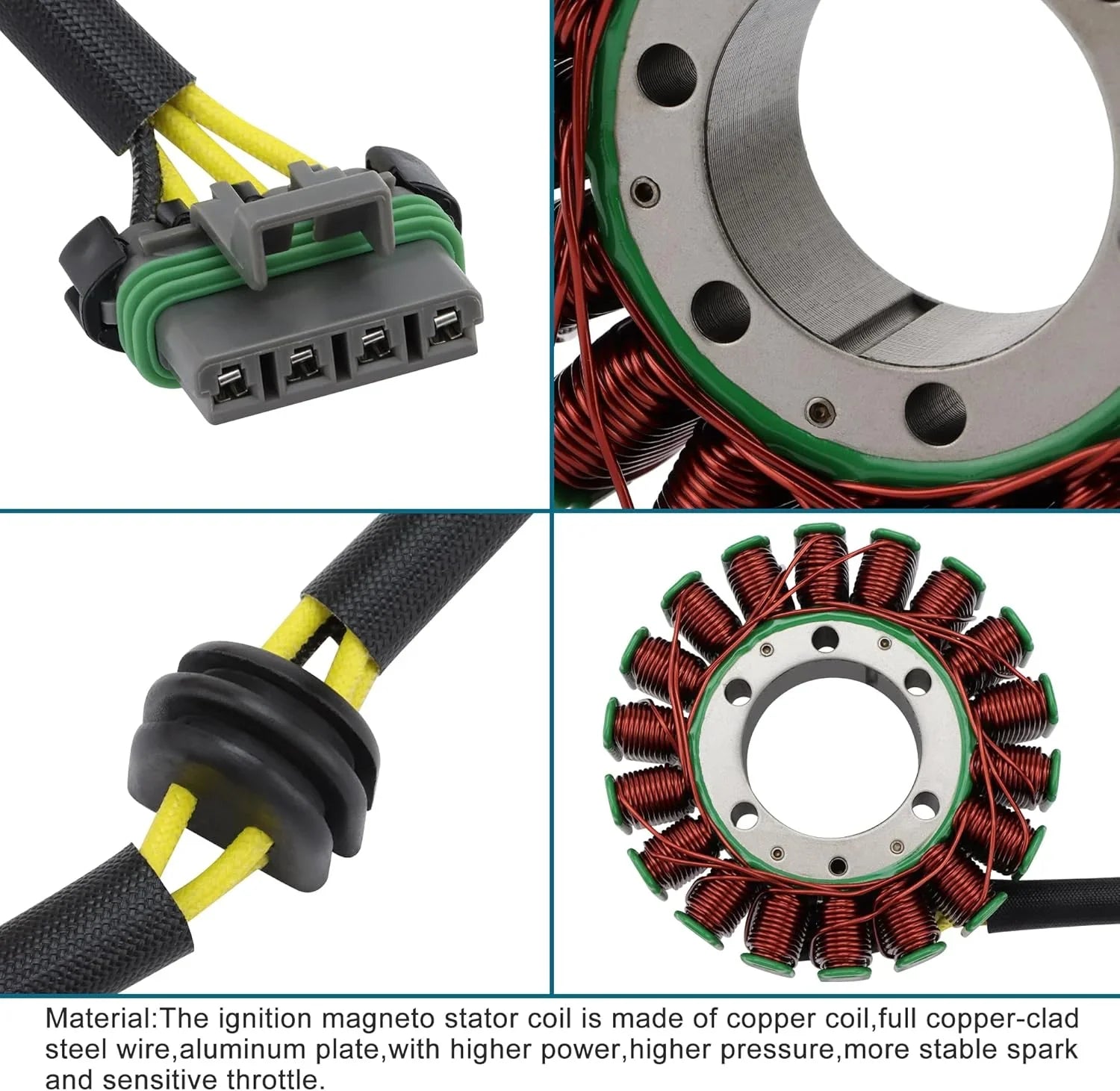

Made with copper windings, copper-clad steel wire, and a durable aluminum base plate, this magneto stator is designed to provide stable electrical output, reliable charging performance, and long service life.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Polaris | LY84 | Please verify | Please verify | Match by 18 coil layout, 108mm OD, 42mm ID, and connector style |
| Polaris | Sportsman 700 | 700cc | 2004–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
| Polaris | Sportsman 800 | 800cc | 2005–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
| Polaris | Ranger 700 4x4 | 700cc | 2005 | Verify OEM number, connector style, and stator dimensions before purchase |
OEM / Cross Reference:
4010911
Specifications
| Specification | Details |
|---|---|
| Part Type | Magneto Stator Coil |
| Configuration | 18 Coil |

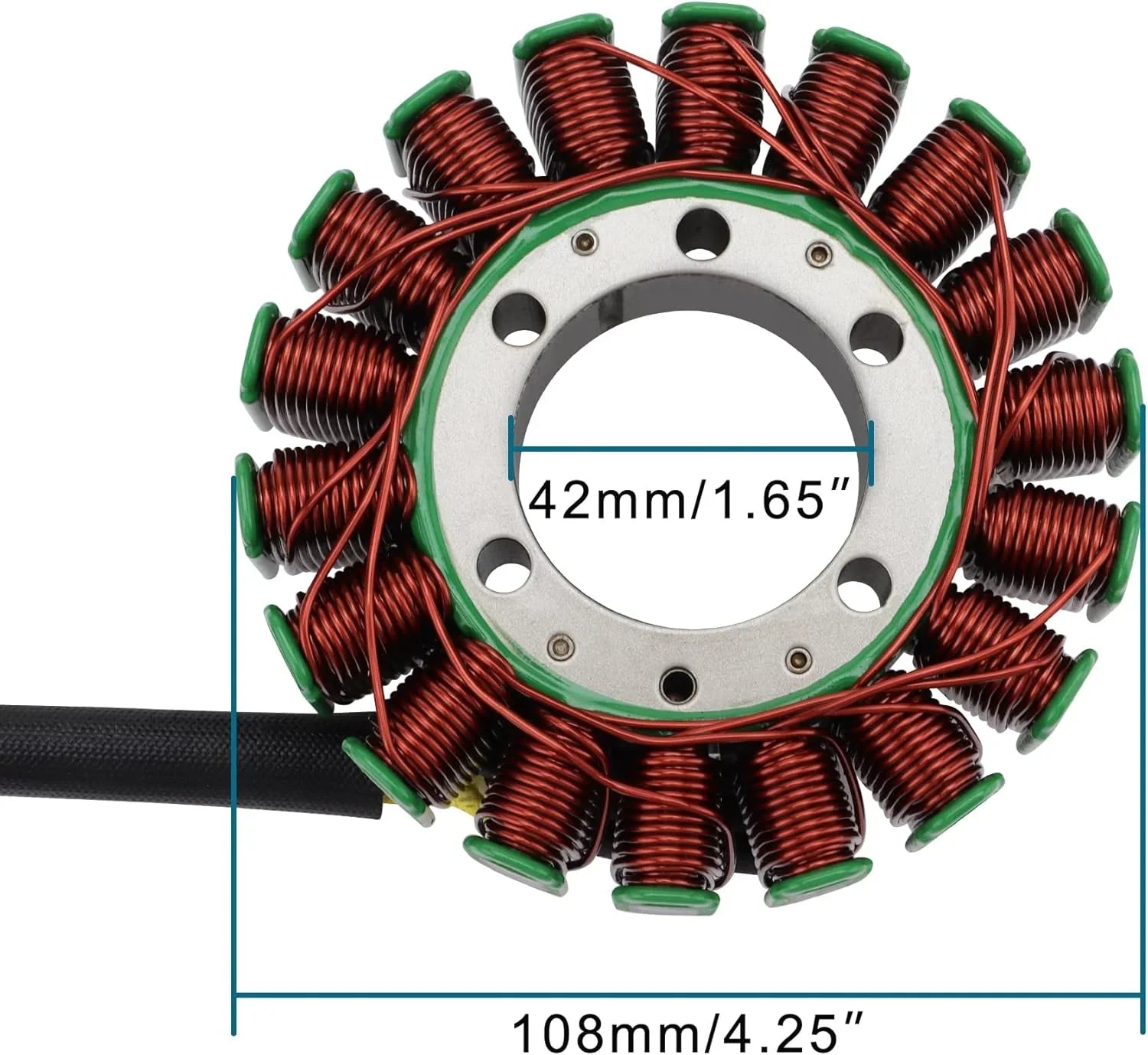

| Outer Diameter | 108 mm |
| Inner Diameter | 42 mm |
| Material | Copper coil / Copper-clad steel wire / Aluminum plate |
| Function | Charging and ignition system support |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, stator size, connector style, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- 18 Coil Stator Design – Helps provide stable electrical output for the charging system
- Polaris ATV / UTV Fitment – Designed for selected Polaris applications using the matching 108mm stator layout
- Reliable Charging Performance – Helps restore battery charging and electrical-system stability
- Durable Construction – Built with copper windings and an aluminum base plate for long service life
- Direct Replacement Style – Designed for easy installation when connector and dimensions match
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 2004–2006, 2005–2006, 2004, 2006, 2005. It is best matched to original part number(s) 4010911. Key physical/spec details from the product data include Match by 18 coil layout, 108mm OD, 42mm ID, and connector style, Outer Diameter: 108 mm, Inner Diameter: 42 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 4010911 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Polaris LY84/Sportsman/Ranger models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 4010911, treat the fitment as unconfirmed. Model years outside 2004–2006, 2005–2006, 2004, 2006, 2005 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?

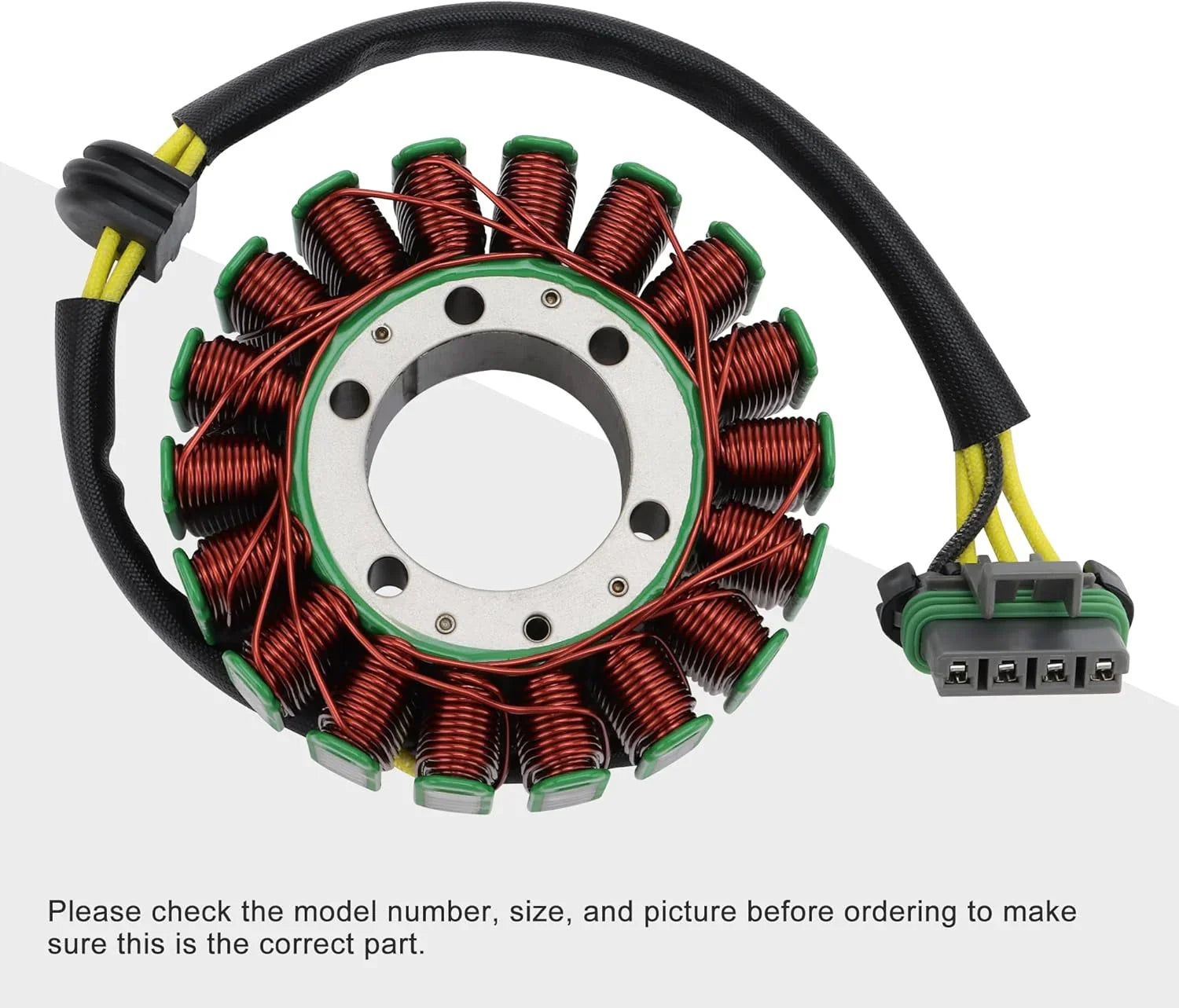

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 4010911. Recheck listed specs such as Match by 18 coil layout, 108mm OD, 42mm ID, and connector style, Outer Diameter: 108 mm, Inner Diameter: 42 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
