Flywheel Magneto Rotor for Polaris Big Boss 500 6x6 Magnum 500 | 3086983 3087166
Flywheel Magneto Rotor for Polaris Big Boss 500 6x6 Magnum 500 | 3086983 3087166
Couldn't load pickup availability
Product Overview

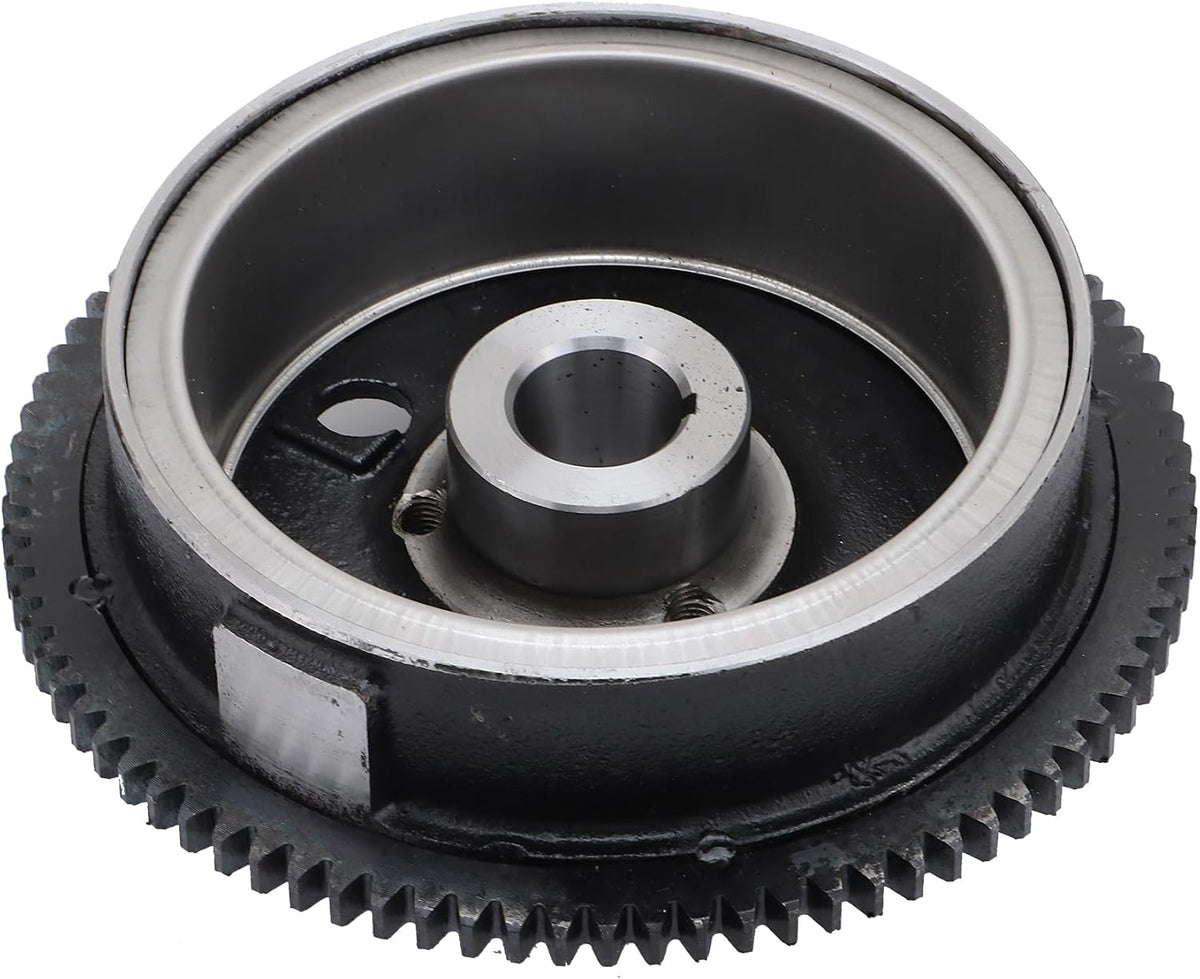

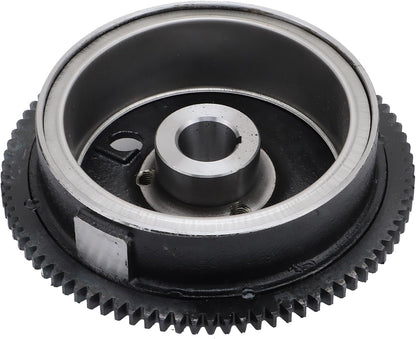

Replacement magneto flywheel rotor with ring gear for selected Polaris 500cc ATV and 6x6 applications, including Big Boss 500 6x6 International, Magnum 500, and LUH 6x6 PPS models.
This aftermarket flywheel is cross-referenced with Polaris part numbers:
3085558 / 3086819 / 3086983 / 3087166
Before ordering, verify the Polaris model, model year, original OEM number, flywheel shape, ring gear, crankshaft taper, keyway, and internal magnet configuration against the original part.
Product Compatibility
| Make | Model | Year Range | Notes |
|---|---|---|---|
| Polaris | Big Boss 500 6x6 International | 1999–2002 | Verify OEM / serial range |
| Polaris | LUH 6x6 PPS | 2002 | Verify original flywheel |
| Polaris | Magnum 500 | 1999–2002 | Verify OEM / configuration |
Additional Listed Magnum Applications
This OEM flywheel family is also associated with selected Polaris Magnum 500 variants, including:
- Magnum 500 4x4
- Magnum 500 HDS
- Magnum 500 2x4 HDS
- Magnum 500 VL HDS
- Magnum 500 RMK

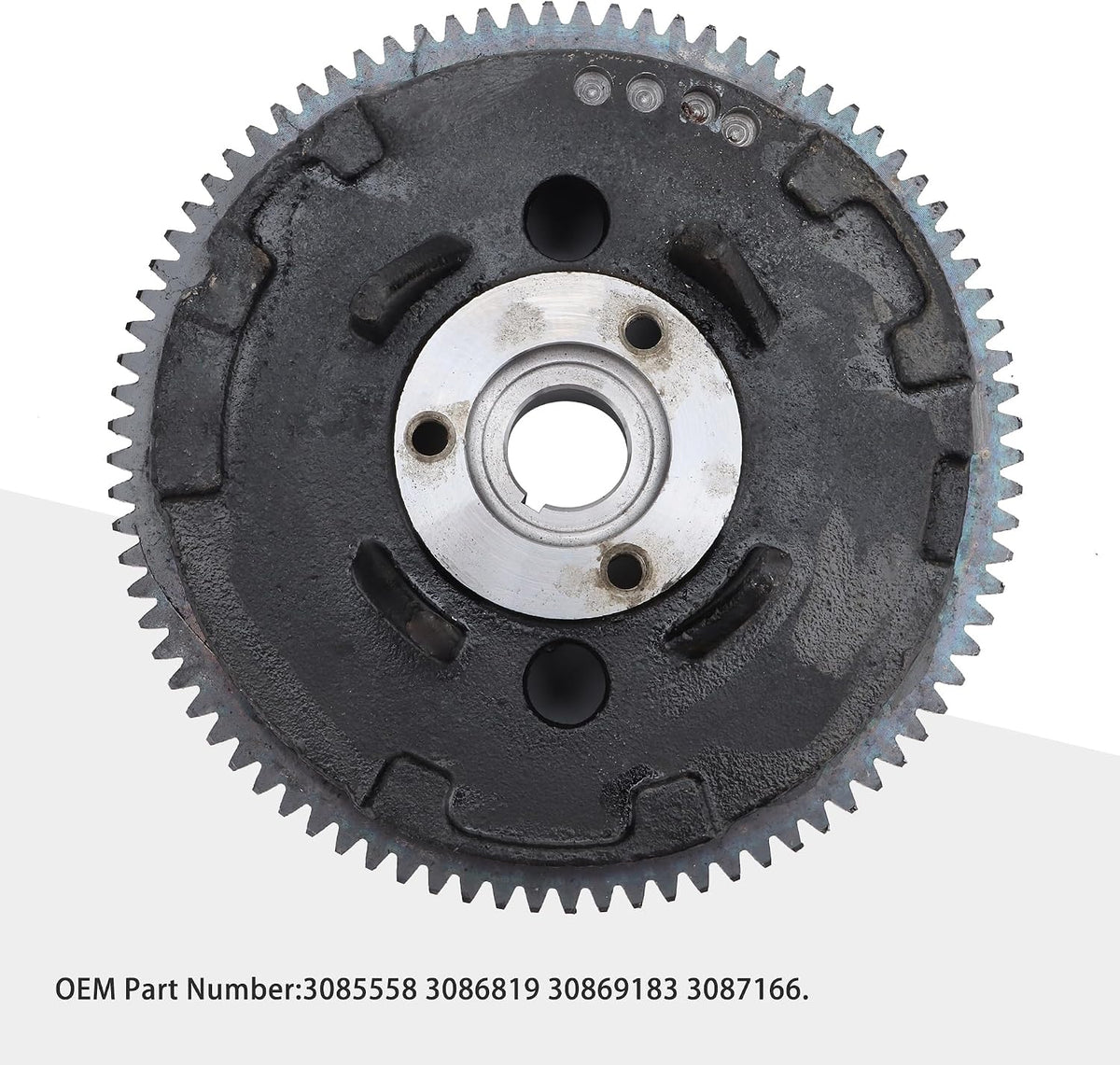

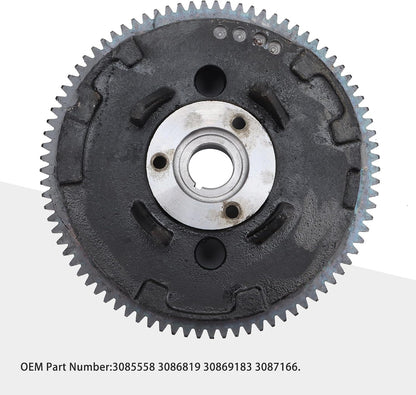

OEM Cross-Reference Numbers
Polaris
- 3085558
- 3086819
- 3086983
- 3087166
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Flywheel Rotor |
| Configuration | Flywheel with Ring Gear |
| Make | Polaris |
| Primary Engine Class | 500cc |
| OEM References | 3085558 / 3086819 / 3086983 / 3087166 |
| Applications | ATV / 6x6 |
| Replacement Type | Aftermarket |
| Condition | New |
Key Features
- Polaris 500cc Applications: Designed for compatible Big Boss 500 and Magnum 500 engine configurations.
- Four OEM References: Cross-referenced with 3085558, 3086819, 3086983, and 3087166.
- Integrated Ring Gear: Designed for compatible Polaris electric-start systems.
- Magneto Rotor Function: Works with the compatible stator to support the engine electrical-generation system.
- Application-Specific Fitment: OEM number, taper, keyway, magnets, and ring gear should all match the original flywheel.
Share
Fitment FAQ
Will this part fit my specific model and year?
This flywheel is listed for selected:
Polaris Big Boss 500 6x6 International — 1999–2002
Polaris LUH 6x6 PPS — 2002
Polaris Magnum 500 — 1999–2002
Because Polaris used different flywheel revisions and serial-number splits, confirm the original OEM number before ordering.
Do I need to match the OEM part number?
Yes. Matching the original flywheel number is strongly recommended.
Compatible replacement references include:
3085558
3086819
3086983
3087166
Also compare the ring gear, crankshaft taper, keyway, magnet layout, and overall flywheel design.
What models or situations does this part not fit?
Do not assume this flywheel fits:
Every Polaris 500cc ATV
Every Magnum 500 model without checking the original part
Flywheels with different OEM numbers
Different crankshaft tapers
Different keyway locations
Different ring-gear designs
Different internal magnet configurations
Some Polaris applications used multiple flywheel designs within the same model year.
What should I check before ordering?
Confirm:
Exact Polaris model
Model year
Original flywheel OEM number
3085558 / 3086819 / 3086983 / 3087166 where applicable
Ring gear configuration
Crankshaft taper
Center bore
Keyway position
Internal magnet layout
Overall flywheel shape
For 2002 applications, also check the vehicle serial range if the OEM parts catalog lists an early/late flywheel split.
