Will this 12 coil magneto stator fit my Polaris Ranger 500 6x6 or Series 10/11?

This magneto stator is designed specifically to fit Polaris Ranger 500 6x6, Series 10, and Series 11 models that use OEM part number 3087168. Always double-check your original stator's part number and make sure your model year matches before ordering for the best fit.

How do I know if I need to replace my Polaris Ranger 500’s stator?

Common signs your stator may need replacement include dim or flickering lights, battery not charging, or trouble starting the engine. The 12 coil magneto stator restores charging power and reliable ignition, solving most electrical output issues that come from a failing stator.

What improvements can I expect after installing this OEM 3087168 stator?

Installing this replacement stator ensures consistent spark, improved charging capabilities, and overall better reliability for your Polaris Ranger. It's built to OEM specs, providing the same performance as the original part, so you can trust your battery will stay charged and your engine will start smoothly.

Is this stator difficult to install? Do I need special tools?

This stator installs in the OEM location and is plug-and-play for compatible models. Most riders with basic mechanical skills and standard tools can complete the job; just ensure your connections are secure and follow the service manual for torque specs and wiring order. If unsure, professional installation is always a good option.

What’s included with this Polaris Ranger 12 coil stator, and do you offer warranty support?

You’ll receive one brand new 12 coil magneto stator, ready for installation as a direct replacement for Polaris Ranger 500 models using part number 3087168. We stand behind our quality with after-sales support and a warranty, so you can shop with confidence and reach out if any issues arise after purchase.

1 5

GOOFIT

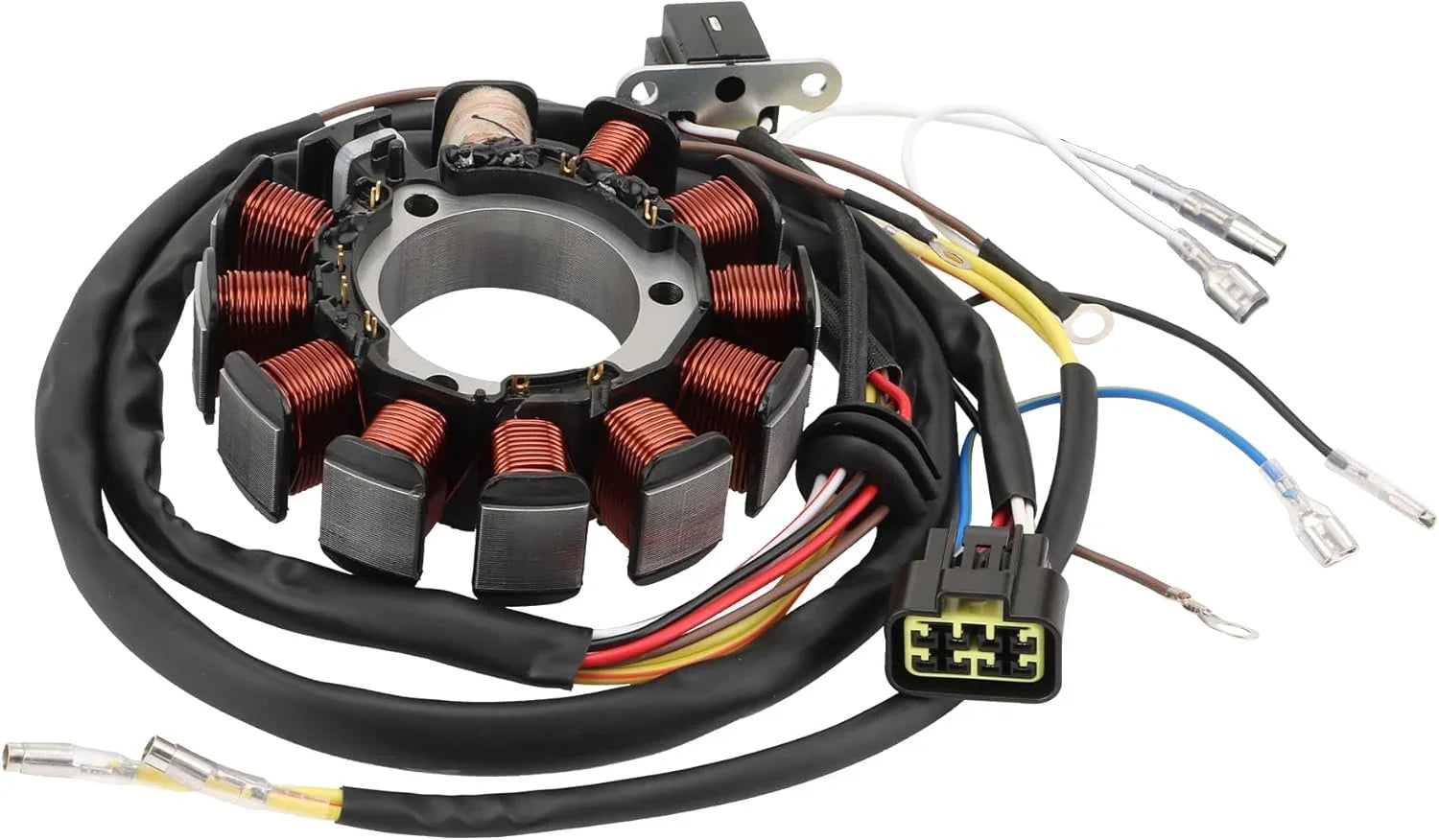

Polaris Ranger 500 6x6 / Series 10 / Series 11 12 Coil Magneto Stator | OEM 3087168

$56.99

Sale Sold out

Shipping calculated at checkout.

Product Overview

Restore reliable charging and ignition performance to your UTV with this 12 coil 12-wire magneto stator, designed for selected Polaris Ranger 500 6x6, Series 10, and Series 11 applications. Built to replace OEM 3087168, this unit helps solve common issues such as battery not charging, hard starting, weak spark, unstable voltage, and intermittent electrical failure. Constructed with high-quality metal lamination and precision copper windings, it is designed for durability, corrosion resistance, and stable electrical output.

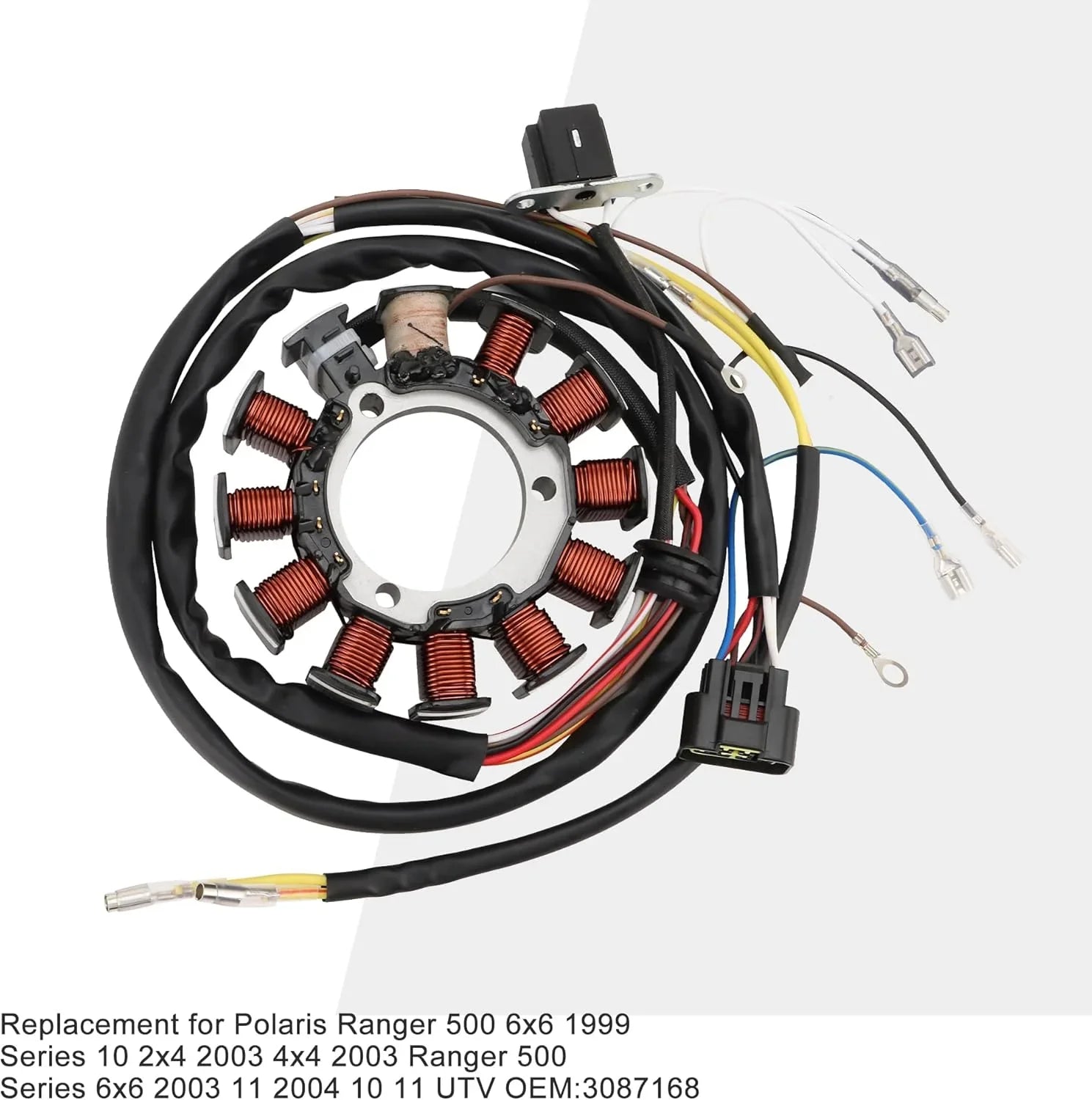

Product Compatibility

Brand	Model	Engine / HP / CC	Year Range	Notes
Polaris	Ranger 500 6x6	500cc	1999	OEM replacement family 3087168
Polaris	Ranger 500 Series 10 4x4	500cc	2003	Only fits model code A10RD50AA
Polaris	Ranger 500 Series 11 2x4	500cc	2004	OEM replacement family 3087168
Polaris	Ranger 500 Series 11 4x4	500cc	2004	OEM replacement family 3087168
Polaris	Ranger 500 Series 11 6x6	500cc	2004	OEM replacement family 3087168

OEM Cross Reference:
3087168

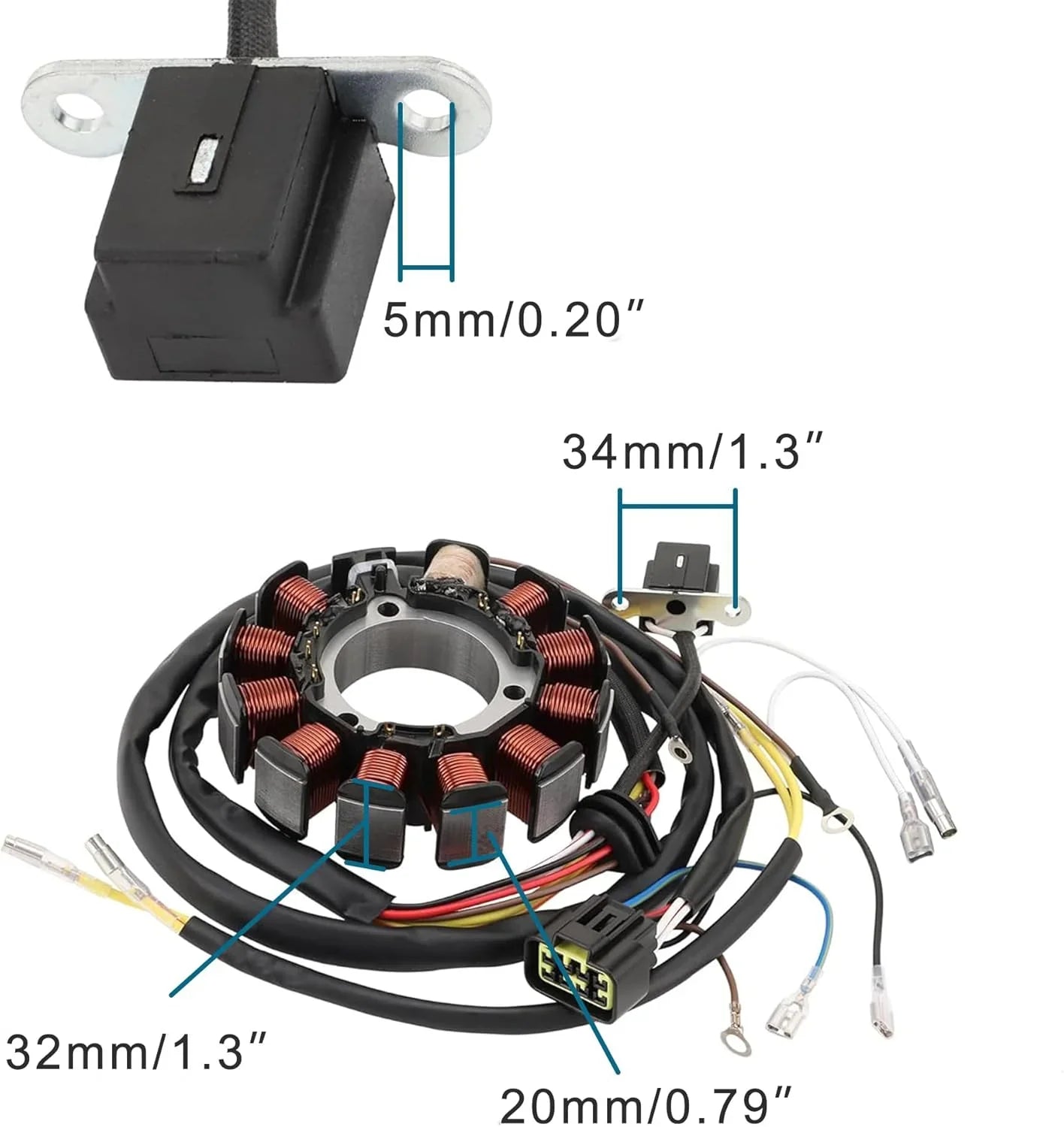

Specifications

Specification	Details
Part Type	Magneto Stator
Configuration	12 Coil / 12 Wire
Current Type	AC

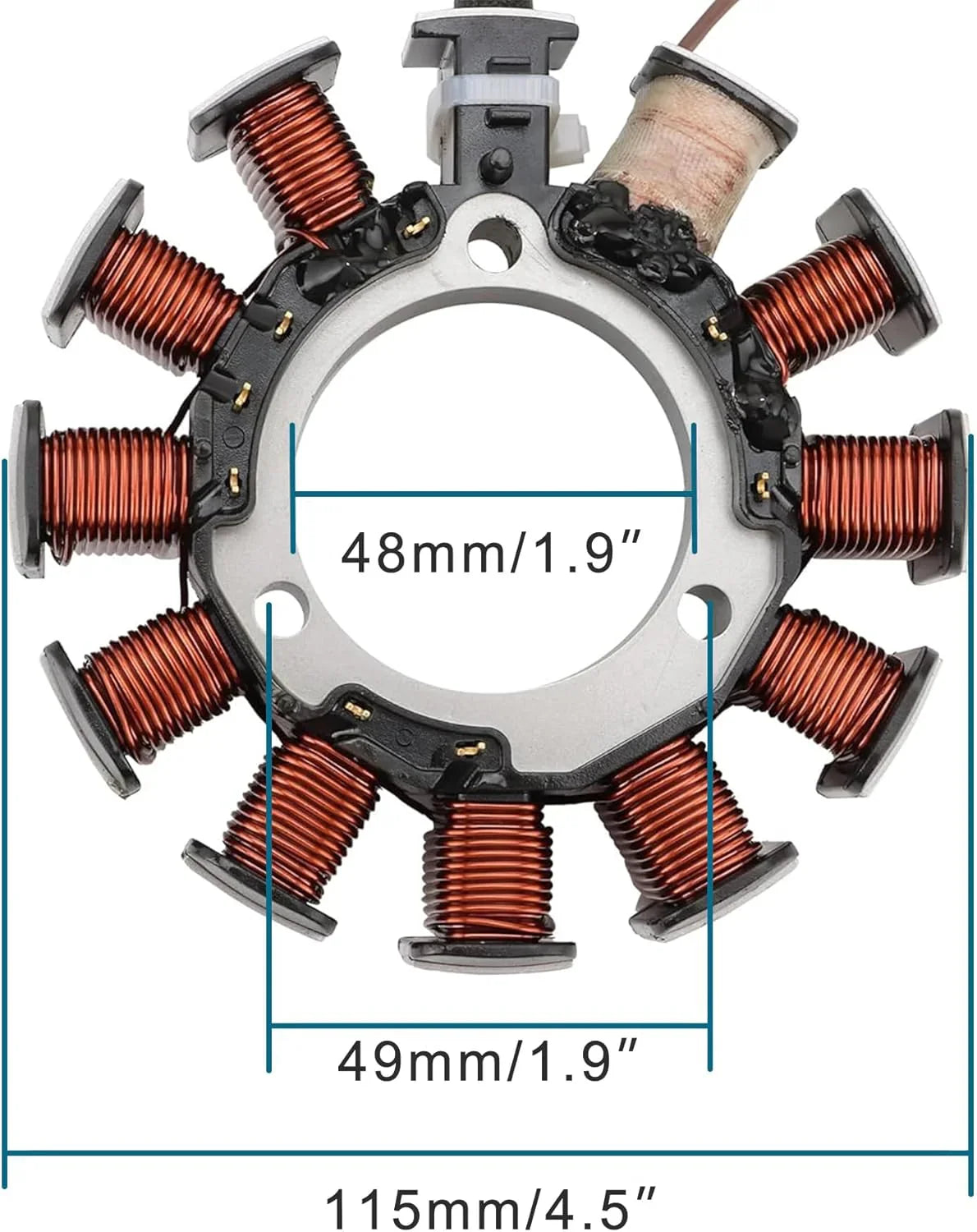

Outer Diameter	115 mm
Inner Diameter	48 mm
Iron Core Height	20 mm
Mounting Hole Distance	49 mm
Thickness	32 mm
Trigger Mounting Hole Distance	34 mm

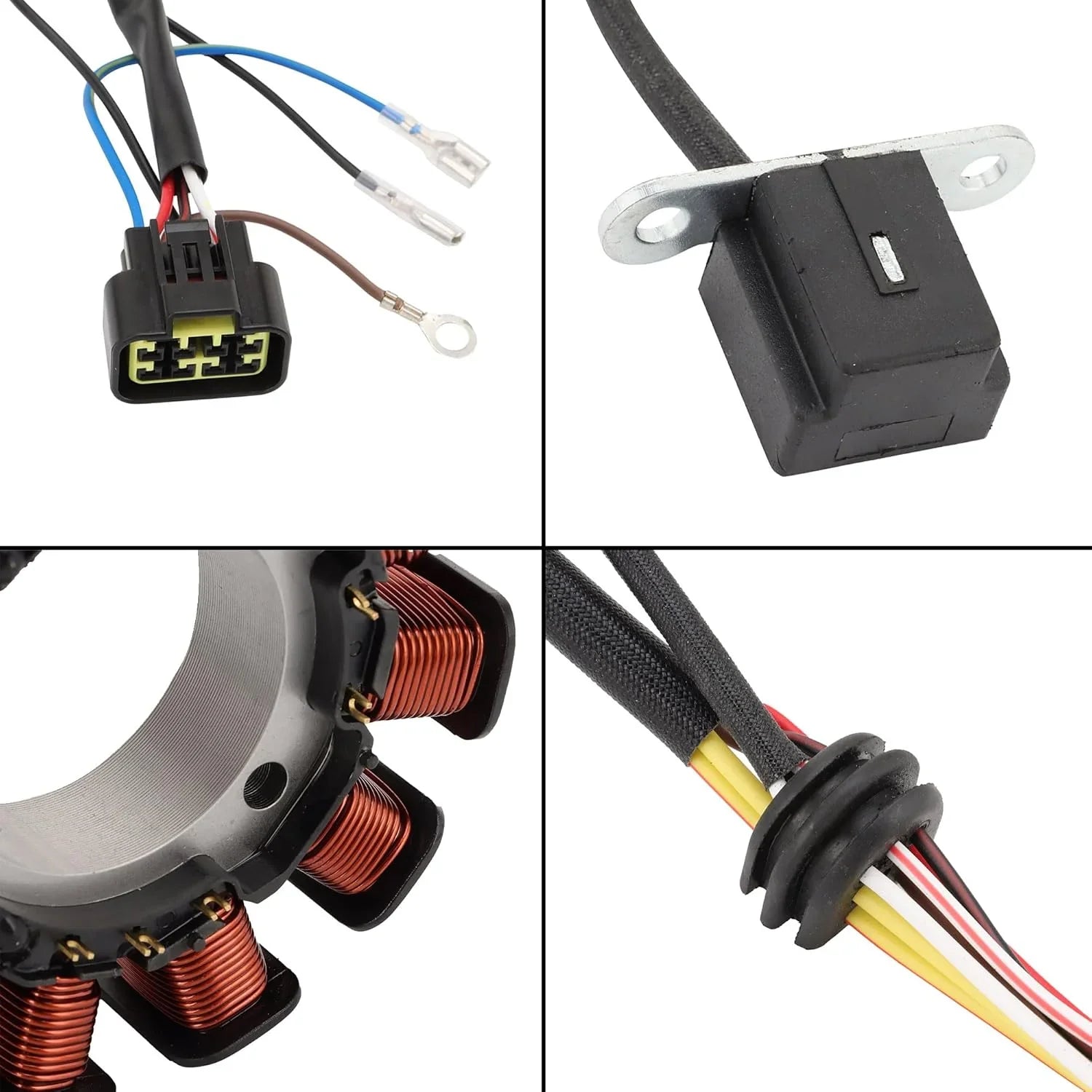

Connector Type	Rectangular 4-pin plastic connector
Material	Metal lamination / Precision copper windings
Condition	100% New Aftermarket

Key Features

12 Coil / 12 Wire Design – Built to provide stable electrical output for charging and ignition performance
Direct OEM-Style Replacement – Designed to replace OEM 3087168 on compatible models
Durable Construction – Precision copper windings and metal laminations help improve service life
Corrosion-Resistant Build – Designed to resist rust, deformation, and wear under demanding conditions
Straightforward Installation – Practical direct-fit replacement for correctly matched applications

Common Problems This Part Can Help Solve

This product may help address issues such as:

Battery not charging
Weak or no spark
Hard starting
Intermittent electrical failure
Unstable charging output
Poor ignition performance

Package Includes

1 × Magneto Stator

Fitment Note

Please confirm your OEM part number, connector style, stator dimensions, and exact vehicle model code before ordering.

If you are unsure about compatibility, contact us with your model, year, OEM number, connector photos, and stator measurements before purchase.

Installation Note

Professional installation is recommended.

Before installation, inspect related components such as the battery, wiring harness, regulator/rectifier, flywheel, and charging system to avoid repeat failure caused by another faulty part.

Why Choose This Replacement

A failing stator can lead to charging issues, unstable voltage, weak ignition performance, and unreliable starting. Replacing it with a properly matched unit helps restore dependable electrical performance and keeps your Polaris Ranger ready for work and trail use.
