1998–2001 Polaris Sportsman 500 Non-HO Stator 3085561 3086821
1998–2001 Polaris Sportsman 500 Non-HO Stator 3085561 3086821
Couldn't load pickup availability
Product Overview

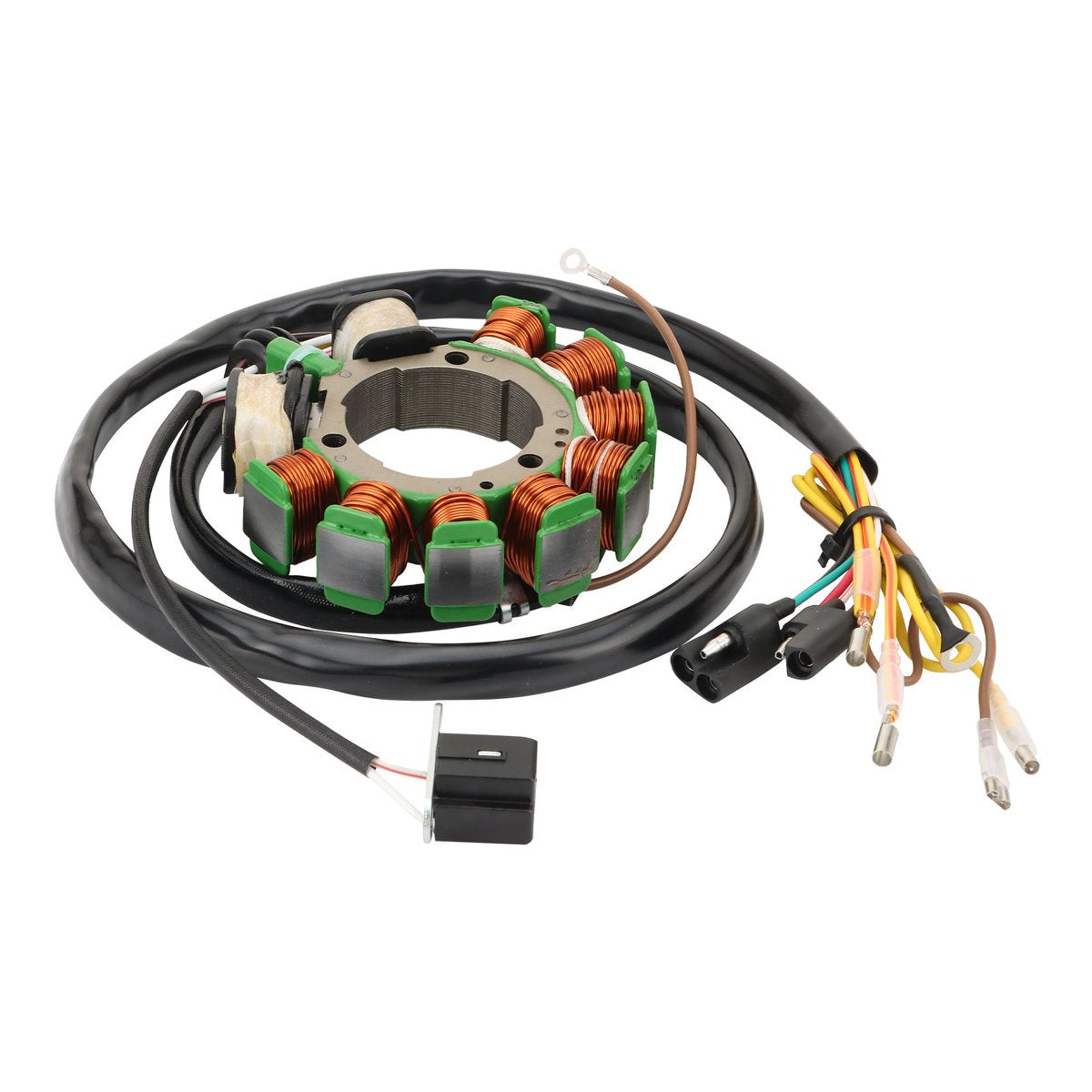

Replace a weak, damaged, or failed stator with this magneto stator coil, designed for select Polaris Sportsman 500 ATV models using OEM reference numbers 3085561 and 3086821.
The stator is an important part of the ATV ignition and charging system. It helps generate electrical output while the engine is running, supporting spark, battery charging, lights, and related electrical components. If your Polaris Sportsman 500 has no spark, weak spark, hard starting, low battery voltage, dim lights, intermittent running, or stator-related electrical failure, replacing the stator may help restore normal performance.
Built with copper windings and a laminated stator core, this replacement stator is designed for stable output and reliable off-road use. Please compare your original stator’s OEM number, serial number range if applicable, connector layout, wire count, pickup coil, mounting position, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Polaris | Sportsman 500 | 1998–1999 | 3085561 / 3086821 | Main fitment; confirm original stator and connector layout |
| Polaris | Sportsman 500 RSE | 2000 | 3085561 / 3086821 | Fits up to S#00-29083; verify serial number before ordering |
| Polaris | Sportsman 500 Non-HO | 2001 | 3085561 / 3086821 | Fits Non-HO models only; do not use for HO version unless original part matches |
| Polaris | Sportsman 500 ATV / 4x4 | Select 1998–2001 applications | 3085561 / 3086821 | Fitment must be confirmed by OEM number, connector, and stator shape |
Possible Related Fitment:
OEM references 3085561 and 3086821 are also used on some Polaris Big Boss 500, Magnum 500, Ranger 500, Scrambler 500, and Worker 500 applications from the late 1990s to early 2000s. These models should be treated as possible cross-fitment only. Please verify the original part before listing or selling this stator for those models.
Important Fitment Note:
Polaris 500cc ATV models from this period may use different ignition and charging system designs, sometimes even within the same production year. This part should not be selected by model name alone. Please confirm your original stator matches OEM 3085561 or 3086821, the physical size, connector layout, pickup coil position, wire routing, and overall shape before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator Coil / Generator Stator |
| OEM Reference | 3085561 / 3086821 |
| Compatible Model | Polaris Sportsman 500 |
| Main Year Range | 1998–2001 Select Applications |

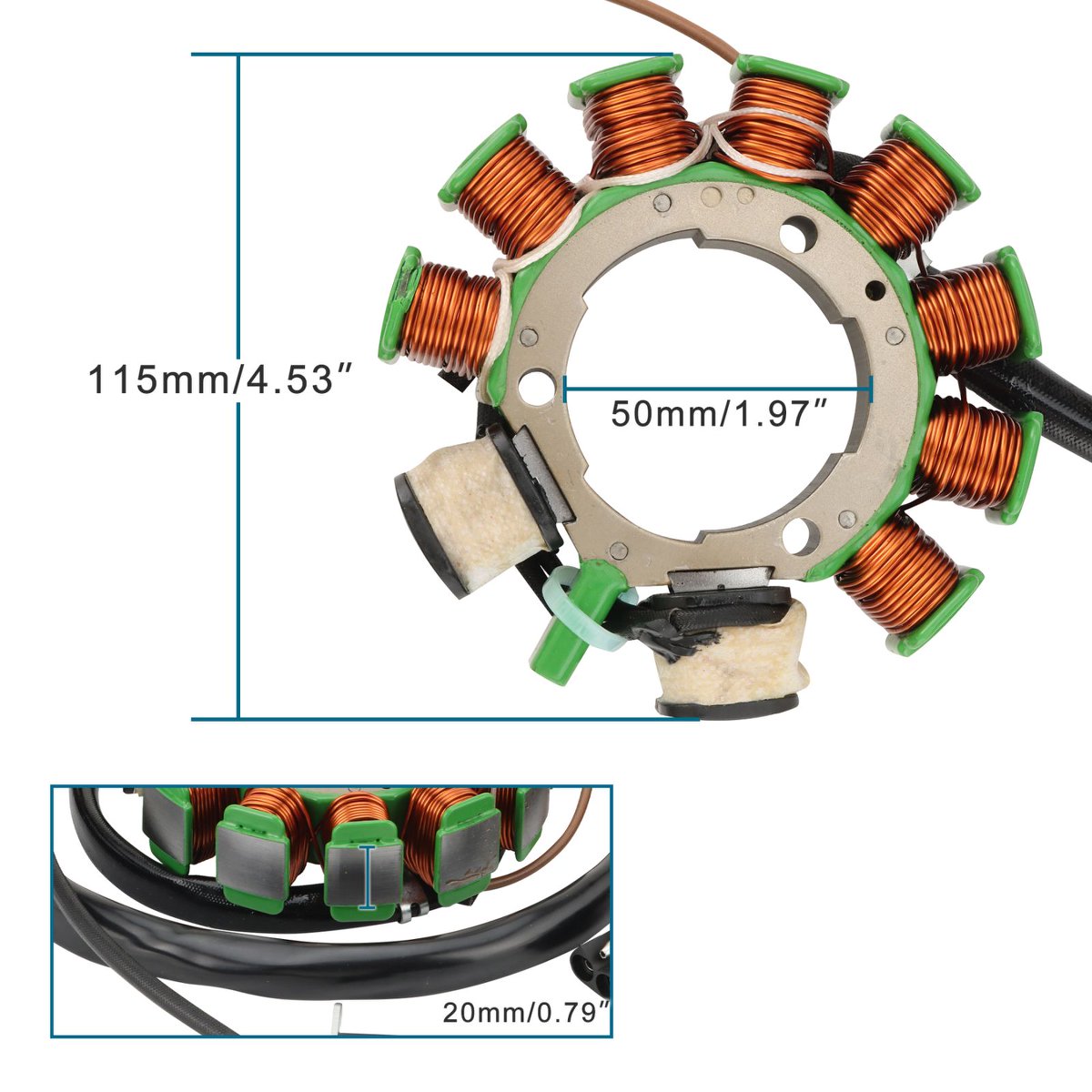

| Outer Diameter | 115mm |
| Inner Diameter | 50mm |
| Core Height | 20mm |
| Material | Copper Windings + Laminated Core |
| Application | ATV Ignition / Charging System |
| Compatible Brand | Polaris |
| Vehicle Type | ATV / Quad / 4 Wheeler |
Key Features
- Designed for select Polaris Sportsman 500 ATV models
- Replaces OEM reference numbers 3085561 and 3086821
- Fits key Sportsman 500 Non-HO / RSE applications when the original stator matches
- Helps address no spark, weak spark, hard starting, low battery voltage, dim lights, and stator failure
- Copper windings support stable conductivity and electrical output

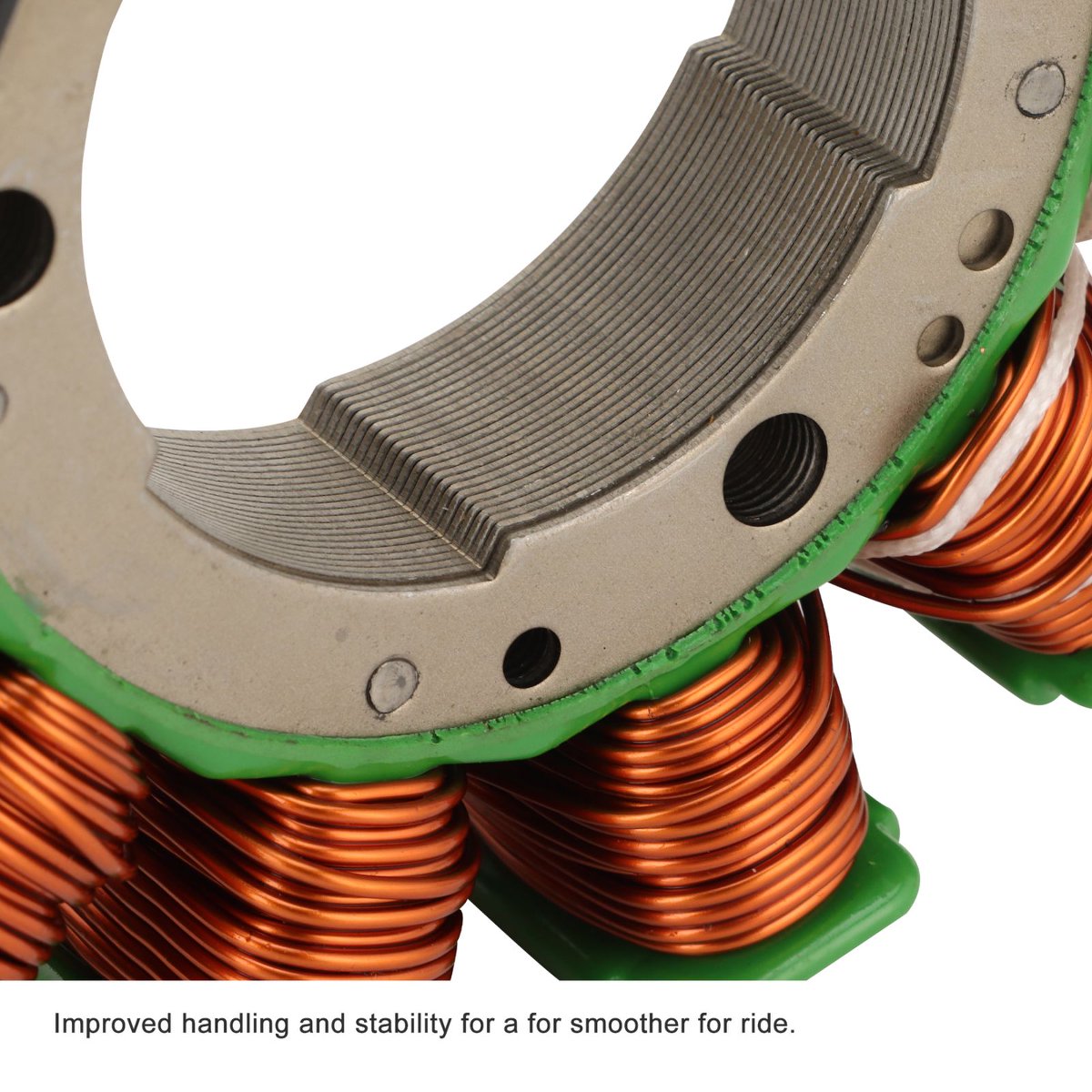

- Laminated stator core helps support strong magnetic induction
- Direct replacement style, but original OEM number, connector layout, serial number range, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 3085561 | Main Polaris stator reference for compatible Sportsman 500 applications |
| 3086821 | Common replacement / superseded reference used on compatible Polaris 500 stator listings |
| 4060173 | Possible related reference on some stator/regulator kit listings; verify before purchase |

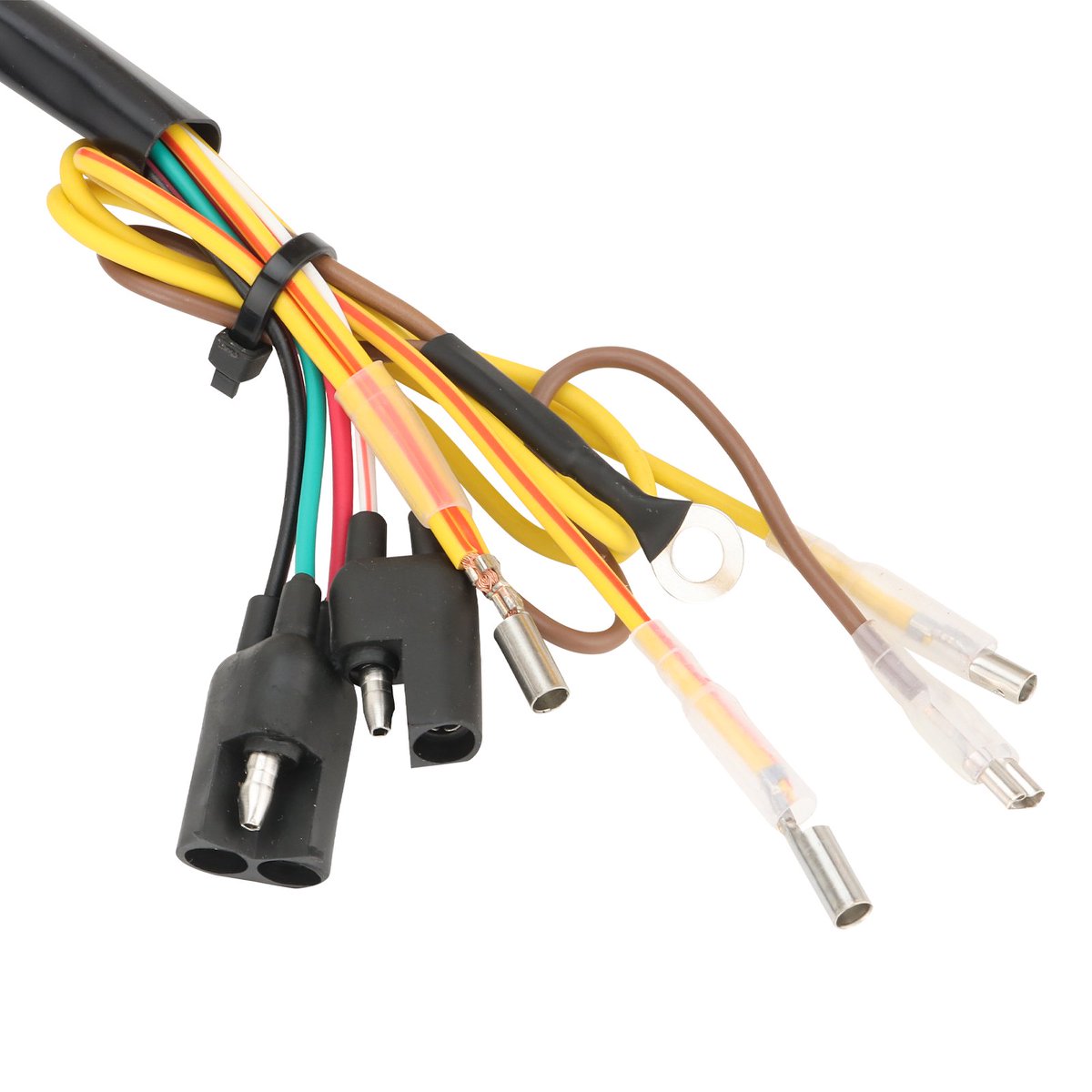

Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different connector style, wire count, pickup coil layout, mounting position, outer diameter, inner diameter, or core height, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Polaris Sportsman 500 ATV models, including Sportsman 500 1998–1999, Sportsman 500 RSE 2000 up to S#00-29083, and Sportsman 500 Non-HO 2001 applications using OEM reference numbers 3085561 or 3086821. Please compare your original stator’s OEM number, connector layout, wire count, pickup coil position, outer diameter, inner diameter, core height, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Polaris OEM 3085561 and 3086821. However, OEM number alone is not enough. Please also confirm the connector style, wiring layout, pickup coil position, mounting design, outer diameter, inner diameter, and core height.
What models or situations does this part not fit?
This part does not fit Polaris Sportsman 500 HO models or other Polaris ATV models that use a different stator design, different OEM number, different connector layout, different wire count, or different ignition system. It is also not a replacement for the regulator rectifier, CDI, ignition coil, spark plug, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your ATV’s make, model, year, HO / Non-HO version, serial number if applicable, OEM part number, original stator shape, connector style, wire count, pickup coil position, outer diameter, inner diameter, core height, and overall mounting layout. For best fitment, compare the product photos and specifications with your original stator before purchase.
