Rear Hand Disc Brake Assembly for 110cc-250cc ATV Scooter
Rear Hand Disc Brake Assembly for 110cc-250cc ATV Scooter
Couldn't load pickup availability
Product Overview

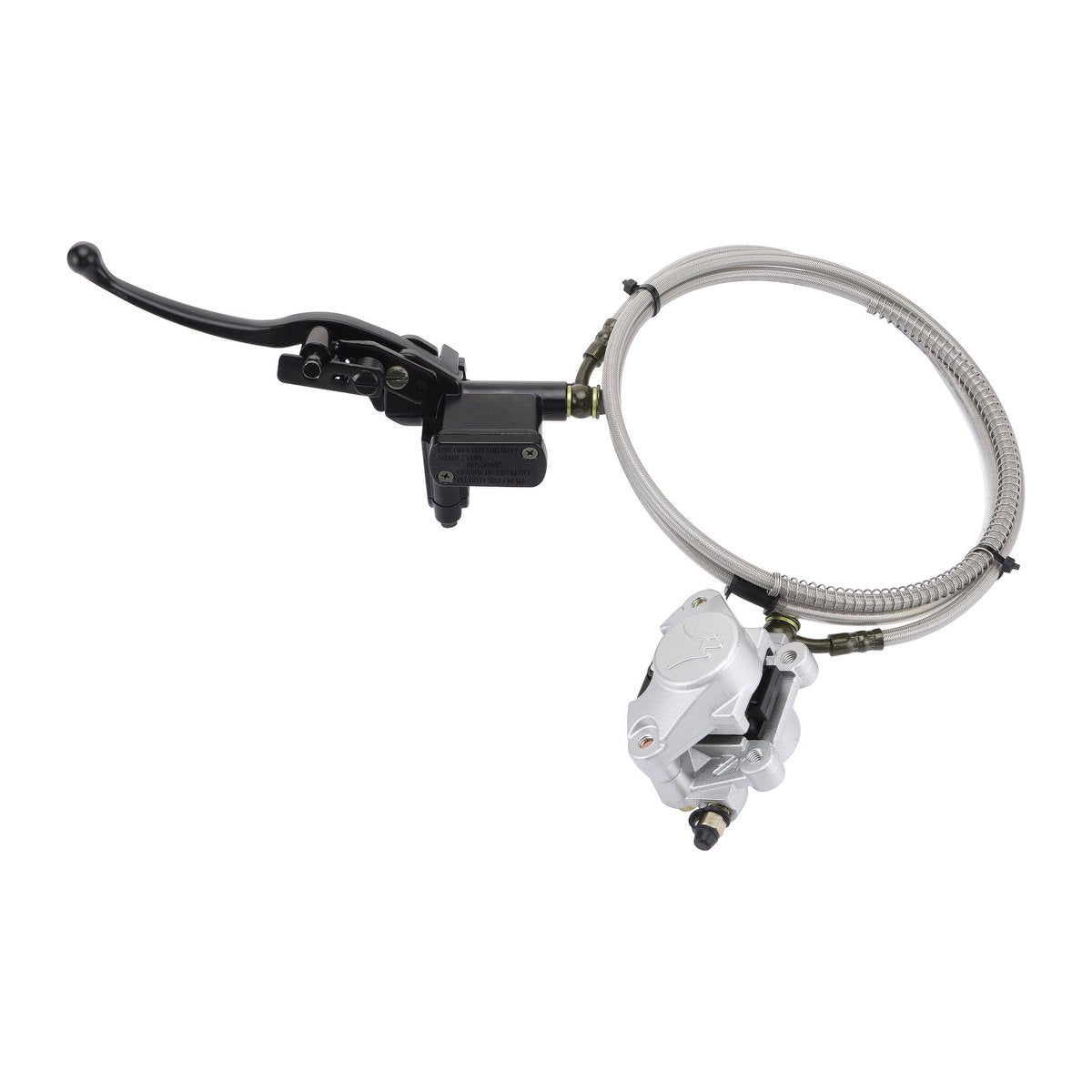

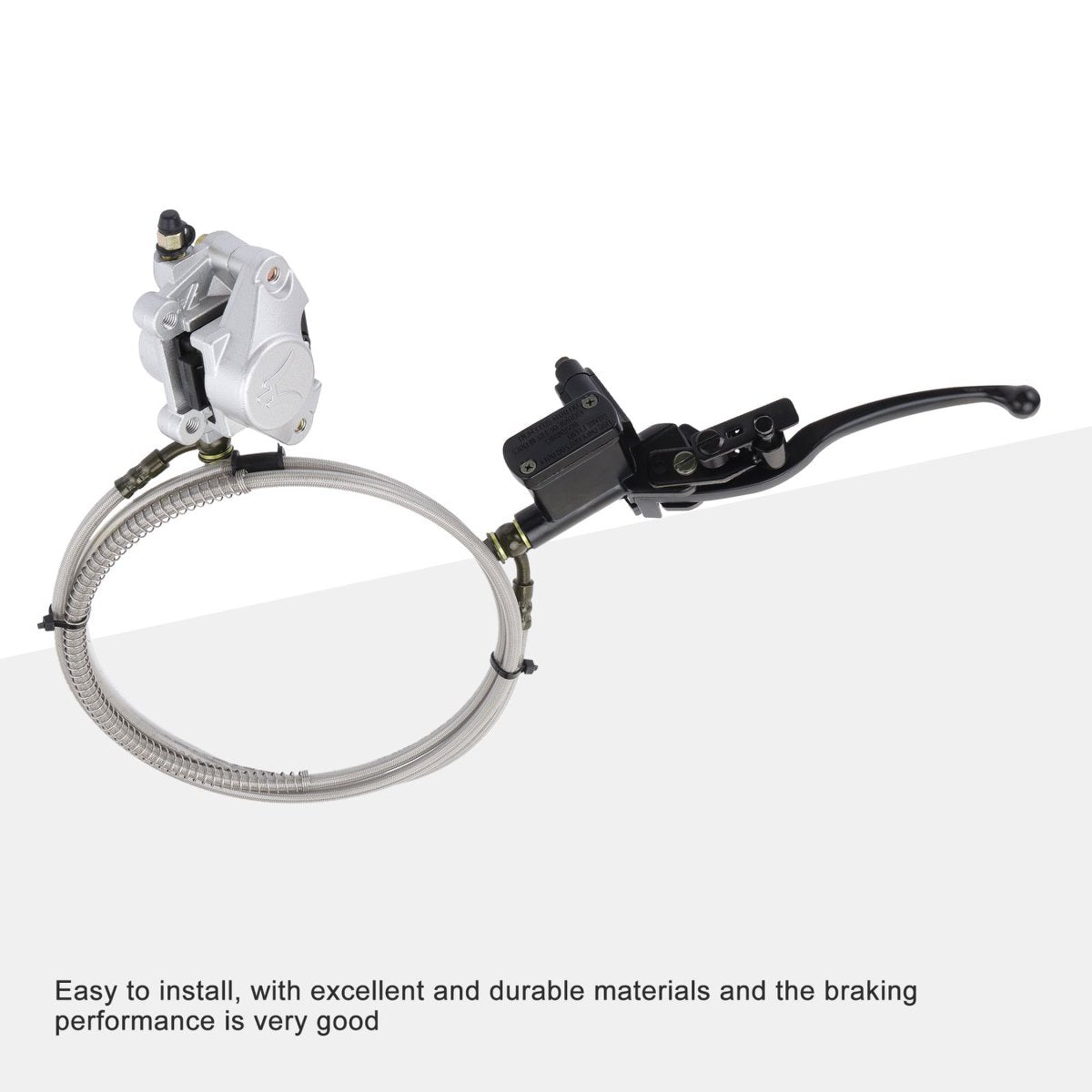

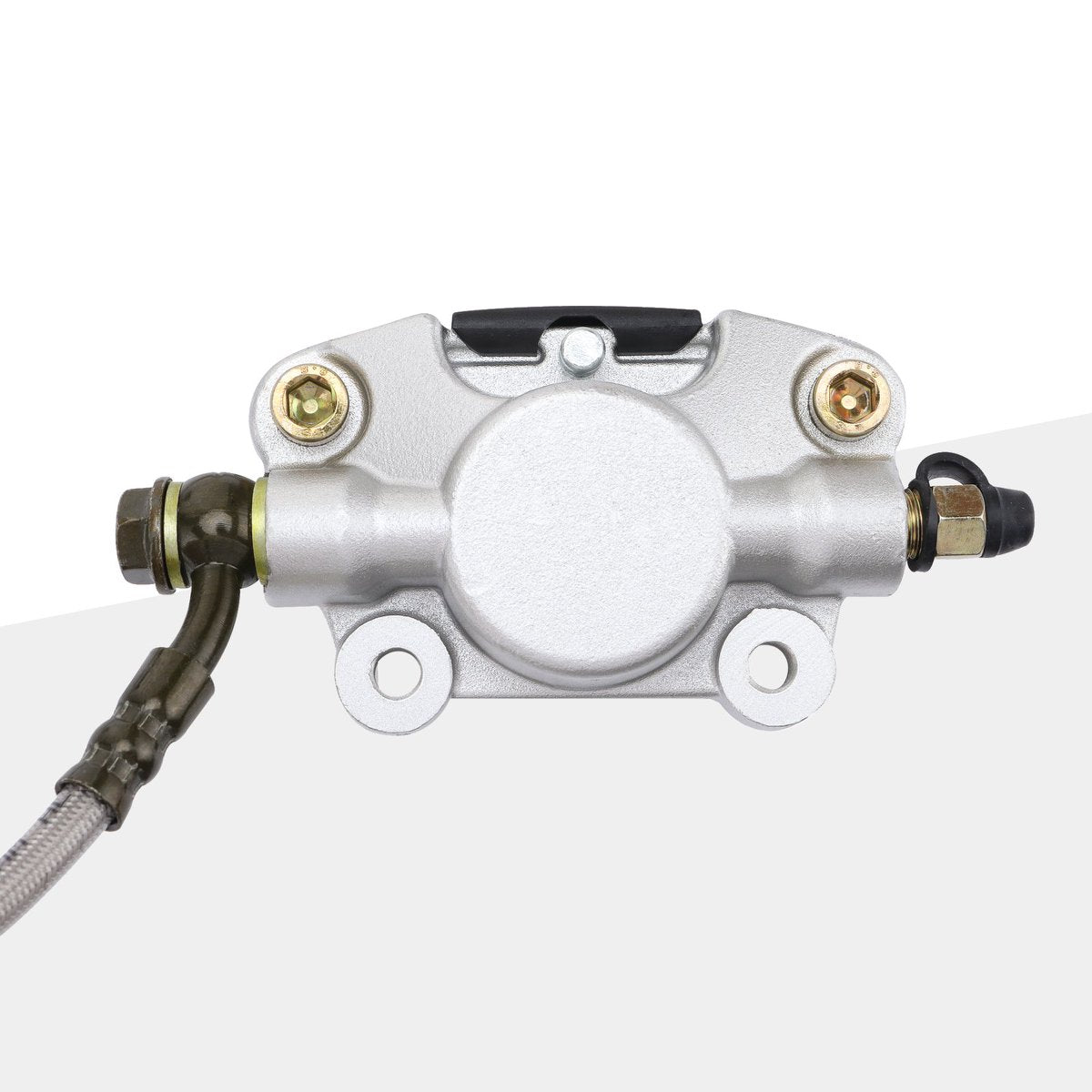

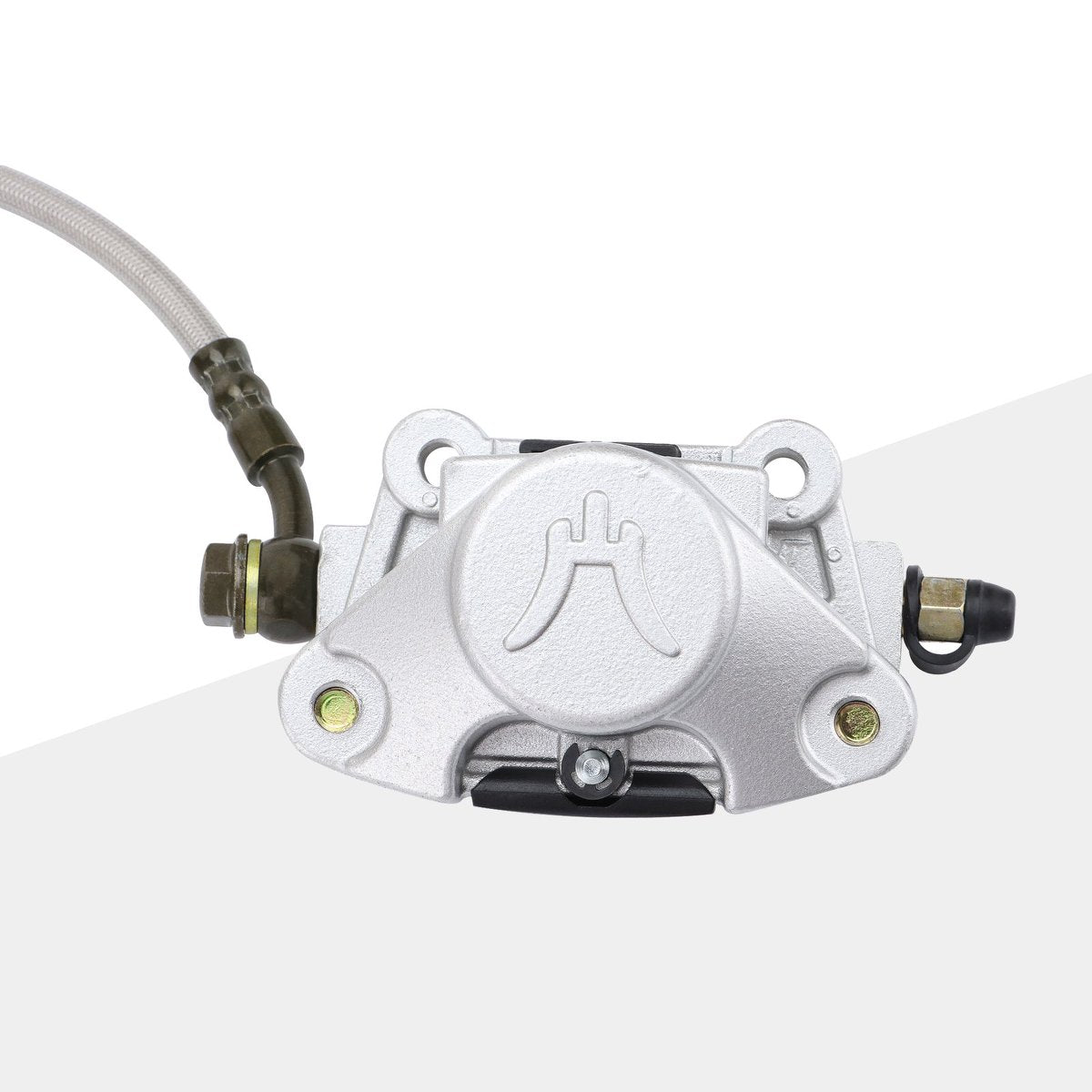

This rear hand disc brake assembly is designed as a replacement rear brake control system for selected 110cc, 125cc, 150cc, 200cc, and 250cc ATVs and scooters.
It is suitable for compatible vehicles using a 7/8" / 22mm handlebar setup and a rear disc brake system with matching hose length and bottom pump mounting pitch.
The rear hand brake assembly helps transfer braking force from the handlebar brake lever through the brake hose to the rear brake caliper. A worn, leaking, damaged, or weak brake assembly may cause poor braking response, soft lever feel, fluid leakage, or unsafe stopping performance.

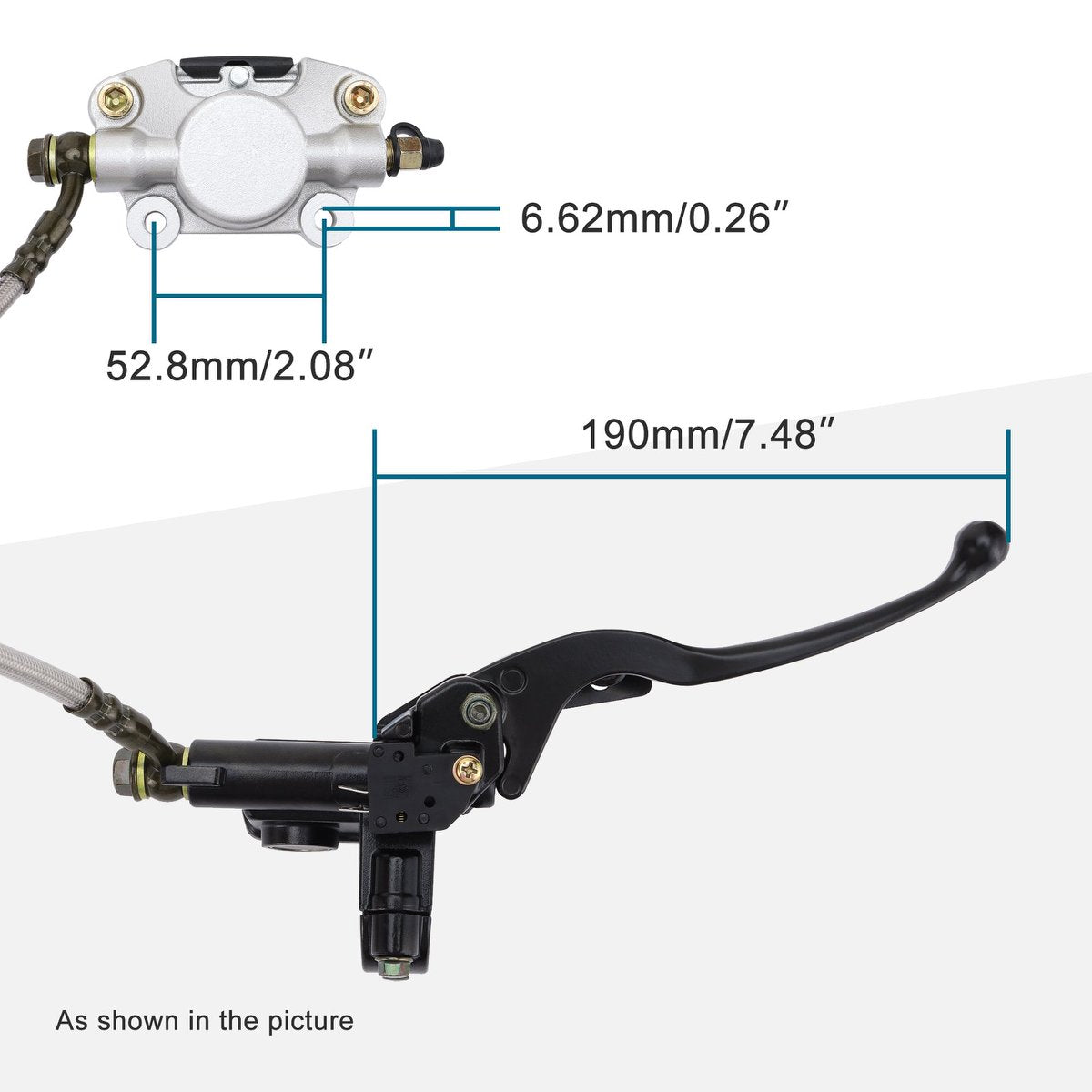

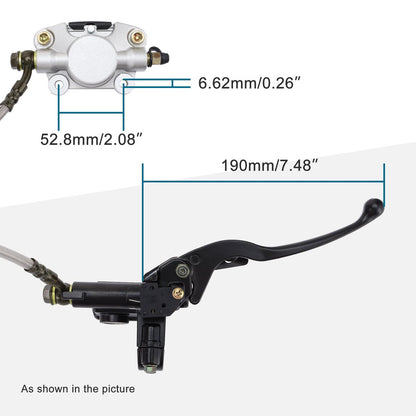

With an 1800mm / 70.87" tubing length, 52.8mm / 2.08" bottom pump installation pitch, and 22mm handlebar mounting hole, this assembly is suitable for replacement when the original size, mounting points, and brake layout match.
Please compare the tubing length, caliper mounting pitch, handlebar mounting size, brake hose routing, and product photos with your original brake assembly before ordering.
Product Compatibility
| Compatible Vehicle / Engine | Application |
|---|---|
| 110cc ATV | Rear hand disc brake assembly replacement |
| 125cc ATV / Scooter | Compatible rear brake setup when size matches |
| 150cc ATV / Scooter | Hydraulic rear brake assembly replacement |
| 200cc ATV | Rear disc brake system replacement when mounting matches |
| 250cc ATV / Scooter | Compatible when hose length and caliper pitch match |
⚠️ This is a size-specific brake assembly. Please confirm your original brake hose length, bottom pump mounting pitch, and handlebar mounting size before purchase.
Specifications
| Item | Details |
| Product Type | Rear Hand Disc Brake Assembly |
| Position | Rear |
| Tubing / Hose Length | 1800mm / 70.87" |
| Bottom Pump Installation Pitch | 52.8mm / 2.08" |
| Handlebar Mounting Hole | 7/8" / 22mm |
| Compatible Engine Sizes | 110cc / 125cc / 150cc / 200cc / 250cc |
| Compatible Vehicles | ATV / Scooter |
| Material | Metal |
| Application | Rear disc brake replacement |
| Condition | 100% Brand New |
Key Features
- Rear hand disc brake assembly for selected 110cc-250cc ATVs and scooters
- 1800mm / 70.87" brake hose length for rear brake routing
- 52.8mm / 2.08" bottom pump installation pitch for mounting verification
- 7/8" / 22mm handlebar mounting size for compatible brake lever installation
- Helps replace worn, leaking, weak, or damaged rear disc brake assemblies
Share
Fitment FAQ
Will this part fit my specific model and year?
This rear hand disc brake assembly may fit selected 110cc, 125cc, 150cc, 200cc, and 250cc ATVs and scooters. Fitment depends on the hose length, bottom pump installation pitch, handlebar mounting size, brake disc position, and rear brake system layout rather than model year alone.
Do I need to match the OEM part number?
Matching the OEM part number is helpful, but for this brake assembly, the most important details are the 1800mm / 70.87" tubing length, 52.8mm / 2.08" bottom pump installation pitch, 22mm handlebar mounting hole, and overall brake assembly layout.
What models or situations does this part not fit?
This assembly may not fit vehicles with a different brake hose length, different caliper mounting pitch, different handlebar diameter, different brake disc position, cable-operated brakes, drum brakes, or model-specific hydraulic brake assemblies.
What should I check before ordering?
Before ordering, check your original brake hose length, bottom pump mounting hole distance, handlebar mounting diameter, brake lever position, caliper shape, brake disc location, and product photos. Make sure your original rear brake setup matches the listed dimensions before purchase.
