Product Overview

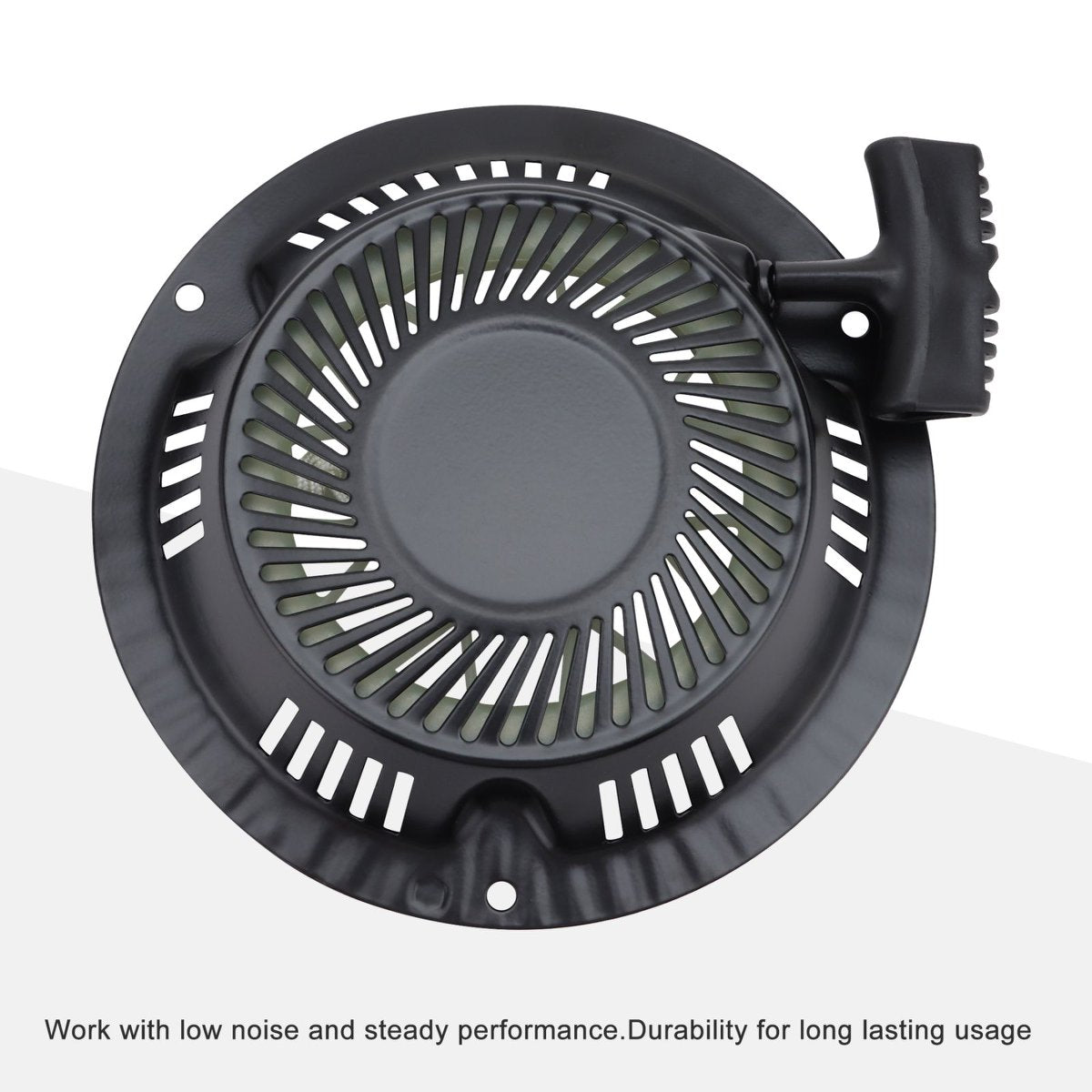

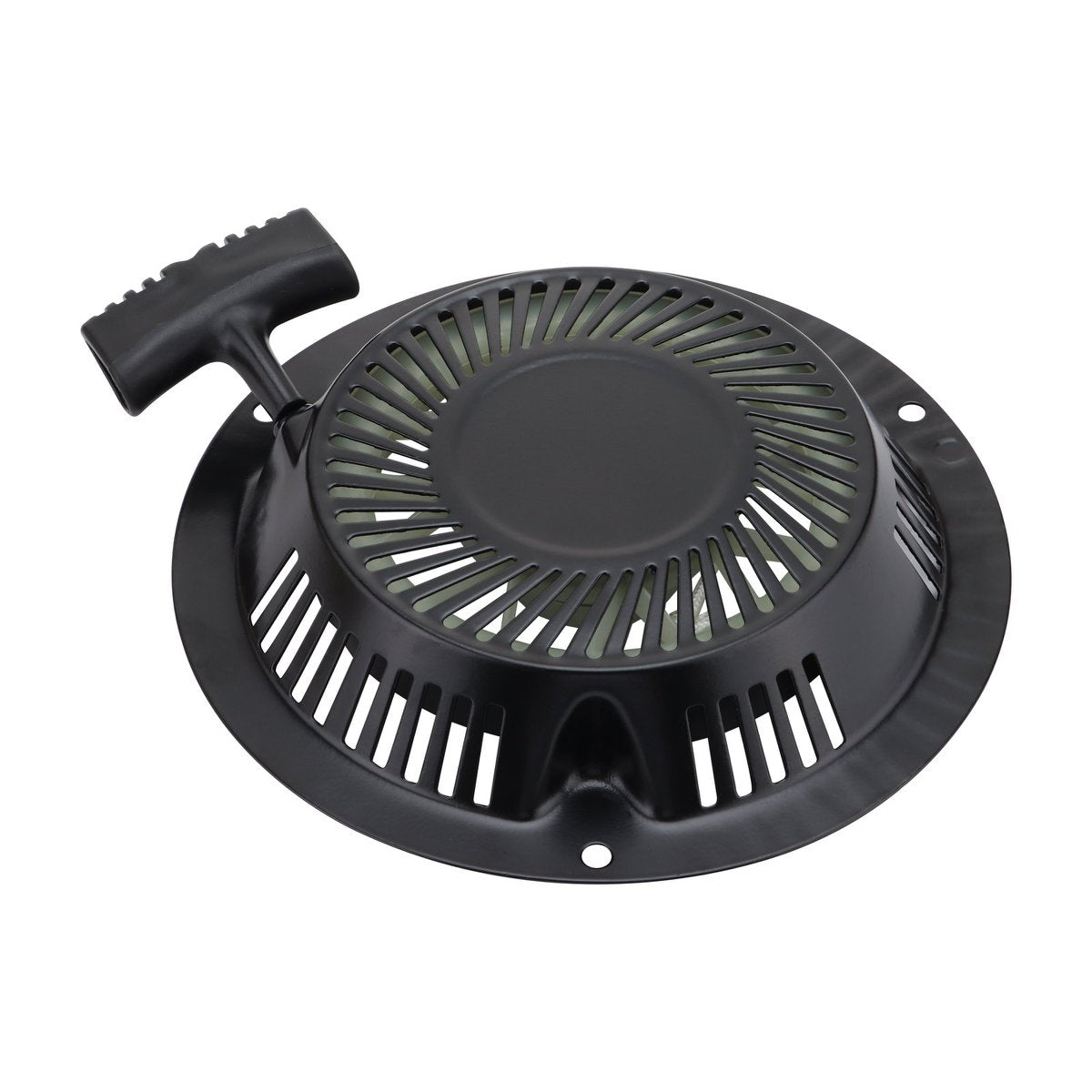

Replacement recoil pull starter assembly listed for selected 97cc / 2.8HP mini bike and small-engine applications, including Baja Doodlebug DB30 and Motovox MBX10, MBX11, and MBX12.
This version features an approximately 206mm (8.11") outer diameter, 170mm (6.69") mounting-hole distance, and 50mm (1.97") center opening.
Compare the housing diameter, mounting-hole pattern, 170mm spacing, center engagement opening, starter pawls, and pull-rope orientation directly with the original starter before ordering.
Product Compatibility
| Brand / Application | Model | Listed Fitment |
|---|---|---|
| Baja Motorsports | Doodlebug / Doodle Bug DB30 | Supplier-Listed Application |
| Motovox | MBX10 | Supplier-Listed Application |
| Motovox | MBX11 | Supplier-Listed Application |
| Motovox | MBX12 | Supplier-Listed Application |
| Hyundai | Selected Lawn Mower Applications | Verify Exact Model |
| Blackstone | Listed 530 Application | Verify Exact Equipment |
Specifications
| Specification | Details |
|---|---|
| Product Type | Recoil Pull Starter Assembly |
| Listed Engine Class | 97cc / 2.8HP |
| Outer Diameter | Approx. 206 mm / 8.11 in |
| Mounting-Hole Distance | Approx. 170 mm / 6.69 in |
| Center Opening Diameter | Approx. 50 mm / 1.97 in |
| Starting Type | Manual Recoil / Pull Start |
| Construction | Metal Housing / Mechanical Recoil Assembly |
| Listed Applications | Mini Bike / Lawn Equipment |
| Replacement Type | Aftermarket |
| Condition | New |
Key Features
- 206mm Starter Housing: Large-format recoil starter configuration for compatible applications.
- 170mm Mounting Reference: Important measurement for distinguishing this version from smaller 97cc recoil starters.
- 50mm Center Opening: Provides an additional check for starter cup and engagement compatibility.
- Complete Pull-Start Assembly: Replaces a compatible damaged housing, rope, spring, or recoil mechanism.
- Multiple Listed Applications: Supplier-listed for selected Baja, Motovox, Hyundai, and small-engine equipment when dimensions match.
