Recoil Pull Starter for GX120 GX160 GX200 168F Engine
Recoil Pull Starter for GX120 GX160 GX200 168F Engine
Couldn't load pickup availability
Product Overview

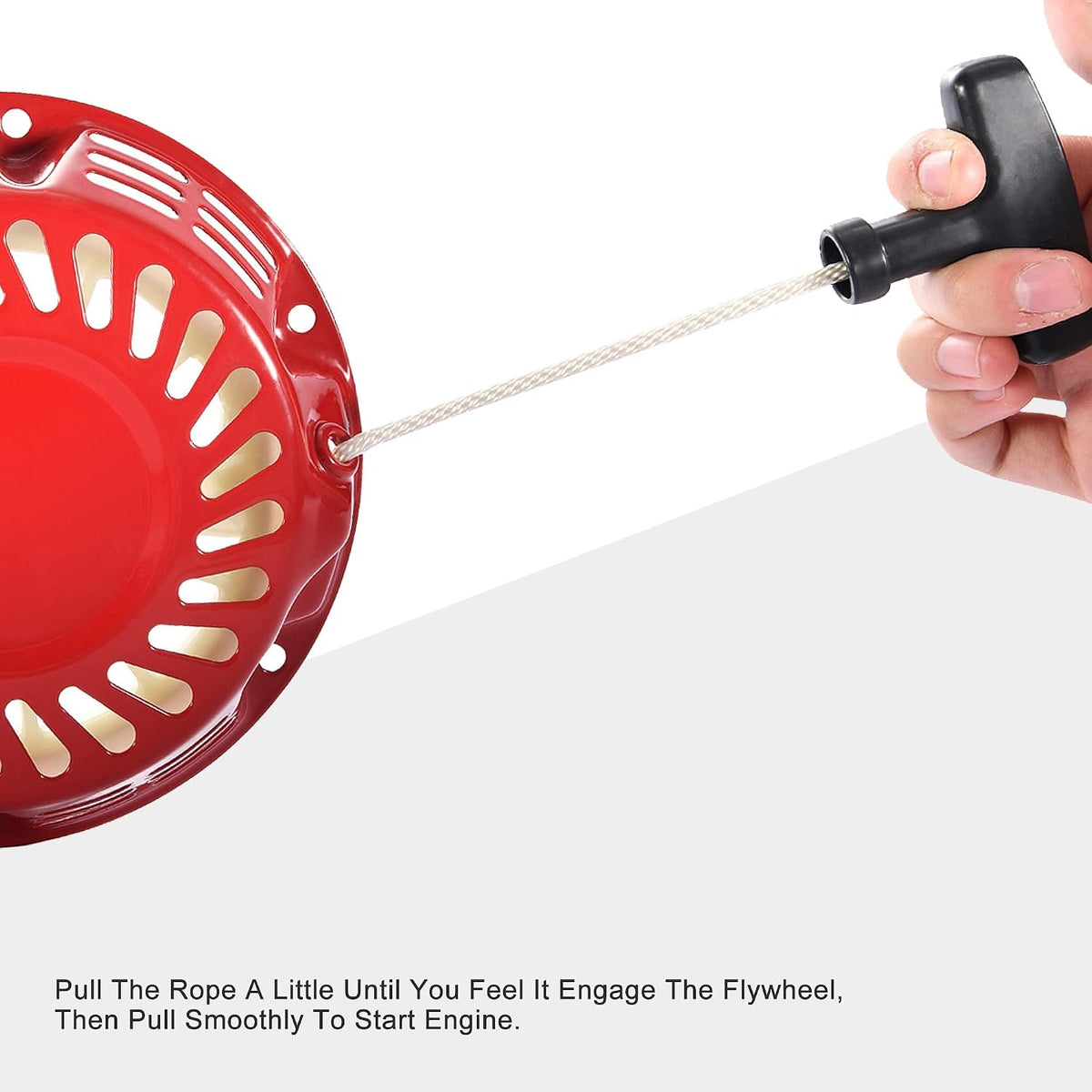

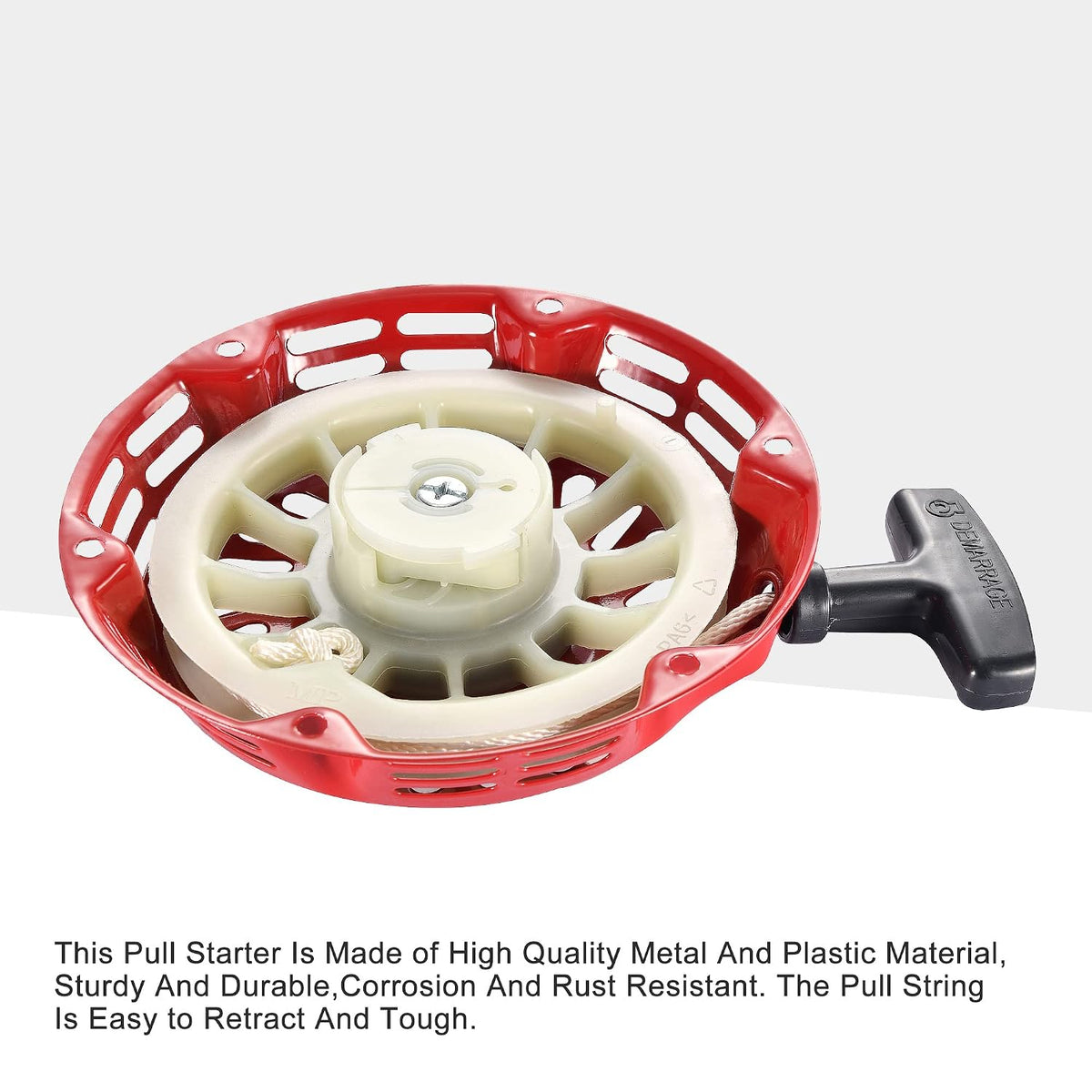

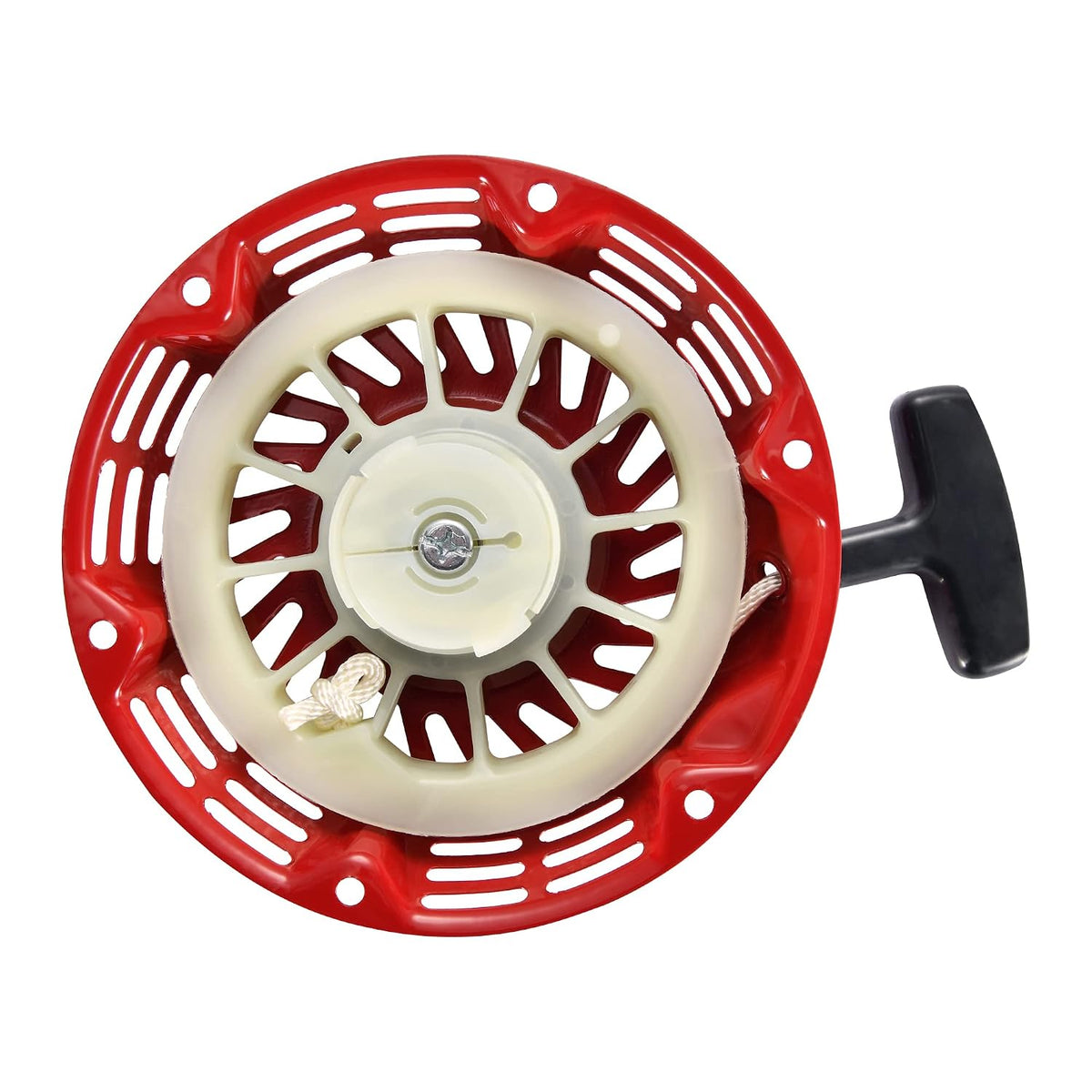

Replacement recoil pull starter assembly for selected GX120, GX160, GX200, and 168F horizontal-shaft gasoline engines used in generators, pressure washers, water pumps, lawn and garden equipment, and other small-engine applications.

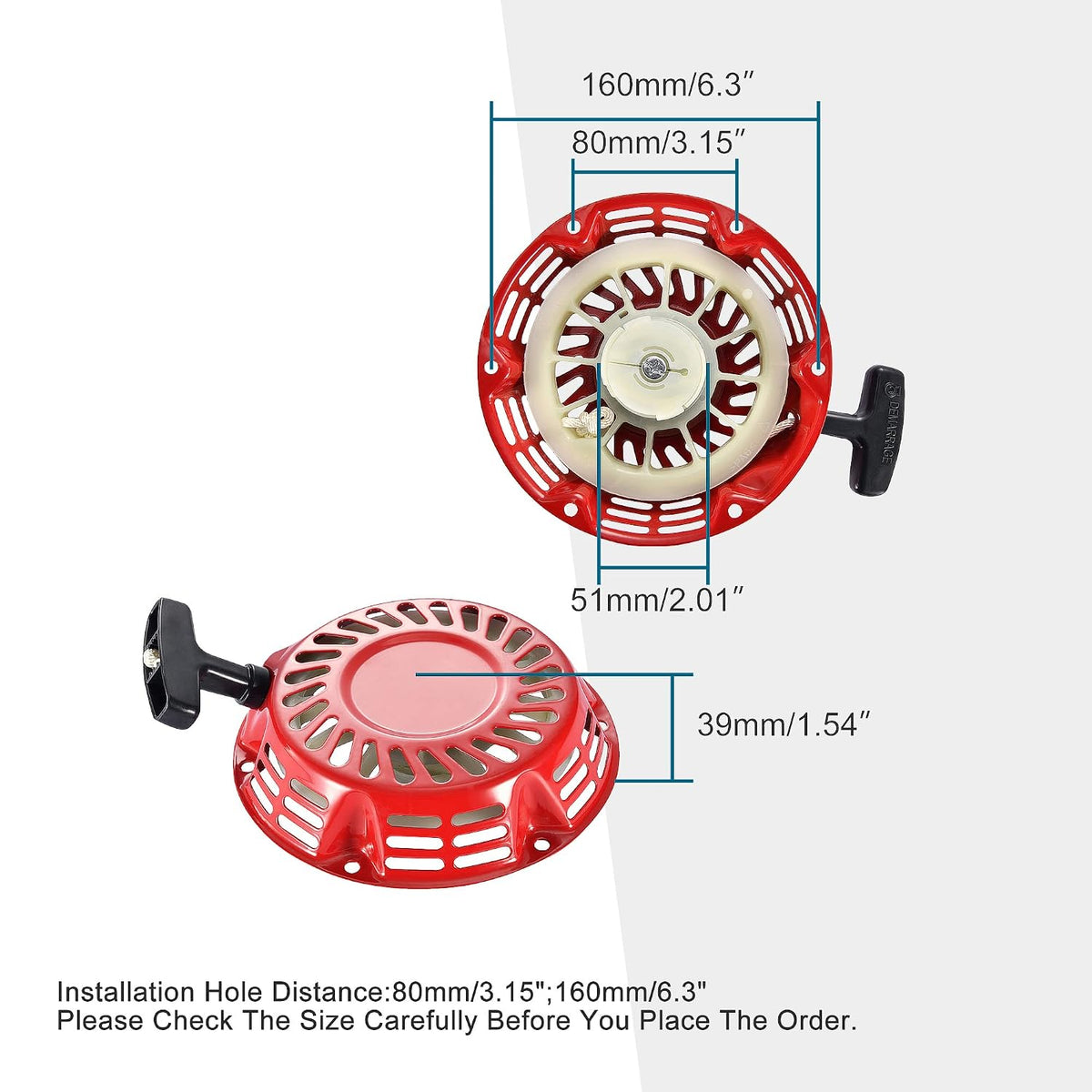

This starter uses a 6-bolt mounting configuration with a listed approximately 160mm (6.30") mounting reference and 53mm (2.09") center / engagement diameter.
It is commonly used on compatible 168F, GX160, and GX200-style 5.5HP / 6.5HP-class engines, but similar-looking engines can use different starter housings and engagement mechanisms.
Before ordering, compare the 6-hole mounting pattern, housing diameter, mounting dimensions, center engagement area, starter pawls, and overall housing shape with the original recoil starter.
Product Compatibility
| Engine / Application | Fitment |
|---|---|
| GX120 | Selected Horizontal-Shaft Engine Applications |
| GX160 | Selected Horizontal-Shaft Engine Applications |
| GX200 | Selected Horizontal-Shaft Engine Applications |
| 168F | Selected Gasoline Engine Applications |
| Generator | Compatible GX / 168F Engine |
| Pressure Washer | Compatible GX / 168F Engine |
| Water Pump | Compatible GX / 168F Engine |
| Lawn / Garden Equipment | Compatible GX / 168F Engine |
| Grass Cutter / Utility Equipment | Compatible GX / 168F Engine |
Specifications
| Specification | Details |
|---|---|
| Product Type | Recoil Pull Starter Assembly |
| Starting Type | Manual Recoil / Pull Start |
| Listed Engines | GX120 / GX160 / GX200 / 168F |
| Mounting Configuration | 6 Bolt / 6 Hole |
| Listed Mounting Reference | Approx. 160 mm / 6.30 in |
| Listed Center / Engagement Diameter | Approx. 53 mm / 2.09 in |
| Common Engine Class | 5.5HP / 6.5HP-Class Applications |
| Application | Gasoline Small Engine Equipment |
| Replacement Type | Aftermarket |
| Condition | New |
Key Features
- GX / 168F Applications: Designed for selected GX120, GX160, GX200, and 168F-style gasoline engines.
- 6-Bolt Mounting Pattern: Important physical reference for comparing with the original starter.
- 160mm Listed Mounting Size: Helps distinguish this starter from smaller or larger recoil assemblies.
- 53mm Center Reference: Provides an additional measurement for checking the starter engagement area.
- Complete Pull-Start Assembly: Suitable for replacing a compatible damaged recoil housing, rope, spring, or engagement assembly.
