GOOFIT
Recoil Pull Starter for GXV140 GXV160 1P61P0 Lawn Mower Engine
Recoil Pull Starter for GXV140 GXV160 1P61P0 Lawn Mower Engine
Couldn't load pickup availability
Product Overview
Replacement recoil pull starter assembly for selected GXV140, GXV160, and 1P61P0 lawn mower engine applications.

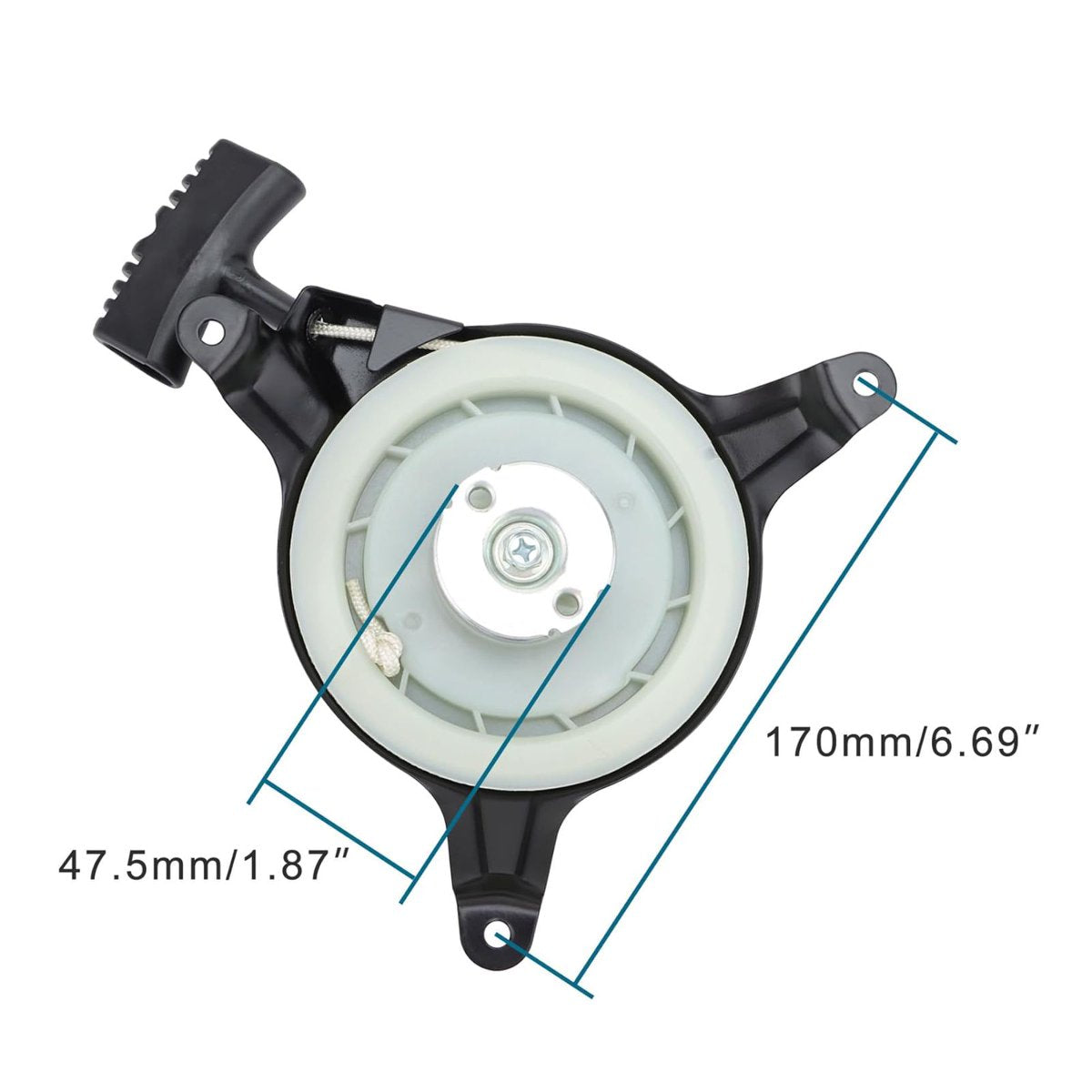

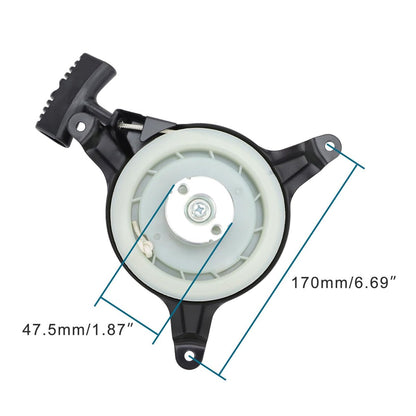

This pull-start assembly features approximately 170mm (6.7") mounting-hole spacing and a 47mm (1.9") center opening, providing important measurements for comparison with the original starter.
It is also listed as a replacement for selected MTD 1P61P0 applications using recoil starter references 751-10299, 751-10299A, 951-10299, and 951-10299A.
Because GXV140, GXV160, and MTD engine families may use different starter versions, verify the engine model, starter housing shape, mounting-hole spacing, center opening, starter engagement design, and original part number before ordering.
Product Compatibility
| Engine / Application | Fitment | Notes |
|---|---|---|
| GXV140 | Selected Lawn Mower Engines | Verify dimensions and original starter |
| GXV160 | Selected Lawn Mower Engines | Verify exact engine version and starter |
| 1P61P0 | MTD Engine Applications | Listed for 951-10299A family |
| MTD Lawn Mower | Selected Models | Verify engine model and OEM reference |
| Lawnflite / MTD Equipment | Selected Applications | Verify original starter |
MTD Engine Applications
The 951-10299A starter family is officially listed for multiple MTD engine models, including 1P61P0.
Other MTD applications may use the same OEM family, but fitment should always be confirmed using the engine model and original recoil starter number.
Known Exclusion
Not listed as compatible with the 1993 HR1950 mower application referenced by the supplier.
OEM Cross-Reference Numbers
MTD / Cub Cadet / Troy-Bilt Family
Current / Replacement Reference:
- 951-10299A
Earlier / Superseded References:
- 751-10299
- 751-10299A
- 951-10299
These references apply to the MTD-style recoil starter family and should not automatically be treated as Honda GXV OEM numbers.
Honda GXV140 / GXV160
Honda GXV engines use separate Honda recoil-starter part numbers depending on the exact engine version.
For example, GXV140 applications may use Honda 28400-ZG9-803, while GXV160 versions may use different 28400-series assemblies.
For GXV fitment, compare the actual starter configuration and engine identification rather than relying on the MTD OEM references above.
Specifications
| Specification | Details |
|---|---|
| Product Type | Recoil Pull Starter Assembly |
| Application | Lawn Mower Engine |
| Listed Engines | GXV140 / GXV160 / 1P61P0 |
| Mounting-Hole Spacing | Approx. 170 mm / 6.7 in |
| Center Opening Diameter | Approx. 47 mm / 1.9 in |
| MTD Reference | 951-10299A |
| Additional MTD References | 751-10299 / 751-10299A / 951-10299 |
| Housing Material | Metal |
| Starting Type | Manual Recoil / Pull Start |
| Replacement Type | Aftermarket |
| Condition | New |
Measurement Note: Compare the mounting-hole spacing using the same measurement points shown in the product image before ordering.
Key Features
- 170mm Mounting Spacing: Key physical measurement for confirming the correct recoil starter.
- 47mm Center Opening: Helps distinguish this assembly from similar-looking starter housings.
- GXV and MTD Applications: Listed for selected GXV140, GXV160, and 1P61P0 engines.
- MTD OEM Cross-References: Replaces compatible 751-10299 / 751-10299A / 951-10299 / 951-10299A applications.
- Complete Pull-Start Assembly: Designed to replace a compatible worn or damaged recoil starter assembly.
Share
Fitment FAQ
Will this part fit my specific model and year?
This starter is listed for selected GXV140, GXV160, and 1P61P0 lawn mower engine applications.
For the best fitment confirmation, compare the engine model and original starter with the 170mm mounting-hole spacing, 47mm center opening, mounting pattern, and starter engagement design.
Do I need to match the OEM part number?
For an MTD / 1P61P0 application, matching the OEM number is strongly recommended.
Listed MTD references include:
951-10299A
751-10299
751-10299A
951-10299
For GXV140 or GXV160 applications, do not assume these MTD numbers are Honda OEM references. Confirm the physical starter design and exact engine version.
What models or situations does this part not fit?
Do not assume this starter fits:
Every GXV140 engine
Every GXV160 engine
Lawn mower engines with different mounting-hole spacing
Starters with a different center opening
Engines using a different recoil engagement mechanism
Applications with a different starter housing shape
The listed 1993 HR1950 mower exclusion
Similar-looking recoil starters are not necessarily interchangeable.
What should I check before ordering?
Confirm:
Engine model
Engine type / serial information where available
Original starter part number
170mm / 6.7" mounting-hole spacing
47mm / 1.9" center opening
Number and position of mounting holes
Starter housing shape
Recoil engagement mechanism
Pull-rope orientation
For MTD 1P61P0 applications, also check for 951-10299A, 951-10299, 751-10299A, or 751-10299 on the original parts documentation.
