2018–2021 Sea-Doo GTI GTX GTR RXP RXT WAKE 18-Coil 3-Wire Stator 420889728
2018–2021 Sea-Doo GTI GTX GTR RXP RXT WAKE 18-Coil 3-Wire Stator 420889728
Couldn't load pickup availability
Product Overview
Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select Sea-Doo personal watercraft models using OEM reference number 420889728.
The stator is an important part of the Sea-Doo charging system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, sensors, and other electrical components. If your Sea-Doo GTI, GTX, GTR, RXP, RXT, WAKE, WAKE PRO, or FISH PRO has weak charging, low battery voltage, unstable electrical output, or stator-related failure, replacing the stator may help restore normal charging performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and reliable marine use. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Sea-Doo | GTI 130 | 2018–2020 | 420889728 | Main fitment; confirm original stator and plug layout |
| Sea-Doo | GTI 130 PRO | 2020 | 420889728 | Fits matching 18-coil 3-wire stator version |
| Sea-Doo | GTI SE 130 | 2020–2021 | 420889728 | Compare OEM number and stator dimensions before purchase |
| Sea-Doo | GTI SE 170 | 2020 | 420889728 | Confirm wire count, plug style, and mounting holes |
| Sea-Doo | GTI 155 | 2018–2019 | 420889728 | Fits matching stator application only |
| Sea-Doo | GTX 155 | 2018–2019 | 420889728 | Check original stator before ordering |
| Sea-Doo | GTX 170 | 2020–2021 | 420889728 | Must match OEM number and connector layout |
| Sea-Doo | GTX 230 | 2018–2021 | 420889728 | Fits select models using the same stator design |
| Sea-Doo | GTX 300 | 2018–2021 | 420889728 | Confirm original dimensions before purchase |
| Sea-Doo | GTX Limited 300 | 2021 | 420889728 | Verify OEM number and plug layout |
| Sea-Doo | GTX PRO 130 | 2021 | 420889728 | Fits matching 3-wire stator version only |
| Sea-Doo | GTR 230 | 2018–2021 | 420889728 | Compare original stator and connectors |
| Sea-Doo | RXP 300 | 2018–2019 | 420889728 | Main fitment; confirm OEM reference |
| Sea-Doo | RXP-X 300 | 2021 | 420889728 | Verify original stator dimensions before ordering |
| Sea-Doo | RXT 230 | 2018–2020 | 420889728 | Fits only matching stator configuration |
| Sea-Doo | RXT 300 | 2018–2020 | 420889728 | Confirm wire count and mounting hole distance |
| Sea-Doo | WAKE 155 | 2018–2019 | 420889728 | Check OEM number and plug style |
| Sea-Doo | WAKE 170 | 2020 | 420889728 | Fits matching stator application only |
| Sea-Doo | WAKE PRO 230 | 2018–2021 | 420889728 | Compare original stator before purchase |
| Sea-Doo | FISH PRO 170 | 2019–2021 | 420889728 | Confirm OEM number, size, and connector layout |
Important Fitment Note:
This part is not selected by engine size or model family alone. Sea-Doo GTI, GTX, GTR, RXP, RXT, WAKE, and FISH PRO models may use different charging components depending on year, engine version, and market. Please confirm your original stator matches OEM 420889728, the 18-coil / 3-wire layout, and the dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

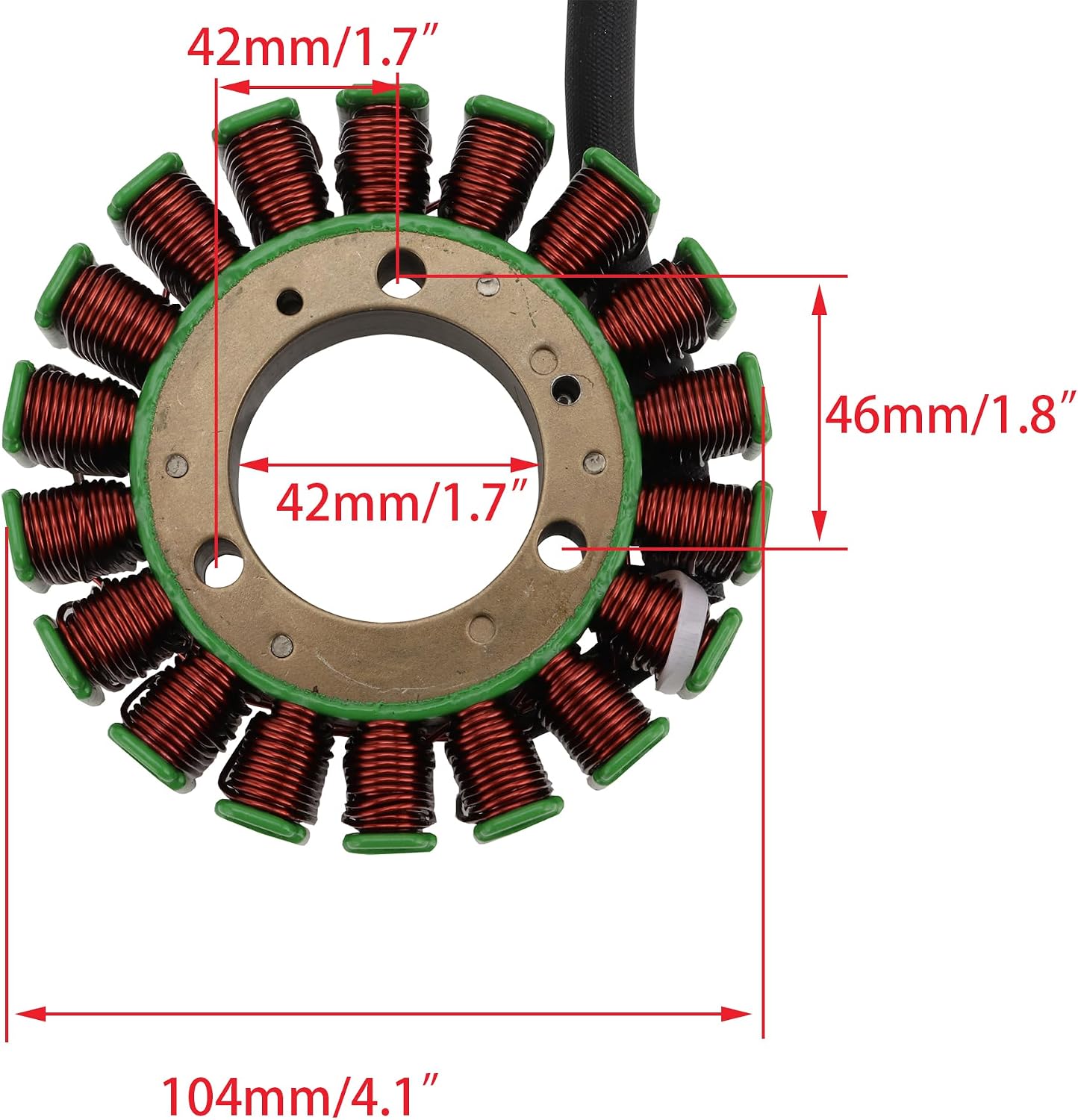

| Inner Diameter | 42mm / 1.7" |
| Outer Diameter | 104mm / 4.1" |

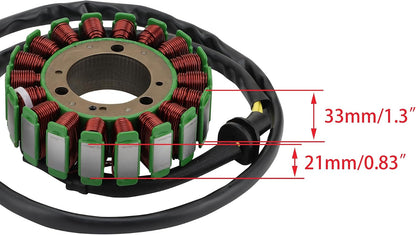

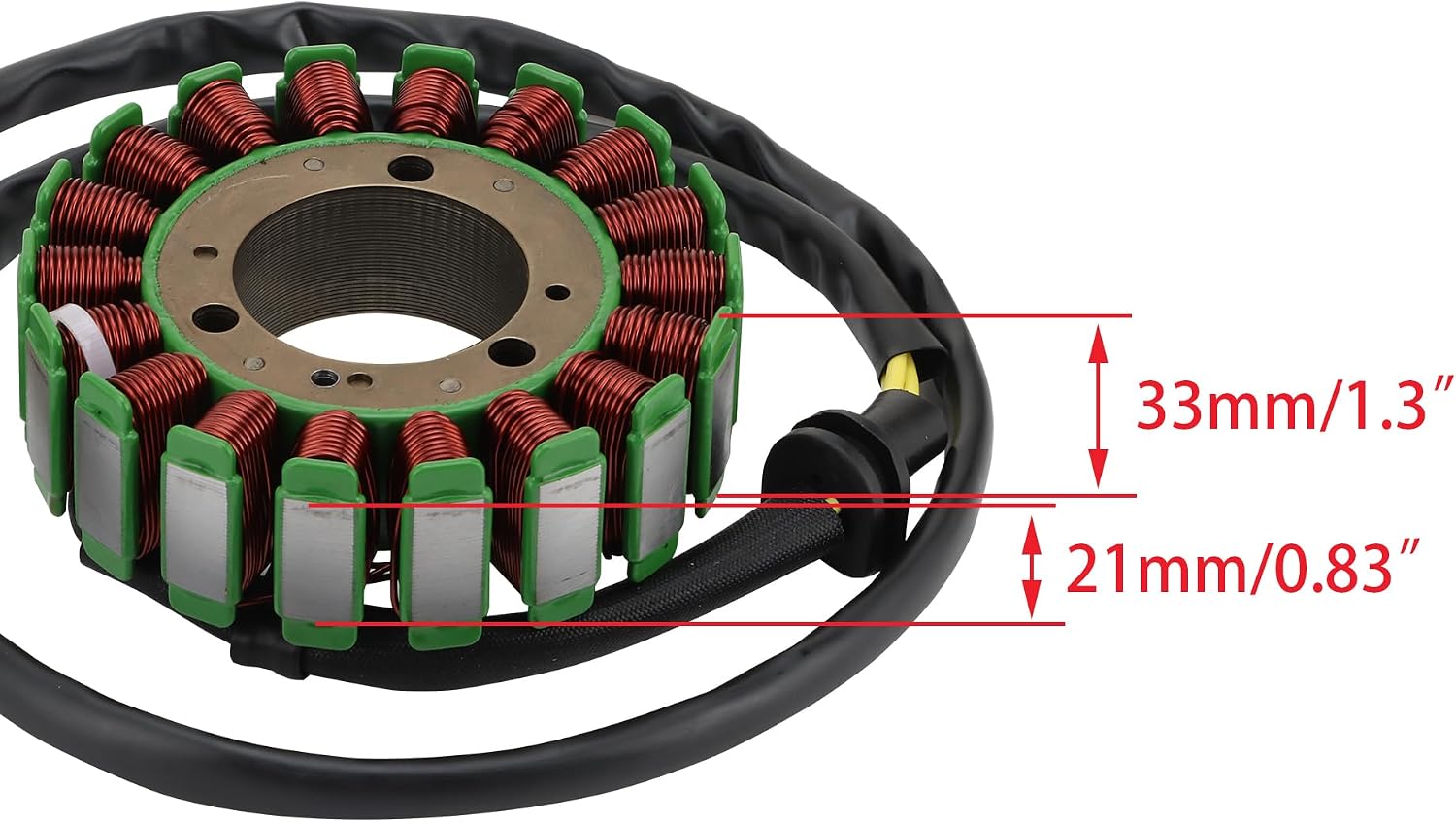

| Iron Core Height | 21mm / 0.83" |
| Mounting Hole Distance | 42mm / 1.7" and 46mm / 1.8" |
| Thickness | 33mm / 1.3" |
| OEM Reference | 420889728 |
| Application | Sea-Doo PWC Charging System |
| Compatible Brand | Sea-Doo |
| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select Sea-Doo GTI, GTX, GTR, RXP, RXT, WAKE, WAKE PRO, and FISH PRO models
- Replaces OEM reference number 420889728
- 18-coil 3-wire stator helps support stable charging system output
- Helps address weak charging, low battery voltage, unstable electrical output, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 420889728 | Main OEM reference for compatible Sea-Doo GTI / GTX / GTR / RXP / RXT / WAKE / FISH PRO stator applications |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Sea-Doo personal watercraft models using OEM reference number 420889728, including GTI, GTI SE, GTX, GTR, RXP, RXP-X, RXT, WAKE, WAKE PRO, and FISH PRO models from 2018–2021 depending on the exact submodel. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces OEM 420889728. However, OEM number alone is not enough. Please also confirm that your original stator uses the same 18-coil 3-wire design, connector style, mounting hole spacing, inner diameter, outer diameter, and overall thickness.
What models or situations does this part not fit?
This part does not fit Sea-Doo models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different OEM stator design. It is also not suitable if your issue is caused only by a weak battery, faulty regulator rectifier, damaged wiring, burned connector, poor ground connection, or another charging system component.
What should I check before ordering?
Before ordering, please check your Sea-Doo’s make, model, year, engine version, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
