Charge Coil for Yamaha 6HP F6 8HP F8 9.9HP F9.9 Outboards | 68T-85520-00
Charge Coil for Yamaha 6HP F6 8HP F8 9.9HP F9.9 Outboards | 68T-85520-00
Couldn't load pickup availability
High-Performance Stator Charge Coil for Yamaha 4-Stroke Outboards
Ensure your battery stays charged and your electronics stay powered. This premium aftermarket Stator Charge Coil is a precision-engineered replacement for Yamaha OEM part number 68T-85520-00. Specifically designed for the 4-stroke 6HP, 8HP, and 9.9HP series, it provides the stable electrical current necessary for reliable starts and consistent power delivery for your boat's accessories.
Constructed from high-quality copper windings and marine-grade insulating materials, this coil is built to withstand the unique challenges of the water, including high humidity, salt spray, and extreme engine temperatures. Its direct plug-and-play design matches factory connectors exactly, allowing for a straightforward installation that gets you back on the water quickly.
Product Compatibility
- Yamaha 6HP F6: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
- Yamaha 8HP F8 / FT8 / T8: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
- Yamaha 9.9HP F9.9 / FT9.9 / T9.9: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
- OEM Cross-Reference: 68T-85520-00, 68T-85520-00-00
Key Technical Specifications:
- Mounting Hole Diameter: 6mm (0.24")

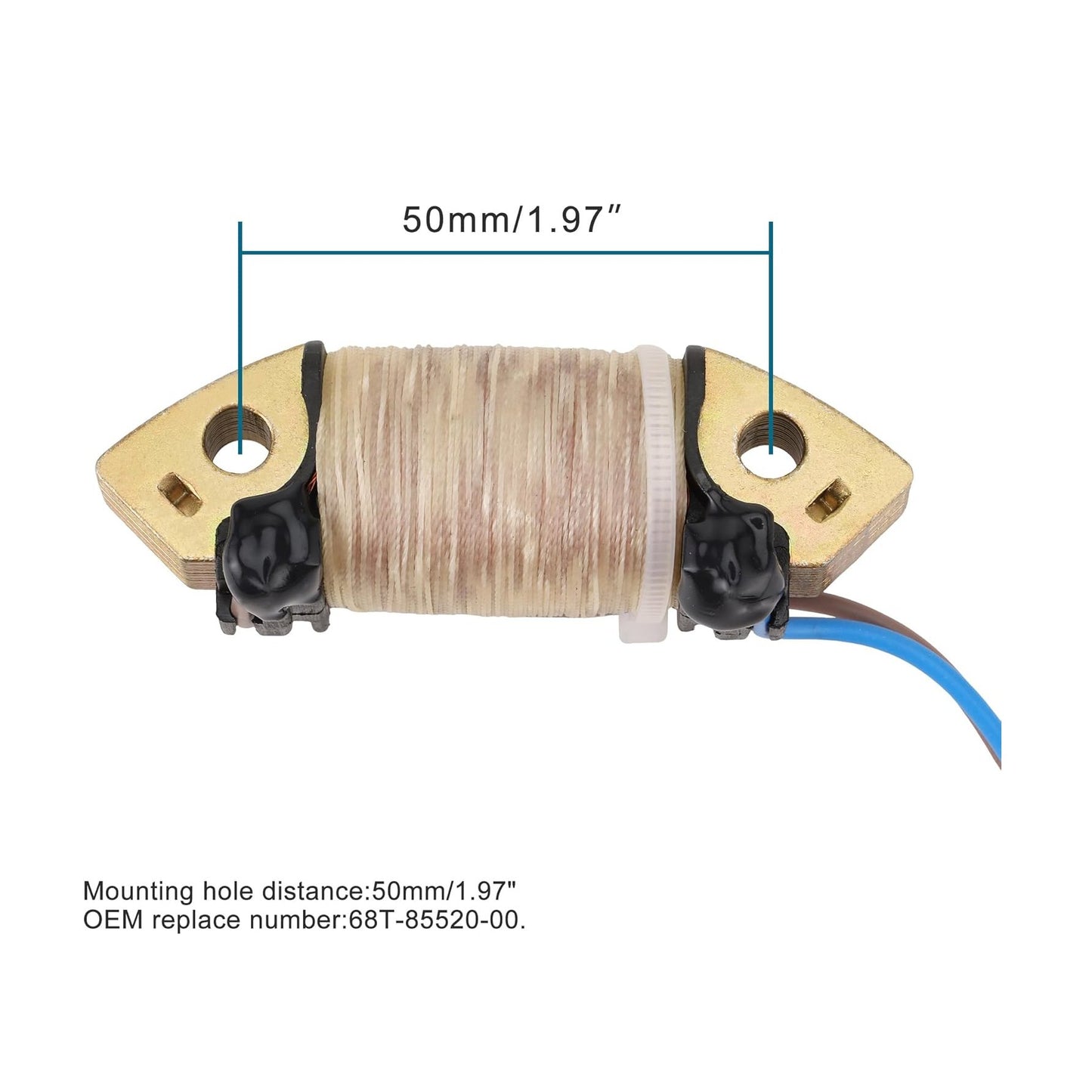

- Mounting Hole Distance: 50mm (2.0")
- Coil Thickness: 29mm (1.1")
- Coil Length: 37mm (1.5")
- Design: Direct "bolt-on" replacement with included connector
Why Choose This Charge Coil?
- Optimized Charging Efficiency: Engineered to deliver a stable and powerful electrical output, protecting your ignition system and ensuring your battery is topped off even during low-speed trolling.
- Marine-Grade Build: Utilizes heavy-duty lamination and heat-resistant copper to prevent thermal breakdown and corrosion in harsh saltwater environments.
- Hassle-Free Installation: Features an exact-fit design that aligns with factory mounting points and wiring harnesses—no splicing or modifications required.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Yamaha 6HP F6: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017; Yamaha 8HP F8 / FT8 / T8: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022; Yamaha 9.9HP F9.9 / FT9.9 / T9.9: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022. It is best matched to original part number(s) 68T-85520-00, 68T-85520-00-00. Key physical/spec details from the product data include Mounting Hole Diameter: 6mm (0.24"), Mounting Hole Distance: 50mm (2.0"), Coil Thickness: 29mm (1.1"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 68T-85520-00, 68T-85520-00-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 68T-85520-00, 68T-85520-00-00, treat the fitment as unconfirmed. Model years outside 2000, 2001, 2002, 2003, 2004 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 68T-85520-00, 68T-85520-00-00. Recheck listed specs such as Mounting Hole Diameter: 6mm (0.24"), Mounting Hole Distance: 50mm (2.0"), Coil Thickness: 29mm (1.1"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
