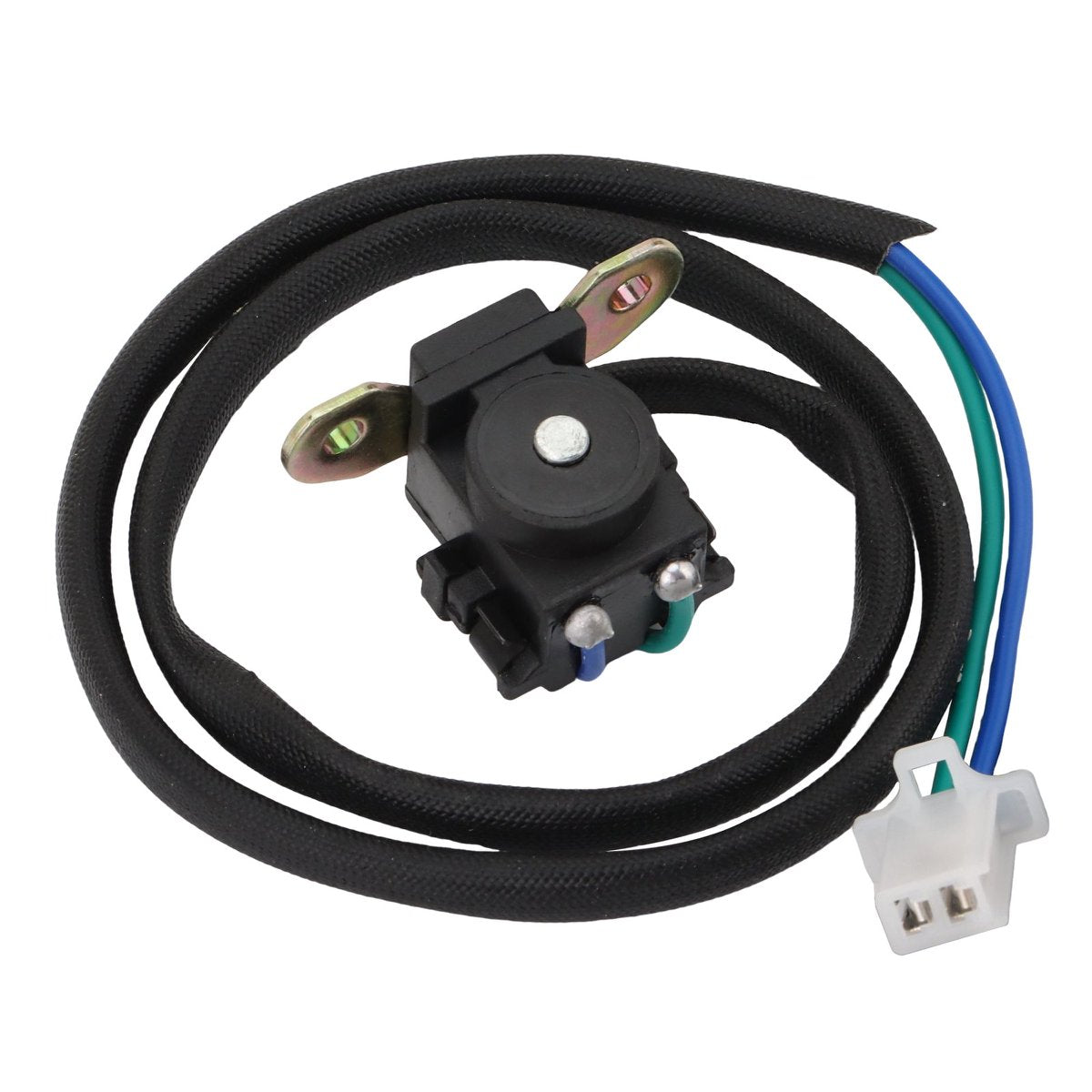

Stator Trigger Pickup Coil for 445 FD620D OEM AM118220
Stator Trigger Pickup Coil for 445 FD620D OEM AM118220
Couldn't load pickup availability
Product Overview
This stator trigger pickup coil is designed as a replacement ignition pickup coil for selected 445 FD620D applications, replacing OEM reference number AM118220.
The pickup coil works with the magneto and ignition system to detect engine timing signals and help trigger spark at the correct moment. A weak, damaged, or failed pickup coil may cause hard starting, no spark, intermittent ignition, misfiring, poor running, or engine stalling.

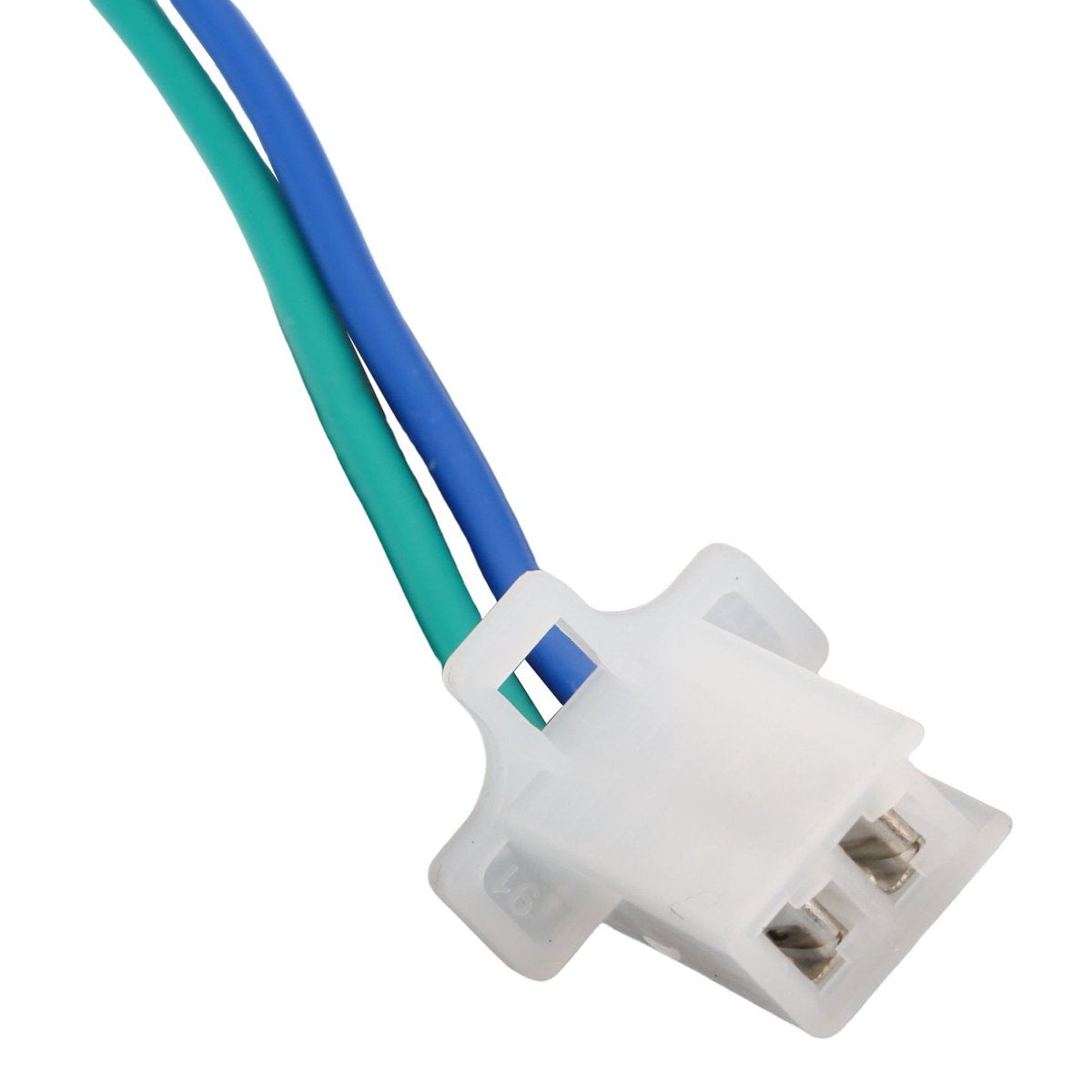

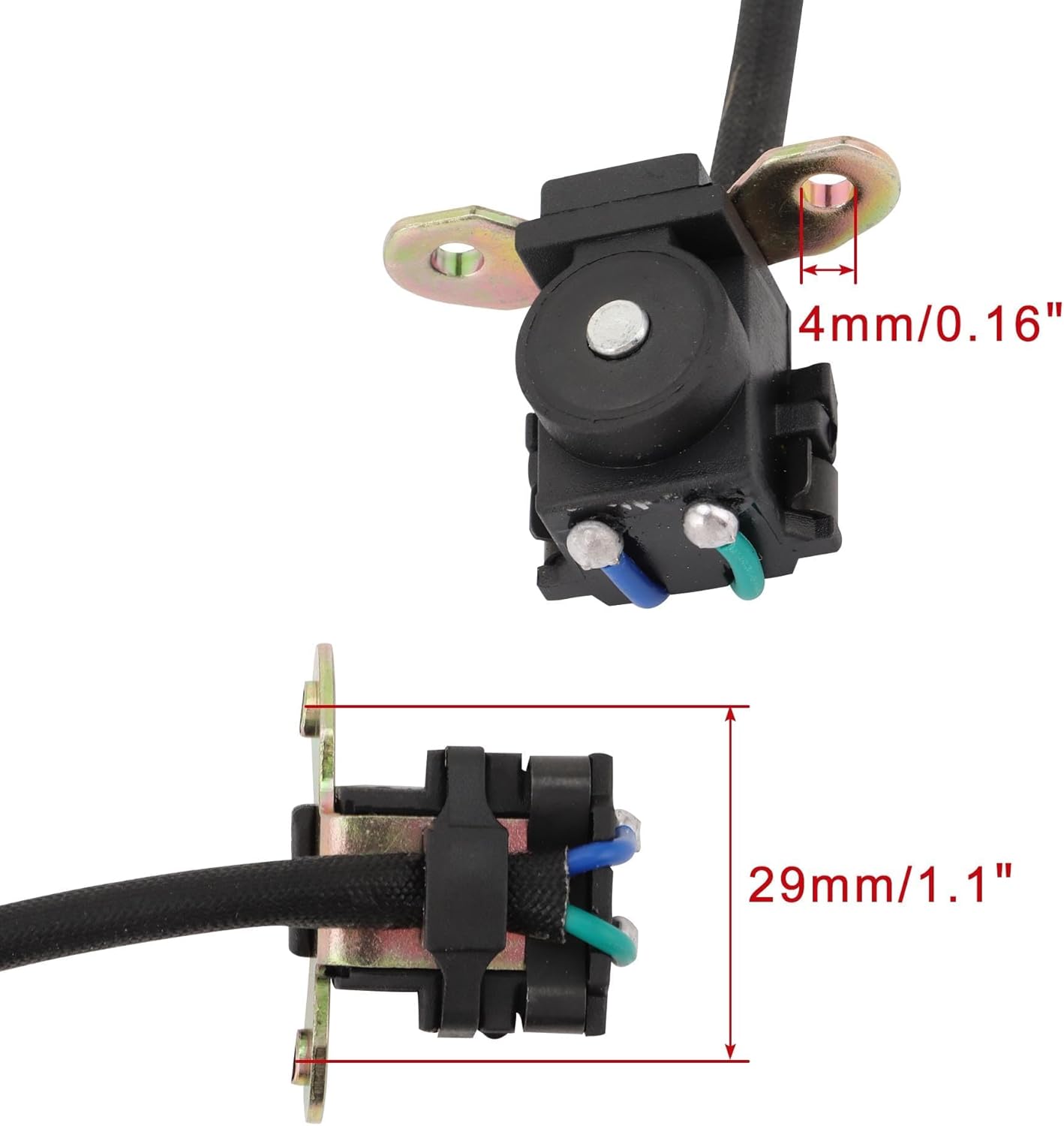

This replacement pickup coil features a 2-wire design, female plug, 4mm / 0.16" mounting hole diameter, and 29mm / 1.1" mounting hole distance. It is suitable for compatible ignition systems when the plug, wiring, mounting position, and coil shape match your original part.
Please compare the OEM part number, wire count, plug type, mounting hole distance, mounting hole diameter, connector shape, and product photos with your original pickup coil before ordering.
Product Compatibility
| Compatible Model / Engine | OEM Reference | Application |
|---|---|---|
| 445 FD620D | AM118220 | Stator trigger pickup coil replacement |
| Compatible ignition systems | AM118220 | Magneto pickup coil replacement when size matches |
⚠️ Please confirm your original pickup coil shape, female plug, mounting distance, and OEM part number before purchase.
Specifications
| Item | Details |
| Product Type | Stator Trigger Pickup Coil |
| Also Known As | Magneto Pickup Coil / Ignition Pickup Coil / Pulse Coil |
| Wire Count | 2 Wire |
| Plug Type | Female Plug |
| Mounting Hole Diameter | 4mm / 0.16" |
| Mounting Hole Distance | 29mm / 1.1" |
| OEM Reference Number | AM118220 |
| Compatible Application | 445 FD620D |
| Application | Ignition timing signal pickup |
| Condition | 100% Brand New |
Key Features
- Replacement stator trigger pickup coil for selected 445 FD620D applications
- Replaces OEM reference number AM118220
- 2-wire design with female plug for fitment verification
- 29mm mounting hole distance and 4mm mounting hole diameter
- Helps repair no-spark, hard-start, intermittent ignition, or misfire issues related to a faulty pickup coil
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator trigger pickup coil is designed for selected 445 FD620D applications and replaces OEM AM118220. Fitment depends on the OEM part number, female plug, wire count, mounting hole distance, mounting hole diameter, and pickup coil shape rather than model name alone.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This product is listed as a replacement for AM118220. You should also compare the 2-wire female plug, 29mm / 1.1" mounting hole distance, and 4mm / 0.16" mounting hole diameter with your original part.
What models or situations does this part not fit?
This part may not fit applications with a different ignition harness, different connector, different mounting position, different stator plate, or systems that require a complete stator assembly instead of a pickup coil only.
What should I check before ordering?
Before ordering, check your original OEM part number, wire count, plug type, mounting hole distance, mounting hole diameter, connector shape, coil shape, stator plate layout, and product photos. Make sure the replacement part matches your original ignition pickup coil.
