GOOFIT
Stator Trigger Pickup Coil for EN400 Vulcan 450 500 EX GPZ400 500
Stator Trigger Pickup Coil for EN400 Vulcan 450 500 EX GPZ400 500
Couldn't load pickup availability
Product Overview

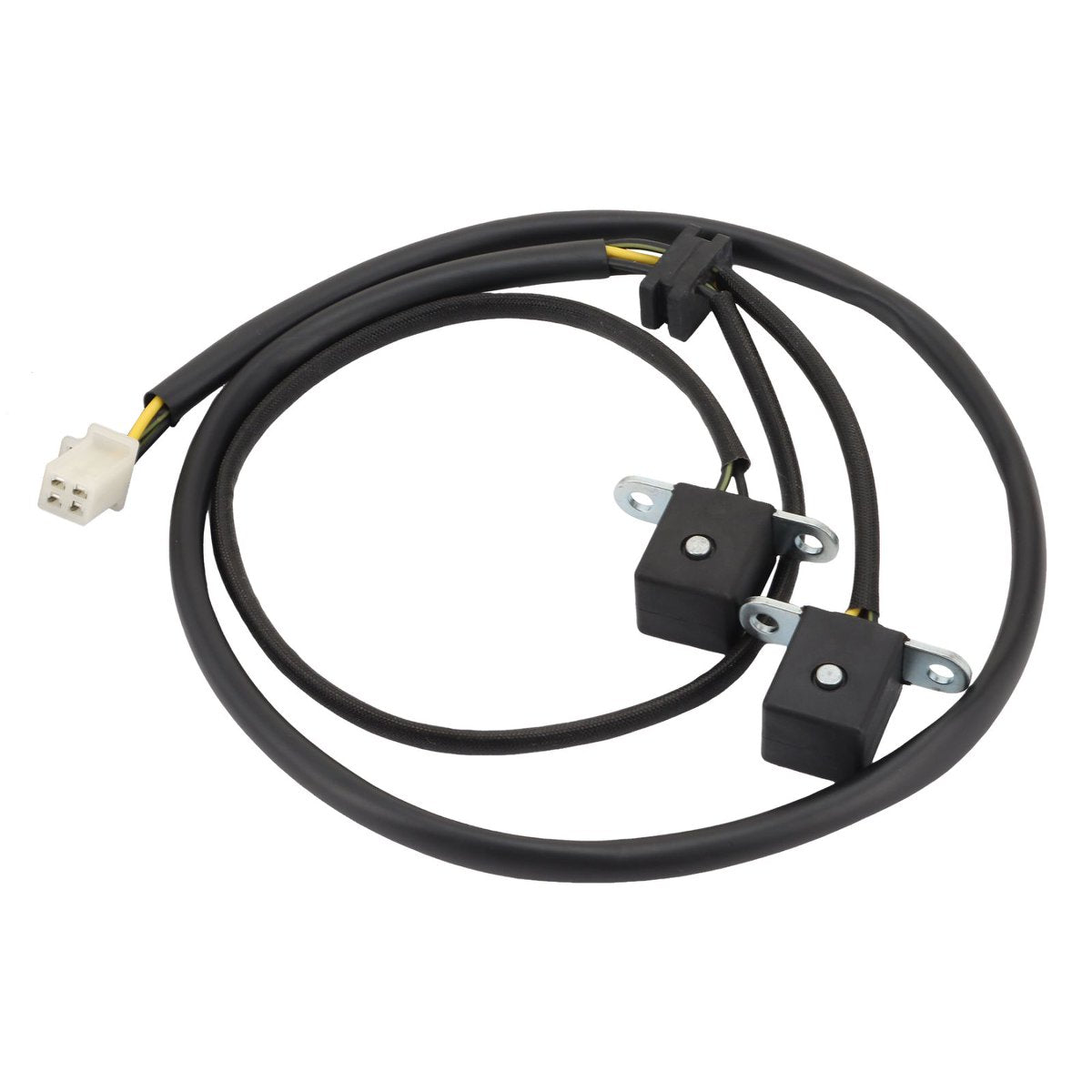

This stator trigger pickup coil is designed as a replacement ignition pickup coil for selected 1987-1996 EN400 Twin, Vulcan 450, Vulcan 500, EX, GPZ400, and GPZ500 motorcycle applications.
The pickup coil works with the magneto and ignition system to detect engine timing signals and help trigger spark at the correct moment. A weak, damaged, or failed pickup coil may cause hard starting, no spark, intermittent ignition, misfiring, poor running, or engine stalling.

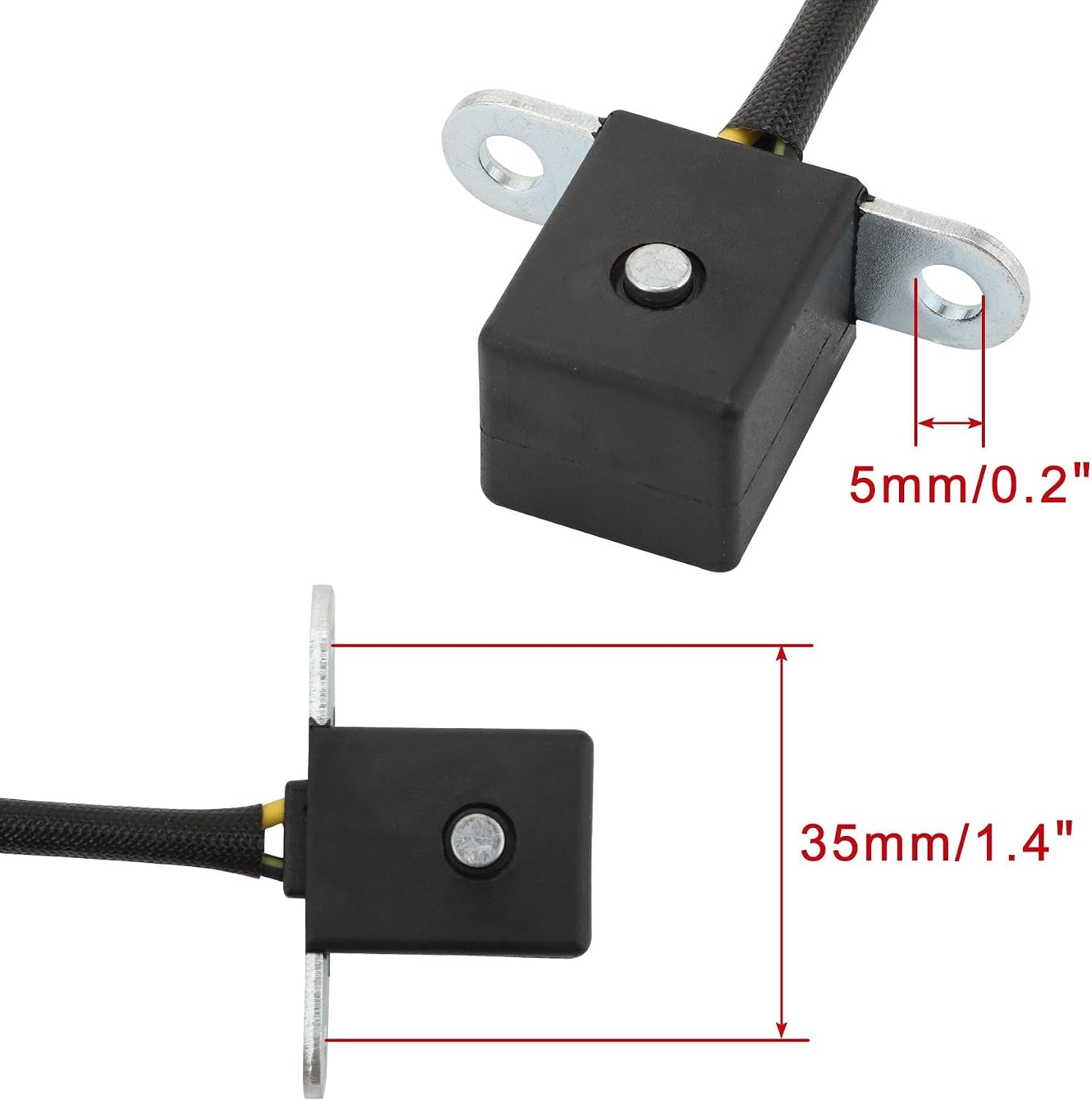

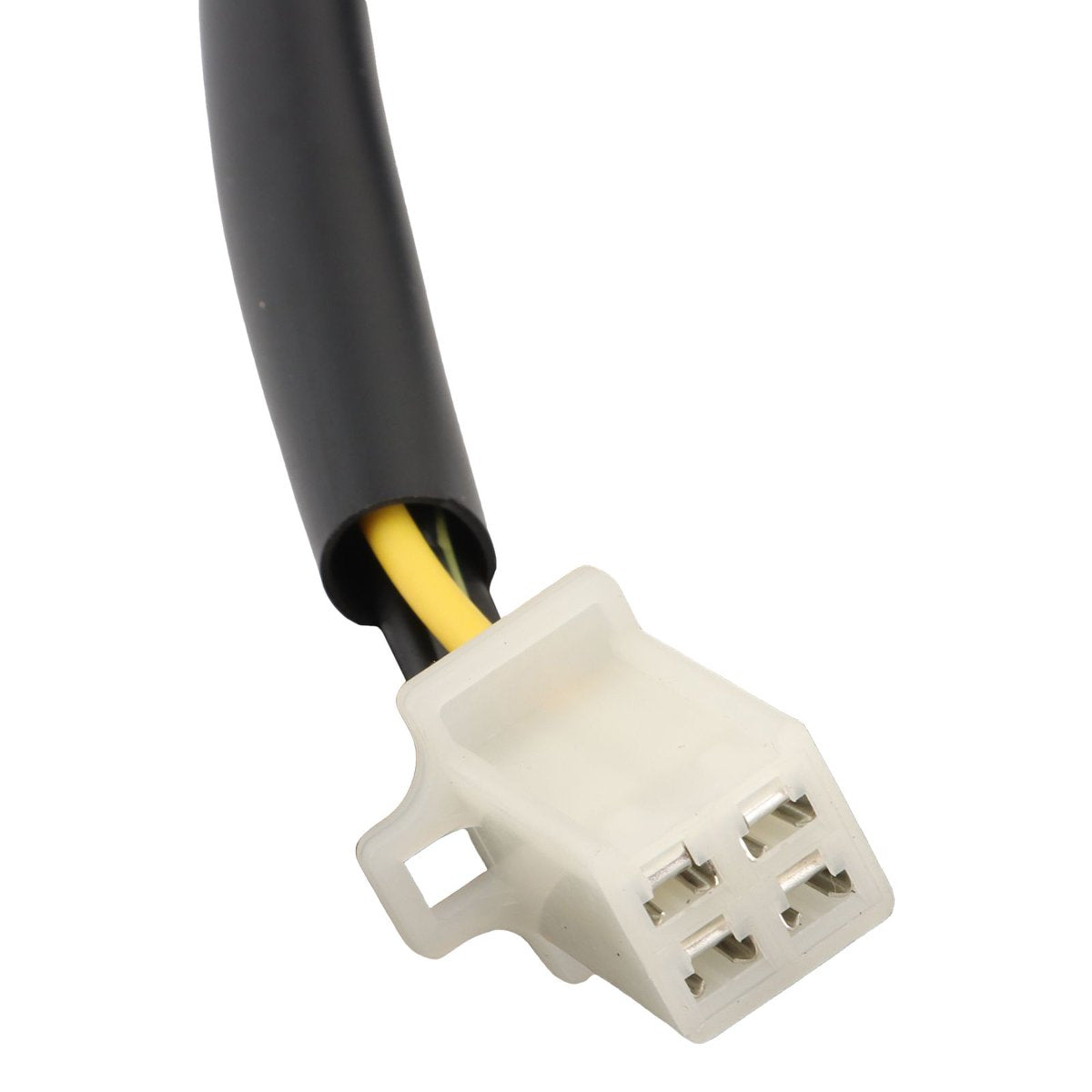

This replacement pickup coil features a 4-wire female plug design, 5mm / 0.20" mounting hole diameter, and 35mm / 1.4" mounting hole distance. It is suitable for compatible ignition systems when the plug, wiring, mounting position, and coil shape match your original part.
Please compare the wire count, plug type, mounting hole distance, mounting hole diameter, connector shape, and product photos with your original pickup coil before ordering.
Product Compatibility
| Compatible Model / Vehicle | Years | Application |
|---|---|---|
| EN400 Twin | 1987-1996 | Stator trigger pickup coil replacement |
| Vulcan 450 | 1987-1996 | Magneto pickup coil replacement when size matches |
| Vulcan 500 | 1987-1996 | Ignition pickup coil replacement |
| EX Series | 1987-1996 | Pickup coil replacement when connector matches |
| GPZ400 | 1987-1996 | Stator trigger coil replacement |
| GPZ500 | 1987-1996 | Ignition timing signal pickup replacement |
⚠️ Please confirm your original pickup coil shape, 4-wire female plug, mounting distance, and connector style before purchase.
Specifications
| Item | Details |
| Product Type | Stator Trigger Pickup Coil |
| Also Known As | Magneto Pickup Coil / Ignition Pickup Coil / Pulse Coil |
| Wire Count | 4 Wire |
| Plug Type | Female Plug |
| Mounting Hole Diameter | 5mm / 0.20" |
| Mounting Hole Distance | 35mm / 1.4" |
| Compatible Models | EN400 Twin / Vulcan 450 / Vulcan 500 / EX / GPZ400 / GPZ500 |
| Compatible Years | 1987-1996 |
| Application | Ignition timing signal pickup |
| Condition | 100% Brand New |
Key Features
- Replacement stator trigger pickup coil for selected EN, Vulcan, EX, and GPZ motorcycle models
- 4-wire female plug design for fitment verification
- 35mm mounting hole distance and 5mm mounting hole diameter
- Helps restore ignition timing signal for proper spark triggering
- Suitable for repairing no-spark, hard-start, intermittent ignition, or misfire issues related to a faulty pickup coil
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator trigger pickup coil may fit selected 1987-1996 EN400 Twin, Vulcan 450, Vulcan 500, EX, GPZ400, and GPZ500 motorcycle applications. Fitment depends on the connector, wire count, mounting hole distance, mounting hole diameter, and pickup coil shape rather than model name alone.
Do I need to match the OEM part number?
Matching the OEM part number is helpful, but for this pickup coil, the most important details are the 4-wire female plug, 35mm / 1.4" mounting hole distance, 5mm / 0.20" mounting hole diameter, and original connector style.
What models or situations does this part not fit?
This part may not fit motorcycles with a different ignition harness, different connector, different stator plate, different mounting position, different wire count, or systems that require a complete stator assembly instead of a pickup coil only.
What should I check before ordering?
Before ordering, check your original pickup coil wire count, plug type, connector shape, mounting hole distance, mounting hole diameter, screw spacing, coil shape, stator plate layout, and product photos. Make sure the replacement part matches your original ignition pickup coil.
