Stator Trigger Pickup Coil for ER5 EN500 Vulcan 500 EX500 Ninja 500R
Stator Trigger Pickup Coil for ER5 EN500 Vulcan 500 EX500 Ninja 500R
Couldn't load pickup availability
Product Overview

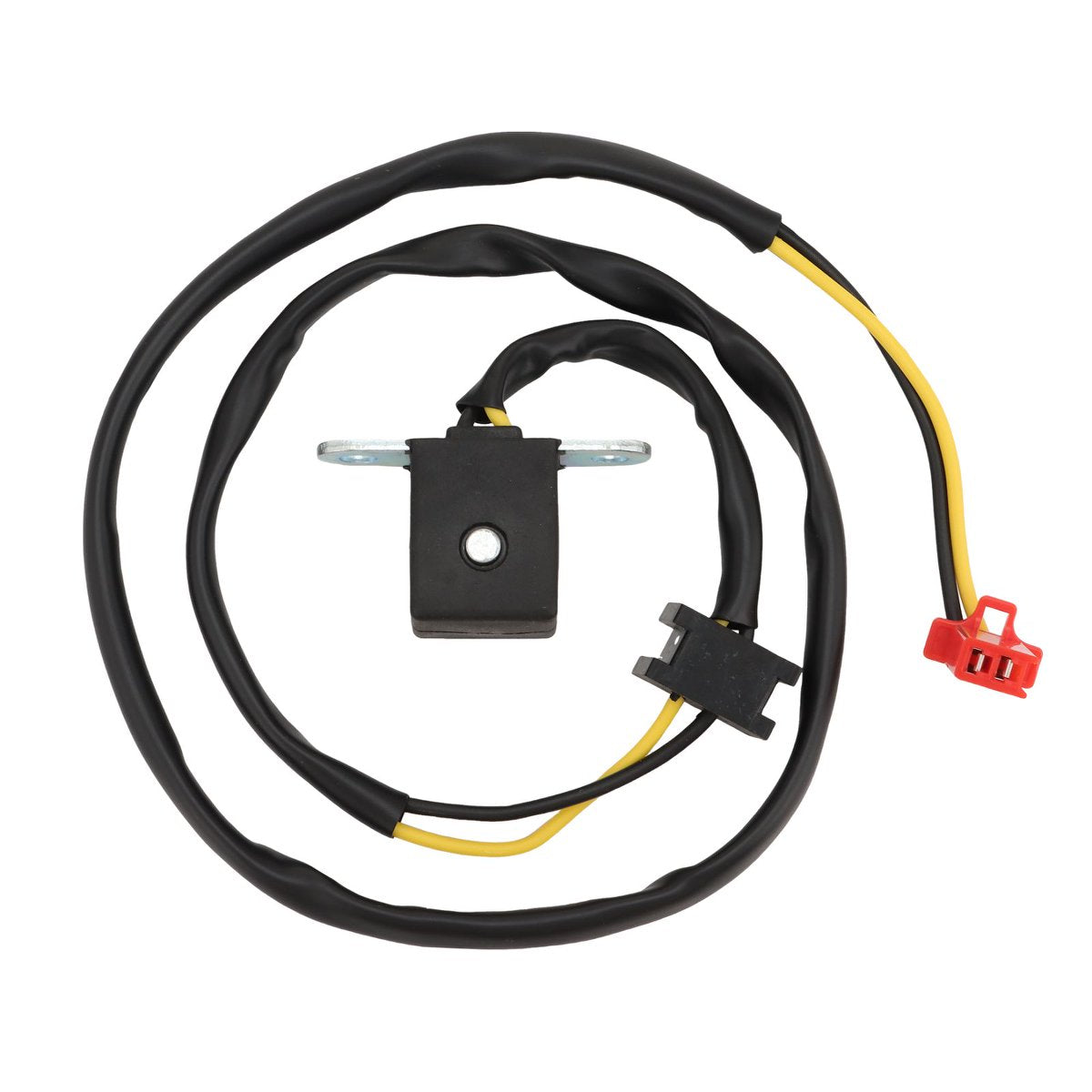

This stator trigger pickup coil is designed as a replacement ignition pickup coil for selected ER5, EN500 Vulcan 500 LTD, Ninja 500, EX500, and Ninja 500R motorcycle applications.
The pickup coil works with the magneto, stator, flywheel, and ignition system to detect engine timing signals and help trigger spark at the correct moment. A weak, damaged, or failed pickup coil may cause hard starting, no spark, intermittent ignition, misfiring, poor running, or engine stalling.

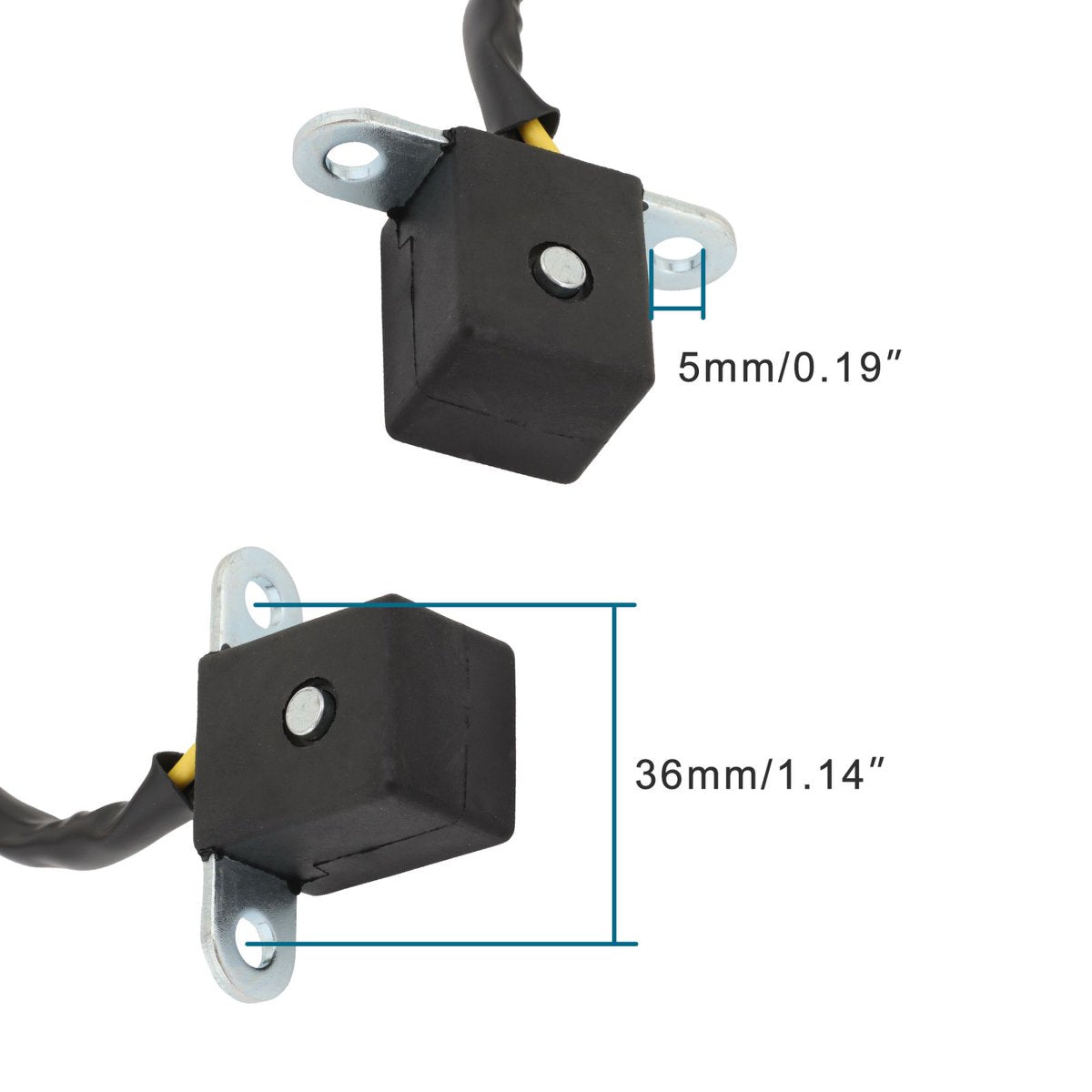

This replacement pickup coil is listed as a replacement for OEM reference numbers 59026-1141 and 59026-1105. It features a 36mm / 1.41" installation hole distance and 5mm / 0.19" installation hole diameter for fitment verification.

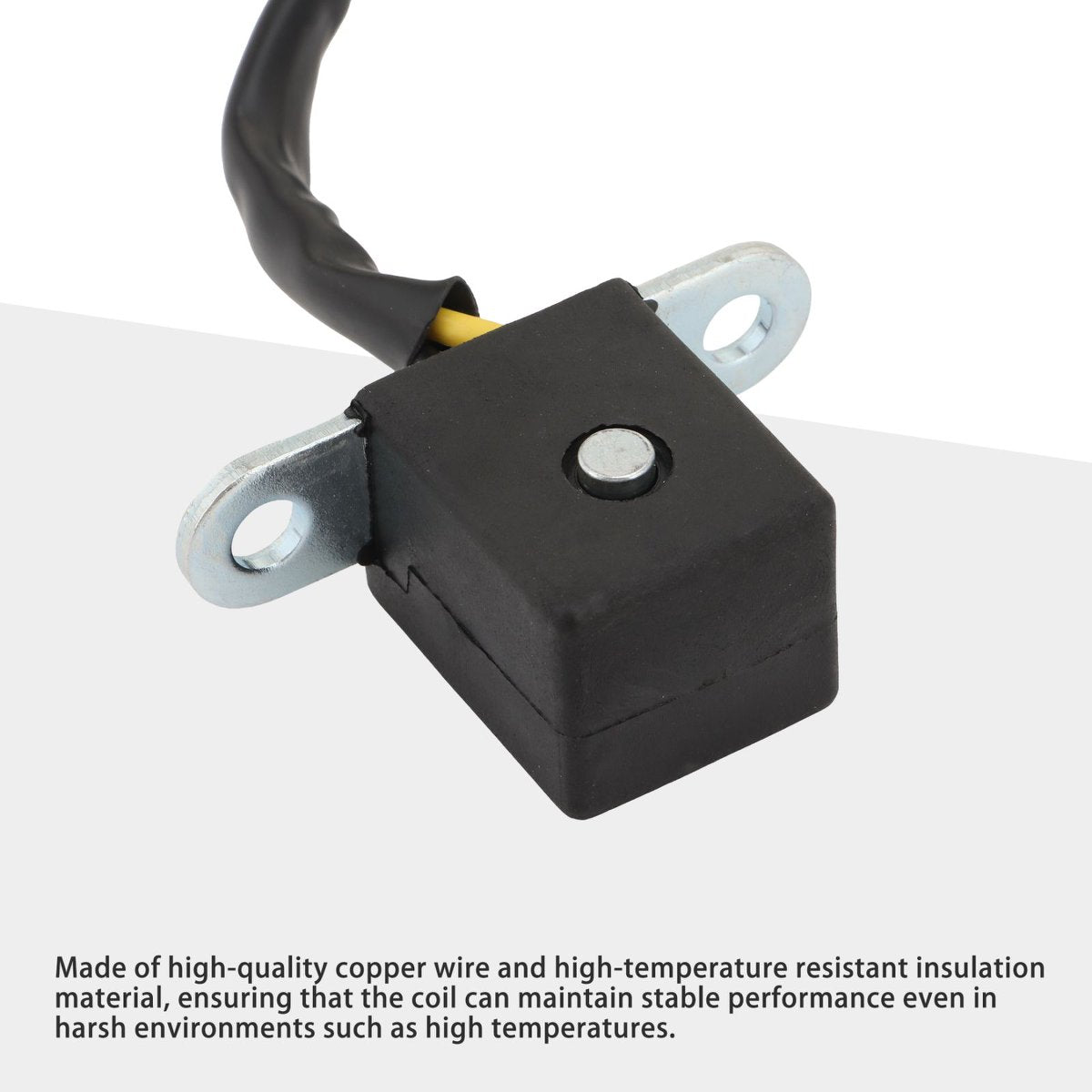

Made with copper wire and high-temperature-resistant insulation material, this pickup coil is designed to support stable ignition signal output in demanding motorcycle engine environments.

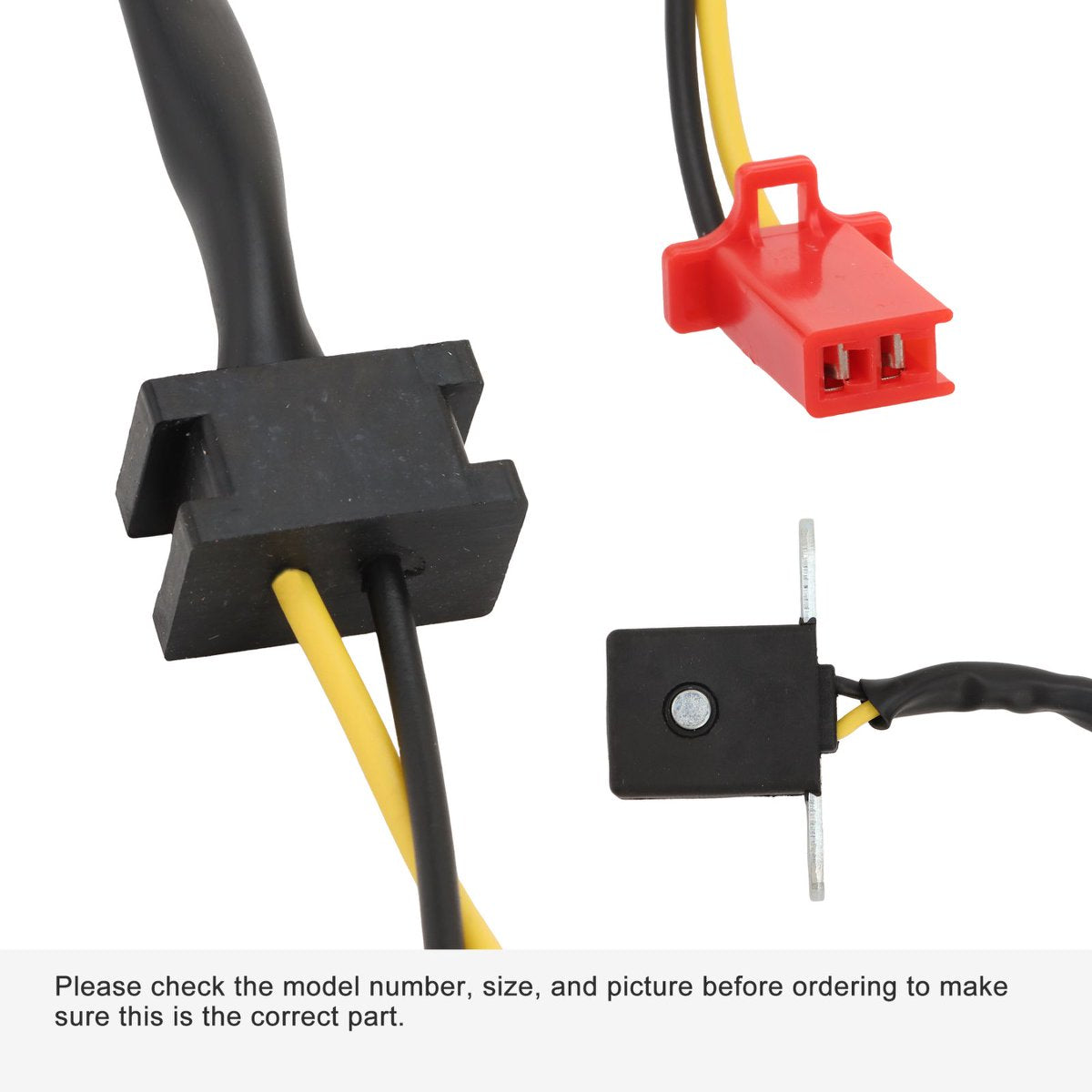

Please compare the OEM part number, mounting hole distance, mounting hole diameter, connector style, wire routing, coil shape, and product photos with your original part before ordering.
Product Compatibility
| Compatible Model | Application |
|---|---|
| ER5 | Stator trigger pickup coil replacement |
| EN500 Vulcan 500 LTD | Ignition pickup coil replacement |
| Ninja 500 D1-D12 | Pickup coil replacement when size matches |
| EX500 E1-E9 | Magneto trigger coil replacement |
| Ninja 500R D6-D | Ignition timing signal pickup replacement |
OEM Cross References
| OEM Part Number |
| 59026-1141 |
| 59026-1105 |
⚠️ Please confirm your original OEM part number, connector, mounting distance, and pickup coil shape before purchase.
Specifications
| Item | Details |
| Product Type | Stator Trigger Pickup Coil |
| Also Known As | Magneto Pickup Coil / Ignition Pickup Coil / Pulse Coil |
| Installation Hole Distance | 36mm / 1.41" |
| Installation Hole Diameter | 5mm / 0.19" |
| OEM Reference Numbers | 59026-1141 / 59026-1105 |
| Compatible Models | ER5 / EN500 Vulcan 500 LTD / Ninja 500 / EX500 / Ninja 500R |
| Material | Copper Wire with High-Temperature-Resistant Insulation |
| Application | Ignition timing signal pickup |
| Condition | 100% Brand New |
Key Features
- Replacement stator trigger pickup coil for selected ER5, EN500, EX500, and Ninja 500 models
- Replaces OEM reference numbers 59026-1141 and 59026-1105
- 36mm installation hole distance and 5mm installation hole diameter for fitment verification
- Copper wire and heat-resistant insulation support stable ignition signal performance
- Helps repair no-spark, hard-start, intermittent ignition, or misfire issues related to a faulty pickup coil
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator trigger pickup coil may fit selected ER5, EN500 Vulcan 500 LTD, Ninja 500, EX500, and Ninja 500R motorcycle applications. Fitment depends on the OEM part number, connector style, mounting hole distance, mounting hole diameter, wire routing, and pickup coil shape.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This product is listed as a replacement for 59026-1141 and 59026-1105. You should also compare the 36mm / 1.41" installation hole distance and 5mm / 0.19" installation hole diameter with your original part.
What models or situations does this part not fit?
This part may not fit motorcycles with a different ignition harness, different connector, different stator plate, different mounting position, different pickup coil shape, or systems that require a complete stator assembly instead of a pickup coil only.
What should I check before ordering?
Before ordering, check your original OEM part number, connector type, wire routing, installation hole distance, installation hole diameter, screw spacing, coil shape, stator plate layout, and product photos. Make sure the replacement part matches your original ignition pickup coil.
