Stator Trigger Pickup Coil for TRX450R TRX450ER 2004-2005 OEM 31120-HP1-003
Stator Trigger Pickup Coil for TRX450R TRX450ER 2004-2005 OEM 31120-HP1-003
Couldn't load pickup availability
Product Overview
This stator trigger pickup coil is designed as a replacement ignition pickup coil for selected 2004-2005 TRX450R / TRX450ER Sportrax ATV, 4-wheeler, and quad applications.
The pickup coil works with the stator, flywheel, CDI, and ignition system to detect engine timing signals and help trigger spark at the correct moment. A weak, damaged, or failed pickup coil may cause no spark, hard starting, intermittent ignition, misfiring, poor running, or engine stalling.

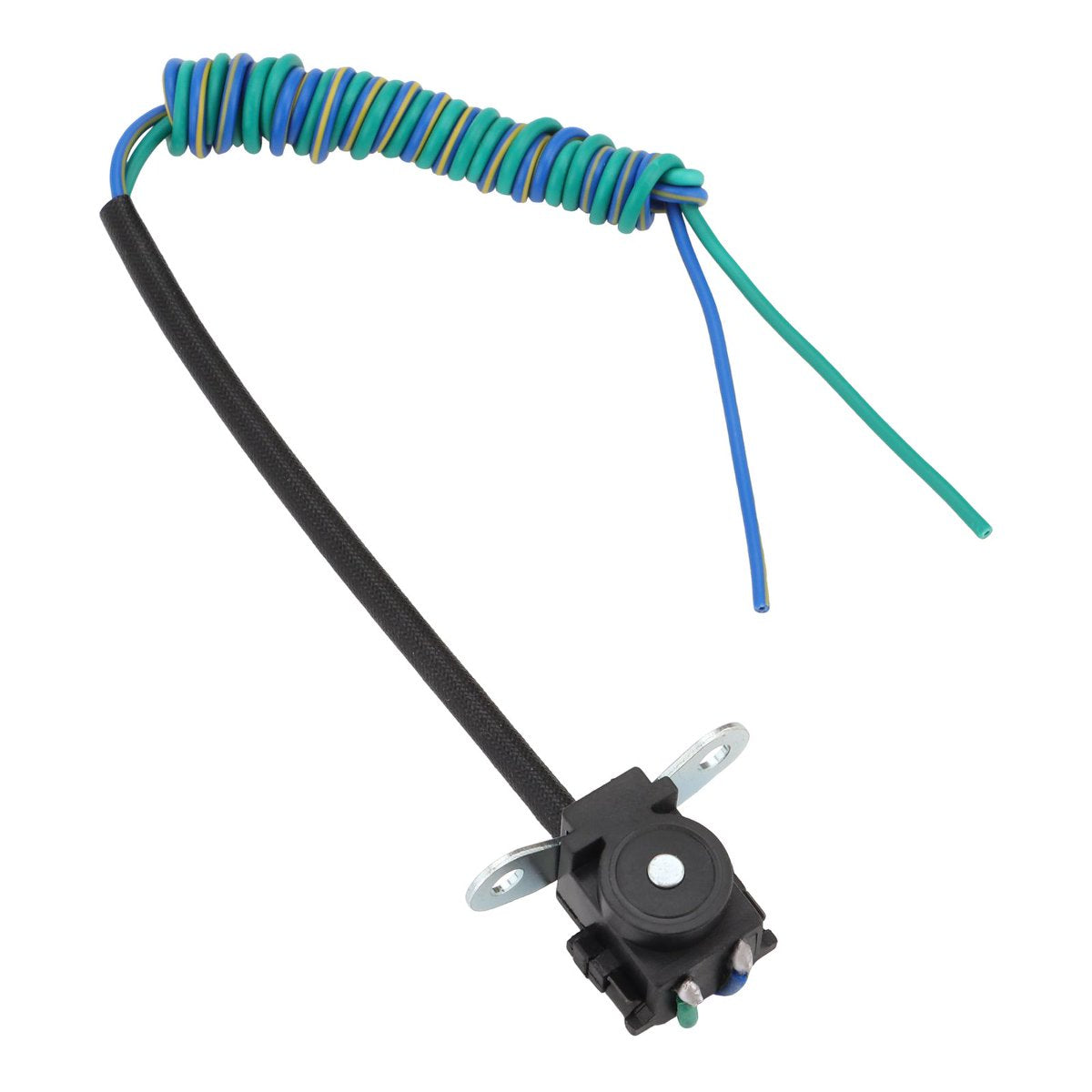

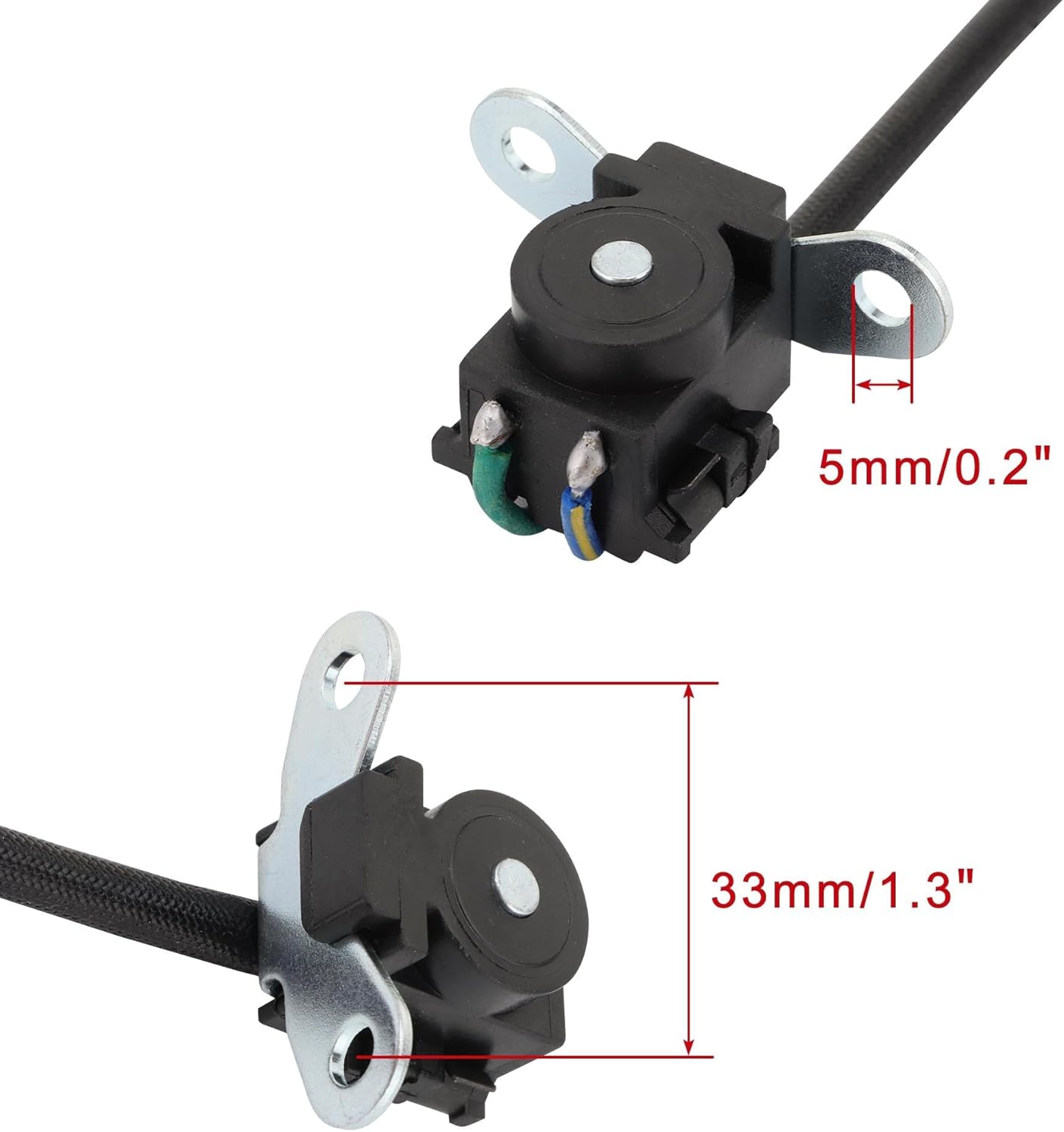

This replacement pickup coil features a 2-wire design, 5mm / 0.20" mounting hole diameter, 33mm / 1.3" mounting hole distance, and replaces OEM reference number 31120-HP1-003.
Please compare the OEM part number, wire count, mounting hole distance, mounting hole diameter, connector style, wire routing, and product photos with your original pickup coil before ordering.
Product Compatibility
| Compatible Model | Years | OEM Reference | Application |
|---|---|---|---|
| TRX450R | 2004-2005 | 31120-HP1-003 | Stator trigger pickup coil replacement |
| TRX450ER | 2004-2005 | 31120-HP1-003 | Ignition pickup coil replacement when size matches |
| Sportrax ATV / 4-Wheeler / Quad | 2004-2005 | 31120-HP1-003 | Magneto pickup coil replacement |
⚠️ Please confirm your original OEM part number, connector, wire count, and mounting style before purchase.
Specifications
| Item | Details |
| Product Type | Stator Trigger Pickup Coil |
| Also Known As | Magneto Pickup Coil / Ignition Pickup Coil / Pulse Coil |
| Wire Count | 2 Wire |
| Mounting Hole Diameter | 5mm / 0.20" |
| Mounting Hole Distance | 33mm / 1.3" |
| OEM Reference Number | 31120-HP1-003 |
| Compatible Models | TRX450R / TRX450ER Sportrax |
| Compatible Years | 2004 / 2005 |
| Compatible Vehicle Type | ATV / 4-Wheeler / Quad |
| Application | Ignition timing signal pickup |
| Condition | 100% Brand New |
Key Features
- Replacement stator trigger pickup coil for selected TRX450R / TRX450ER applications
- Replaces OEM reference number 31120-HP1-003
- 2-wire design for compatible ignition pickup systems
- 33mm mounting hole distance and 5mm mounting hole diameter for fitment verification
- Helps repair no-spark, hard-start, intermittent ignition, or misfire issues related to a faulty pickup coil
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator trigger pickup coil is designed for selected 2004-2005 TRX450R / TRX450ER Sportrax ATV applications. Fitment depends on the OEM part number, wire count, connector style, mounting hole distance, mounting hole diameter, and pickup coil shape.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This product is listed as a replacement for 31120-HP1-003. You should also compare the 2-wire design, 33mm / 1.3" mounting hole distance, and 5mm / 0.20" mounting hole diameter with your original part.
What models or situations does this part not fit?
This part may not fit other TRX models, other years, vehicles with a different ignition harness, different connector, different stator plate, different wire count, or systems that require a complete stator assembly instead of a pickup coil only.
What should I check before ordering?
Before ordering, check your original OEM part number, wire count, connector type, mounting hole distance, mounting hole diameter, screw spacing, coil shape, stator plate layout, wire routing, and product photos. Make sure the replacement part matches your original ignition pickup coil.
