STELS Guepard 650 800 850 ODES Dominator Raider 18-Coil 3-Wire Stator 21040109701
STELS Guepard 650 800 850 ODES Dominator Raider 18-Coil 3-Wire Stator 21040109701
Couldn't load pickup availability
Product Overview

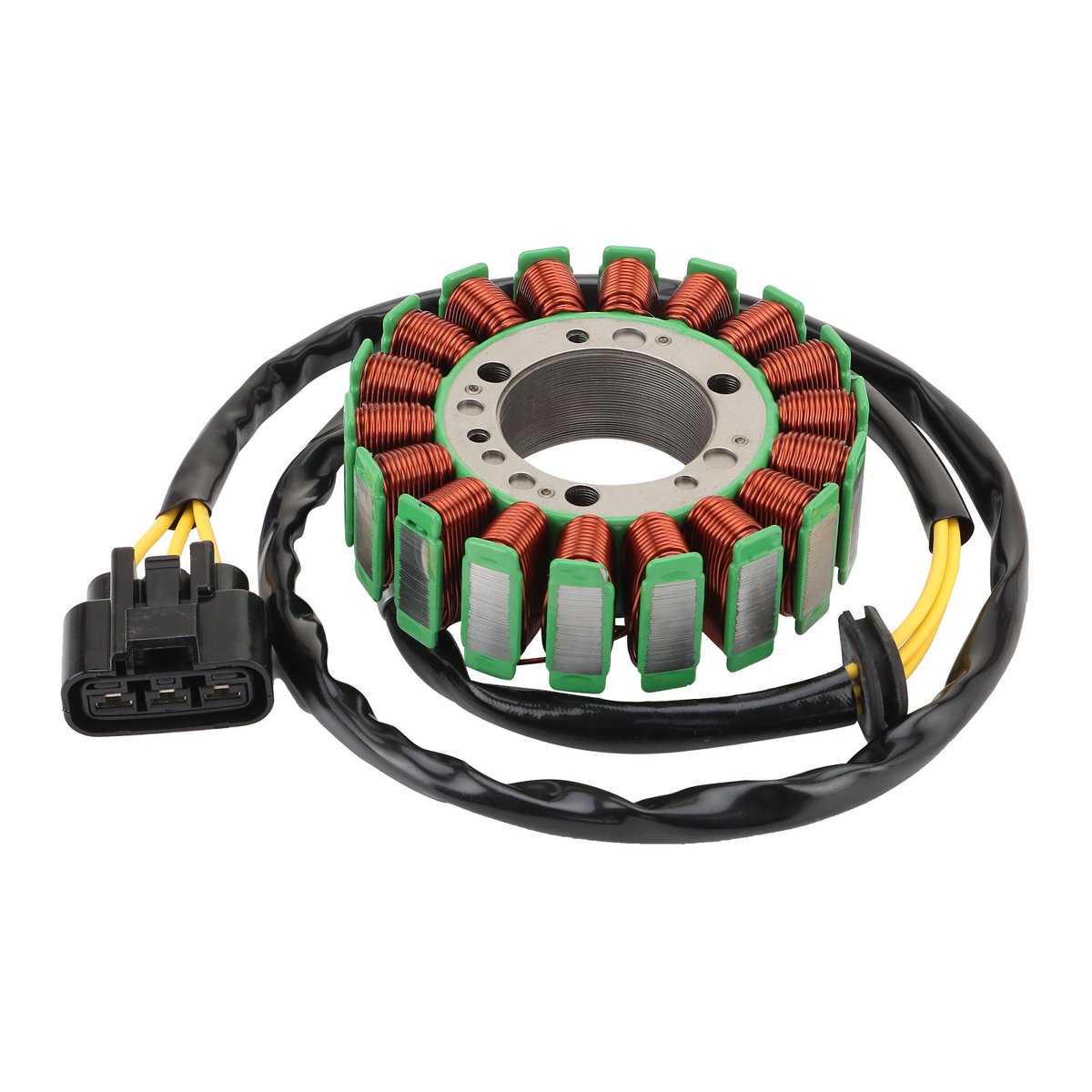

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select STELS ATV / UTV and ODES UTV applications, including STELS Guepard 650, Guepard 800, Guepard 850, ODES Dominator 800, and ODES Raider 800 models.
The stator is an important part of the ATV / UTV charging system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, sensors, and other electrical components. If your STELS or ODES vehicle has weak charging, low battery voltage, dim lights, unstable electrical output, or stator-related failure, replacing the stator may help restore normal charging performance.
Built with high-quality metal lamination and copper windings, this replacement stator is designed for stable conductivity, rust and corrosion resistance, deformation resistance, and long-term durability. Please compare your original stator’s OEM/reference number, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make / Brand | Model | Engine / Platform | Reference Number | Fitment Notes |
|---|---|---|---|---|
| STELS | Guepard 650 | ATV | 370101-001-0000 / 21040109701 / LU049967 | Main fitment; confirm original stator size and plug layout |
| STELS | Guepard 800 | ATV | 370101-001-0000 / 21040109701 / LU049967 | Fits matching 18-coil 3-wire stator version only |
| STELS | Guepard 850 | ATV | 370101-001-0000 / 21040109701 / LU049967 | Compare reference number, wire count, and dimensions |
| ODES | Dominator 800 | UTV | 31120-E05-0000 / 21040109701 / 370101-001-0000 | Main ODES fitment; verify connector layout |
| ODES | Raider 800 | UTV | 31120-E05-0000 / 21040109701 / 370101-001-0000 | Fits only if original stator matches this design |
| STELS / RM / PM | 800V / RM 800 / PM 800 | ATV / UTV | 21040109701 / 370101-001-0000 / LU049967 | Possible fitment; check original part before ordering |
| STELS | Rosomaha 800 / Viking 800 / Knight 800 | ATV / UTV | 21040109701 / 370101-001-0000 / LU049967 | Possible fitment only if OEM/reference number and dimensions match |
| ODES / Liangzi / LZ | 800 UTV | UTV / Side-by-Side | 31120-E05-0000 / 21040109701 | Fitment must be confirmed by original stator and connector |
Important Fitment Note:
This part is not selected by engine size or vehicle name alone. STELS and ODES 800-class ATV / UTV models may use different charging components depending on year, market, engine version, and wiring system. Please confirm your original stator matches the reference number, 18-coil / 3-wire layout, DC type, connector style, mounting hole spacing, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

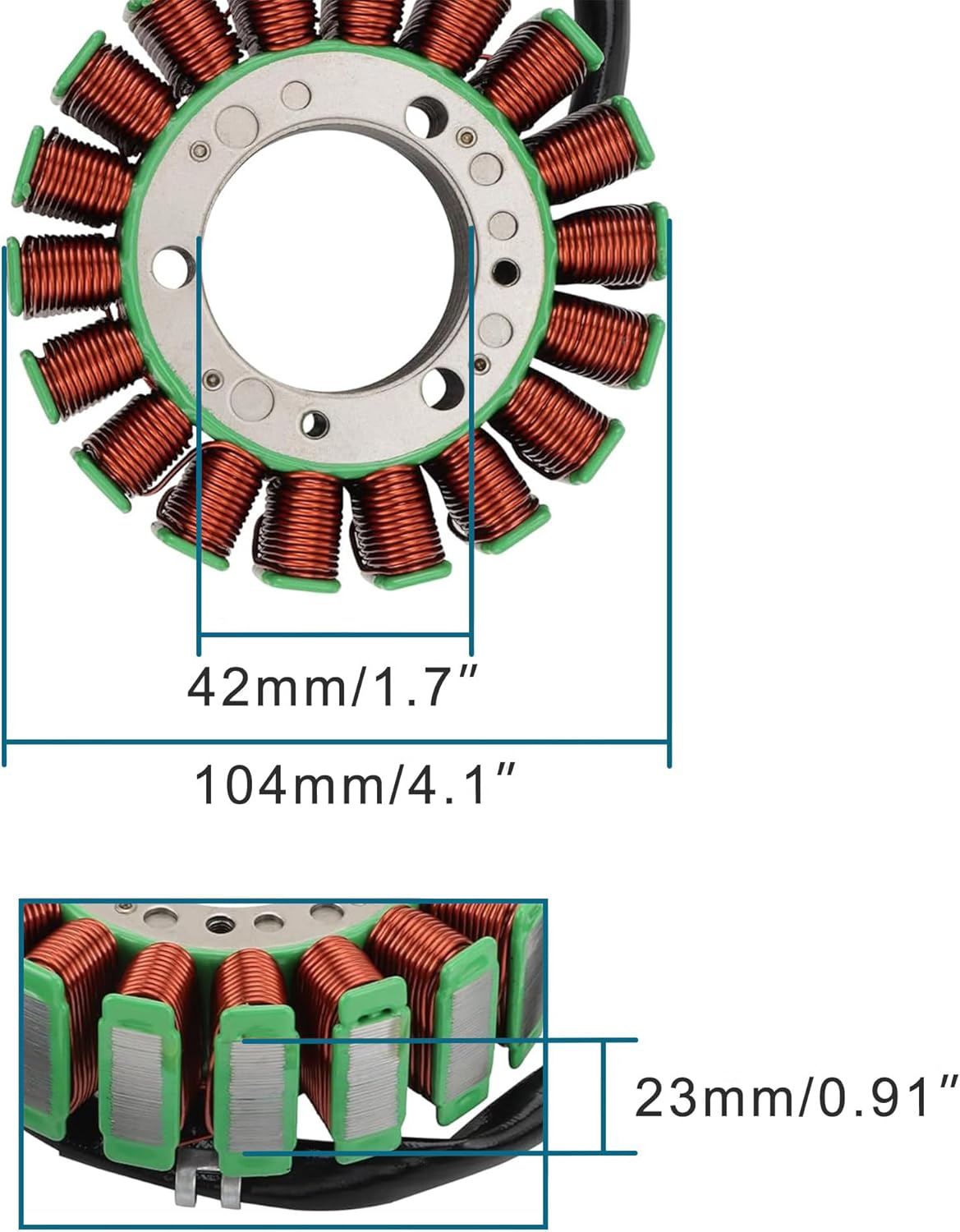

| Inner Diameter | 42mm / 1.7" |
| Outer Diameter | 104mm / 4.1" |
| Iron Core Height | 23mm / 0.91" |

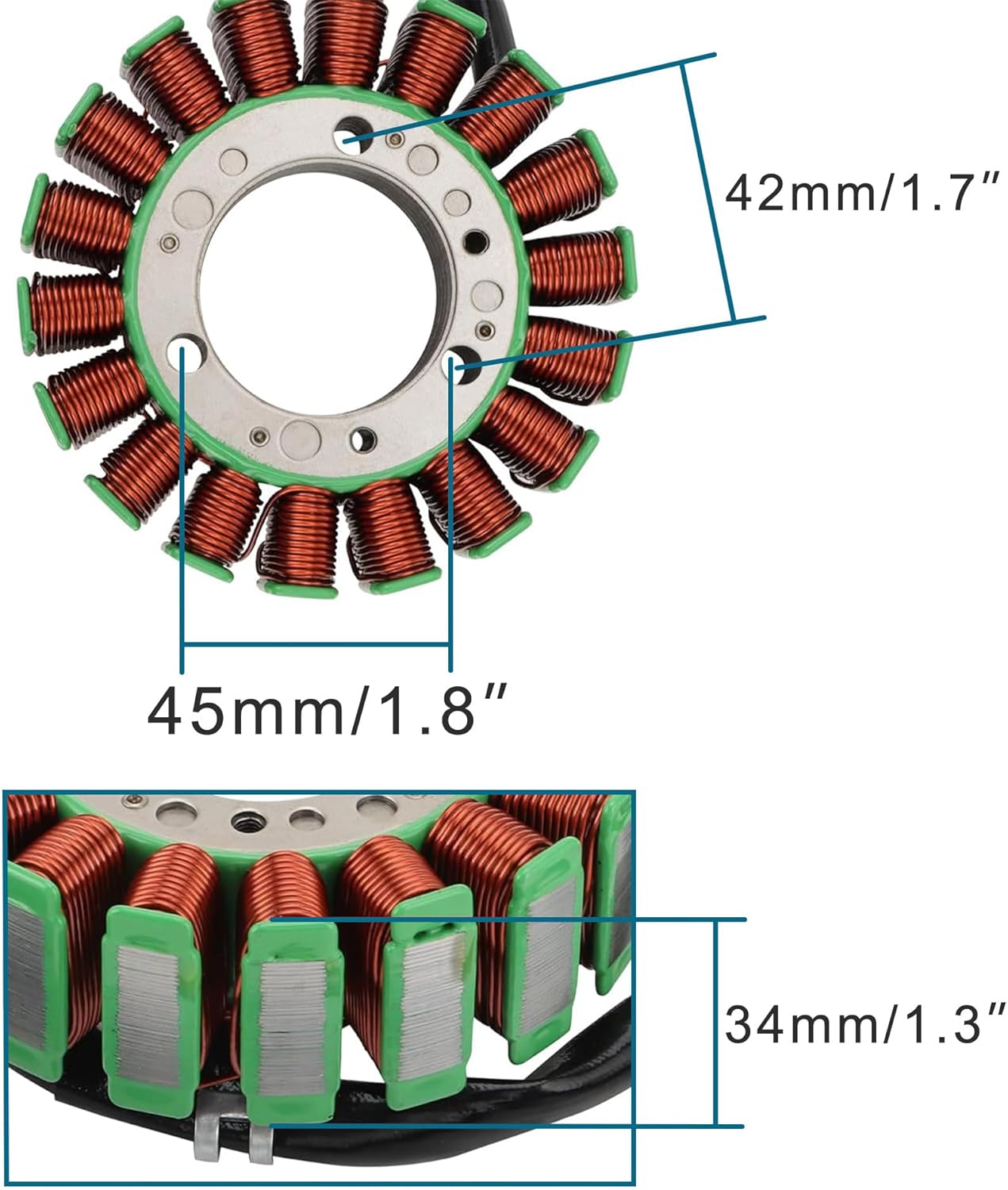

| Mounting Hole Distance | 42mm / 1.7" and 45mm / 1.8" |
| Thickness | 34mm / 1.3" |
| OEM / Reference Number | 370101-001-0000 / 31120-E05-0000 / 21040109701 / LU049967 |
| Application | ATV / UTV Charging System |
| Compatible Brands | STELS, ODES, Jinling / Liangzi-style 800 UTV platforms |
| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select STELS Guepard 650 / 800 / 850 ATV models
- Fits select ODES Dominator 800 and Raider 800 UTV applications
- Replaces common reference numbers 370101-001-0000, 31120-E05-0000, 21040109701, and LU049967
- 18-coil 3-wire DC stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, unstable output, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original reference number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 370101-001-0000 | Common reference for STELS Guepard / STELS ATV stator applications |
| 31120-E05-0000 | Common ODES / Dominator 800 stator reference |
| 21040109701 | Main aftermarket replacement reference for STELS Guepard and ODES 800 UTV stator listings |
| LU049967 | Common STELS / ATV stator reference |
| 291.9.1 | Possible related reference on some STELS / ATV stator listings |
Please use the reference number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select STELS Guepard 650, 800, and 850 ATV models and select ODES Dominator 800 / Raider 800 UTV models using reference numbers 370101-001-0000, 31120-E05-0000, 21040109701, or LU049967. Fitment may vary by year, market, and engine version, so please compare your original stator’s reference number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This stator commonly replaces 370101-001-0000, 31120-E05-0000, 21040109701, and LU049967. However, reference number alone is not enough. Please also confirm the 18-coil 3-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit STELS, ODES, or other ATV / UTV models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, CDI, ignition coil, starter motor, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your vehicle’s make, model, year, engine version, OEM/reference number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
