2010–2017 Suzuki DF40A DF50A DF60A Outboard 18-Coil 5-Wire Stator 32120-88L00
2010–2017 Suzuki DF40A DF50A DF60A Outboard 18-Coil 5-Wire Stator 32120-88L00
Couldn't load pickup availability
Product Overview

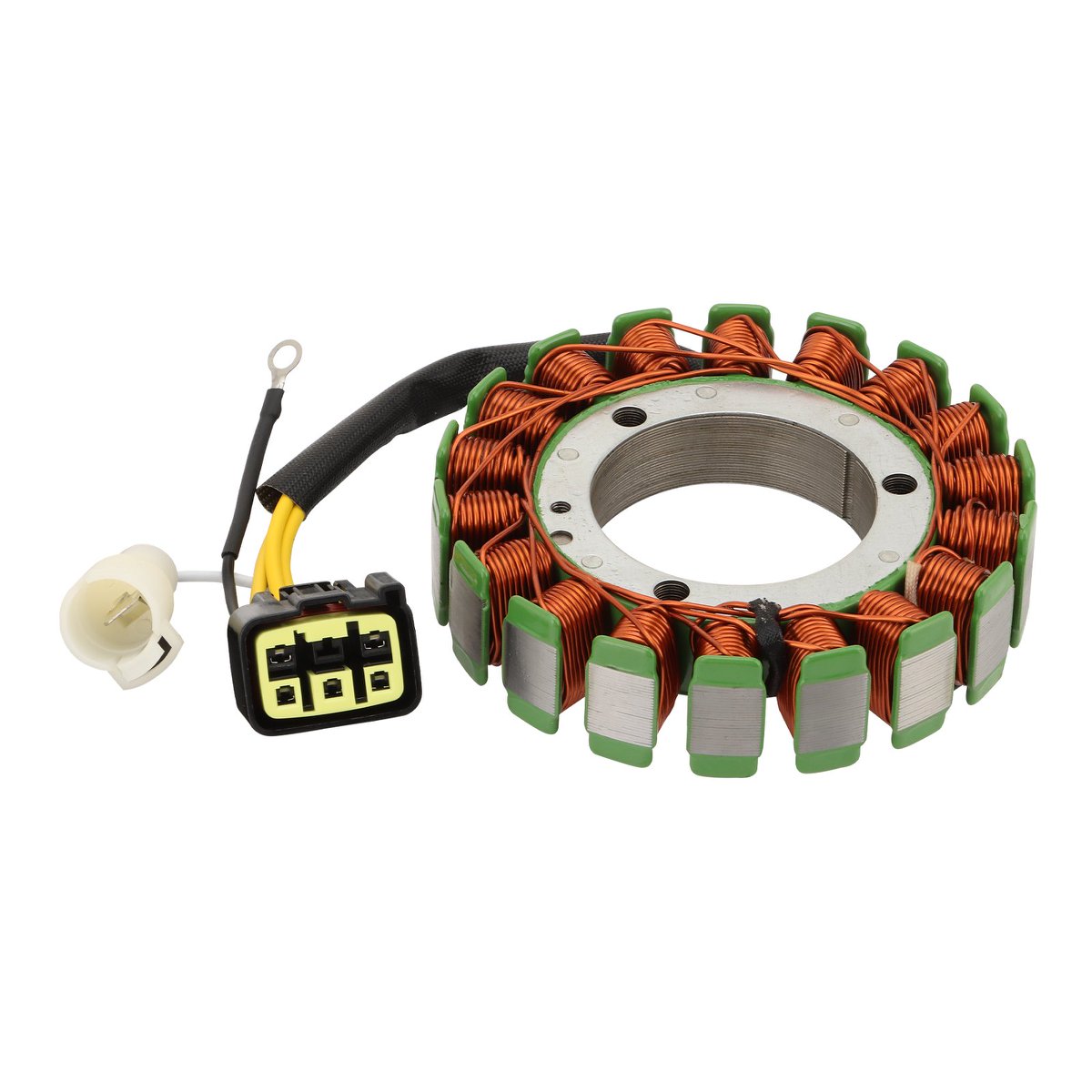

Replace a weak, burned, or failed generator stator coil with this 18-coil 5-wire magneto stator, designed for select Suzuki DF40A, DF50A, DF50AV, DF60A, and DF60AV outboard motors using OEM reference number 32120-88L00.
The stator is an important part of the outboard charging system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, sensors, and electrical accessories. If your Suzuki outboard has weak charging, low battery voltage, unstable electrical output, repeated battery drain, or stator-related failure, replacing the stator may help restore normal charging performance.

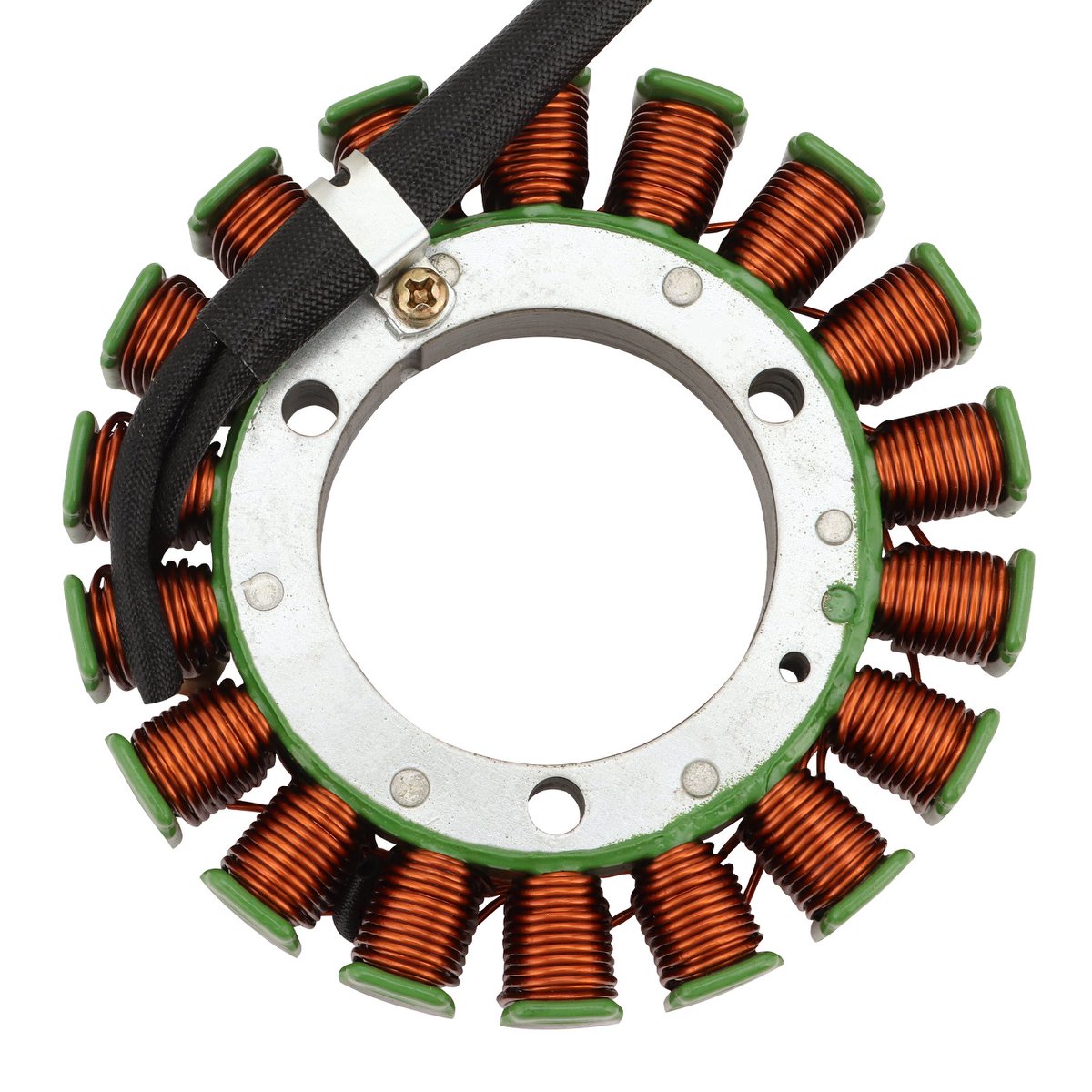

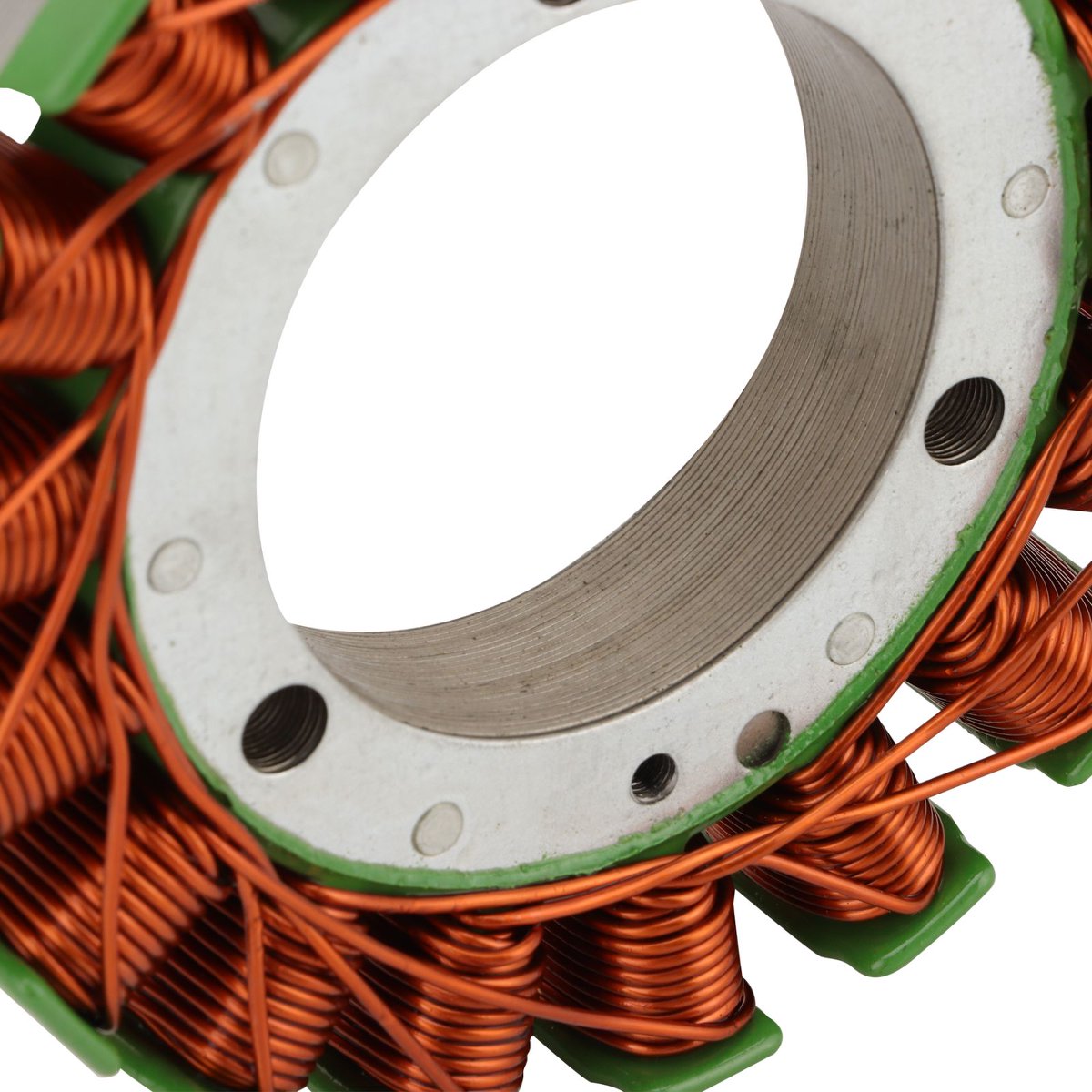

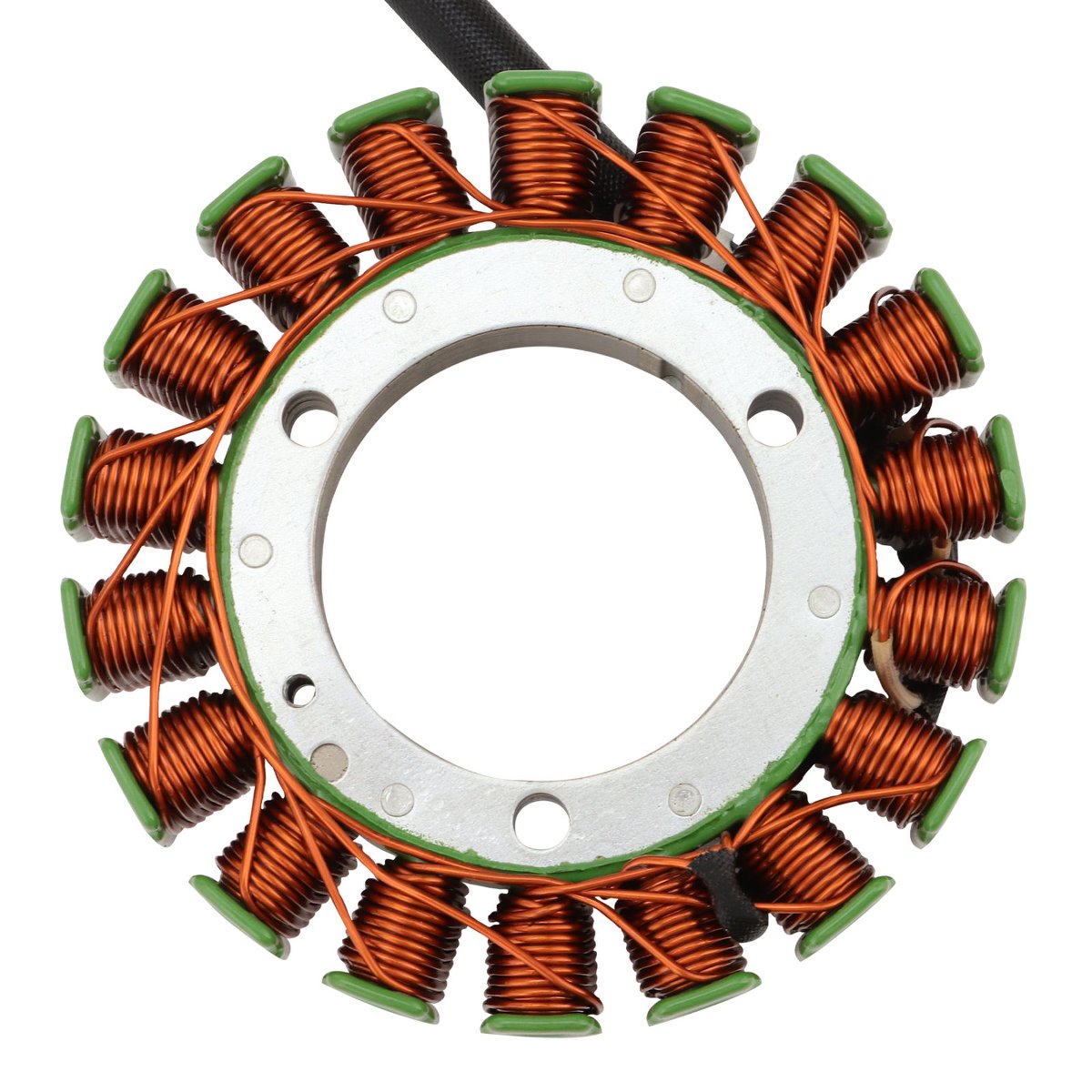

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life in marine operating conditions. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, thickness, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | DF40A Outboard | 2011–2017 | 32120-88L00 | Main fitment; confirm original stator size and plug layout |
| Suzuki | DF50A Outboard | 2010–2017 | 32120-88L00 | Fits matching 18-coil 5-wire charging stator version |
| Suzuki | DF50AV Outboard | 2014–2017 | 32120-88L00 | Verify original connector, pins, and dimensions |
| Suzuki | DF60A Outboard | 2010–2017 | 32120-88L00 | Main fitment; compare OEM number and original part |
| Suzuki | DF60AV Outboard | 2014–2017 | 32120-88L00 | Fits only if original stator matches this design |
| Suzuki | DF40A / DF50A / DF60A 40–60 HP Outboard | Select 2010–2017 applications | 32120-88L00 | Confirm exact model, year, and charging coil before ordering |
Important Fitment Note:
This part is not selected by horsepower alone. Suzuki 40HPThis part is not selected by horsepower alone. Suzuki 40HP, 50HP, and 60HP outboard motors may use different charging components depending on year, shaft type, market, and electrical system. Please confirm your original stator matches OEM 32120-88L00, the 18-coil / 5-wire layout, DC type, connector style, 54mm inner diameter, 115mm outer diameter, 55mm mounting hole distance, and overall shape before ordering.

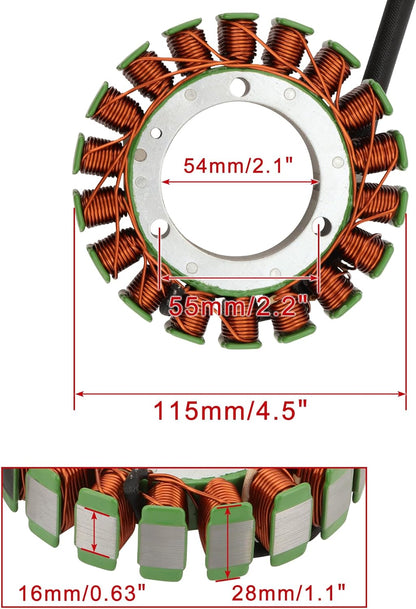

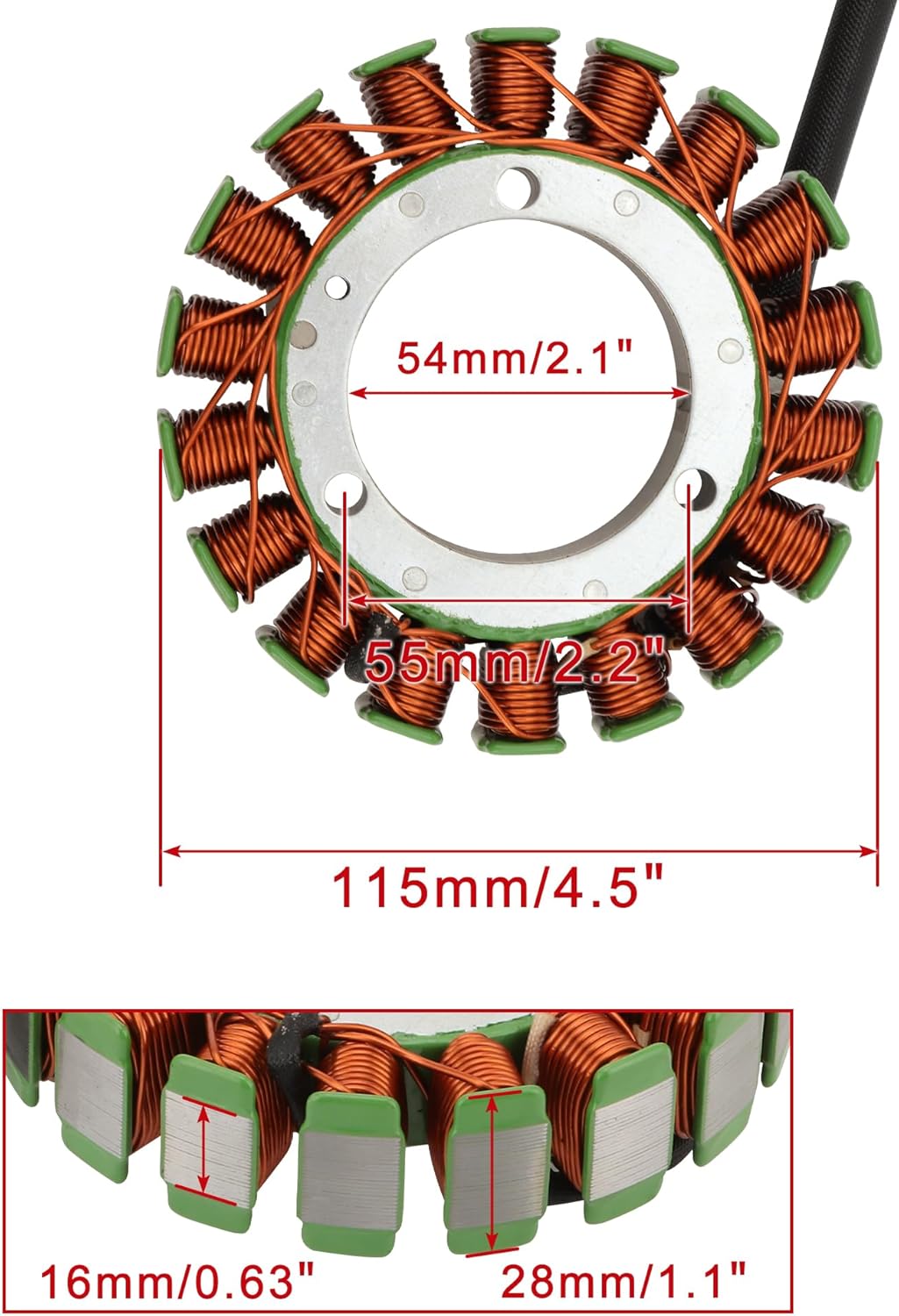

Specifications
| Specification | Details |
| Product Type | Outboard Generator Stator Coil / Magneto Stator |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |
| Inner Diameter | 54mm / 2.1" |
| Outer Diameter | 115mm / 4.5" |
| Iron Core Height | 16mm / 0.63" |
| Mounting Hole Distance | 55mm / 2.2" |
| Thickness | 28mm / 1.1" |
| OEM Reference | 32120-88L00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Marine Outboard Charging System |
| Compatible Brand | Suzuki |
| Compatible Engine Type | DF40A / DF50A / DF50AV / DF60A / DF60AV Outboard |
Key Features
- Designed for select Suzuki DF40A, DF50A, DF50AV, DF60A, and DF60AV outboard motors
- Replaces OEM reference number 32120-88L00
- 18-coil 5-wire DC stator helps support stable outboard charging system output
- Helps address weak charging, low battery voltage, battery drain, and unstable electrical output
- Suitable for matching Suzuki 40HP, 50HP, and 60HP marine outboard applications
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, plug layout, thickness, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32120-88L00 | Main Suzuki OEM reference for compatible DF40A / DF50A / DF60A outboard stator applications |
| 3212088L00 | Compact format of 32120-88L00 |

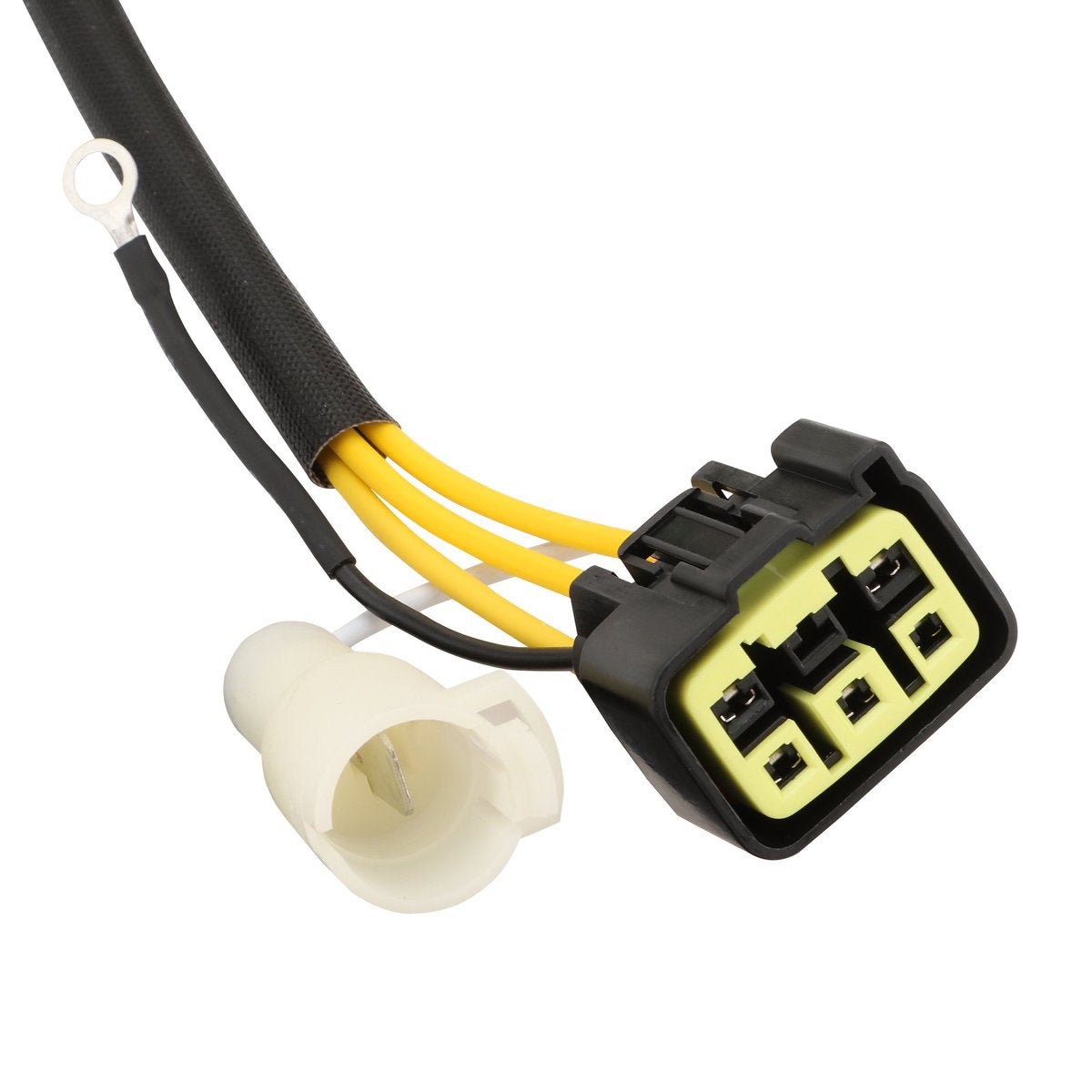

Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, plug count, pin count, or connector style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki DF40A, DF50A, DF50AV, DF60A, and DF60AV outboard motors using OEM reference number 32120-88L00. Common aftermarket fitment ranges include DF40A 2011–2017, DF50A 2010–2017, DF50AV 2014–2017, DF60A 2010–2017, and DF60AV 2014–2017. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Suzuki OEM 32120-88L00. However, OEM number alone is not enough. Please also confirm the 18-coil 5-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, stator thickness, and connector layout.
What models or situations does this part not fit?
This part does not fit Suzuki outboard motors that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, different thickness, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, ignition coil, starter motor, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your outboard’s make, model, year, horsepower, shaft / trim version if applicable, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
