2002–2012 Suzuki DL1000 V-Strom 18-Coil 5-Wire Stator 32101-06G11
2002–2012 Suzuki DL1000 V-Strom 18-Coil 5-Wire Stator 32101-06G11
Couldn't load pickup availability
Product Overview

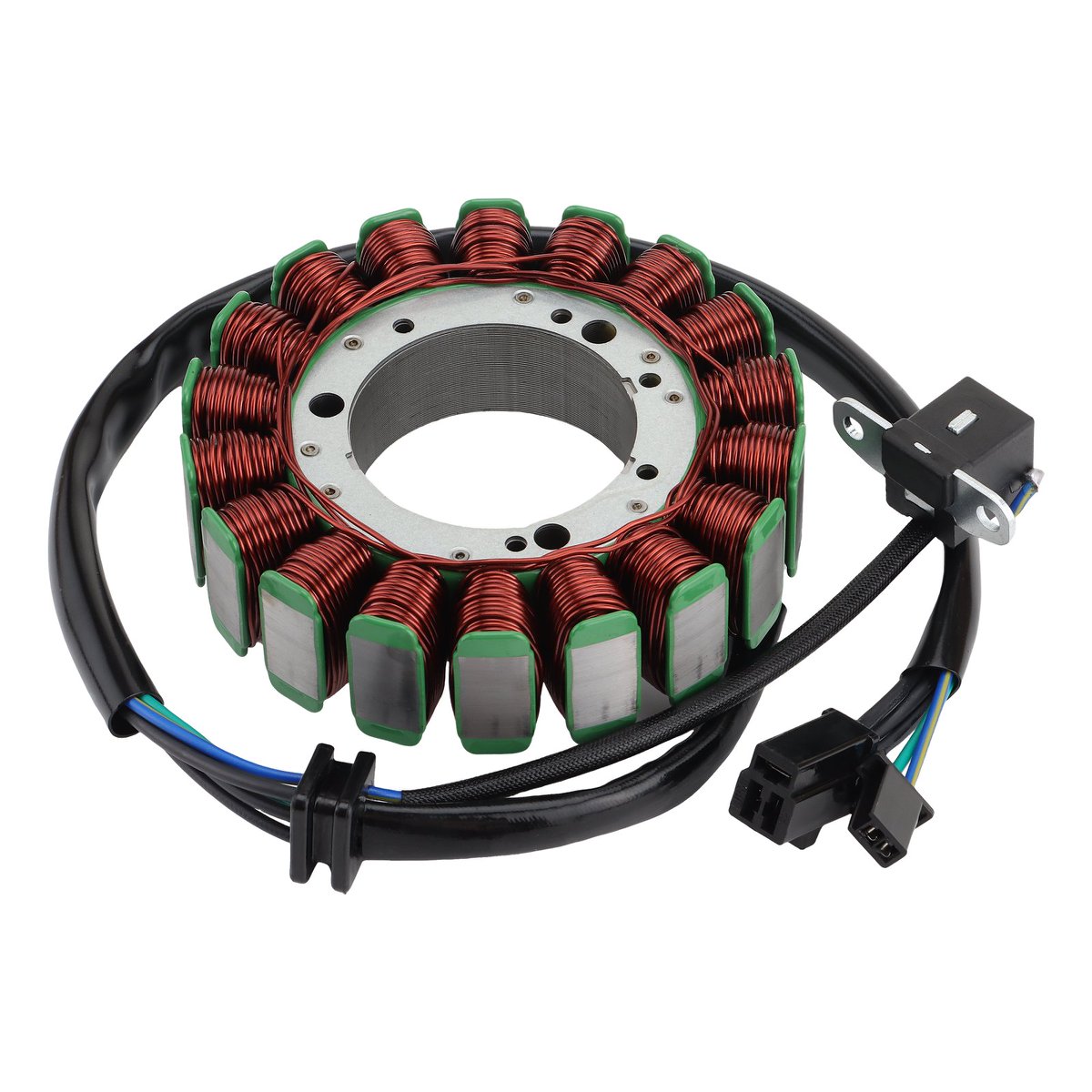

Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for 2002–2012 Suzuki DL1000 V-Strom motorcycles using OEM reference numbers 32101-06G00, 32101-06G10, and 32101-06G11.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Suzuki DL1000 V-Strom has battery charging problems, dim lights, unstable voltage, or repeated electrical failure, replacing the stator may help restore normal charging performance.
Built for stable electrical output and long service life, this replacement stator is suitable for matching DL1000 V-Strom models with the correct outer diameter, center hole diameter, mounting hole spacing, and connector layout. Please compare your original stator’s OEM number, wire count, plug style, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | DL1000 V-Strom / DL1000K2 | 2002 | 32101-06G00 / 32101-06G10 / 32101-06G11 | Confirm original stator outer diameter and plug layout |
| Suzuki | DL1000 V-Strom / DL1000K3 | 2003 | 32101-06G00 / 32101-06G10 / 32101-06G11 | Fits matching 18-coil 5-wire stator version |
| Suzuki | DL1000 V-Strom / DL1000K4 | 2004 | 32101-06G00 / 32101-06G10 / 32101-06G11 | Compare OEM number and mounting holes before purchase |
| Suzuki | DL1000 V-Strom / DL1000K5 | 2005 | 32101-06G00 / 32101-06G10 / 32101-06G11 | Must match original stator size and connector |
| Suzuki | DL1000 V-Strom / DL1000K6 | 2006 | 32101-06G00 / 32101-06G10 / 32101-06G11 | Fits only matching stator configuration |
| Suzuki | DL1000 V-Strom / DL1000K7 | 2007 | 32101-06G10 / 32101-06G11 | Confirm plug style, wire count, and dimensions |
| Suzuki | DL1000 V-Strom / DL1000K8 | 2008 | 32101-06G10 / 32101-06G11 | Check original stator before ordering |
| Suzuki | DL1000 V-Strom / DL1000K9 | 2009 | 32101-06G10 / 32101-06G11 | Fits models using matching 5-wire stator |
| Suzuki | DL1000 V-Strom / DL1000L0 | 2010 | 32101-06G10 / 32101-06G11 | Market-dependent fitment; verify original part |
| Suzuki | DL1000 V-Strom / DL1000L1 | 2011 | 32101-06G10 / 32101-06G11 | Market-dependent fitment; compare OEM and size |
| Suzuki | DL1000 V-Strom / DL1000L2 | 2012 | 32101-06G10 / 32101-06G11 | Confirm original stator and connector layout |
| Suzuki | DL1000 V-Strom WVBS | 2002–2012 | 32101-06G00 / 32101-06G10 / 32101-06G11 | Fits only matching WVBS versions with the same stator design |
Important Fitment Note:
This part is not selected by engine size alone. Suzuki DL1000 V-Strom models may use different charging system parts depending on year, market, and production version. Please confirm your original stator matches the OEM reference, 18-coil / 5-wire layout, outer diameter, center hole diameter, mounting hole spacing, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

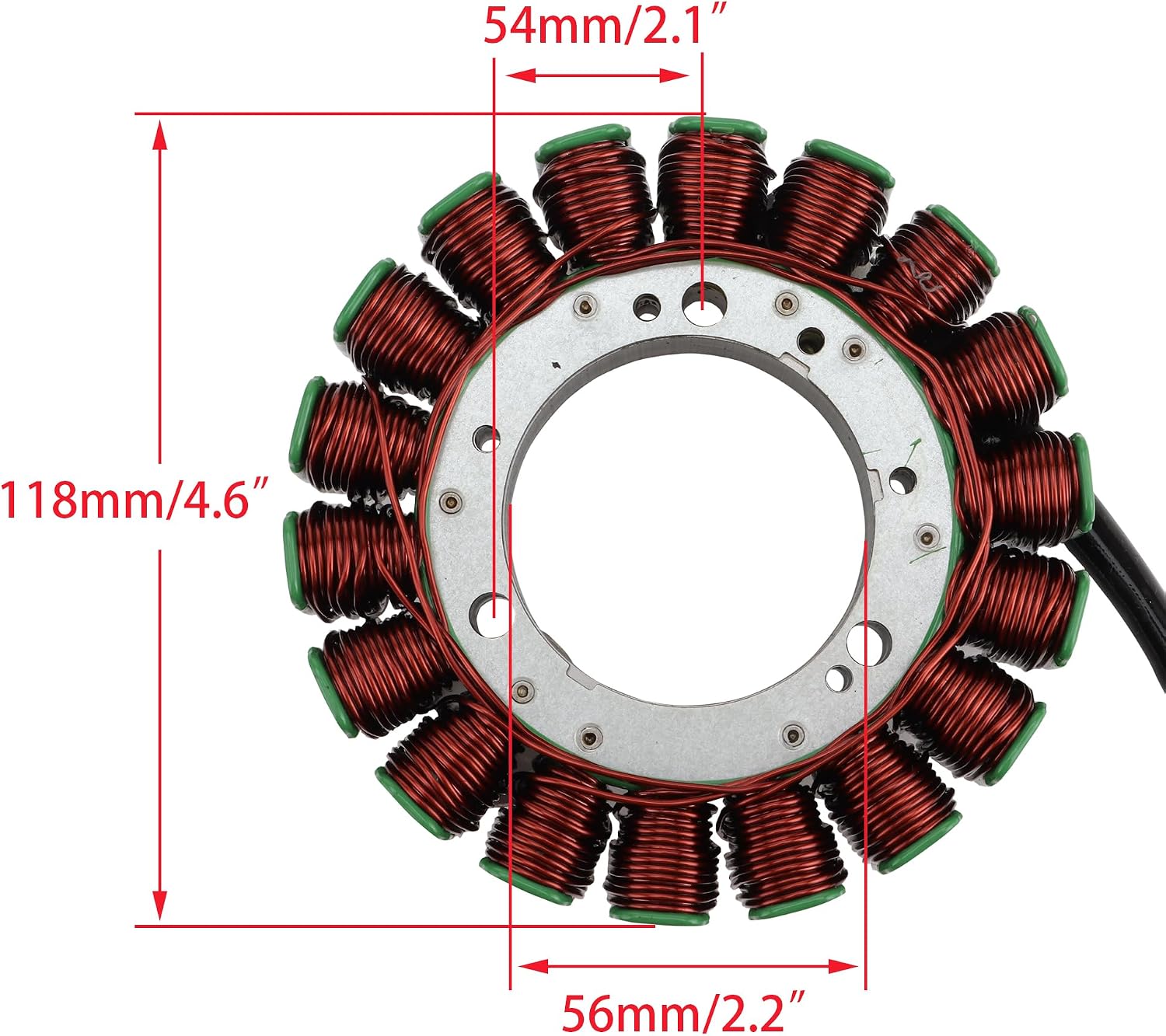

| Outer Diameter | 118mm / 4.6" |
| Center Hole Diameter | 54mm / 2.1" |
| Mounting Hole Distance | 56mm / 2.2" |

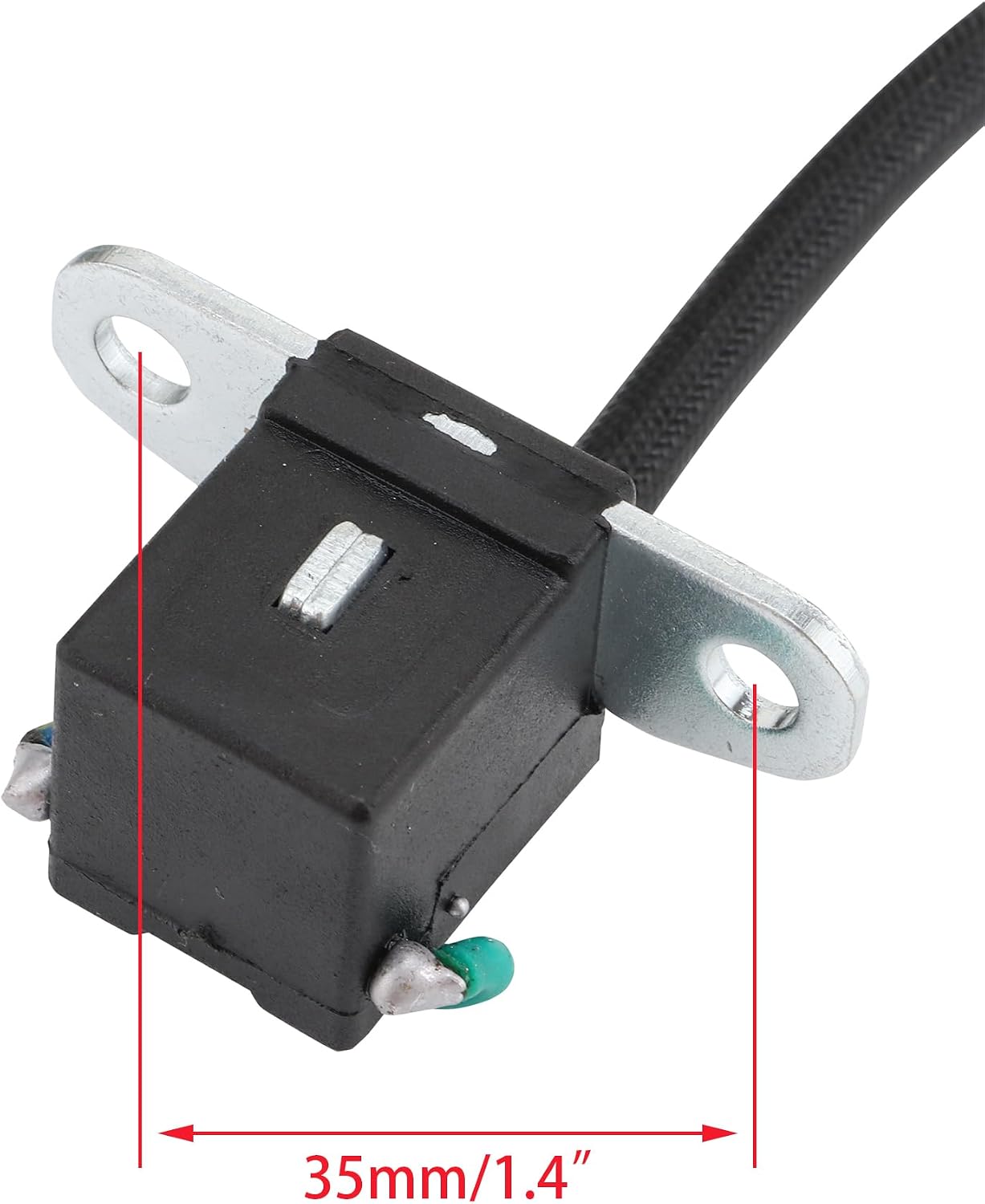

| Installation Hole Spacing | 35mm / 1.4" |
| OEM Reference | 32101-06G00 / 32101-06G10 / 32101-06G11 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Suzuki |
Key Features
- Designed for 2002–2012 Suzuki DL1000 V-Strom motorcycles
- Fits select DL1000 V-Strom WVBS versions with matching stator design
- Replaces OEM reference numbers 32101-06G00, 32101-06G10, and 32101-06G11
- 18-coil 5-wire stator helps support stable charging system output
- Helps address weak battery charging, dim lights, unstable voltage, or stator failure
- Built for dependable electrical performance in the motorcycle charging system
- Direct replacement style, but original OEM number, plug, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-06G00 | Common OEM reference for earlier Suzuki DL1000 V-Strom stator applications |
| 32101-06G10 | Common OEM reference for compatible DL1000 V-Strom stator applications |
| 32101-06G11 | Main replacement reference used on many 2002–2012 DL1000 V-Strom listings |
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for 2002–2012 Suzuki DL1000 V-Strom models, including select WVBS versions, using OEM reference numbers 32101-06G00, 32101-06G10, and 32101-06G11. Fitment can vary by market and production version, so please compare your original stator’s OEM number, wire count, connector layout, outer diameter, center hole diameter, and mounting hole spacing before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 32101-06G00, 32101-06G10, and 32101-06G11. However, OEM number alone is not enough. Please also confirm that your original stator uses the same 18-coil 5-wire design, connector style, outer diameter, center hole diameter, and mounting hole spacing.
What models or situations does this part not fit?
This part does not fit Suzuki DL1000 V-Strom models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different OEM design. It is also not suitable if your charging issue is caused only by a bad regulator rectifier, weak battery, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, outer diameter, center hole diameter, mounting hole distance, installation hole spacing, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
