2015–2022 Suzuki DL650 DL650X V-Strom 650 18-Coil 5-Wire Stator 32101-28K00
2015–2022 Suzuki DL650 DL650X V-Strom 650 18-Coil 5-Wire Stator 32101-28K00
Couldn't load pickup availability
Product Overview

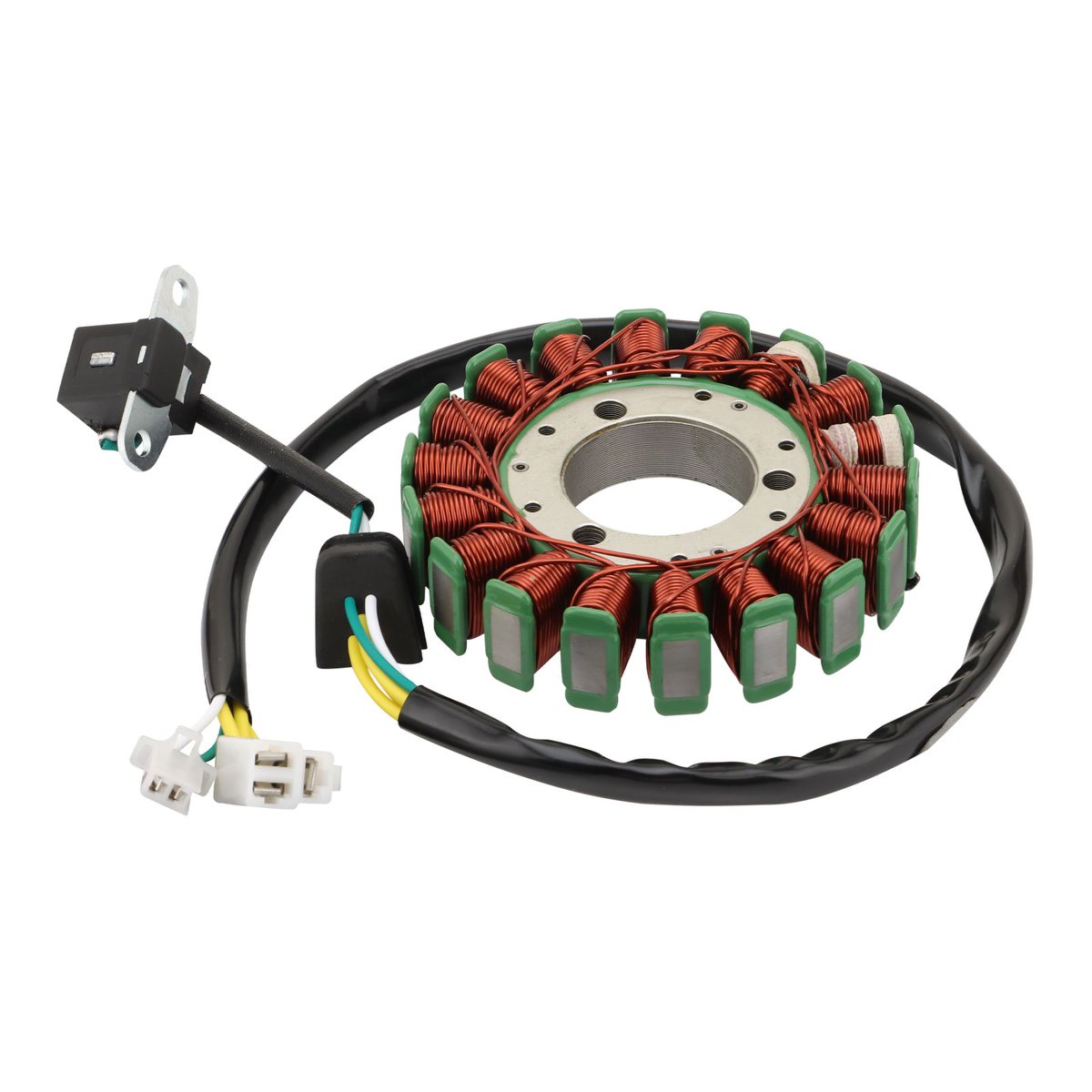

Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for select Suzuki DL650, DL650X, and DL650XA V-Strom 650 motorcycles using OEM reference number 32101-28K00.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, sensors, and other electrical components. If your Suzuki V-Strom 650 has weak charging, low battery voltage, dim lights, repeated battery drain, unstable voltage, or stator-related failure, replacing the stator may help restore normal charging performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Suzuki | DL650 V-Strom 650 | 2017–2022 | 32101-28K00 | Main fitment; confirm original stator size and plug layout |
| Suzuki | DL650A V-Strom 650 ABS | 2015–2022 | 32101-28K00 | Fits matching 18-coil 5-wire stator version only |
| Suzuki | DL650X ABS V-Strom 650 | 2015–2022 | 32101-28K00 | Compare OEM number, connector, and dimensions before purchase |
| Suzuki | DL650XA V-Strom 650 XT ABS | 2015–2022 | 32101-28K00 | Common related fitment; verify exact model and original stator |
| Suzuki | V-Strom 650 / VStrom 650 | Select 2015–2022 models | 32101-28K00 | Model-name variation; confirm original part before ordering |
Important Fitment Note:
This part is not selected by model name alone. Suzuki DL650 V-Strom 650 models may use different stator designs depending on year, market, ABS / XT version, and charging system. Please confirm your original stator matches OEM 32101-28K00, the 18-coil / 5-wire layout, DC type, connector style, trigger coil position, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

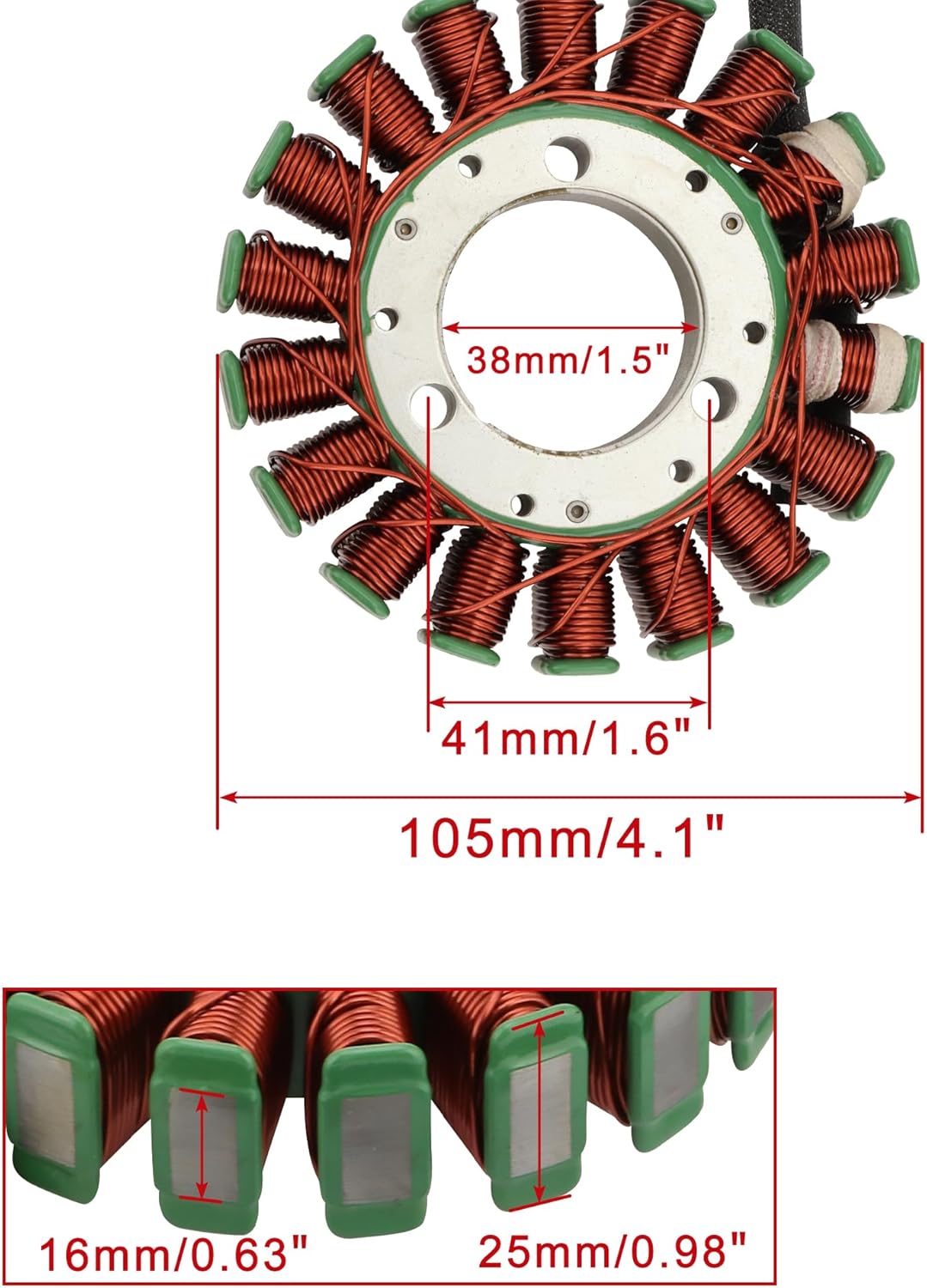

| Inner Diameter | 38mm / 1.5" |
| Outer Diameter | 105mm / 4.1" |
| Iron Core Height | 16mm / 0.63" |
| Mounting Hole Distance | 41mm / 1.6" |
| Thickness | 25mm / 0.98" |

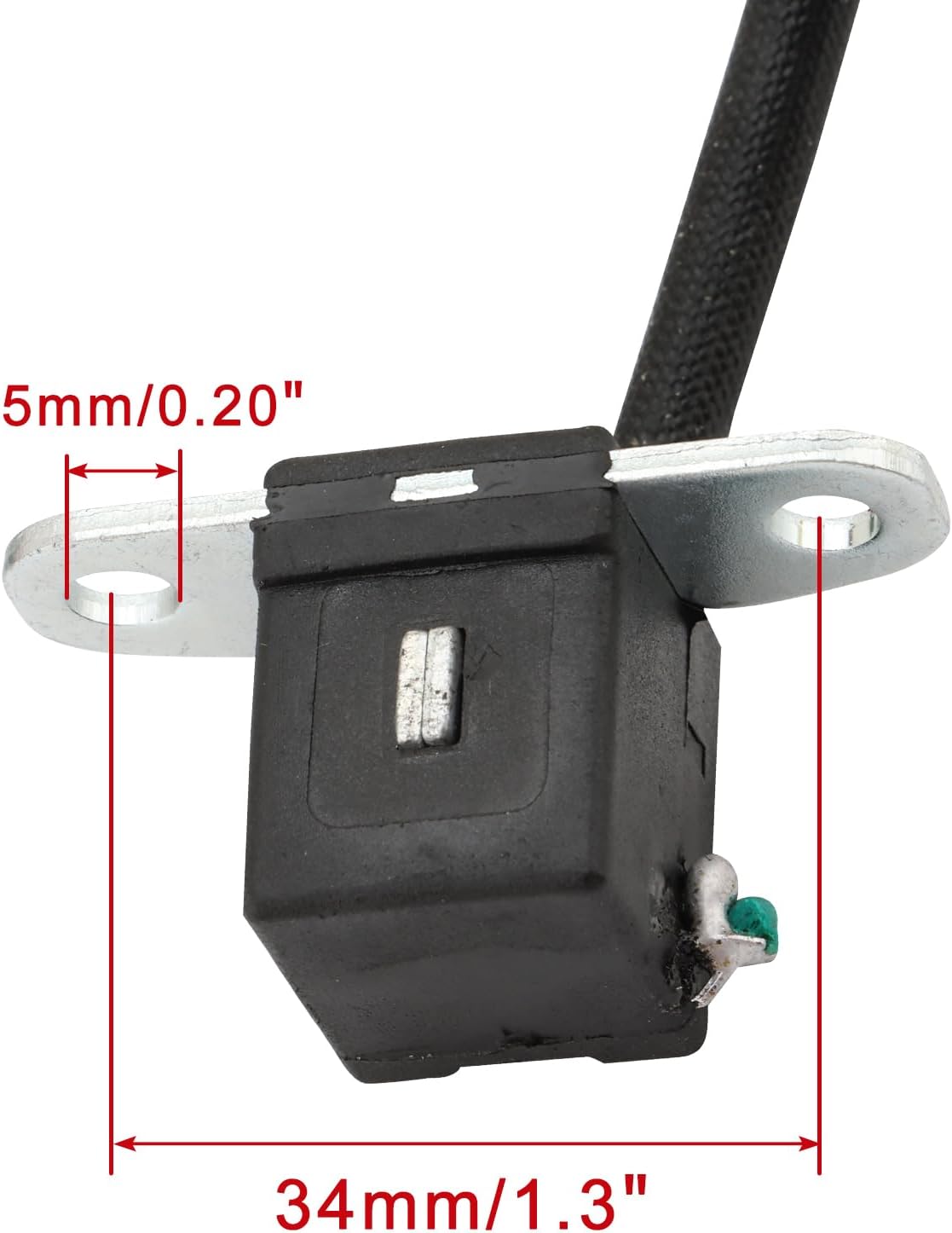

| Trigger Mounting Hole Distance | 34mm / 1.3" |
| Trigger Mounting Hole Diameter | 5mm / 0.20" |
| OEM Reference | 32101-28K00 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Suzuki |
Key Features
- Designed for select Suzuki DL650 / DL650X / DL650XA V-Strom 650 motorcycles
- Replaces OEM reference number 32101-28K00
- 18-coil 5-wire DC stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, battery drain, or stator failure
- Includes pickup / trigger coil position for matching applications
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 32101-28K00 | Main OEM reference for compatible Suzuki DL650 / DL650X / DL650XA V-Strom 650 stator applications |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, trigger coil position, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Suzuki DL650 V-Strom 650 models from 2017–2022 and select DL650X / DL650XA ABS V-Strom 650 models from 2015–2022 using OEM reference number 32101-28K00. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Suzuki OEM 32101-28K00. However, OEM number alone is not enough. Please also confirm the 18-coil 5-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, and stator thickness.
What models or situations does this part not fit?
This part does not fit Suzuki DL650, DL650X, V-Strom 650, or other Suzuki models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or different OEM charging system design. It is also not a replacement for the regulator rectifier, battery, ignition coil, starter motor, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, ABS / XT version, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
